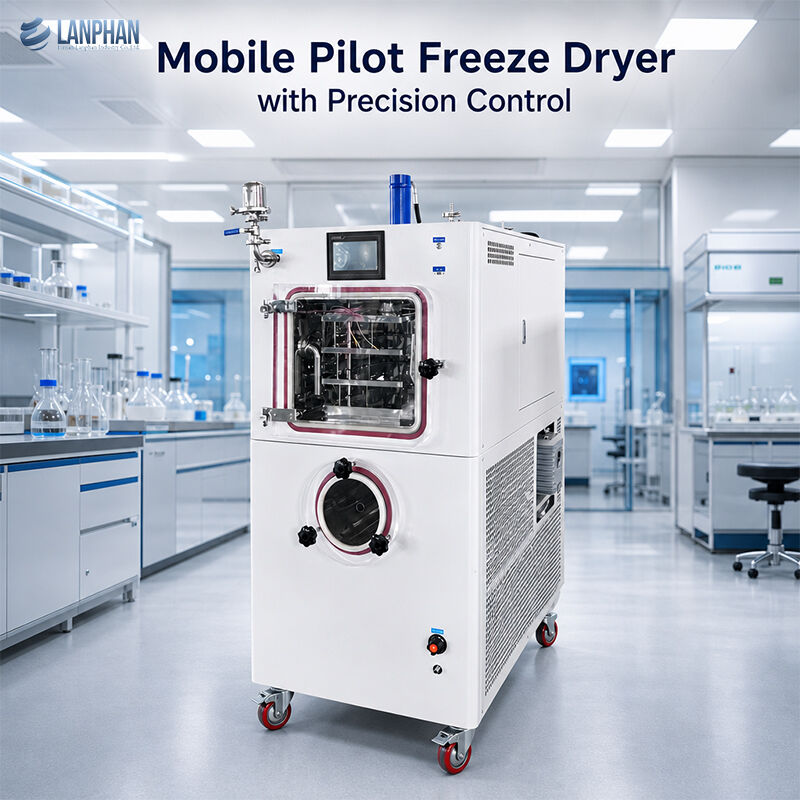

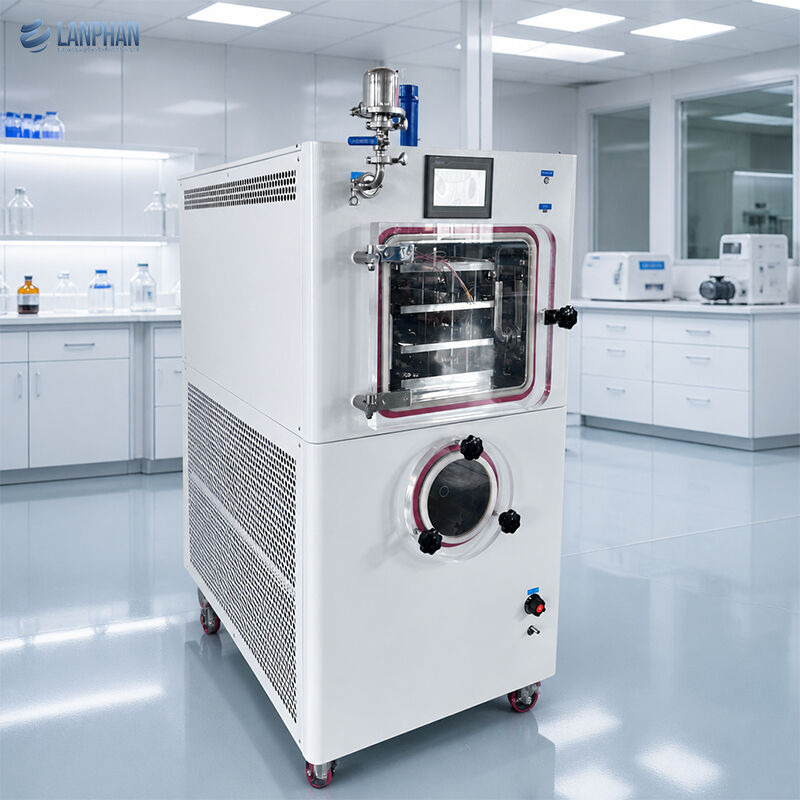

Name: Pilot Scale Freeze Dryer 0.3m² Pharmaceutical Lyophilizer with Real-Time Temperature Monitoring and Stainless Steel Construction
Brand: Henan Lanphan Industry Co.,Ltd
SKU: LGJ-30
Price: 11900 USD
Availability: InStock

Home > products > Vacuum Freeze Dryer >

Pilot Scale Freeze Dryer 0.3m² Pharmaceutical Lyophilizer with Real-Time Temperature Monitoring and Stainless Steel Construction

0.3m² Freeze Drying Area Pilot Scale Freeze Dryer

Real-Time Temperature Monitoring Pharmaceutical Lyophilizer

Stainless Steel Construction Vacuum Freeze Dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

LGJ-30

Request A Quote

Pilot Scale Freeze Dryer 0.3m² Pharmaceutical Lyophilizer with Real-Time Temperature Monitoring and Stainless Steel Construction

Product Details

Type:

Pilot Scale Freeze Dryer

Freeze Drying Area:

0.3m2

Tray Quantity:

3pcs

Processing Capacity:

4kg/batch

Power(w):

4000W

Cold Trap Temperature:

-75 Degree

Vacuumdegree:

≤10 Pa(No Load)

Voltage:

220V/50Hz(Customizable 380V)

Display:

LCD Display

Dimension(l*w*h):

860*1350*1800mm

Warranty:

1 Year

Package Weight:

480kg

Material:

Stainless Steel,SS304

Application:

Medicine Processing, Chemicals Processing, Laboratory...

Highlight:

0.3m² Freeze Drying Area Pilot Scale Freeze Dryer

Real-Time Temperature Monitoring Pharmaceutical Lyophilizer

Stainless Steel Construction Vacuum Freeze Dryer

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$11900/unit

Packaging Details

wooden box package

Delivery Time

15-30 working days

Payment Terms

T/T

Supply Ability

10 units per month

Pilot Scale Freeze Dryer 0.3m² Pharmaceutical Lyophilizer with Real-Time Temperature Monitoring and Stainless Steel Construction

Get Best Price

Pharmaceutical Pilot Lyophilizer 0.3m² Laboratory Freeze Dryer with PLC Touchscreen and Silicone Oil Circulation

Get Best Price

Video

-60°C 12–14kg/Batch Small Commercial Freeze Dryer Lyophilizer for Food Preservation

Get Best Price

Video

Commercial Food Freeze Dryer with 12–14kg Capacity and -60°C Cold Trap for Snacks and Pet Treats

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

Pilot Scale Freeze Dryer 0.3m² Pharmaceutical Lyophilizer with Real-Time Temperature, Vacuum Monitoring and Data Recording

Pilot Scale Freeze Dryer Structure

Pilot Scale Freeze Dryer Advantage

Pilot-Scale Capacity

0.3 m² freeze-drying area with a 4 kg/batch processing capacity, three 260 × 390 mm material trays and 80 mm tray spacing.

Independent Cold Trap System

Low-temperature cold trap with a condenser temperature of ≤ -75°C (no-load) and a water trapping capacity of >4 kg.

Flexible Manual & Automatic Operation

Manual mode supports process exploration, while automatic mode enables one-button operation for established freeze-drying processes.

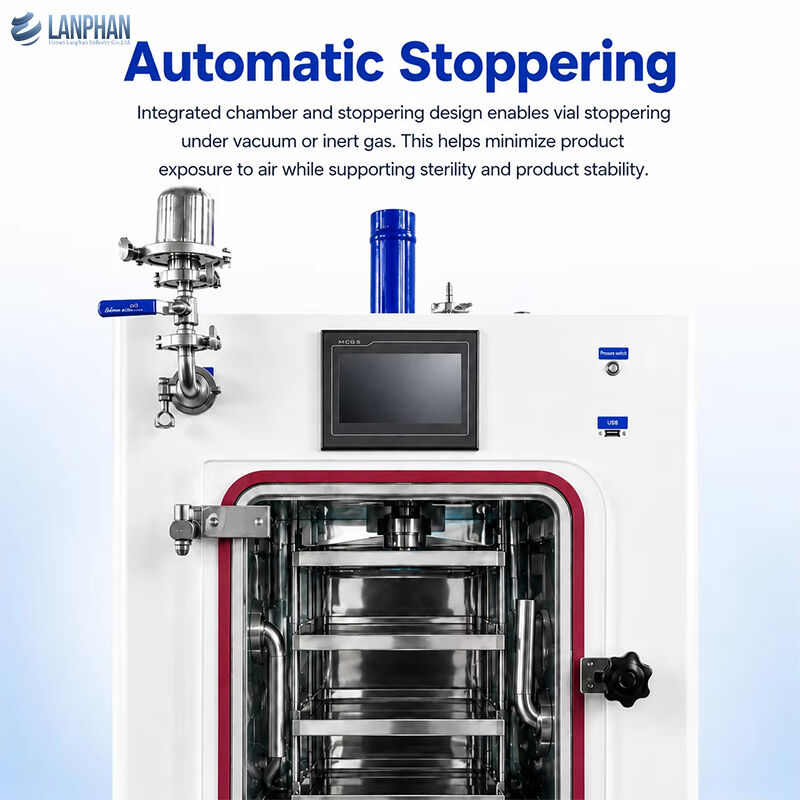

7-inch PLC Touchscreen Control

A 7-inch industrial color touchscreen provides an intuitive interface for equipment operation and process control.

Real-Time Process Monitoring

Real-time monitoring of shelf temperature, cold trap temperature, vacuum and other operating conditions.

Freeze-Drying Curve Query

Freeze-drying curves can be reviewed at any time to monitor temperature, vacuum and other process changes.

Pilot Scale Freeze Dryer Application

Pilot Scale Freeze Dryer Factory

Pilot Scale Freeze Dryer Packing
