Name: -75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
Brand: Henan Lanphan Industry Co.,Ltd
SKU: LGJ-100
Price: 21300 USD
Availability: InStock

Home > Products > Vacuum Freeze Dryer >

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

15 kg batch pilot freeze dryer

automatic hydraulic in-situ stoppering lyophilizer

vacuum freeze dryer with warranty

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

LGJ-100

Request A Quote

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

Product Details

Type:

Pilot Freeze Dryer

Condition:

New

Capacity:

15kg/batch

Power(w):

7500W

Cold Trap Temperature:

-75℃

Vacuum Degree:

<10 Pa

Main Material:

SS304

After-sales Service Provided:

Online Support

Warranty:

One Year

Dimension(l*w*h):

1140x1720x1910mm

Weight:

742Kg

Highlight:

15 kg batch pilot freeze dryer

automatic hydraulic in-situ stoppering lyophilizer

vacuum freeze dryer with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$21300/unit

Packaging Details

wooden box package

Delivery Time

15 working days

Payment Terms

T/T

Supply Ability

5 units per month

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Get Best Price

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

Get Best Price

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

Get Best Price

Video

Large Stainless Steel Food Freeze Dryer Fruit Flower Industrial Freeze Drying Machine

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

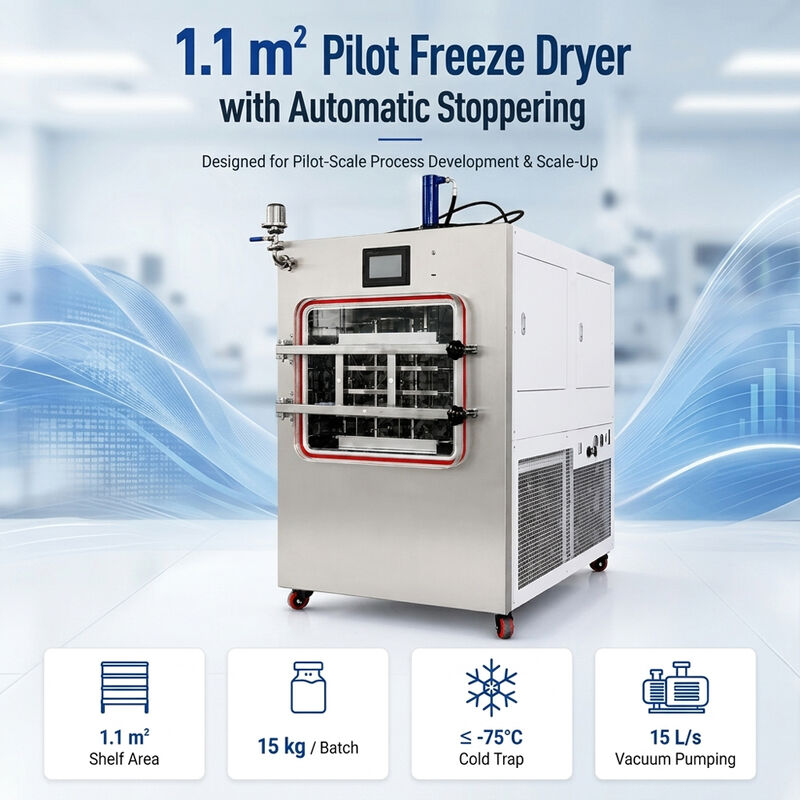

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

TECHNICAL SPECIFICATIONS

Freeze-Drying Area	1.1 m2
Condenser Temperature(No-load)	≤-75℃
Batch Capacity	15 kg/batch
Ultimate Vacuum (No-load)	< 10 Pa
Tray Size	470*600 mm
Number of Trays	4 trays
Tray Spacing	80 mm
Pumping Speed	15 L/s
Ice Capture Capacity	> 15 kg
Noise Level	<80 dB
Power	7500 W
Main Material	304 Stainless Steel
Power Supply	3-phase 5-wire 380V, optional 220V
Overall Dimensions	114017201910 mm
Net Weight	742 kg

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

Uniform Temperature Control & Sample Integrity:** Utilizes silicone oil heat-transfer fluid circulation technology; shelf temperature uniformity is maintained within ±0.5°C, eliminating edge effects and ensuring consistent quality across the entire batch.
Smart End-Point Detection:** Features built-in Pressure Rise Test and eutectic point analysis systems to automatically and accurately determine when drying is complete, preventing over-drying and increasing efficiency by 30%.
One-Touch Process Recipe Management:** Stores over 100 freeze-drying recipes, with each recipe supporting up to 40 temperature/vacuum program segments; allows seamless switching between automatic and manual modes for simplified operation.
Comprehensive Safety & Alarm Systems:** Includes power-failure protection, over-temperature/over-pressure alarms, vacuum anomaly alerts, and vacuum pump oil backflow prevention to safeguard your valuable samples.

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer
