Name: Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
Brand: Henan Lanphan Industry Co.,Ltd
SKU: LGJ-100
Price: 21300 USD
Availability: InStock

Home > Products > Vacuum Freeze Dryer >

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

automatic stoppering freeze dryer

pilot lyophilizer with temperature control

vacuum freeze dryer with stoppering

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

LGJ-100

Request A Quote

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Product Details

Type:

Pilot Freeze Dryer

Condition:

New

Capacity:

15kg/batch

Power(w):

7500W

Cold Trap Temperature:

-75℃

Vacuum Degree:

<10 Pa

Main Material:

SS304

After-sales Service Provided:

Online Support

Warranty:

One Year

Dimension(l*w*h):

1140x1720x1910mm

Weight:

742Kg

Highlight:

automatic stoppering freeze dryer

pilot lyophilizer with temperature control

vacuum freeze dryer with stoppering

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$21300/unit

Packaging Details

wooden box package

Delivery Time

15 working days

Payment Terms

T/T

Supply Ability

5 units per month

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Get Best Price

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

Get Best Price

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

Get Best Price

Video

Large Stainless Steel Food Freeze Dryer Fruit Flower Industrial Freeze Drying Machine

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

TECHNICAL SPECIFICATIONS

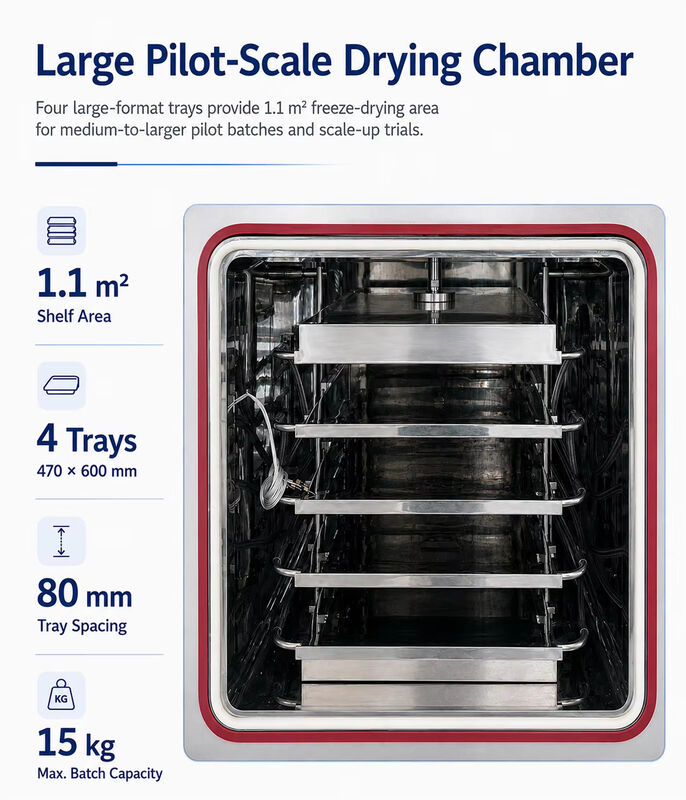

Freeze-Drying Area	1.1 m2
Condenser Temperature(No-load)	≤-75℃
Batch Capacity	15 kg/batch
Ultimate Vacuum (No-load)	< 10 Pa
Tray Size	470*600 mm
Number of Trays	4 trays
Tray Spacing	80 mm
Pumping Speed	15 L/s
Ice Capture Capacity	> 15 kg
Noise Level	<80 dB
Power	7500 W
Main Material	304 Stainless Steel
Power Supply	3-phase 5-wire 380V, optional 220V
Overall Dimensions	114017201910 mm
Net Weight	742 kg

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

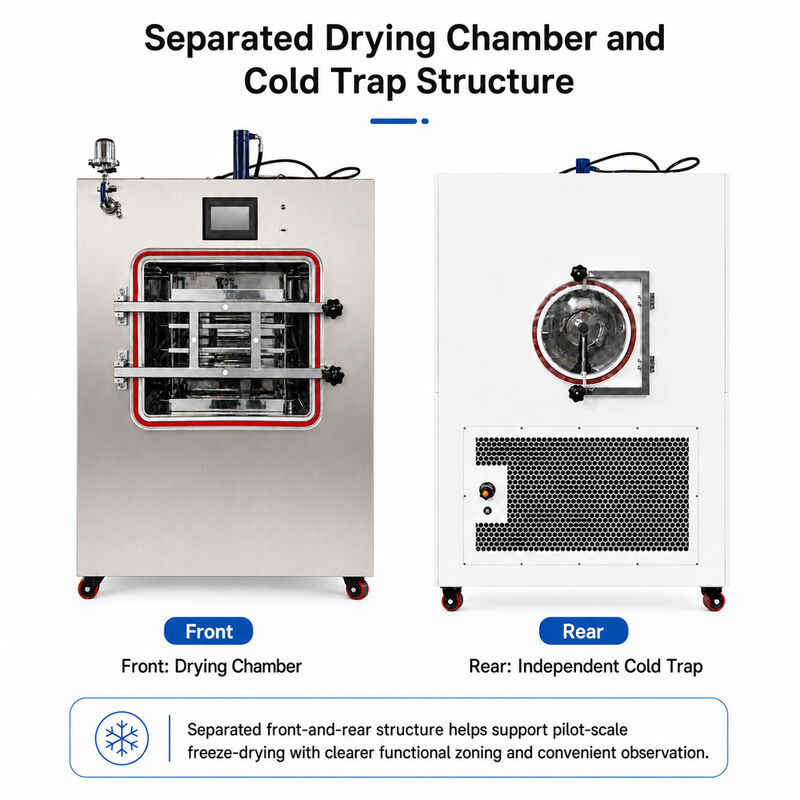

1. Drying Chamber & Cold Trap
Materials: Both the chamber and cold trap are constructed from high-quality 316L stainless steel, offering exceptional corrosion resistance.
2. Intelligent Control & Data Acquisition System

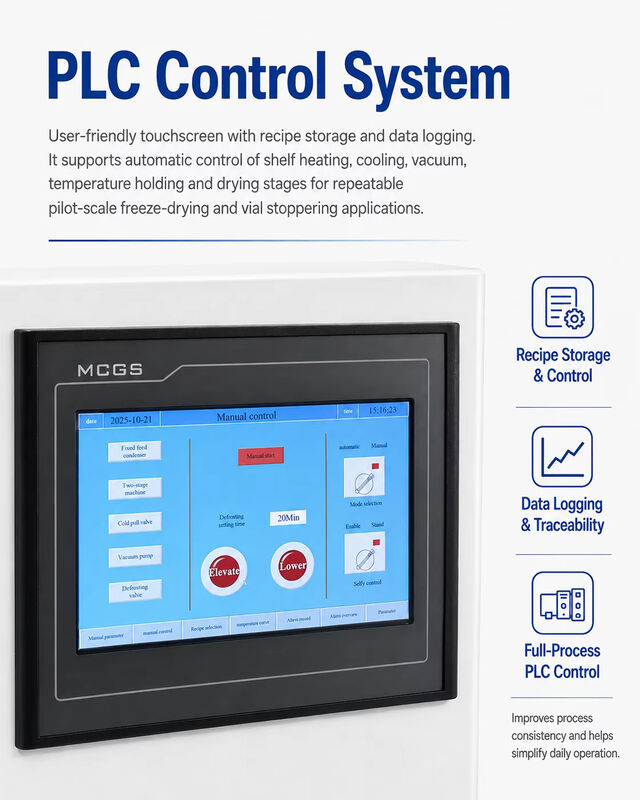

Features an industrial-grade 7- or 10-inch touchscreen paired with PLC.
Real-time Curves: Displays and records real-time data for shelf temperature, product temperature, cold trap temperature, and vacuum levels.
3. Refrigeration & Vacuum Systems
Imported Compressors: Uses eco-friendly refrigerants and offers rapid cooling; the cold trap can reach -50°C in just over ten minutes.
Dual-Gauge Vacuum Measurement: Equipped with capacitance manometers and Pirani gauges to ensure high-precision vacuum measurement and control.

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control
