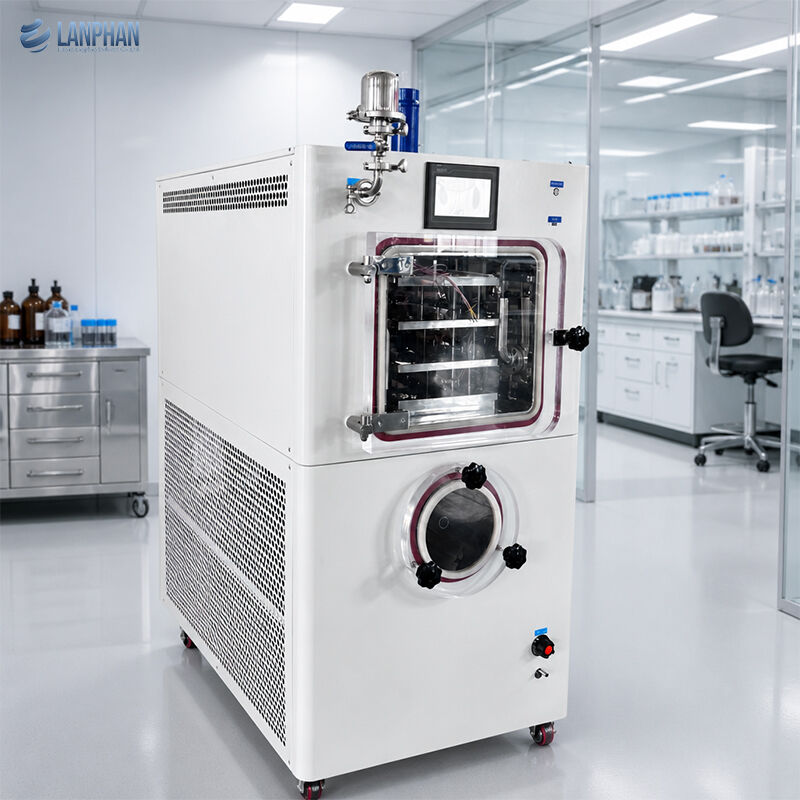

Name: 0.3m² Pilot Freeze Dryer with 4kg/Batch Capacity and Stainless Steel Construction for Pharmaceutical Lyophilization
Brand: Henan Lanphan Industry Co.,Ltd
SKU: LGJ-30
Price: 11900 USD
Availability: InStock

Home > products > Vacuum Freeze Dryer >

0.3m² Pilot Freeze Dryer with 4kg/Batch Capacity and Stainless Steel Construction for Pharmaceutical Lyophilization

0.3m² Freeze Drying Area Pilot Freeze Dryer

4kg/Batch Processing Capacity Lyophilizer

Stainless Steel Material Vacuum Freeze Dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

LGJ-30

Request A Quote

0.3m² Pilot Freeze Dryer with 4kg/Batch Capacity and Stainless Steel Construction for Pharmaceutical Lyophilization

Product Details

Type:

Pilot Freeze Dryer

Freeze Drying Area:

0.3m2

Tray Quantity:

3pcs

Processing Capacity:

4kg/batch

Power(w):

4000W

Cold Trap Temperature:

-75 Degree

Vacuumdegree:

≤10 Pa(No Load)

Voltage:

220V/50Hz(Customizable 380V)

Display:

LCD Display

Dimension(l*w*h):

860*1350*1800mm

Warranty:

1 Year

Package Weight:

480kg

Material:

Stainless Steel,SS304

Application:

Medicine Processing, Chemicals Processing, Laboratory...

Highlight:

0.3m² Freeze Drying Area Pilot Freeze Dryer

4kg/Batch Processing Capacity Lyophilizer

Stainless Steel Material Vacuum Freeze Dryer

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$11900/unit

Packaging Details

wooden box package

Delivery Time

15-30 working days

Payment Terms

T/T

Supply Ability

10 units per month

Pilot Scale Freeze Dryer 0.3m² Pharmaceutical Lyophilizer with Real-Time Temperature Monitoring and Stainless Steel Construction

Get Best Price

yang@lanphan.com

Contact Now

Product Description

0.3m² Pilot Freeze Dryer 4kg/Batch Pharmaceutical Lyophilizer for Process Development

Product Overview

Pilot Freeze Dryer Structure

Pilot Freeze Dryer Advantages

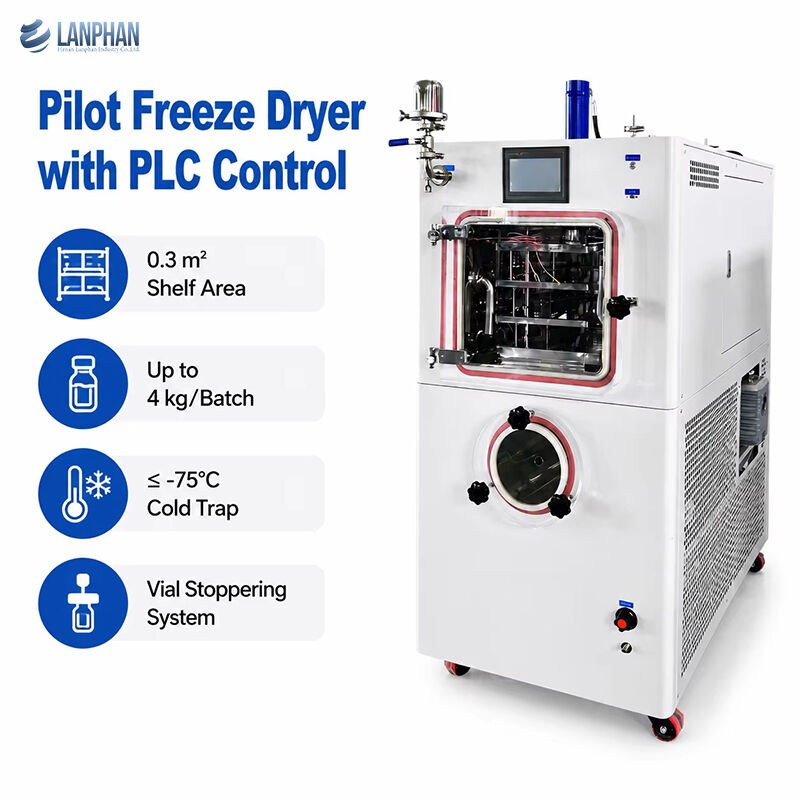

Pilot-Scale Capacity

0.3 m² freeze-drying area with a 4 kg/batch processing capacity, three 260 × 390 mm material trays and 80 mm tray spacing.
Independent Cold Trap System

Low-temperature cold trap with a condenser temperature of ≤ -75°C (no-load) and a water trapping capacity of >4 kg.
Flexible Manual & Automatic Operation

Manual mode supports process exploration, while automatic mode enables one-button operation for established freeze-drying processes.
7-inch PLC Touchscreen Control

A 7-inch industrial color touchscreen provides an intuitive interface for equipment operation and process control.
Real-Time Process Monitoring

Real-time monitoring of shelf temperature, cold trap temperature, vacuum and other operating conditions.
Freeze-Drying Curve Query

Freeze-drying curves can be reviewed at any time to monitor temperature, vacuum and other process changes.

Pilot Freeze Dryer Applications

Manufacturing Facility

Packaging & Shipping
