Glycol Lab Chiller Unit

Glycol Lab Chiller Unit

Glycol Lab Chiller Unit

1350w Lab Chiller Unit

220v Lab Chiller Unit

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE, ROHS

Contact Us
Request A Quote
Product Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops
Condition:
New
Type:
Water-Cooled
Voltage:
220v
Dimension(L*W*H):
660*515*990 Mm
Weight:
60KG
Warranty:
1 YEAR
After-sales Service Provided:
Video Technical Support, Online Support
Power(W):
1350
Lowest No-load Temperature:
-30℃
Best Temperature Range:
≤25℃
Environmental Relative Humidity:
≤70%
Temperature Display Mode:
Liquid Crystal
Temperature Stability:
±2℃
Sensor Index:
Pt100
Instrument Adjusting Range:
±150℃
Total Machine Power:
1350
Name:
Refrigerador Industrial
Refrigerant:
R404A
Port:
Shanghai, Tianjin, Qingdao
Highlight:

Glycol Lab Chiller Unit

,

1350w Lab Chiller Unit

,

220v Lab Chiller Unit

Payment & Shipping Terms
Minimum Order Quantity
1 - 2 Units
Price
$1,870.00
Packaging Details
Packing of refrigerador industrial: carton or wooden case package, customized package is available.
Supply Ability
1000 Set/Sets per Month
Product Description

Glycol Low Temperature Chiller Compressor Refrigerador Industrial

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges from room temperature to -120 degrees

Product Description

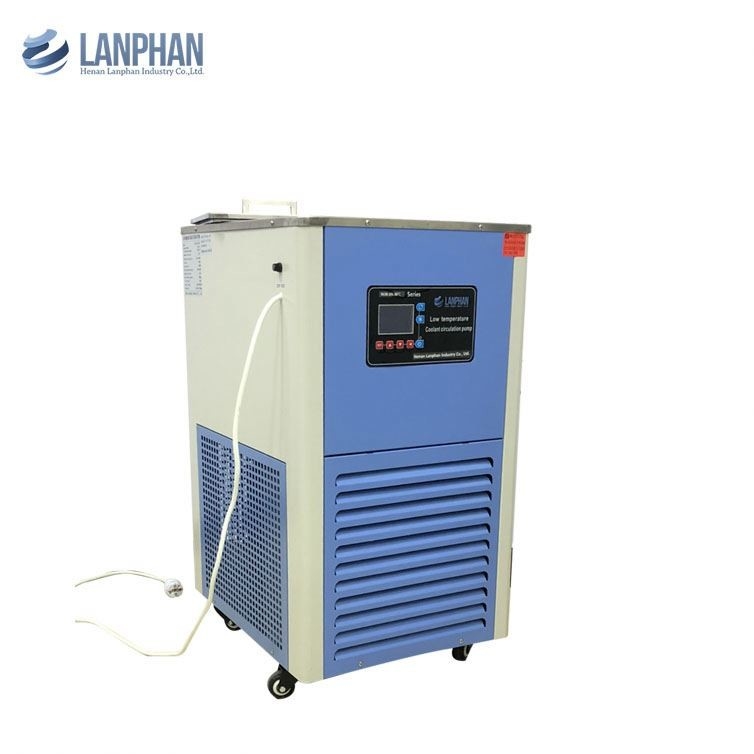

Glycol Lab Chiller Unit 0

DLSB low temperature pump adopts mechanical refrigeration low temperature circulating equipment and provides constant current and constant voltage circulating liquid to meet the requirement of the decreasing instrument (electric microscope, electricity probe,x-ray machine,laser reactor and accelerator) so as to guarantee the required working temperature.



The machine is essential to make sure the normal working condition for the device adopting constant current and constant pressure to cool in the condition of water scarcity ,poor quality of water and higher temperature. It can provide low temperature liquid to have multiple function of chemical reaction and medicine storage collocated with rotary evaporator, vacuum drying oven, circulating water multiple pump, magnetic force stirrer. It is especially used for different kinds of chemical biology ,physical lab which needed low temperature. It is the essential lab instrument for pharmacy, food industry, metallurgical industry and college scientific research.

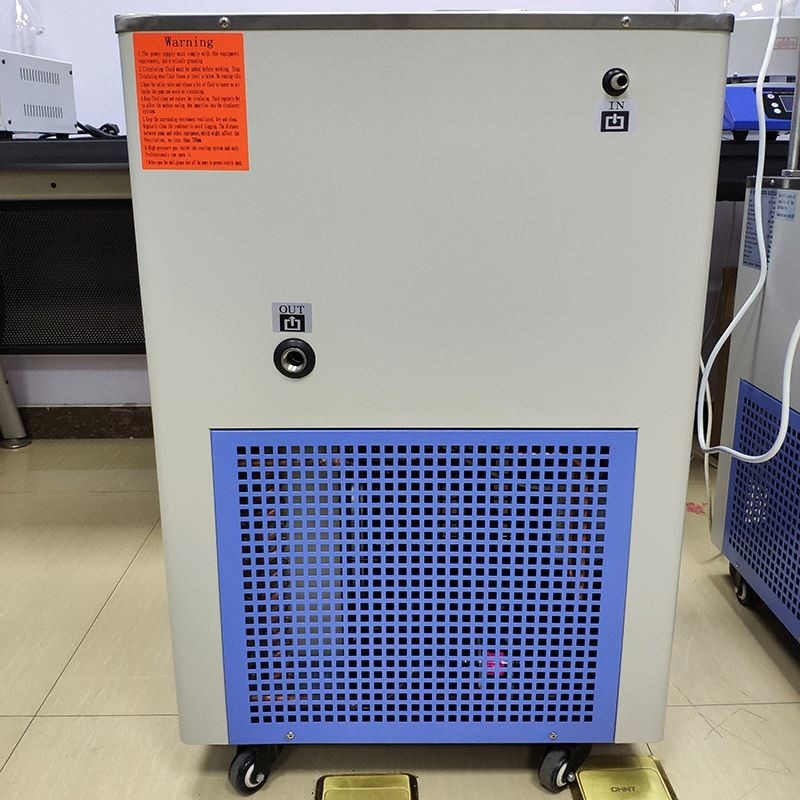

Glycol Lab Chiller Unit 1

Type DLSB 20L-30°C
Tank volume (L) 24.38
lowest no-load temperature(°C) -30
Using temperature range (°C) room temperature—-30
best temperature range(°C) ≤25
Environmental relative humidity (%) ≤70
Working power supply (V/HZ) single phase220/50
temperature display mode liquid crystal
temperature stability(°C) ±2
Sensor index Pt100
Instrument adjusting range (°C) ±150
set way Arbitrary adjustment of Settings in the range of use
safety protection delay,leakage,over current,over heat
  10°C 1845
  0°C 1476
Output refrigerating capacity(w) -10°C 984
  -20°C 615
  -30°C 246
Total machine power (W) 1350
Machine current (A) 7.2
refrigerant R404A
circulating pump power(w) 100
flow rate(L/min) 20
lift(m) 6
external loop interface(mm) 14
opening size(mm) 260L×260
tank shape square
internal diameter and height of liquid storage tank(mm) 290×290×290
overall appearance size(mm) 565×460×845
machine weight(kg) 60
fuse 15A

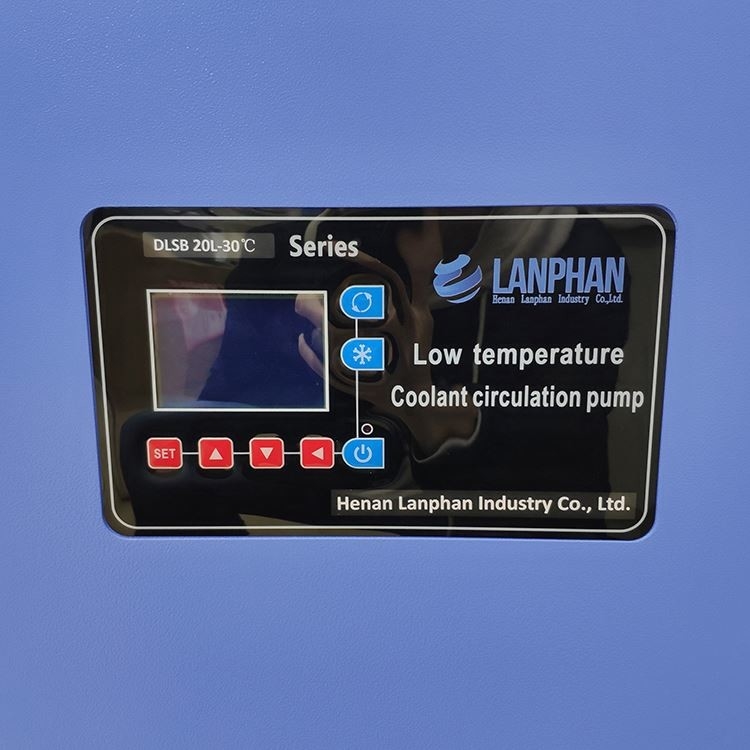

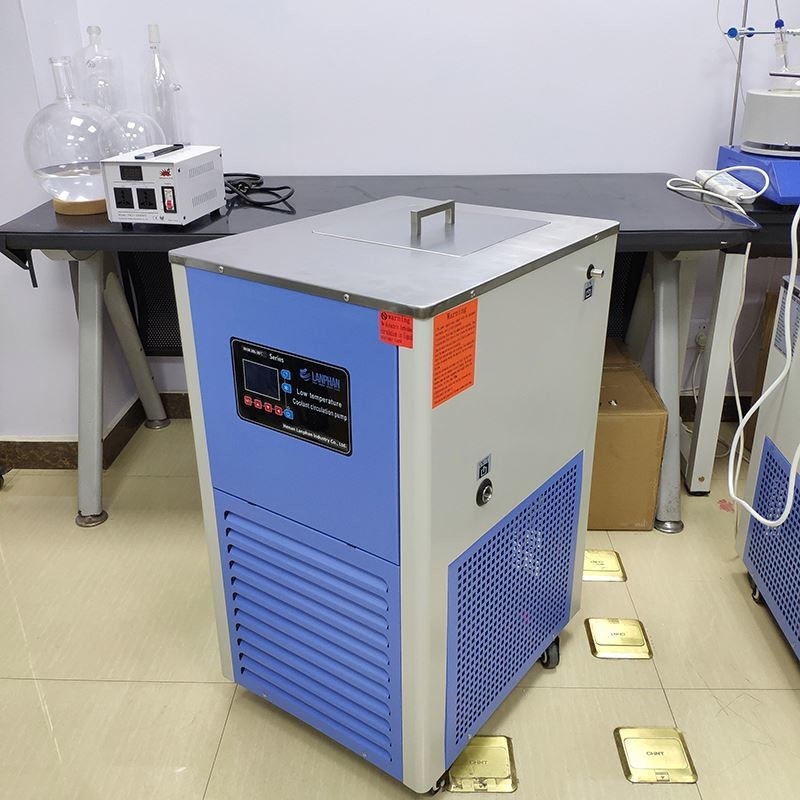

Glycol Lab Chiller Unit 2Glycol Lab Chiller Unit 3



Turn on and off:
The right turn to turn on the machine: Add the appropriate refrigerating medium—connect the power with the special power supply—turn off the circulation switch—press the power button—open the circulation switch—open the refrigerator switch—open the cooling equipment
The right turn to turn off the machine.Turn off the cooling equipment—turn off the refrigerator switch—turn off the circulation switch(stirring switch)—turn off the outlet valve(or discharge the cooling medium)—turn off the power supply —disconnect circuit breaker—disconnect the power line from the power supply—clean the equipment.
Corollary Equipment

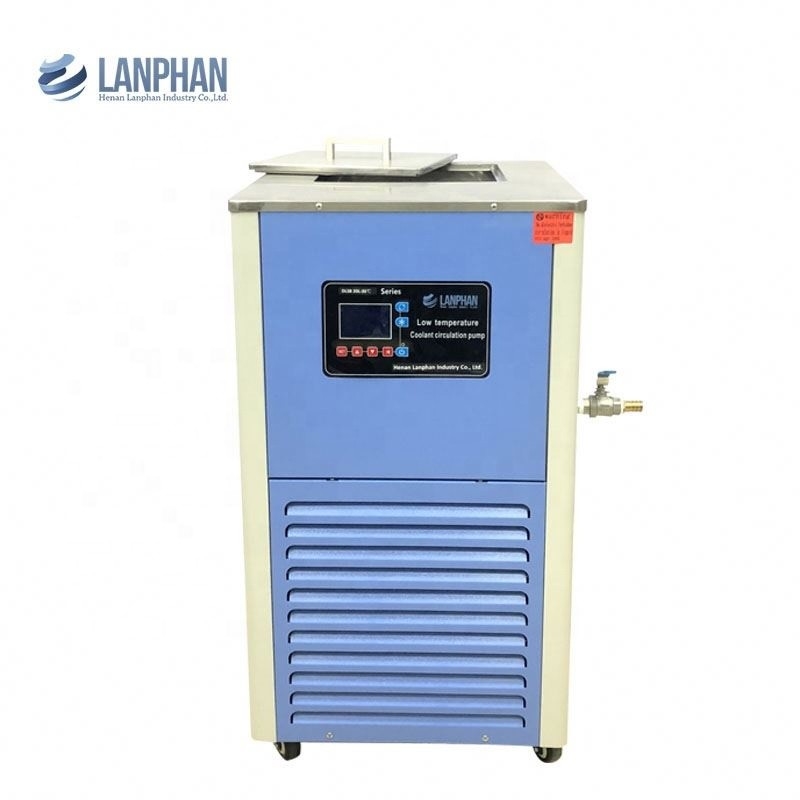

Glycol Lab Chiller Unit 4

Related Products

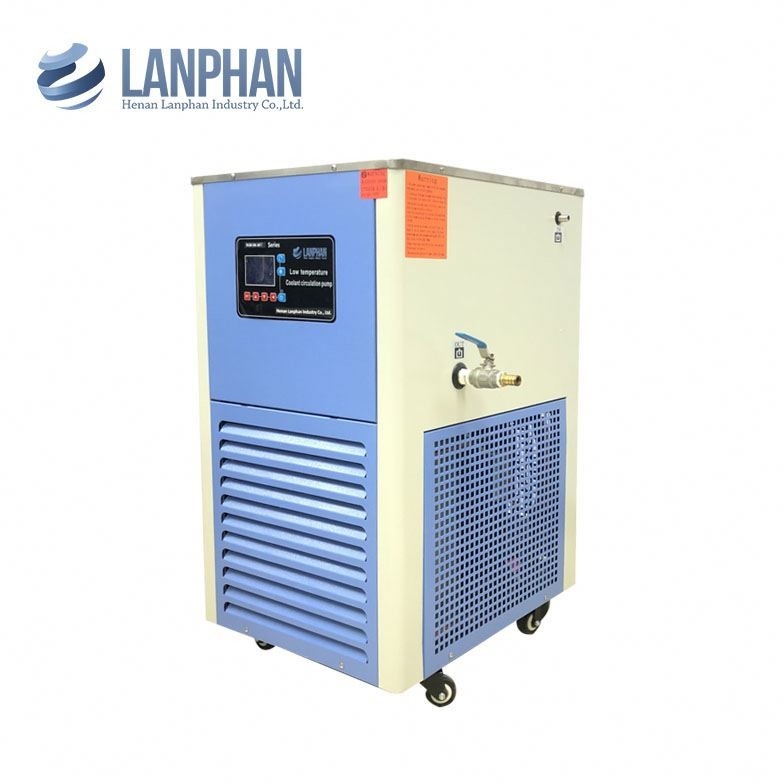

Glycol Lab Chiller Unit 5Glycol Lab Chiller Unit 6

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges  from room temperature to -120 degrees
