Chiller Lab Equipment 5L Small Glycol Laboratory Chiller

Small Glycol laboratory recirculating water chiller

5L recirculating water chiller

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE, ROHS

Request A Quote

Product Details

Applicable Industries:

Machinery Repair Shops, Manufacturing Plant, Energy & Mining

After Warranty Service:

Video Technical Support, Online Support

Local Service Location:

United States

Showroom Location:

United States

Condition:

NEW

Type:

Water-Cooled

Voltage:

220v

Dimension(L*W*H):

400*260*530mm

Weight:

28kg

Warranty:

1 YEAR

After-sales Service Provided:

Video Technical Support, Online Support

Power(W):

420w

Working Temperature Range:

5~25

Key Selling Points:

Competitive Price

Tank Volume (L):

Lowest No-load Temperature(℃):

-15

Using Temperature Range (℃):

Room Temperature--15

Product Name:

10l Circulation Chillers

Environmental Relative Humidity (%):

≤70

Temperature Display Mode:

Liquid Crystal

Sensor Index:

Pt100

Instrument Adjusting Range (℃):

±150

Safety Protection:

Delay,leakage,over Current,overheat

Total Machine Power (W):

420W

Port:

Shanghai, Tianjin, Qingdao

Highlight:

Small Glycol laboratory recirculating water chiller

5L recirculating water chiller

Payment & Shipping Terms

Minimum Order Quantity

1 - 2 Units

Price

$960.00

Packaging Details

Packing of low temperature cooling liquid circulating pump: carton or wooden case package, customized package is available.

Supply Ability

1000 Set/Sets per Month

Lanphan 420W Cryogenic Cooling Lab Chiller Unit

Get Best Price

Video

Lab R404A Multistage Chiller 20L Pump

Get Best Price

Video

Chiller Lab Equipment 3850w 50L Coolant Circulation Pump

Get Best Price

Video

Chiller Lab Equipment Air Cool

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

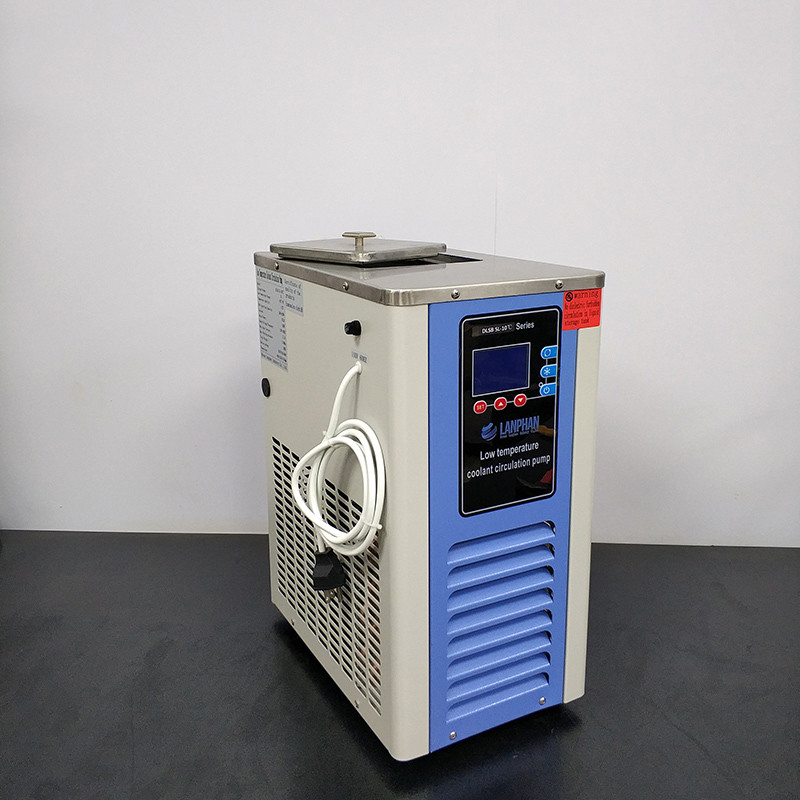

Chiller Lab Equipment 5L Small Glycol Laboratory Chiller

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges from room temperature to -120 degrees

Product Description

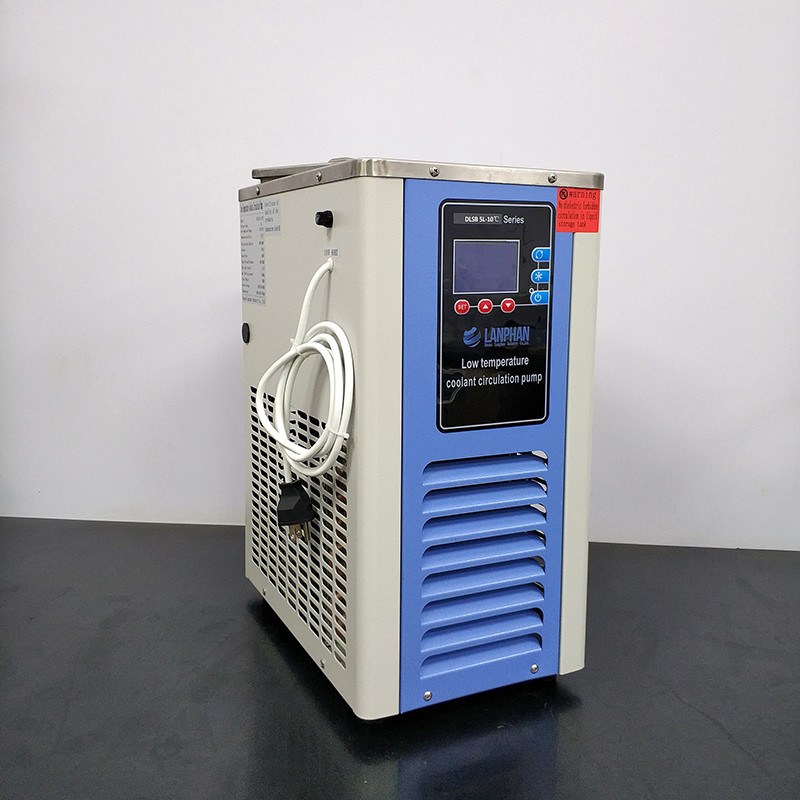

Chiller Lab Equipment 5L Small Glycol Laboratory Chiller 0

The application of Low temperature circulating pump:DLSB low temperature pump adopts mechanical refrigeration low temperature circulating equipment and provide constant current and constant voltage circulating liquid to meet the requirement of the decreasing instrument (electric microscope, electricity probe,x-ray machine,laser reactor and accelerator) so as to guarantee the required working temperature
The machine is an essential to make sure the normal working condition for the device adopting constant current and constant pressure to cool in the condition of lacking water place ,bad quality of water and higher temperature.It can provide low temperature liquid to have multiple function of chemical reaction and medicine storage collocated with rotary evaporator,vacuum drying oven,circulating water multiple pump,magnetic force stirrer.It is especially used for different kinds of chemical biology ,physical lab which needed low temperature.It is the essential lab instrument for pharmacy,food industry,metallurgical industry and college scientific research.

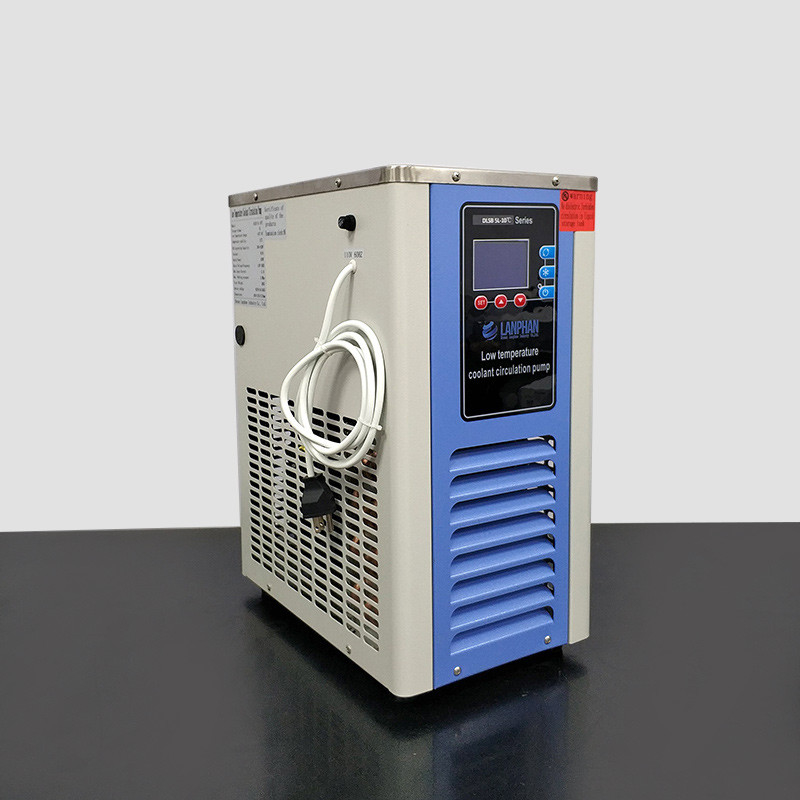

Chiller Lab Equipment 5L Small Glycol Laboratory Chiller 1

Model name		DLSB 5L-10℃
Tank volume (L)		5
lowest no-load temperature(℃)		-15
Using temperature range (℃)		room temperature—-15
best temperature range(℃)		5~25
Environmental relative humidity (%)		≤70
Working power supply (V/HZ)		single phase220-50
temperature display mode		liquid crystal
temperature stability(℃)		±2
Sensor index		Pt100

Instrument adjusting range (℃)		±150
set way		Arbitrary adjustment of Settings in the range of use
safety protection		delay,leakage,over current,overheat
output refrigerating capacity (W)	10℃	620
	0℃	460
	-10℃	280
	-20℃	-
Total machine power (W)		420
Machine current (A)		2.1
refrigerant		134A
Circulating pump	Power(w)	100
	Flow rate(L/min)	20
	Lift(M)	4~6
external loop interface		Threaded joint 12 inches
opening size(mm)		160×160
tank shape		square
Internal diameter and height of liquid storage tank (mm)		170×170×170
Overall appearance size (mm)		400×260×530
Machine weight (kg)		28
fuse		5A
matching parts		one set

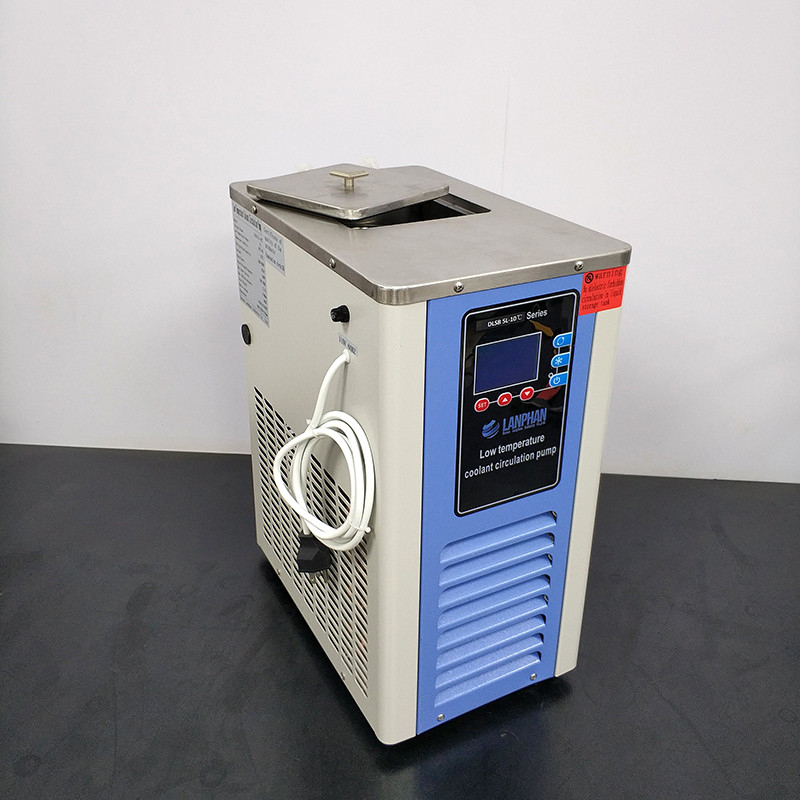

Chiller Lab Equipment 5L Small Glycol Laboratory Chiller 2

Turn on and off:
The right turn to turn on the machine: Add the appropriate refrigerating medium—connect the power with the special power supply—turn off the circulation switch—press the power button—open the circulation switch—open the switch—open the cooling equipment
The right turn to turn off the machine.Turn off the cooling equipment—turn off the switch—turn off the circulation switch(stirring switch)—turn off the outlet valve(or discharge the cooling medium)—turn off the power supply —disconnect circuit breaker—disconnect the power line from the power supply—clean the equipment.

Corollary Equipment

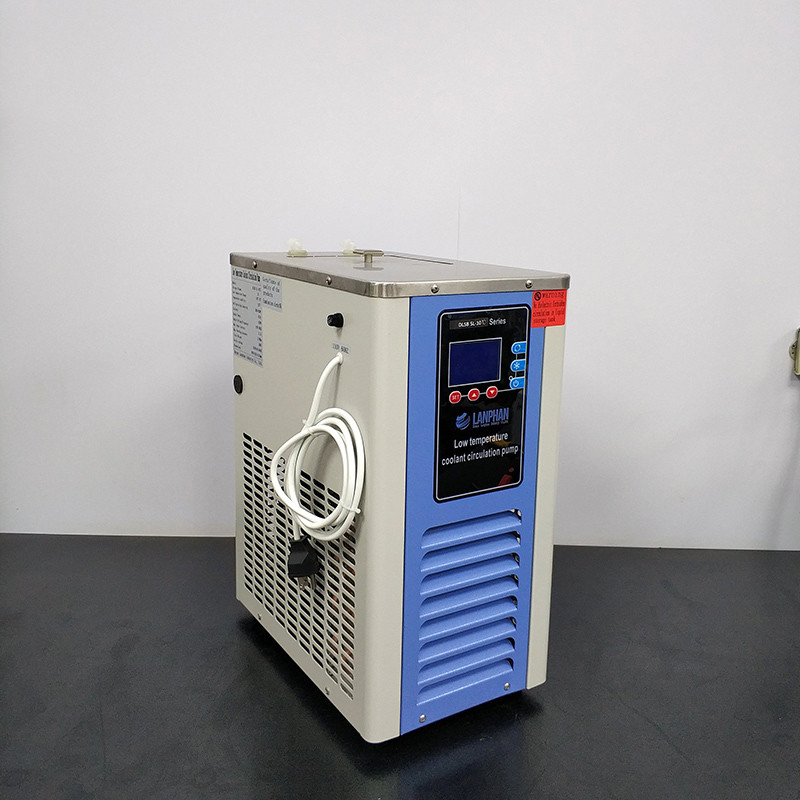

Chiller Lab Equipment 5L Small Glycol Laboratory Chiller 4
