Chiller Lab Equipment Air Cool

Minimum Order Quantity : 1 set Price : $1340
Packaging Details : Packing of Coolant Pump: carton or wooden case package, customized package is available. Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: DLSB 20L

Detail Information

Condition: New Type: Water-Cooled
Voltage: 220v Dimension(L*W*H): 565*460*846 Mm
Weight: 60KG Warranty: 1 YEAR
After-sales Service Provided: Video Technical Support, Online Support Power(W): 1350
Lowest No-load Temperature: -30℃ Best Temperature Range: ≤25℃
Environmental Relative Humidity: ≤70% Temperature Display Mode: Liquid Crystal
Temperature Stability: ±2℃ Sensor Index: Pt100
Instrument Adjusting Range: ±150℃ Total Machine Power: 1350
Safety Protection: Delay,leakage,over Current,overheat Refrigerant: R404A
Port: Shanghai, Tianjin, Qingdao
High Light:

565*460*846mm Lab Chiller Unit


Alcohol Circulating Lab Chiller Unit

Product Description

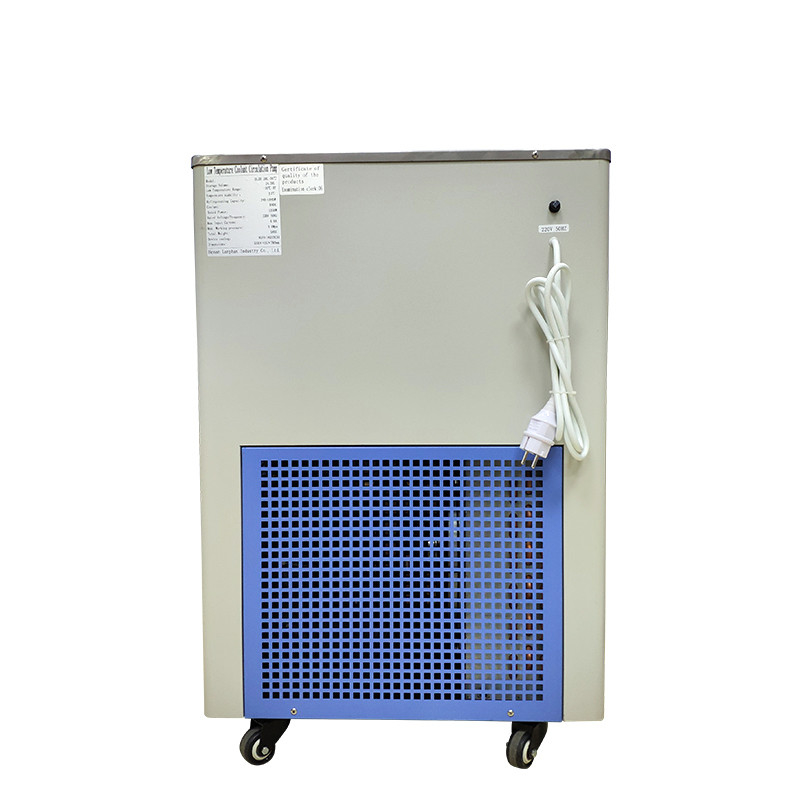

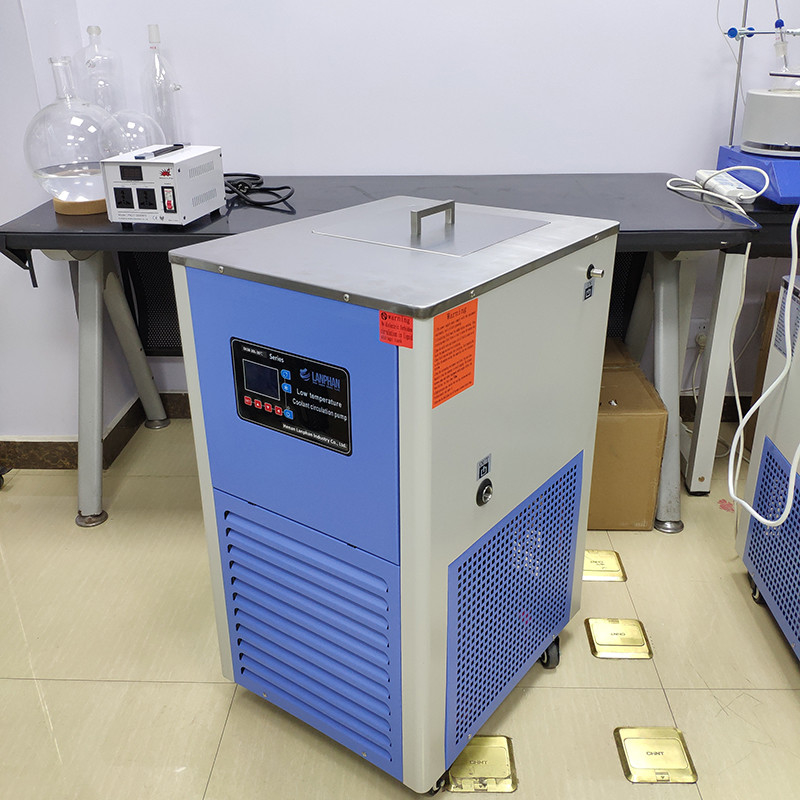

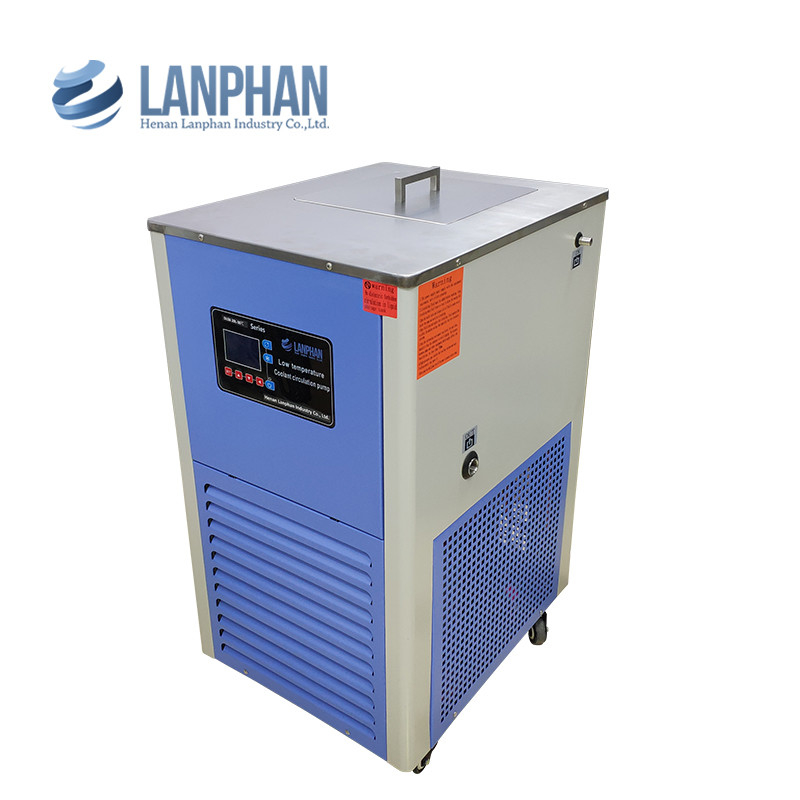

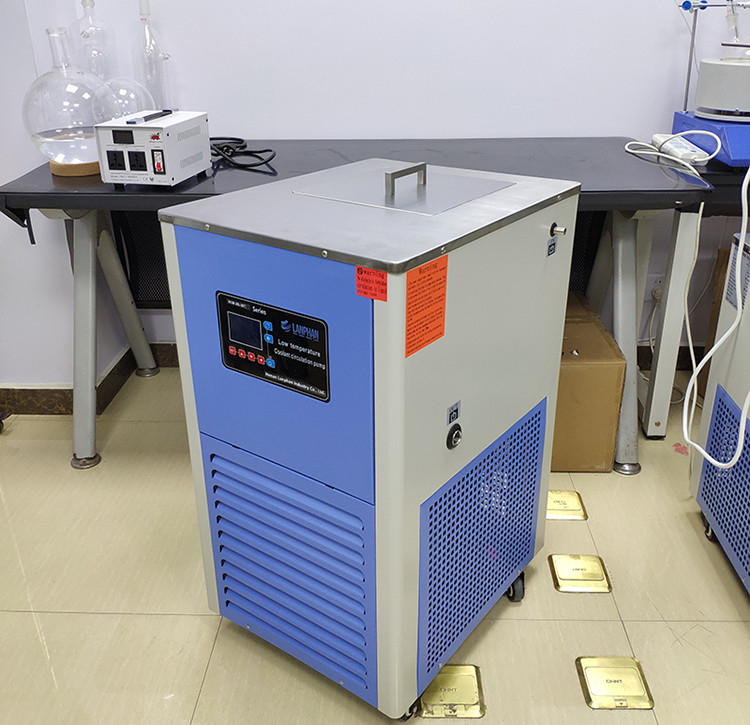

Chiller Lab Equipment Air Cool


Product Parameter


Type DLSB 20L-30℃
Tank volume (L) 24.38
lowest no-load temperature(℃) -30
Using temperature range (℃) room temperature—-30
best temperature range(℃) ≤25
Environmental relative humidity (%) ≤70
Working power supply (V/HZ) single phase220/50

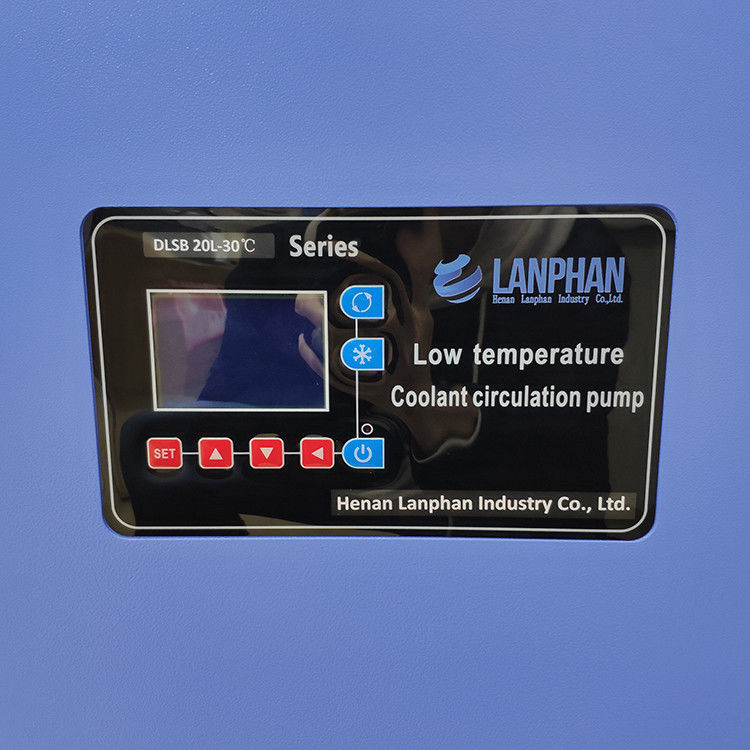

temperature display mode liquid crystal
temperature stability(℃) ±2
Sensor index Pt100
Instrument adjusting range (℃) ±150
set way Arbitrary adjustment of Settings in the range of use
safety protection delay,leakage,over current,over heat
  10℃ 1845
  0℃ 1476
Output refrigerating capacity(w) -10℃ 984
  -20℃ 615
  -30℃ 246
Total machine power (W) 1350
Machine current (A) 7.2
refrigerant R404A
circulating pump power(w) 100
flow rate(L/min) 20
lift(m) 6
external loop interface(mm) 14
opening size(mm) 260L×260
tank shape square
internal diameter and height of liquid storage tank(mm) 290×290×290
overall appearance size(mm) 565×460×845
machine weight(kg) 60
fuse 15A


Product Description


The application of Low temperature circulating pump:DLSB low temperature pump adopts mechanical refrigeration low temperature circulating equipment and provide constant current and constant voltage circulating liquid to meet the requirement of the decreasing instrument (electric microscope, electricity probe,x-ray machine,laser reactor and accelerator) so as to guarantee the required working temperature.

The machine is an essential to make sure the normal working condition for the device adopting constant current and constant pressure to cool in the condition of lacking water place ,bad quality of water and higher temperature.It can provide low temperature liquid to have multiple function of chemical reaction and medicine storage collocated with rotary evaporator,vacuum drying oven,circulating water multiple pump,magnetic force stirrer.It is especially used for different kinds of chemical biology ,physical lab which needed low temperature.It is the essential lab instrument for pharmacy,food industry,metallurgical industry and college scientific research.


Chiller Lab Equipment Air Cool 0

Chiller Lab Equipment Air Cool 1



Chiller Lab Equipment Air Cool 2Chiller Lab Equipment Air Cool 3


Turn on and off:
The right turn to turn on the machine: Add the appropriate medium—connect the power with the special power supply—turn off the circulation switch—press the power button—open the circulation switch—open the switch—open the cooling equipment
The right turn to turn off the machine.Turn off the cooling equipment—turn off the  switch—turn off the circulation switch(stirring switch)—turn off the outlet valve(or discharge the cooling medium)—turn off the power supply —disconnect circuit breaker—disconnect the power line from the power supply—clean the equipment.

Corollary Equipment

Chiller Lab Equipment Air Cool 4

Related Products

Chiller Lab Equipment Air Cool 5Chiller Lab Equipment Air Cool 6

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges  from room temperature to -120 degrees
