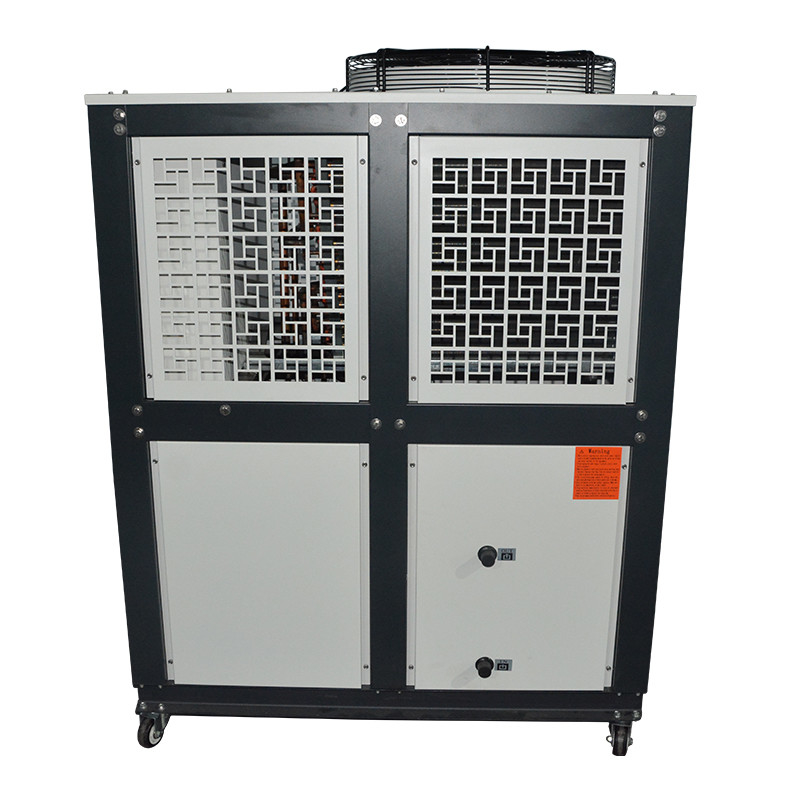

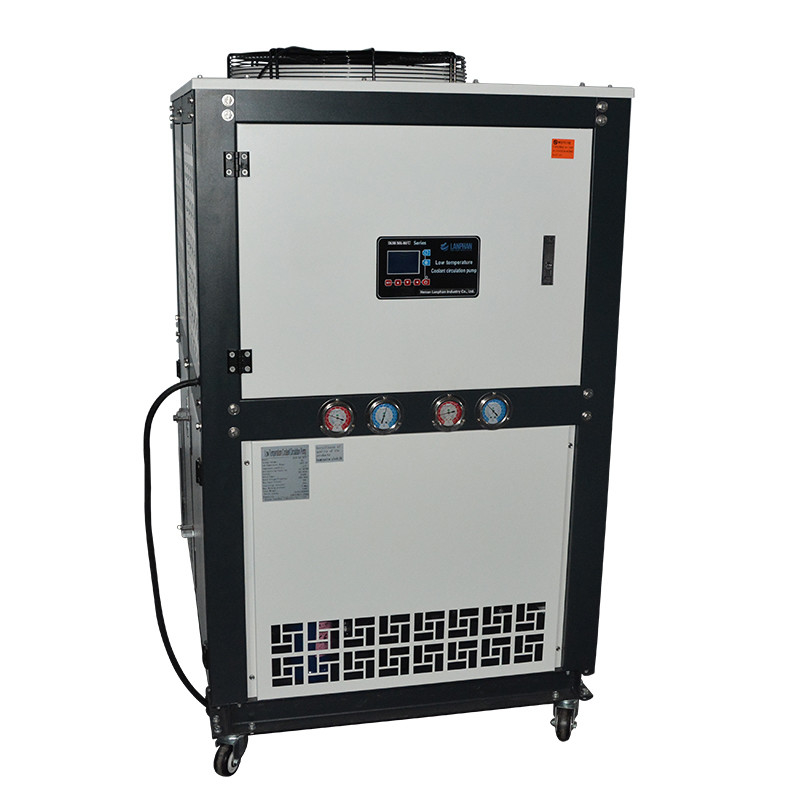

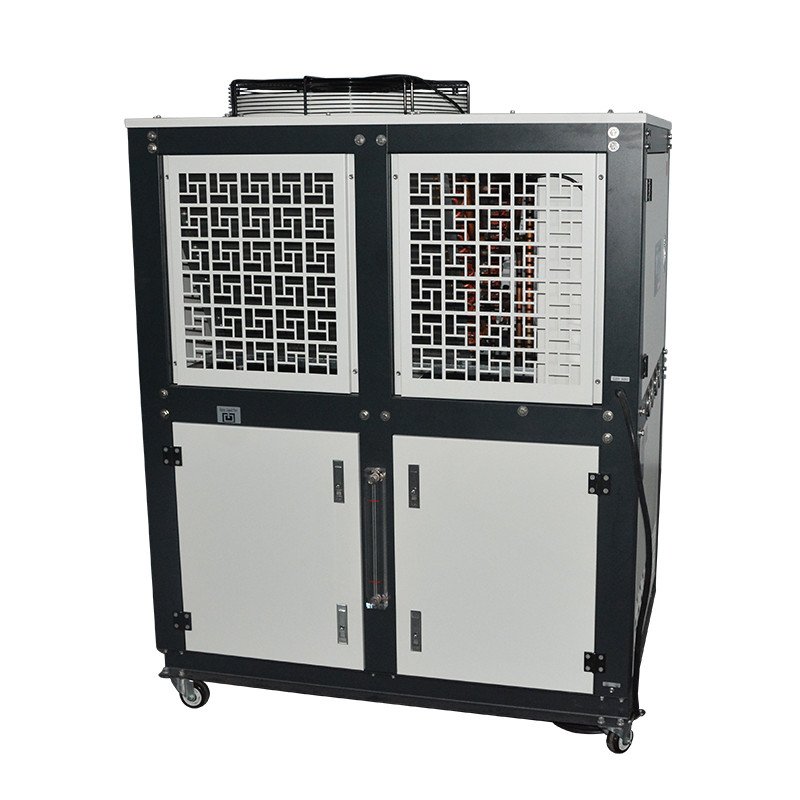

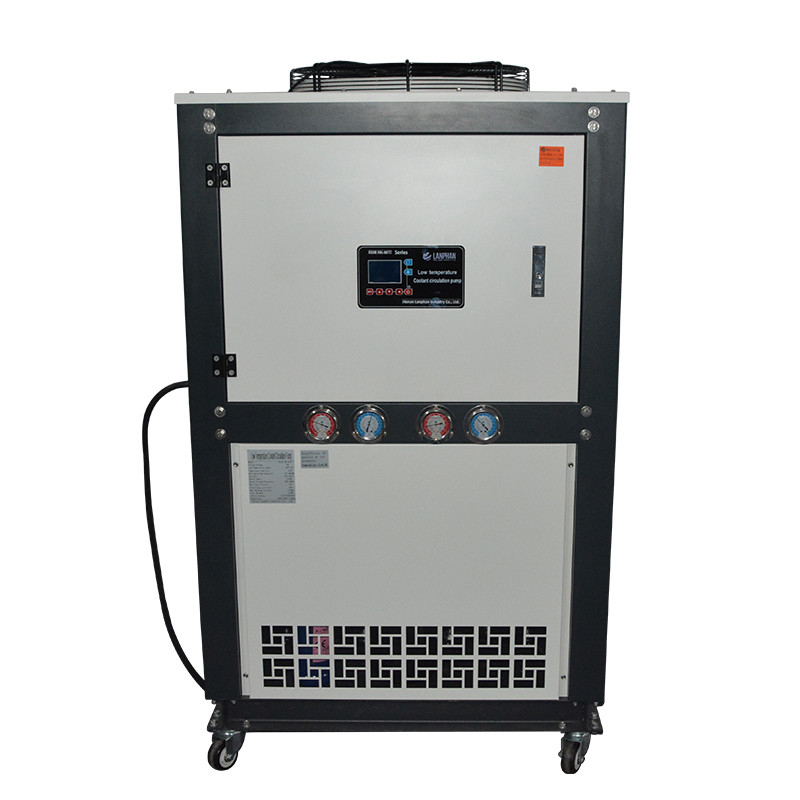

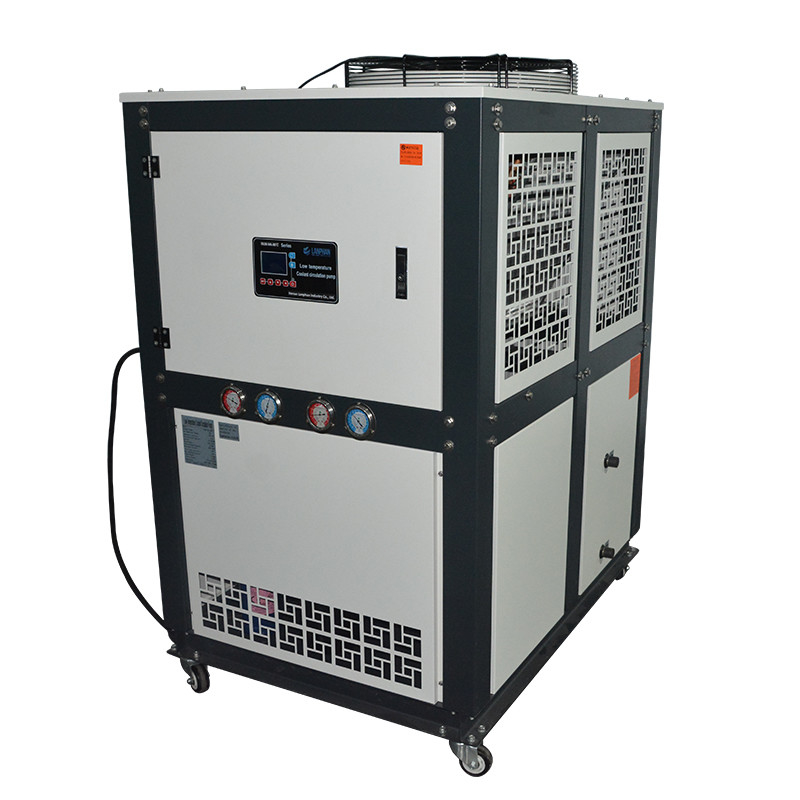

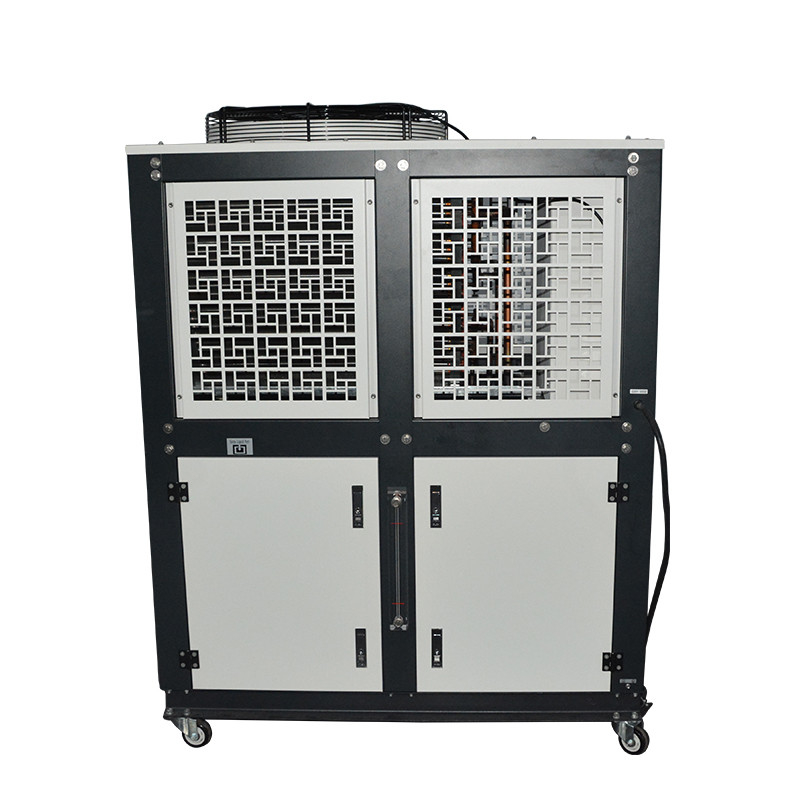

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant

Minimum Order Quantity : One unit Packaging Details : Carton, wooden cases or customizable package
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 500 units per month
Place of Origin: Henan Brand Name: Lanphan
Certification: CE Model Number: DLSB 200L-80℃

Detail Information

Product Name: Low Temperature Coolant Circulation Pump Non-Loaded Minimum Temperature: -80℃
Temperature Fluctuation: ±2℃ Refrigerant: R404 R23
Cooling Capacity: 490W-24000W Machine Power: 15700W
Circulating Power: 280W Lift (Optional): 11M
Ambient Temperature: ≤25℃
High Light:

Laboratory Recirculating Water Chiller

,

Glycol Chill Recirculating Water Chiller

,

R404 Recirculating Water Chiller

Product Description

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating Coolant

The low temperature coolant circulation pump adopts the air-cooled fully enclosed compressor unit for cooling and the microcomputer intelligent control system. It can provide low-temperature circulating cooling water (liquid) or low temperature thermostatic water (liquid) to cool equipment or keep equipment at a constant temperature, such as rotary evaporator, fermentation tank, electron microscope, low temperature chemical reactor, electron spectrometer, mass spectrometer, density meter, freeze dryer, vacuum coating apparatus, reactor and other equipment.



Product Name Low Temperature Coolant Circulation Pump
Product Model DLSB 200L-80℃
Non-Loaded Minimum Temperature -80℃
Temperature Fluctuation ±2℃
Refrigerant R404 R23
Cooling Capacity 490W – 24000W
Machine Power 15700W
Circulating Power 280W
Flow Rate of Circulating Pump (Optional) 35L
Lift (Optional) 11M
Ambient Temperature ≤ 25℃
Ambient Humidity ≤ 70%
Power Supply 220V/60Hz (Three Phase)
Working Current

52A



Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 0

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 1Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 2



Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 3

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 4Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 5Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 6

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 7

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 8Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 9

Chiller Lab Equipment Glycol DLSB 200L Chiller Recirculating coolant 10
