Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE, ROHS
The capacity of our pump can be 5L-500L
Temperature ranges from room temperature to -120 degrees

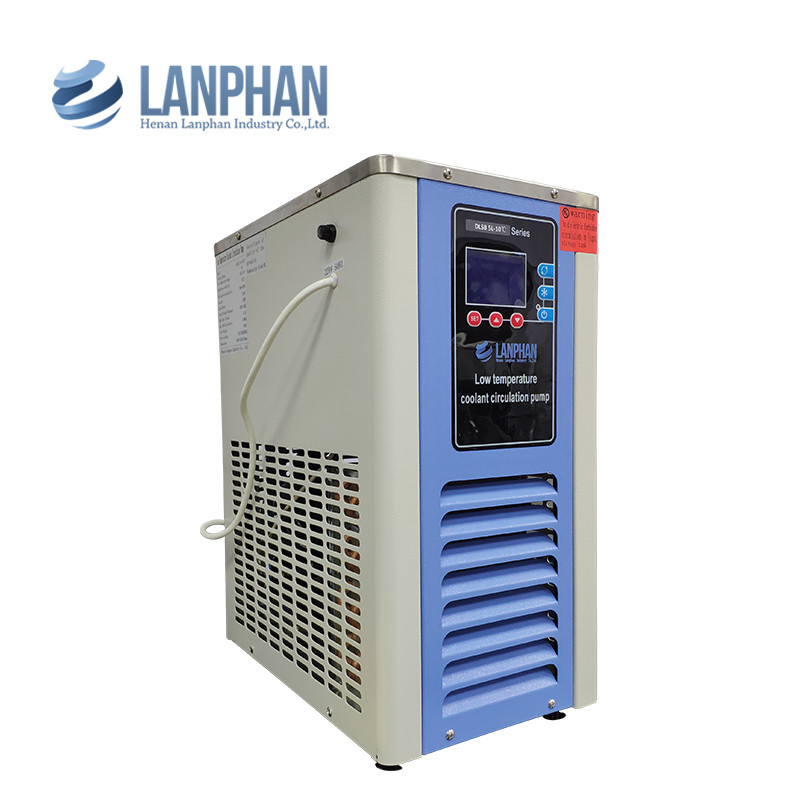

The DLSB 5L-10℃ series low temperature coolant circulation pump is a low-temperature equipment that uses a compressor for mechanical refrigeration. On the basis of refrigeration, a water circulating pump is added to enable the cooled liquid to pass through the pipeline for external and internal circulation, and can provide low temperature liquid and low temperature bath. It can also be combined with a rotary evaporator, a vacuum freeze drying oven, a water circulating vacuum pump, a magnetic stirrer and the like to perform multi-functional chemical reaction operations and drug storage at a low temperature.
The DLSB 5L-10℃ series low temperature coolant circulation pump can be used in laboratories, providing the cooling environment for small capacity of sample. It is especially suitable for chemical, biological and physical laboratories that need to maintain low temperature and normal temperature conditions. It is an essential equipment for medical and health, chemical industry, food industry, metallurgical industry, colleges and universities, scientific research, genetic engineering, polymer engineering and other fields. ( The large-capacity low-temperature coolant
circulation pump can be customized according to user needs.)
| Model name | DLSB 5L-10℃ | |
| Tank volume (L) | 5 | |
| lowest no-load temperature(℃) | -15 | |
| Using temperature range (℃) | room temperature—-15 | |
| best temperature range(℃) | 5~25 | |
| Environmental relative humidity (%) | ≤70 | |

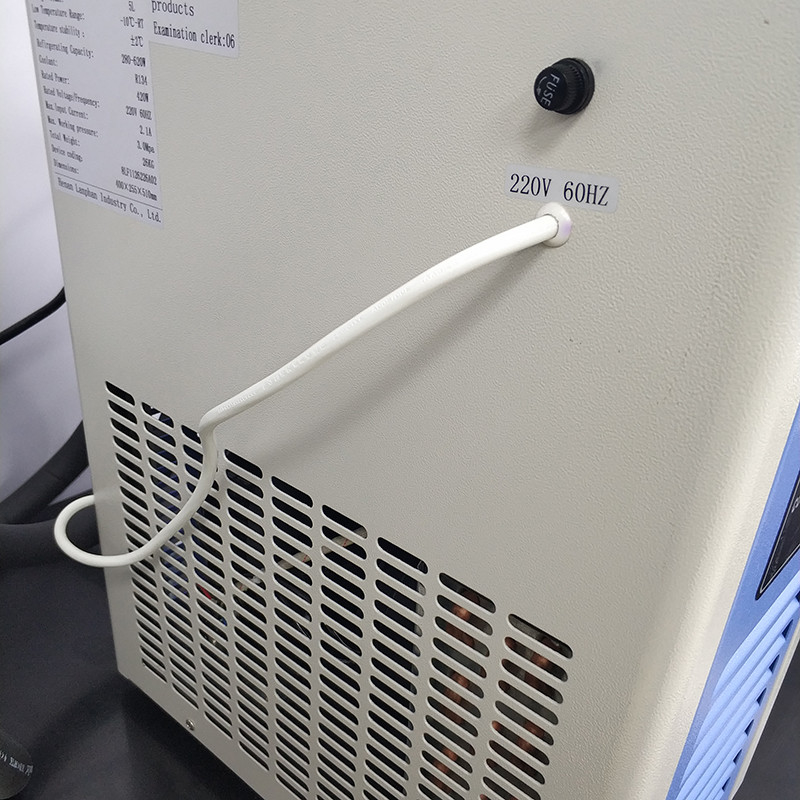

| Working power supply (V/HZ) | single phase220-50 | |

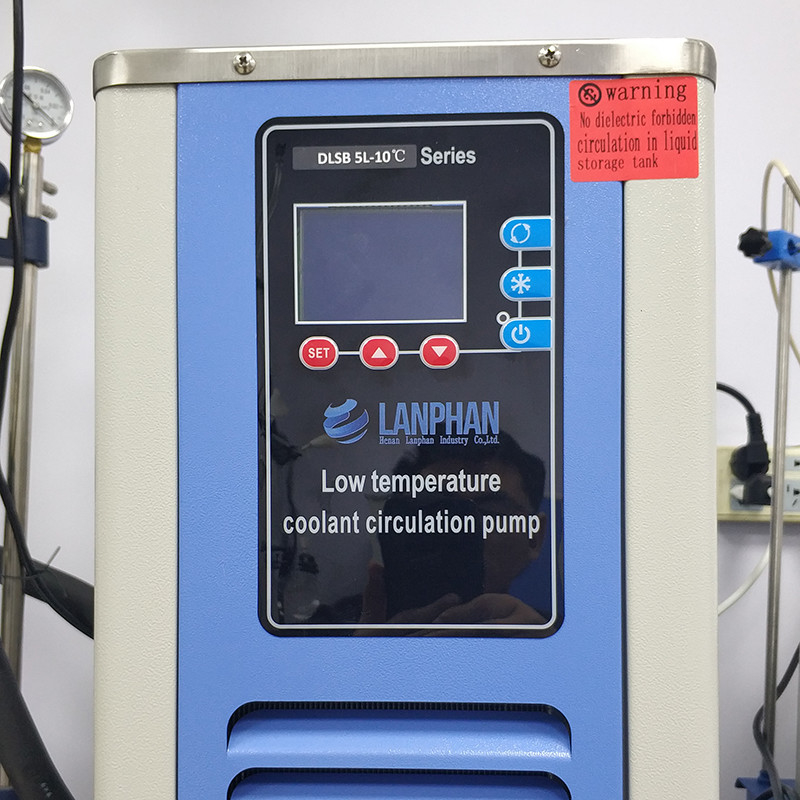

| temperature display mode | liquid crystal | |
| temperature stability(℃) | ±2 | |
| Sensor index | Pt100 | |
| Instrument adjusting range (℃) | ±150 | |
| set way | Arbitrary adjustment of Settings in the range of use | |
| safety protection | delay,leakage,over current,overheat | |
| output refrigerating capacity (W) | 10℃ | 620 |
| 0℃ | 460 | |
| -10℃ | 280 | |
| -20℃ | - | |
| Total machine power (W) | 420 | |
| Machine current (A) | 2.1 | |
| refrigerant | 134A | |
| Circulating pump | Power(w) | 100 |
| Flow rate(L/min) | 20 | |
| Lift(M) | 4~6 | |

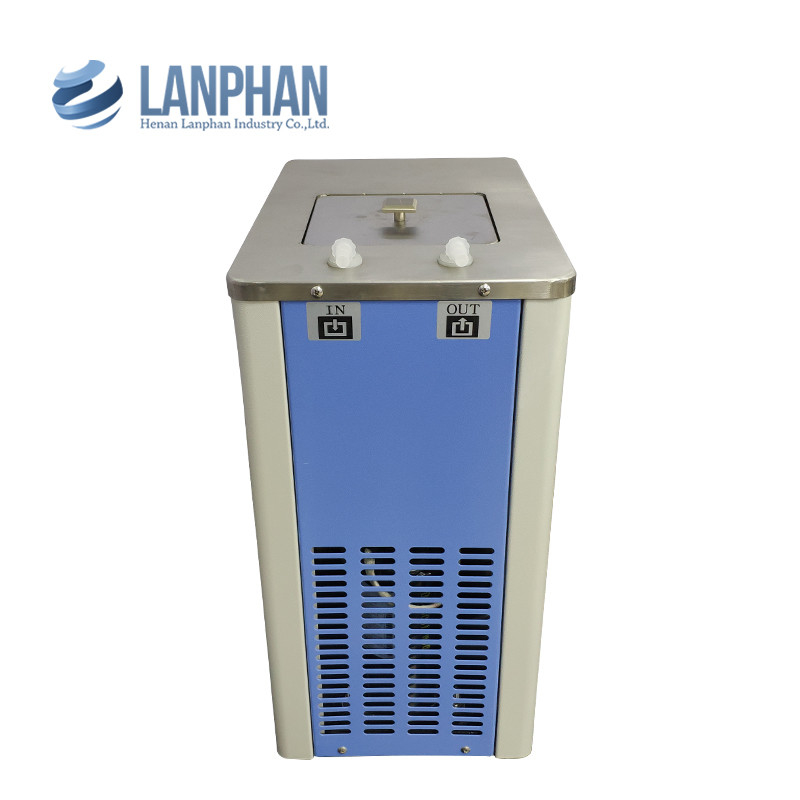

| external loop interface | Threaded joint 12 inches | |
| opening size(mm) | 160×160 | |
| tank shape | square | |

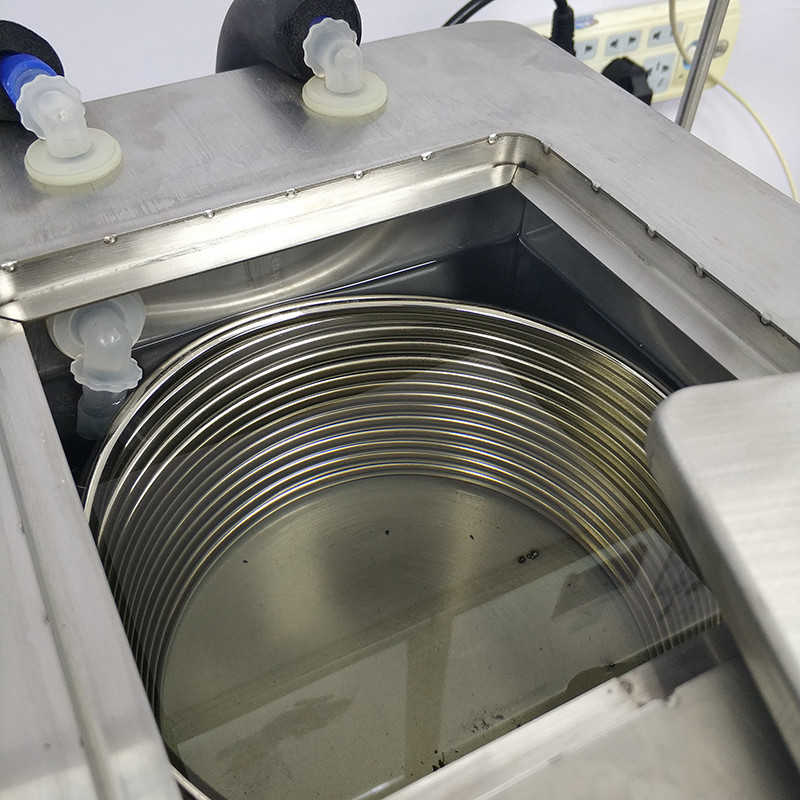

| Internal diameter and height of liquid storage tank (mm) | 170×170×170 | |
| Overall appearance size (mm) | 400×260×530 | |
| Machine weight (kg) | 28 | |
| fuse | 5A | |
| matching parts | one set | |
Turn on and off:
The capacity of our pump can be 5L-500L
Temperature ranges from room temperature to -120 degrees
