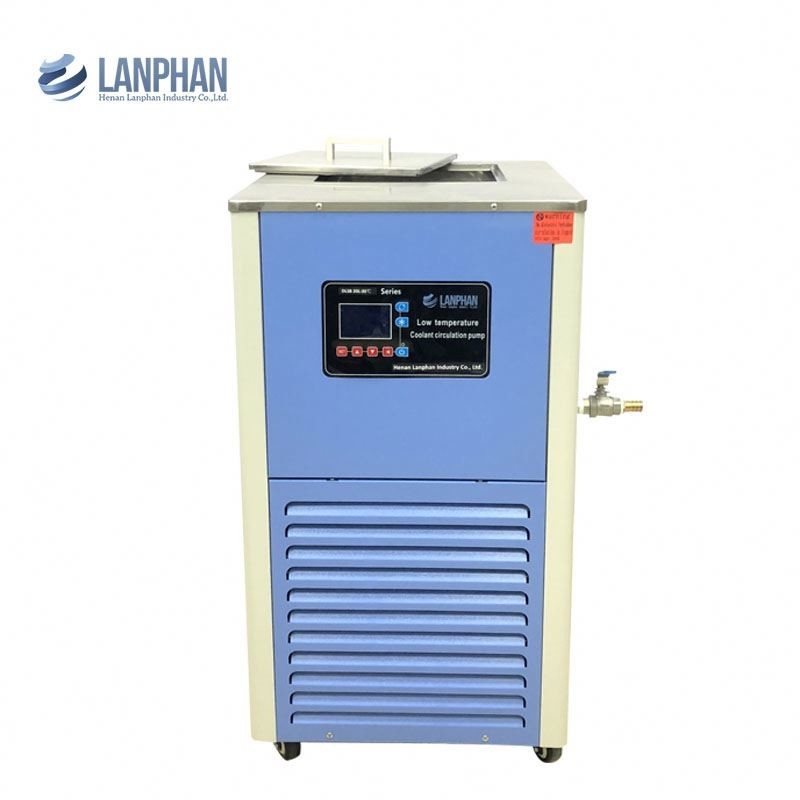

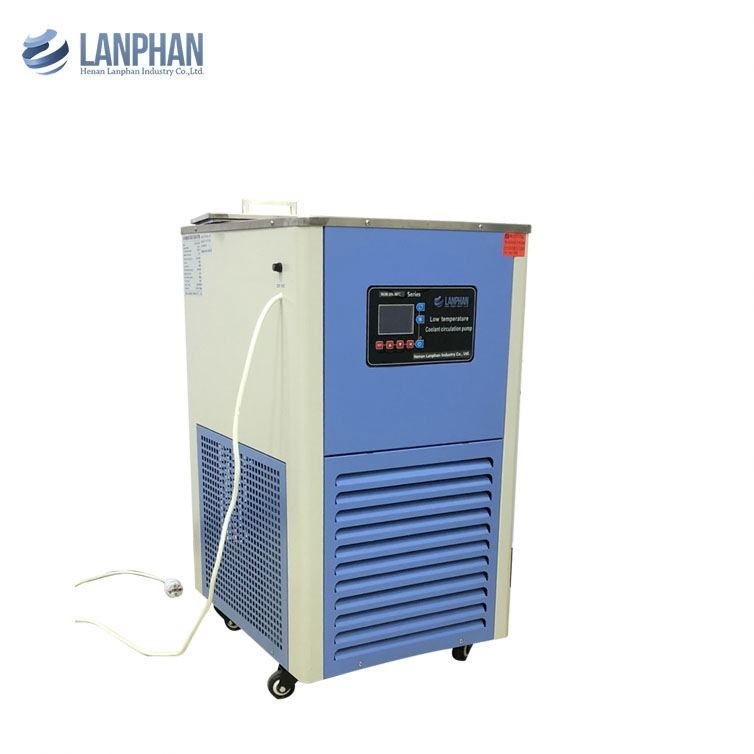

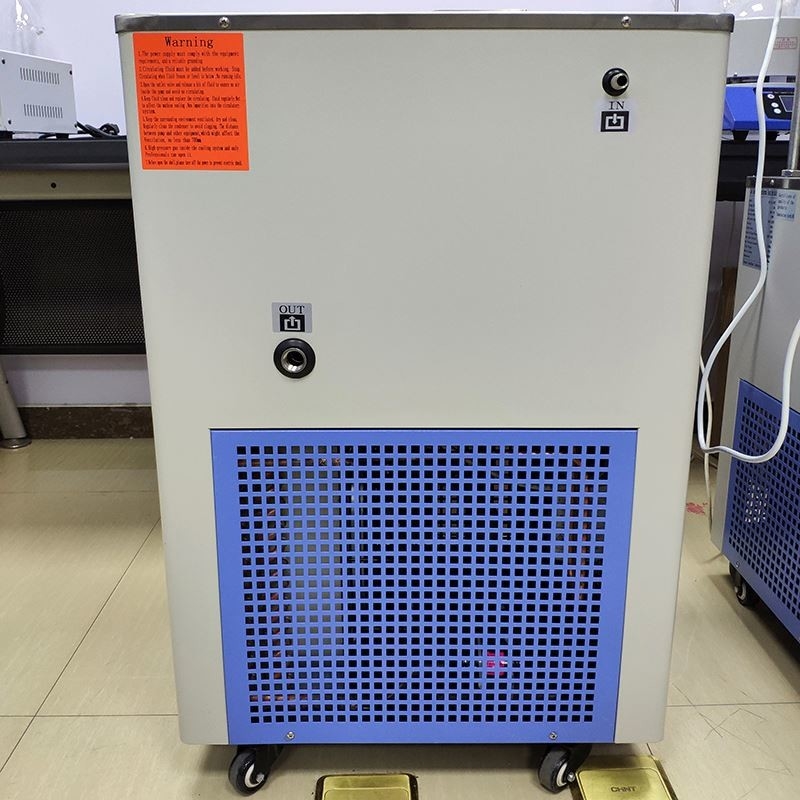

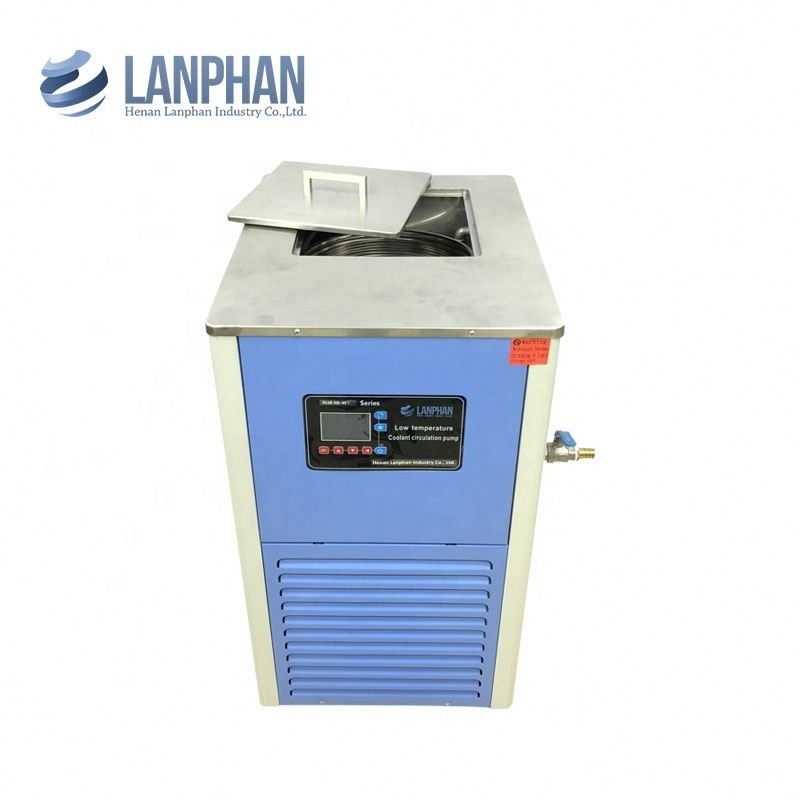

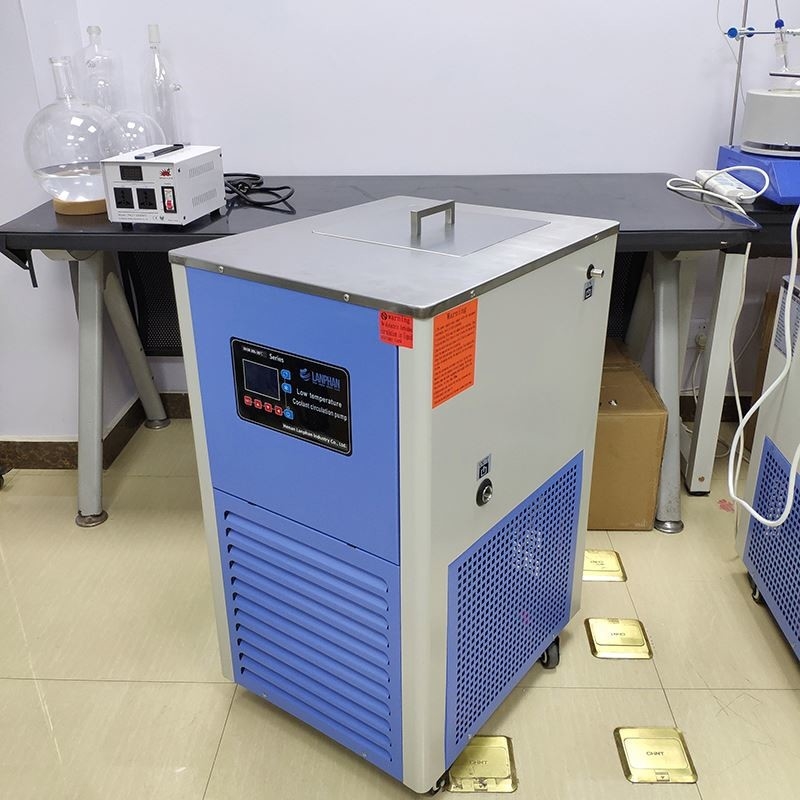

Circulating Pump Lab Chiller Unit

Minimum Order Quantity : 1 - 2 Units Price : $1,870.00
Packaging Details : Packing of refrigeration chiller: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE, ROHS

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops Condition: New
Type: Water-Cooled Voltage: 220v
Dimension(L*W*H): 660*515*990 Mm Weight: 60KG
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Online Support
Power(W): 1350 Lowest No-load Temperature: -30℃
Best Temperature Range: ≤25℃ Environmental Relative Humidity: ≤70%
Temperature Display Mode: Liquid Crystal Temperature Stability: ±2℃
Sensor Index: Pt100 Instrument Adjusting Range: ±150℃
Total Machine Power: 1350 Name: Refrigeration Chiller
Refrigerant: R404A Port: Shanghai, Tianjin, Qingdao
High Light:

Circulating Pump Lab Chiller Unit

,

Lanphan Lab Chiller Unit

Product Description

Low Temperature Cooling Liquid Circulating Pump Refrigeration Chiller

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges from room temperature to -120 degrees

Product Description



The DLSB 20L-30℃ Low Temperature Pump is a low-temperature equipment that uses a compressor for mechanical refrigeration.



On the basis of refrigeration, a water circulating pump is added to enable the cooled liquid to pass through the pipeline for external and internal circulation, and can provide low temperature liquid for external equipment such as a double-layer glass reactor, an organic synthesis device, a rotary evaporator, etc. It can also be combined with a rotary evaporator, a vacuum freeze drying oven, a water circulating vacuum pump, a magnetic stirrer and the like to perform multi-functional chemical reaction operations and drug storage at a low temperature.



It can maintain constant current and pressure. The circulating fluid can provide cooling water to meet the requirements of temperature and water purity, for large equipment such as high purity metal, rare substance purification, environmental experiment and magnetron sputtering, vacuum coating, etc.The low temperature coolant circulation pump can also meet the cooling needs of electronic instruments, electronic probes, ultra-high vacuum sputtering instruments, X-ray machines, lasers, accelerating leveling lamp and other valuable equipment.



It is an essential equipment for medical and health, chemical industry, food industry, metallurgical industry, colleges and universities, scientific research, genetic engineering, polymer engineering and other fields. ( The large-capacity low-temperature coolant circulation pump can be customized according to user needs.)



Circulating Pump Lab Chiller Unit 0

Circulating Pump Lab Chiller Unit 1

Type DLSB 20L-30°C
Tank volume (L) 24.38
lowest no-load temperature(°C) -30
Using temperature range (°C) room temperature—-30
best temperature range(°C) ≤25
Environmental relative humidity (%) ≤70
Working power supply (V/HZ) single phase220/50

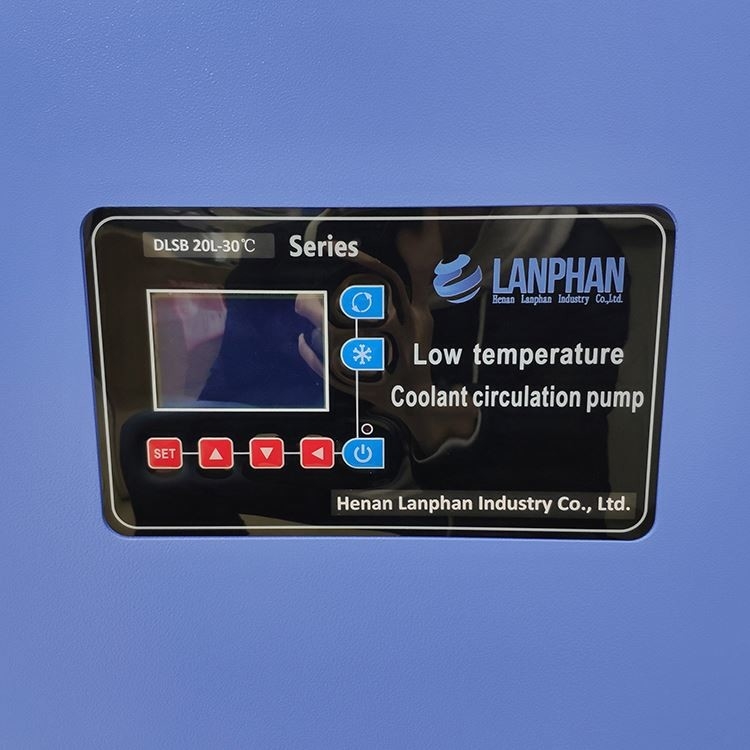

temperature display mode liquid crystal
temperature stability(°C) ±2
Sensor index Pt100
Instrument adjusting range (°C) ±150
set way Arbitrary adjustment of Settings in the range of use
safety protection delay,leakage,over current,over heat
  10°C 1845
  0°C 1476
Output refrigerating capacity(w) -10°C 984
  -20°C 615
  -30°C 246
Total machine power (W) 1350
Machine current (A) 7.2
refrigerant R404A
circulating pump power(w) 100
flow rate(L/min) 20
lift(m) 6
external loop interface(mm) 14
opening size(mm) 260L×260
tank shape square
internal diameter and height of liquid storage tank(mm) 290×290×290
overall appearance size(mm) 565×460×845
machine weight(kg) 60
fuse 15A





Circulating Pump Lab Chiller Unit 2Circulating Pump Lab Chiller Unit 3



Turn on and off:
The right turn to turn on the machine: Add the appropriate refrigerating medium—connect the power with the special power supply—turn off the circulation switch—press the power button—open the circulation switch—open the refrigerator switch—open the cooling equipment
The right turn to turn off the machine.Turn off the cooling equipment—turn off the refrigerator switch—turn off the circulation switch(stirring switch)—turn off the outlet valve(or discharge the cooling medium)—turn off the power supply —disconnect circuit breaker—disconnect the power line from the power supply—clean the equipment.
Corollary Equipment

Circulating Pump Lab Chiller Unit 4

Related Products

Circulating Pump Lab Chiller Unit 5Circulating Pump Lab Chiller Unit 6

The capacity of our refrigeration pump can be 5L-500L
Temperature ranges  from room temperature to -120 degrees
