11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection

Minimum Order Quantity : 1 Unit Price : $3405/pc
Packaging Details : wooden box package Delivery Time : 3-9 work days
Payment Terms : T/T, L/C, Western Union Supply Ability : 500 Units per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE Model Number: 11E/17E

Detail Information

Product Name: Rotary Tablet Press Material: Stainless Steel
Structure: Fully Enclosed Housing Max Pressure: 80kn
Condition: New No.of Stations: 11/17
Max Production Capacity(pcs/h): 16500/25500 Motor Power(kw): 380V,50Hz,Three Phase Five Wire System
Machine Weight(kg): 580
High Light:

Chlorine Dioxide Disinfection Tablet Press Machine

,

11E17E Tablet Press Machine

,

380V rotary tablet press

Product Description

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection Tablet Pressing Machine

Parameter specisfication

Model ZP226-11E ZP226-17E
No.of Stations 11 17
Max Production Capacity(pcs/h) 16500 25500
Turret Speed(r/min) 0-25
Max Pressure(kn) 80
Max Filling Depth(mm) 20
Max Tablet Thickness(mm) 1-8
Max Tablet Diameter(mm) Ф40
Motor Power(kw) 3KW/380V,50Hz,Three phase five wire system
Overall Size(mm) 880*750*1600
Machine Weight(kg) 580

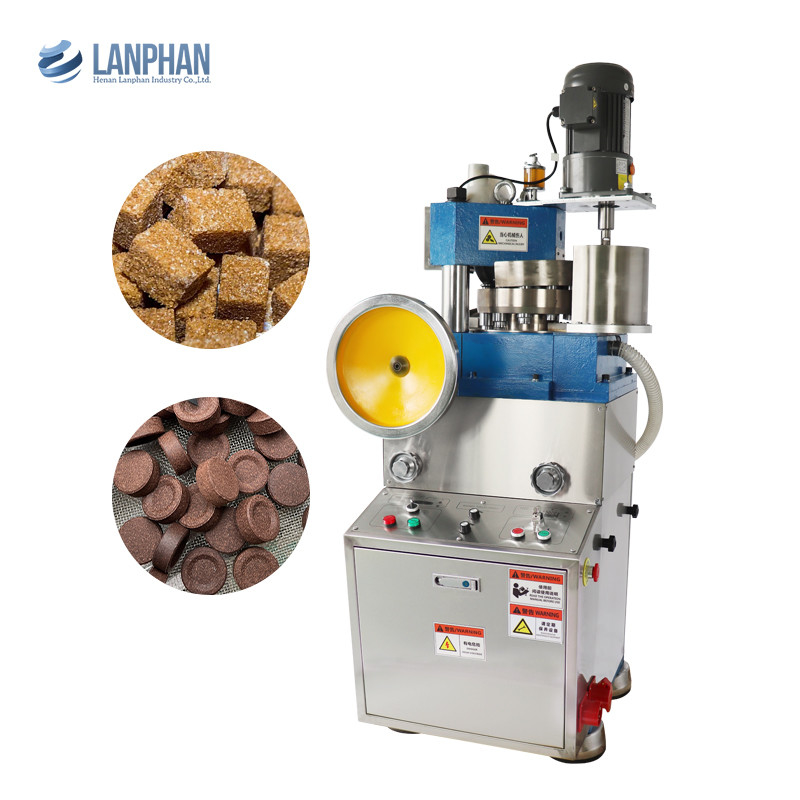

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection 0

Applications:

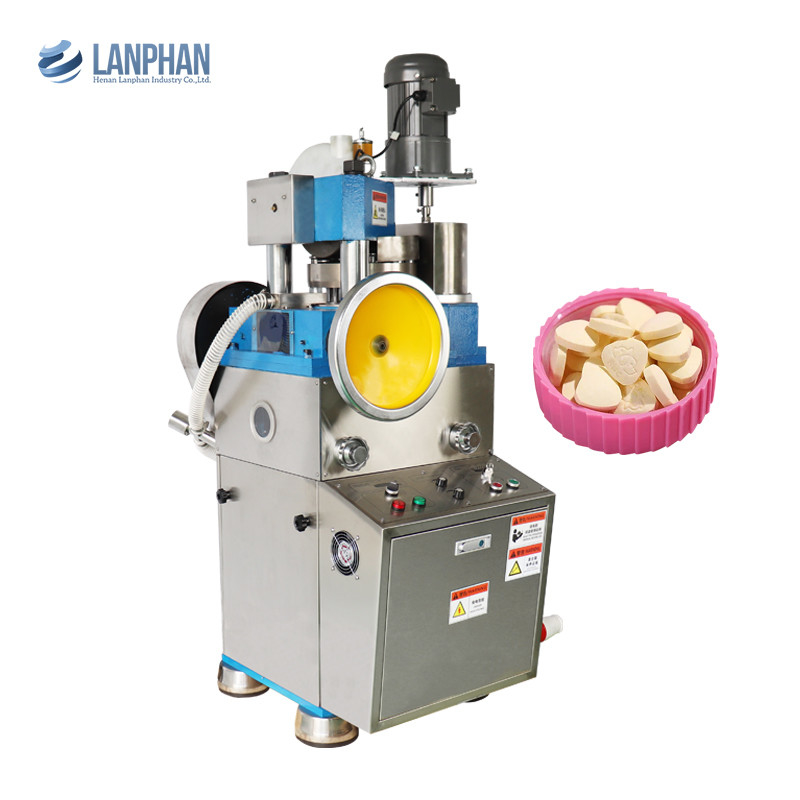

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection 1

This machine is suitable for pressing various kinds of granular materials into round tablet or different geometrical shape tablets.The machine is an automatically continuous rotary tablet press that are widely used in pharmaceutical, chemical, ceramics, foodstuff , electronics, plastics and powder metallurgy industries , etc.

Product show

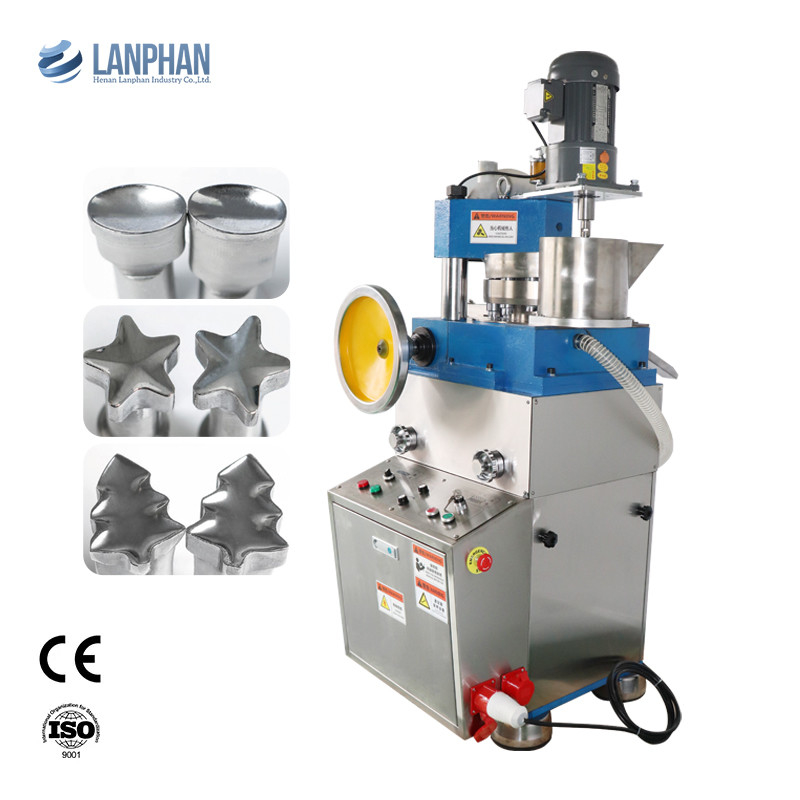

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection 2

Descriptions: This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small scale production. When pressing the tablets, the rotary disc speed and filling depth of material can be adjustable.
In addition, it is equipped with the force-feeder and overload protection devices. So This machine is also suitable for viscous materials.

Product Advantage

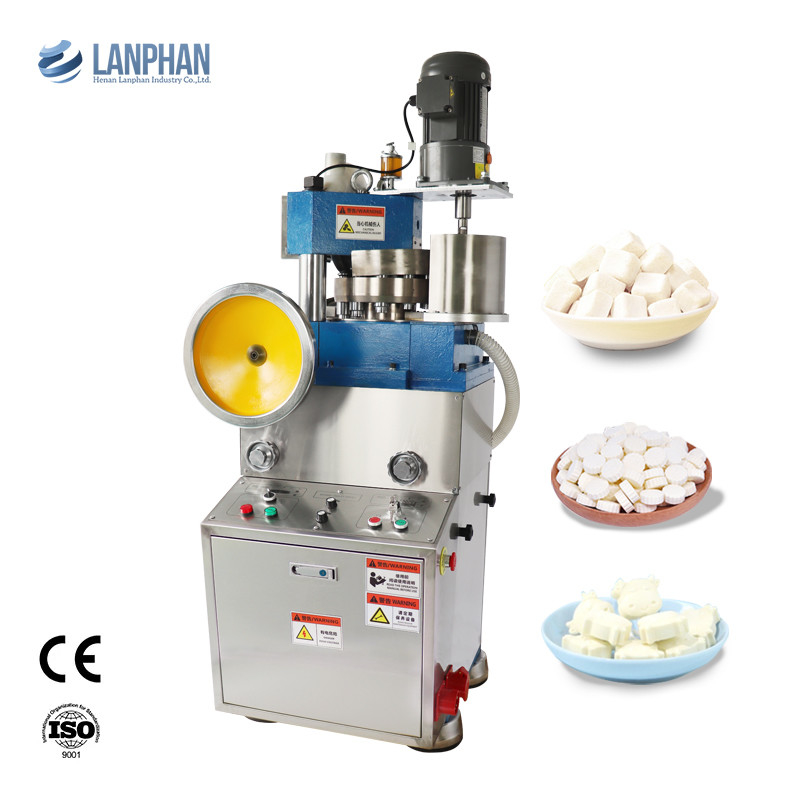

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection 3

Product Details

- The material of the cover and internal table are made of stainless steel.The housing is fully closed. The surface of turntable is specially disposed to keep the surface luster and prevent it from being polluted.This series conform to GMP standard governing the medicine production and quality control. The tablet-paint.
- Equipped a force-feeder on this machine.
- The lay-out of all the controllers and the operate parts is reasonable.
- All the drive devices are located inside the machine so keep the machine clean.
- Overload protection unit is included in the system to avid the damage of the punches and apparatus, When overload occurs, the machine will stop working automatically.
- This machine also has electromagnetic brake motor and other safety protection device which can be adjusted and operated when running.

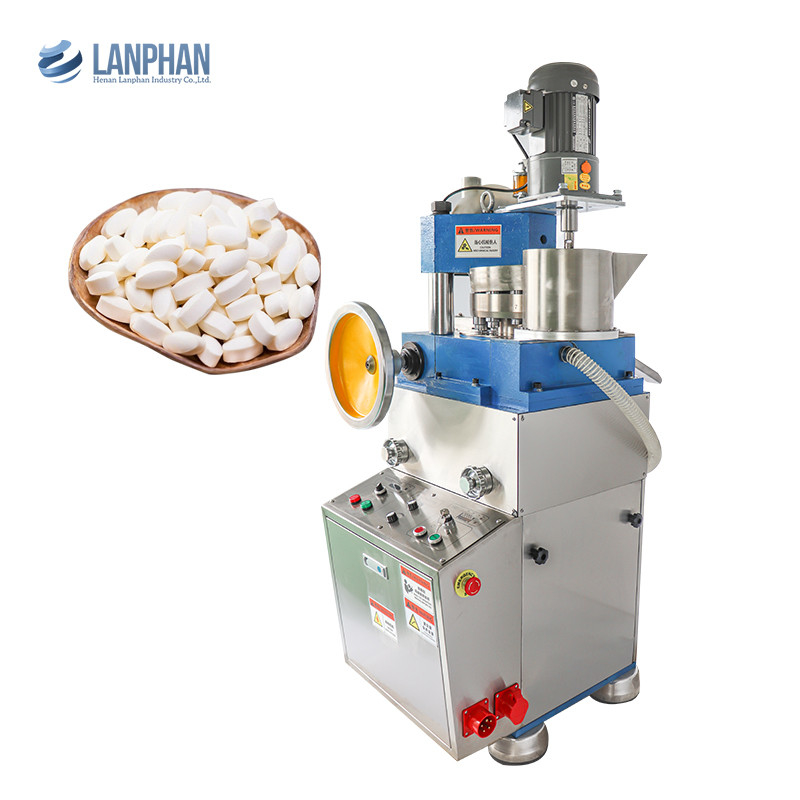

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection 4

Matters need attention

1.. Protective covers and safety cover devices on machinery and equipment must not be removed at will.
2. The die needs to undergo strict flaw detection and lay inspection. It is required to have no cracks, deformations, missing edges, suitable hardness and accurate size. If it is unqualified, do not use it to avoid serious damage to the machine.
3. The gap between the feeder and the working surface of the turntable must be even. If the gap is too large, powder leakage will occur. If there is no gap, copper chips will appear, thus affecting the quality of the tablets...



Packing & Shipping

11E17E Rotary Effervescent Tablet Beating Machine Chlorine Dioxide Disinfection 5
