Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical

Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical

Tablet Press Machine For Laboratory

Multi-punch tablet press

3KW Tablet Press Machine

Place of Origin:

China,Henan

Brand Name:

Lanphan

Certification:

CE

Model Number:

11E/17E

Contact Us
Request A Quote
Product Details
Product Name:
Automatic Tablet Press Machine
Voltage:
3KW/380V,50Hz
Dimension:
880mm*750mm*1600mm
Warranty:
12 Months
Machine Weight:
580kg
Machine Material:
Stainless Steel
Turret Speed:
0-25r/min
Max Pressure:
80kn
Max Turret Speed:
0-25r/min
Max Production Capacity:
16500pcs/h,25500pcs/h
Highlight:

Tablet Press Machine For Laboratory

,

Multi-punch tablet press

,

3KW Tablet Press Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
$3410/pc
Packaging Details
Carton, wooden cases or customizable package
Delivery Time
5-8 work days
Payment Terms
T/T ,Paypal, Western Union
Supply Ability
900 Units per Month
Product Description

Multi-punch tablet press Rotary Tablet Press Machine Candy Tableting Machine For Laboratory And Pharmaceutical

Technical Specifications

Model 11E 17E
No.of Stations 11 17
Max Production Capacity(pcs/h) 16500 25500
Turret Speed(r/min) 0-25
Max Pressure(kn) 80
Max Filling Depth(mm) 20
Max Tablet Thickness(mm) 1-8
Max Tablet Diameter(mm) Ф40
Motor Power(kw) 3KW/380V,50Hz,Three phase five wire system
Overall Size(mm) 880*750*1600
Machine Weight(kg) 580

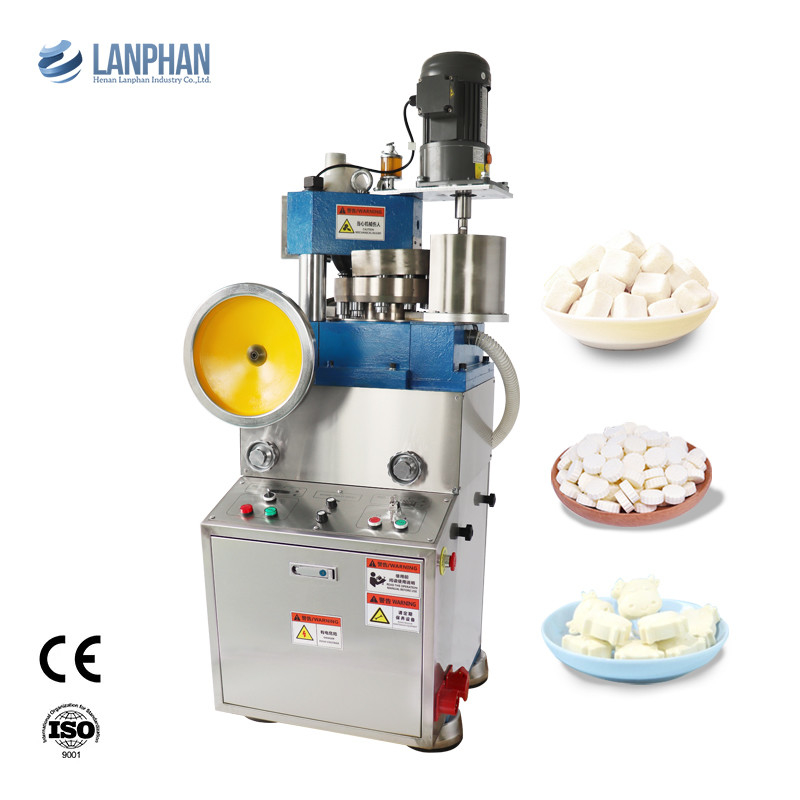

Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical 0

Applications:

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet-pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon-molecular sieve etc.

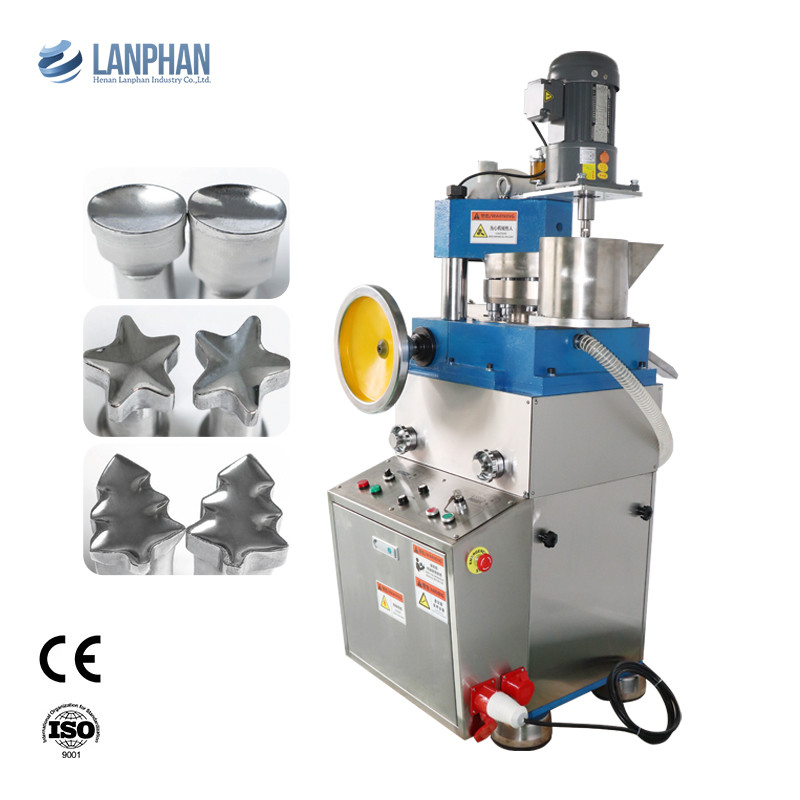

Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical 1

Product show

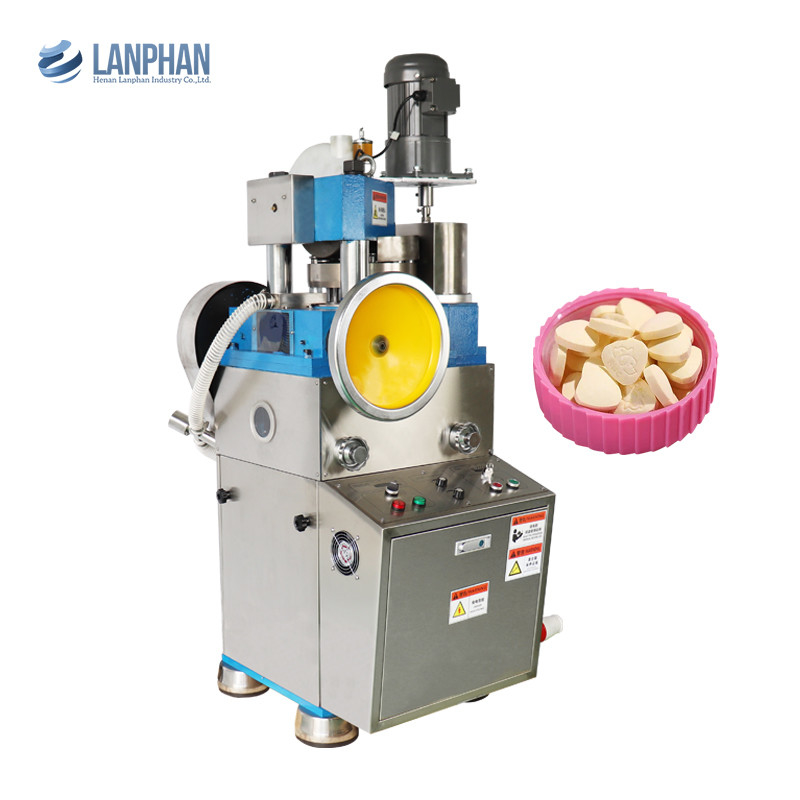

Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical 2

Descriptions: This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small scale production. When pressing the tablets, the rotary disc speed and filling depth of material can be adjustable.
In addition, it is equipped with the force-feeder and overload protection devices. So This machine is also suitable for viscous materials.

Product Advantage

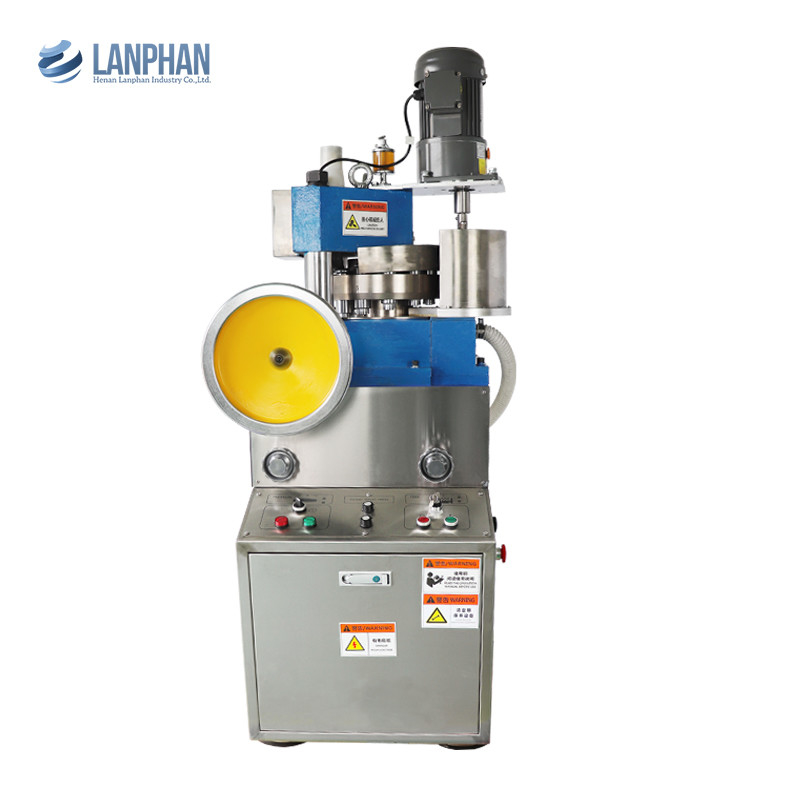

Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical 3

Product Details

- The material of the cover and internal table are made of stainless steel.The housing is fully closed. The surface of turntable is specially disposed to keep the surface luster and prevent it from being polluted.This series conform to GMP standard governing the medicine production and quality control. The tablet-paint.
- Equipped a force-feeder on this machine.
- The lay-out of all the controllers and the operate parts is reasonable.
- All the drive devices are located inside the machine so keep the machine clean.
- Overload protection unit is included in the system to avid the damage of the punches and apparatus, When overload occurs, the machine will stop working automatically.
- This machine also has electromagnetic brake motor and other safety protection device which can be adjusted and operated when running.

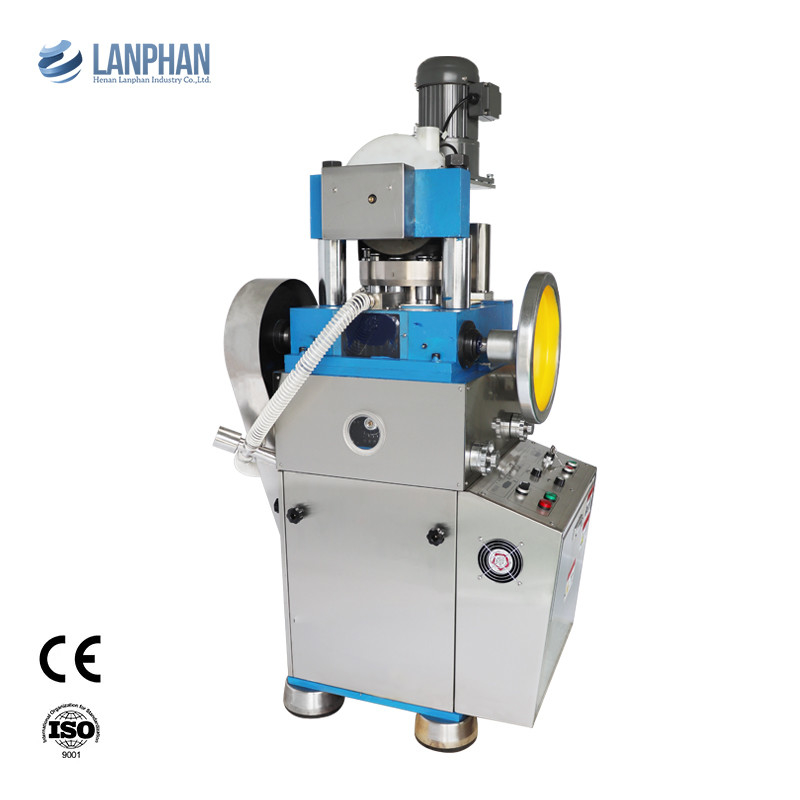

Multi-Punch Tablet Press Rotary Candy Tableting Machine For Laboratory And Pharmaceutical 4

Matters needing attention

1.Powder raw materials should not be used, otherwise it will cause a lot of flying powder in the upper flush and a lot of powder leakage in the lower flush, making the machine parts easy to wear and raw materials wasted.

2.Protective covers and safety cover devices on machinery and equipment must not be removed at will.
3. Raw materials that are not dry should not be used because they will cause the powder to stick to the punch...
