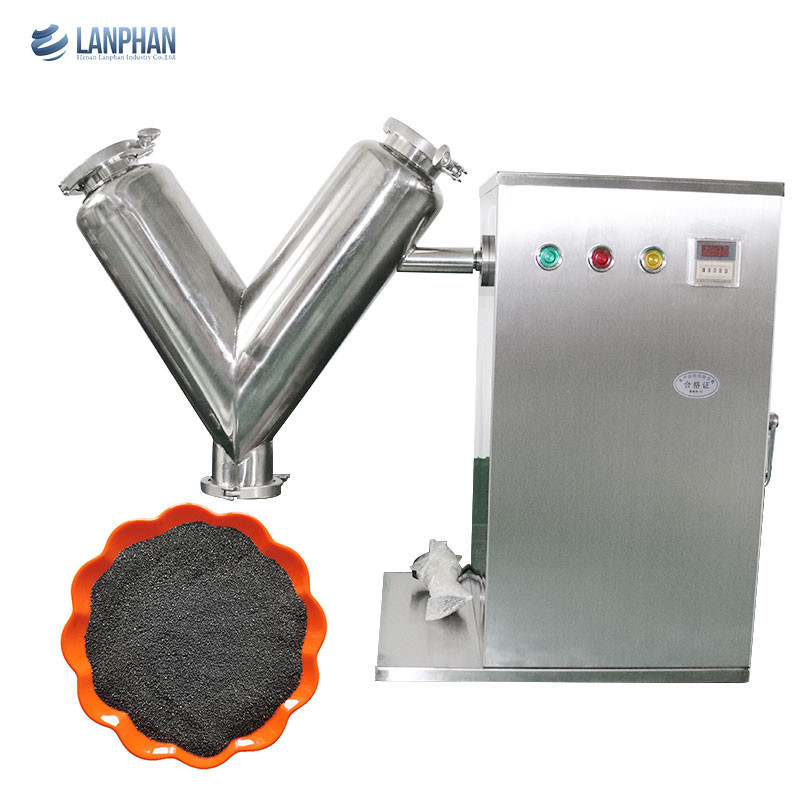

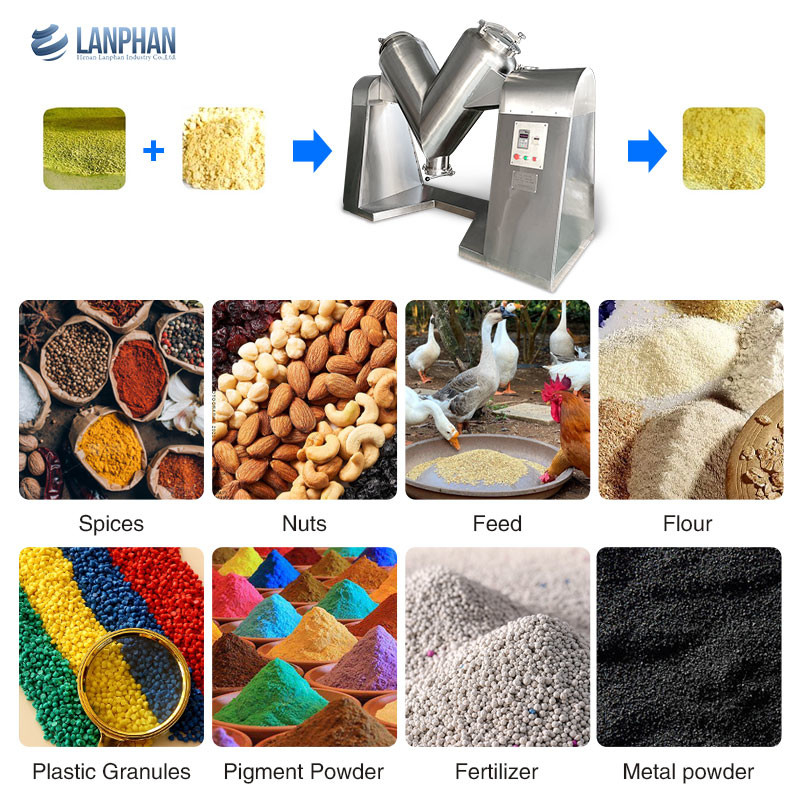

Industrial Powder Blenders are suitable for use in the pharmaceuticals, chemical and food industries for mixing powder or granular materials.
The cylindrical structure is the distinguishing feature and the mixing ability is well-proportioned and efficient with no blind spots in the cylinders and no accumulation of materials.
Industrial Powder Blenders are straightforward and they are easy to operate with the surface that are easy to clean in a highly finished stainless steel.
| Model | Type | Barrel volume /L | Working volume/L | Best loading/kg | Power (KW) | Rotation speed/rpm | Packing Dimension | Packing Weight | ||
| VH-2 | single arm | 2 | 0.8 | 0.6 | 0.04 | 24 | 420*330*390(mm) | 16.54*12.99*15.35(inch) | 20(kg) | 44.09(lbs) |
| VH-5 | single arm | 5 | 2 | 1.4 | 0.55 | 24 | 560*460*650(mm) | 22.05*18.11*25.59(inch) | 57(kg) | 125.66(lbs) |
| VH-8 | single arm | 8 | 3.2 | 2.2 | 0.55 | 24 | 580*560*650(mm) | 22.83*22.05*25.59(inch) | 60(kg) | 132.28(lbs) |
| VH-10 | single arm | 10 | 4 | 2.8 | 0.55 | 24 | 970*410*880(mm) | 38.19*16.14*34.65(inch) | 62(kg) | 136.69(lbs) |
| VH-14 | single arm | 14 | 5.6 | 4.2 | 0.55 | 20 | 1050*460*960(mm) | 41.34*18.11*37.80(inch) | 75(kg) | 165.35(lbs) |
| VH-14S | double arm | 14 | 5.6 | 4.2 | 0.55 | 20 | 1100*460*1000(mm) | 43.31*18.11*39.37(inch) | 100(kg) | 220.46(lbs) |
| VH-20 | single arm | 20 | 8 | 5.6 | 0.75 | 20 | 660*640*830(mm) | 25.98*25.20*32.68(inch) | 80(kg) | 176.37(lbs) |
| VH-20S | double arm | 20 | 8 | 5.6 | 0.55 | 20 | 1250*450*1100(mm) | 49.21*17.72*43.31(inch) | 130(kg) | 286.60(lbs) |
| VH-30 | single arm | 30 | 12 | 8 | 0.75 | 20 | 1700*460*1200(mm) | 66.93*18.11*47.24(inch) | 96(kg) | 211.64(lbs) |
| VH-30S | double arm | 30 | 12 | 8 | 0.75 | 20 | 1410*460*1220(mm) | 55.51*18.11*48.03(inch) | 150(kg) | 330.69(lbs) |
| VH-50S | double arm | 50 | 20 | 14 | 0.75 | 20 | 1500*550*1350(mm) | 59.06*21.65*53.15(inch) | 175(kg) | 385.81(lbs) |
| VH-100S | double arm | 100 | 40 | 28 | 1.1 | 15 | 1730*750*1660(mm) | 68.11*29.53*65.35(inch) | 250(kg) | 551.16(lbs) |
