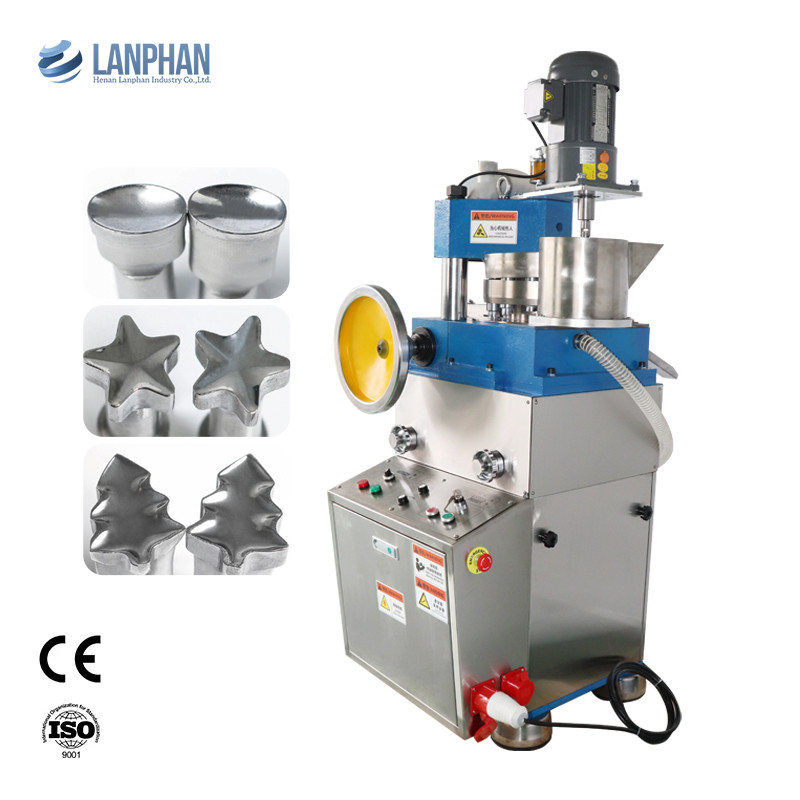

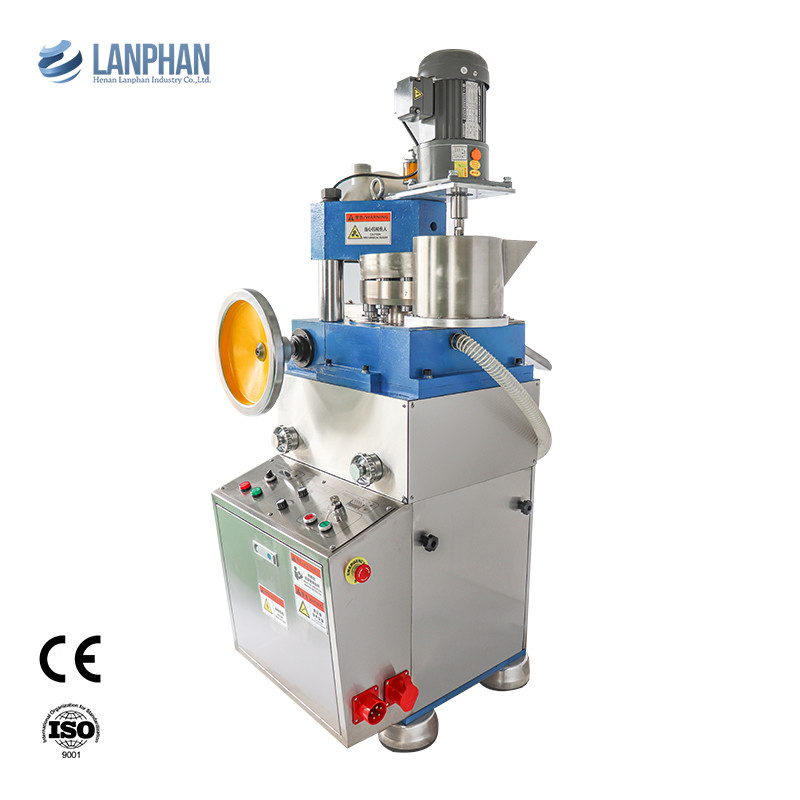

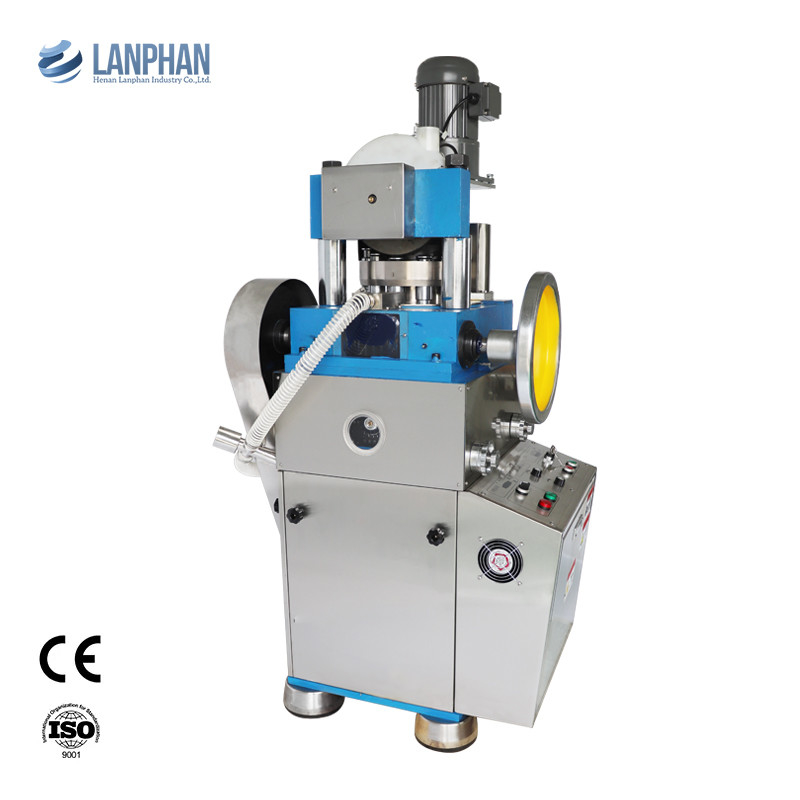

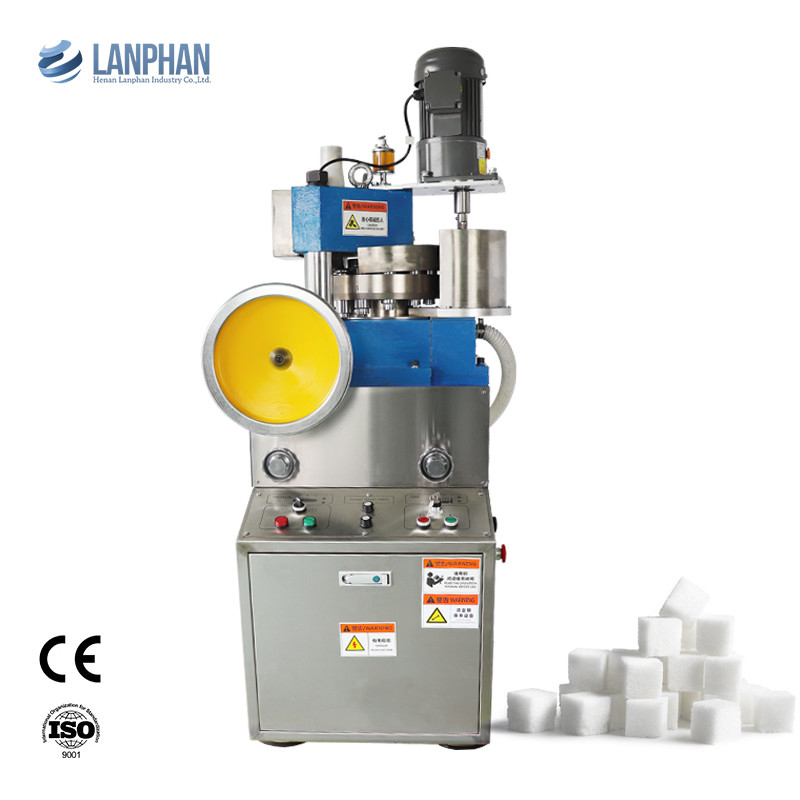

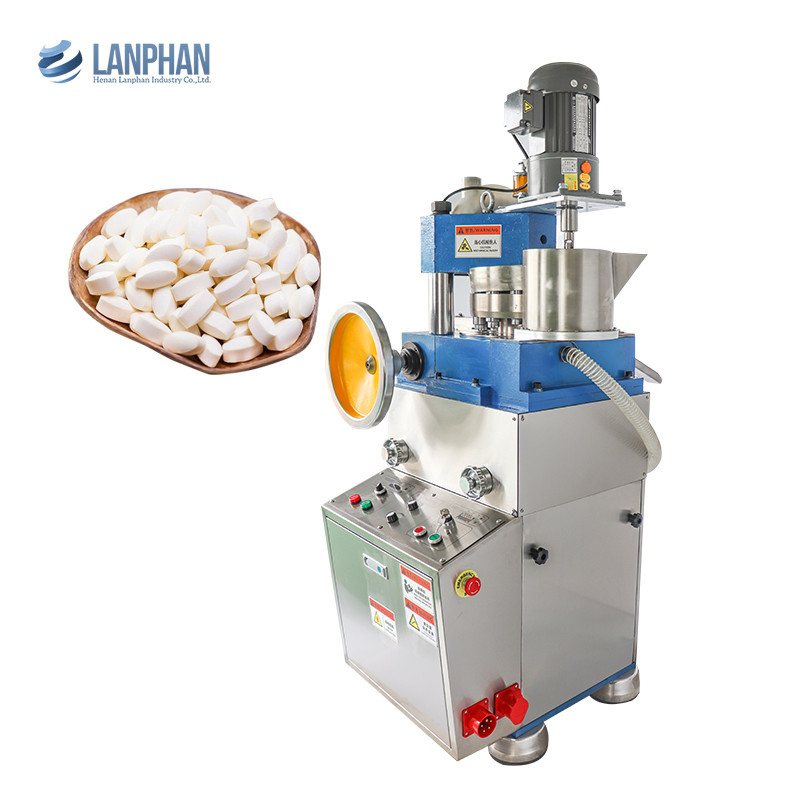

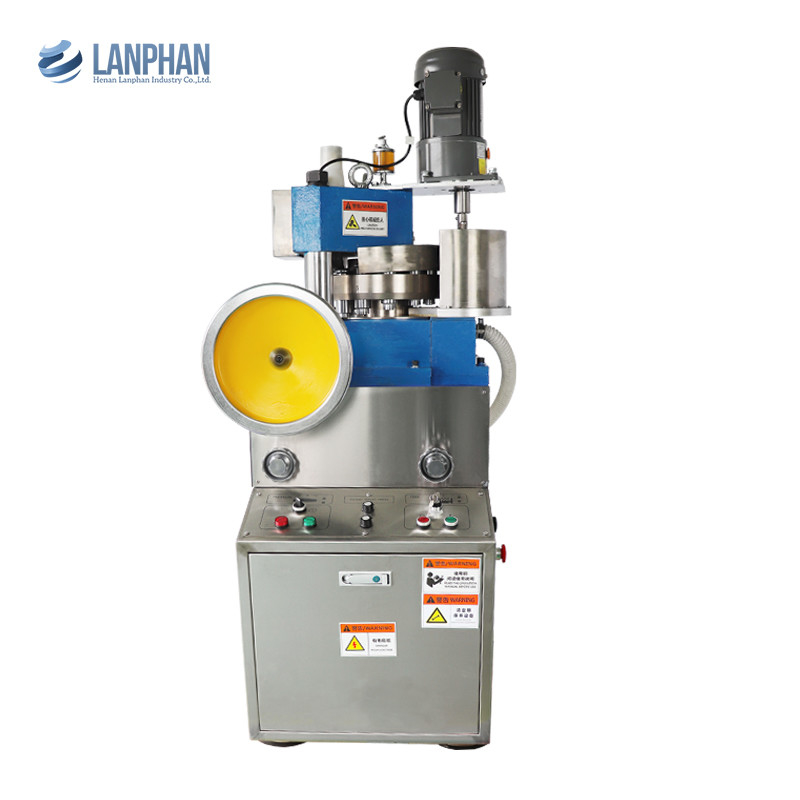

Rotary Tablet Press Factory Coffee Milk Powder Candy Salt Tablet Press Machine
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 Unit | Price : | $3420/pc |
|---|---|---|---|
| Packaging Details : | wooden package | Delivery Time : | 3-7 work days |
| Payment Terms : | T/T ,Paypal, Western Union | Supply Ability : | 960 Units per Month |
| Place of Origin: | China，Henan | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | CE | Model Number: | 11E/17E |
|
Detail Information |
|||
| Product Name: | Automatic Tablet Press Machine | Voltage: | 3KW/380V,50Hz |
|---|---|---|---|
| Dimension: | 880mm*750mm*1600mm | Warranty: | 6 Months |
| Machine Weight(kg)): | 580 | Turret Speed: | 0-25r/min |
| Max Pressure: | 80kn | Max Turret Speed: | 0-25r/min |
| Max Production Capacity: | 16500pcs/h，25500pcs/h | ||
| High Light: | Rotary Automatic Tablet Press,Pharmaceutical Implanted Tablet Machine,25r/min Automatic Tablet Press |
||
Product Description
| Model | 11E | 17E |
| No.of Stations | 11 | 17 |
| Max Production Capacity(pcs/h) | 16500 | 25500 |
| Turret Speed(r/min) | 0-25 | |
| Max Pressure(kn) | 80 | |
| Max Filling Depth(mm) | 20 | |
| Max Tablet Thickness(mm) | 1-8 | |
| Max Tablet Diameter(mm) | Ф40 | |
| Motor Power(kw) | 3KW/380V,50Hz,Three phase five wire system | |
| Overall Size(mm) | 880*750*1600 | |
| Machine Weight(kg) | 580 | |
Main body, lower guide rail, lower pressure wheel device
The main body is a square box. There are lower pressure wheels in the left and right grooves, and two pairs of heat-treated rail guides are symmetrically installed outside the round edges of the plane. When the punch rod runs with the turntable, its tail is embedded in the rail guide groove and moves up and down along with the inclination in the groove. There is a round hole at the end of the front rail guide, which is covered with a disc for installing the lower punch. The lower pressure wheel is installed in the groove of the main body. It is sleeved on the crankshaft to prevent the impact of the pressure wheel from causing thickness. The outer end of the shaft is equipped with a helical gear that matches the worm. The handwheel drives the worm to rotate, and the helical gear makes the pressure wheel move. When the crankshaft is rotated slightly and the eccentricity of the crankshaft is upward, the pressure wheel rises, the pressure increases, and the tablet becomes thinner. On the contrary, the pressure decreases, and the tablet becomes thicker. This is used to control the softness of the tablet thickness.
