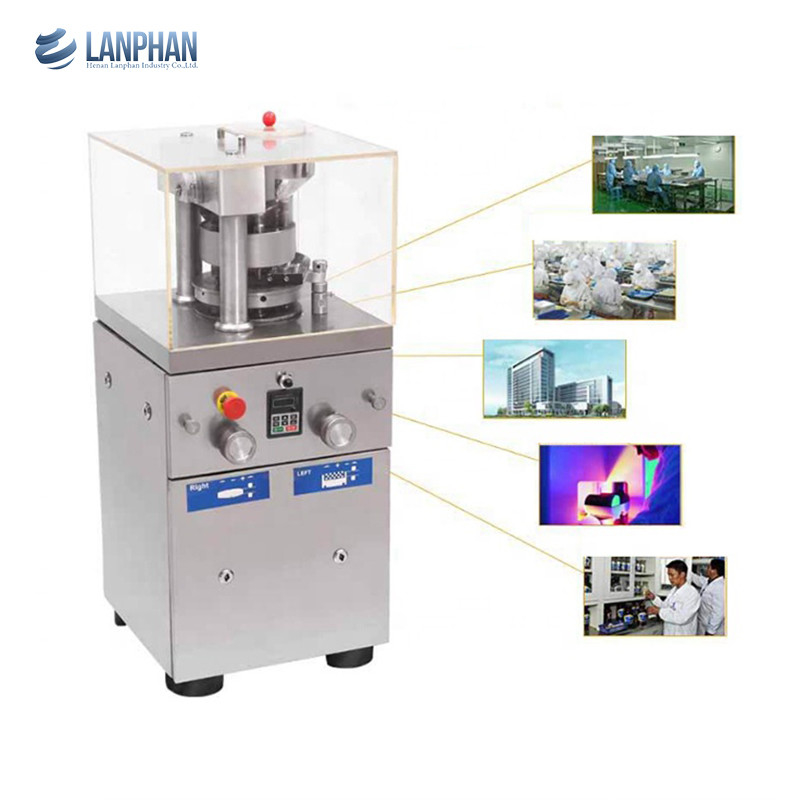

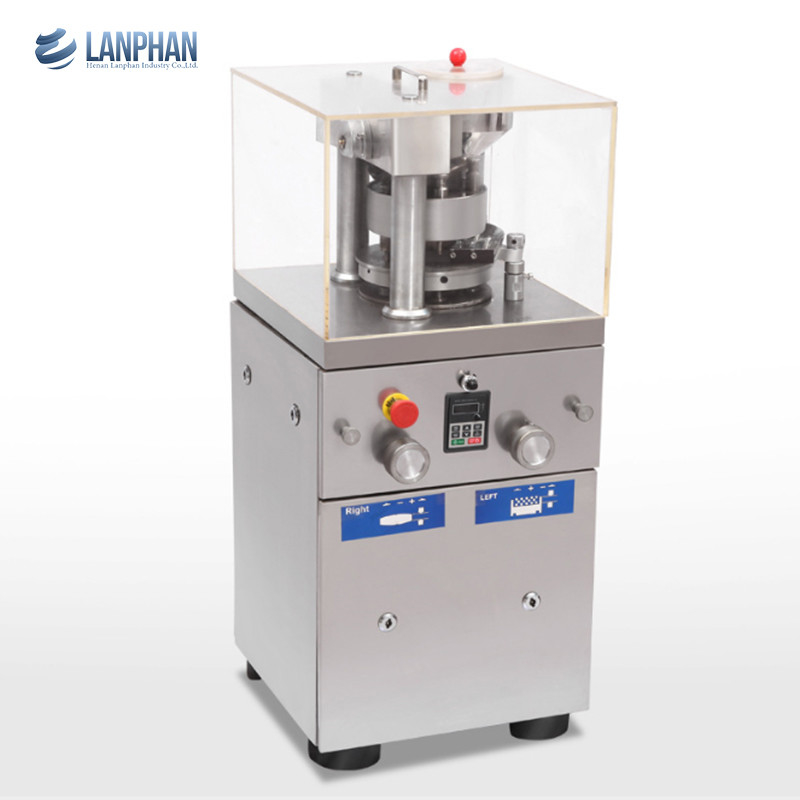

Chemical Full Automatic Multi Punch Rotary Herbal Pill Tablet Press Machine
Tablet Press Machine Parameters
| Model | ZP-5 | ZP-7 | ZP-9 |
| Number of die (paid) | 5 | 7 | 9 |
| Max tablet pressure (kN) | 60 | 60 | 60 |
| Max tablet diameter (mm) | 18mm | ||
| Max filling depth (mm) | 15 | 15 | 15 |
| Maxtablet thickness (mm) | 6 | 6 | 6 |
| Turntablespeed (rev/min) | 30 | 30 | 30 |
| Production capacity (pieces/hour) | 9000 | 12600 | 16200 |
| Motor power (kw) | 2.2 | ||
| Dimensions (mm) | 960*660*1230 | ||
| Weight (kg) | 308 | ||
Tablet Press Machine Description
This machine is a single pressure automatic rotating continuous tablet pressing machine, which can be used to press pellet like raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, and is also suitable for chemical, food, electronics and other industrial sectors.

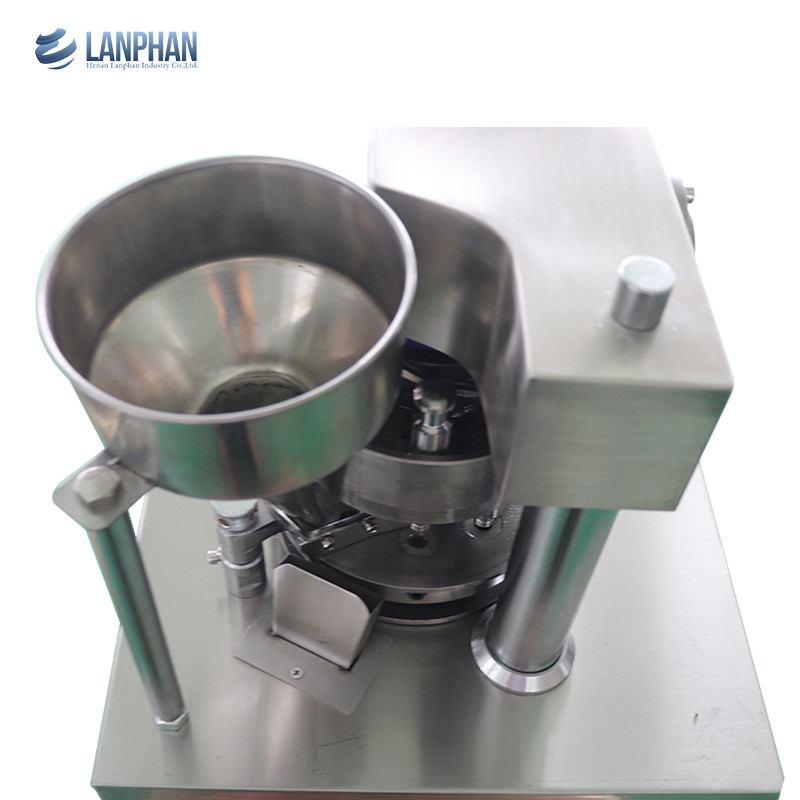

The outer cover shell is fully closed, made of stainless steel. The surface of the turntable is specially treated to keep the surface luster and prevent cross contamination, which meets the requirements of GMP. Doors and Windows equipped with transparent glass, can clearly observe the state of the press, and can be fully opened, easy internal cleaning and maintenance. All controllers and operating components are properly arranged.Frequency control device for electrical speed regulation, easy to operate, stable rotation, safe and accurate. All transmission devices are arranged inside the machine to keep the machine clean.
