Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
FMD-1SS

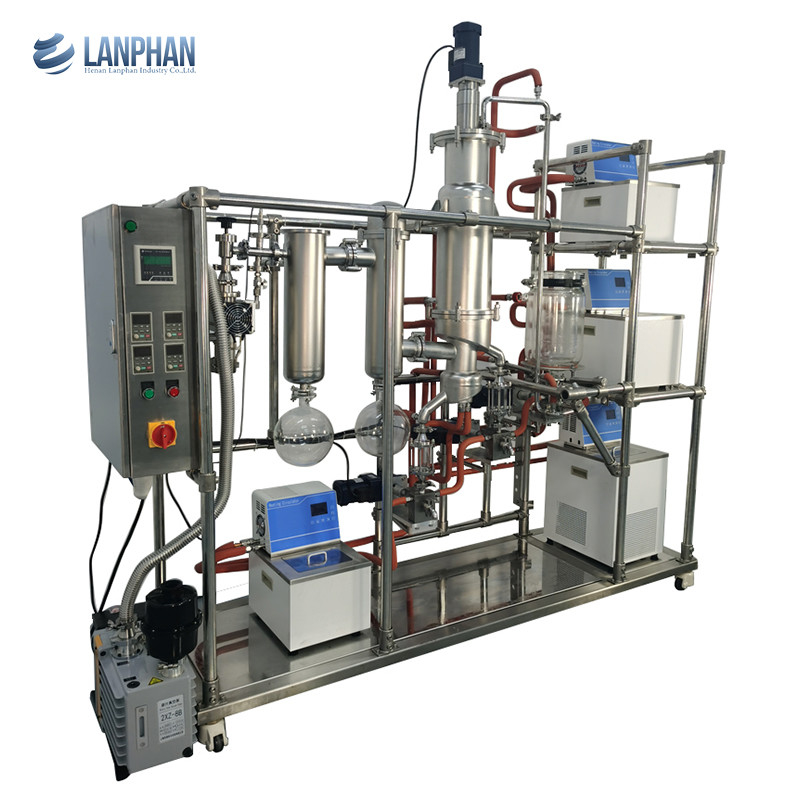

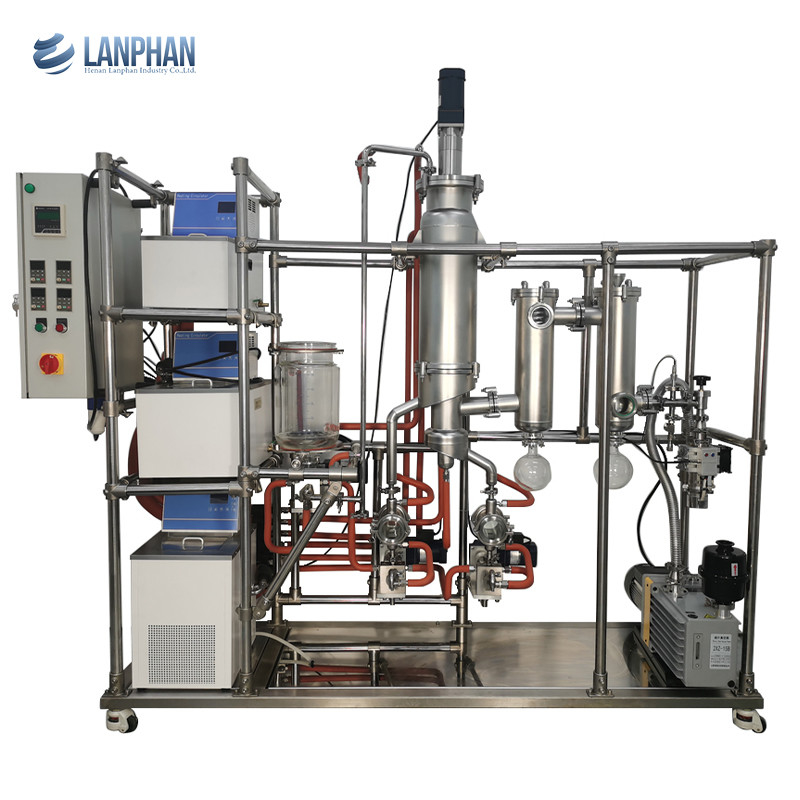

Wiped Film Distillation Stainless Steel Double Stage Vacuum Oil Distiller System Molecular Flask
Application of Stainless Steel Wiped Film Distillation Equipment
1. Chinese and Western medicine: antibiotics, sugar solution, Tripterygium wilfordii, Astragalus and other Chinese herbs; Intermediates such as methyl imidazole and mononitrile amine;
2, light industrial food: fruit juice, gravy, pigment, essence, fragrance, enzyme preparation, lactic acid, xylose, starch sugar, potassium sorbate;
3, oil daily chemical: lecithin, VE, cod liver oil, oleic acid, glycerin, fatty acid, waste lubricating oil, alkyl polyglycosides, alcohol ether sulfate, etc.;
4, synthetic resin: polyamide resin, epoxy resin, paraformaldehyde, PPS (polypropylene sebacate), PBT, propyl formate;
5, synthetic fiber: PTA, DMT, carbon fiber, polytetrahydrofuran, polyether polyol, etc.;
6, petrochemical: TDI, MDI, trimethylhydroquinone, trimethylol propane, sodium hydroxide, etc.;
7, pesticide biology: acetochlor, diachlor, chlorpyrifos, furanol, isooxalone and other herbicides, insecticides, herbicides, acaricides;
8, wastewater: inorganic salt wastewater, etc.;
Functions of Stainless Steel Wiped Film Distillation Equipment
1. Thermal separation of thermal sensitive compounds.
2. Purification of organic synthetic materials.
3. Purification of active ingredients from biological extracts.
4. Recycling of industrial waste.
5, the removal of toxic substances in the food industry.
6. Remove the smell of organic compounds.
7. Thoroughly remove residual solvent from the compound.

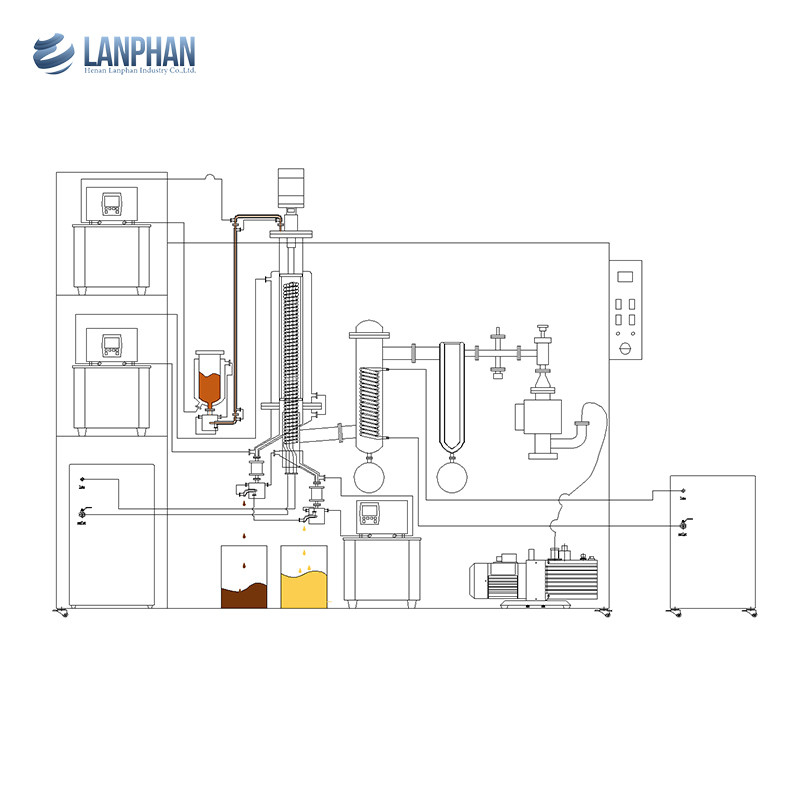

Description of Stainless Steel Wiped Film Distillation Equipment
Wiped Film distillation is a special liquid-liquid separation technology, which is different from the traditional distillation principle based on the difference of boiling points of substances, but based on the difference of the average free path of the movement of each substance in the mixture. Implement separation. Under ideal conditions, light and heavy molecules will escape from the liquid surface and enter the gas phase if the liquid mixture is heated along the heating plate, according to the principle of mean free path of molecular motion. Due to the different free paths of light and heavy molecules, molecules of different substances travel different distances after escaping from the liquid surface. If the condensing plate is set up properly, the light molecules will reach the condensing plate and be condensed out, while the heavy molecules will not reach the condensing plate and be discharged along the mixture.
Product Advantages
1, the material heating time is short.
2, low evaporation temperature.
3, high evaporation efficiency.
4, continuous material in and out.
5. Made of corrosion-resistant 316 stainless steel.
6, heat transfer speed is fast.
Parameter of Stainless Steel Wiped Film Distillation Equipment
| Stainless Steel Molecular Distillation | ||||||||||
| Model | FMD-0.1SS | FMD-0.15SS | FMD-0.25SS | FMD-0.35SS | FMD-0.5SS | FMD-1SS | FMD-1.5SS | FMD-2SS | FMD-3SS | FMD-5SS |
| Effective evaporation area(m2) | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Condensing area(m2) | 0.17 | 0.3 | 0.4 | 0.7 | 1.7 | 2.7 | 3.5 | 4.9 | 6.5 | 8 |
| Feeding speed(L/H) | 5-12 | 6-15 | 10-25 | 15-30 | 20-60 | 50-120 | 60-180 | 100-200 | 100-300 | 200-500 |
| Rotate speed(r/min) | 30-350 | |||||||||
| Stainless steel material | 304/316 | |||||||||
| Feeding method | Gear pump automatic continuous feeding | |||||||||
| Discharge method | Gear pump automatic continuous discharge | |||||||||
| Operating Temperature(℃) | Within 350℃ | |||||||||
| Voltage |
220V/60Hz Other voltages can be customized |
|||||||||
