Wiped Film Short Path Molecular Distiller Equipment Lab New 1L

Minimum Order Quantity : 1.0 Unit/Units Price : $24,000.00 - $62,000.00 / Unit
Packaging Details : Packaging: carton or wooden case package, customized package is available Supply Ability : 40000 Unit/Units per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Applicable Industries: Lab After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Condition: New
Power Source: Electric Process: Wiped Film
Voltage: 380V/110V Power(W): 250W
Dimension(L*W*H): 216*67*215cm Weight: 260KG
Warranty: 1 YEAR After-sales Service Provided: Online Support
Key Selling Points: High Productivity Name: Molecular Distiller Equipment
Effective Evaporation Area: 0.1 Condensation Area: 0.15
Evaporator Inside Diameter: 80 Constant Pressure Funnel Volume: 1 L
Handing Capacity: 0.3-4.0 KG/H Max. Rotary Speed: 450 RPM
Port: Shanghai, Tianjin, Qingdao
High Light:

Greendistill Molecular Distiller Equipment

,

Wiped Film Molecular Distiller Equipment

Product Description

Wiped Film Short Path Molecular Distiller Equipment Lab New 260KG 1L



Advantages of Wiped Film Distillation Equipment



1. It can reduce the change frequency of heating oil through lowering the oxidation speed and lengthening the work life of heating oil.
2. Its maximum temperature can reach 300°C with a wide temperature range.
3. It's more safe because of fully enclosing, which can avoid hot oil hurting operators.

4. Low distillation temperature. The Wiped Film Distillation Equipment can be operated at the temperature that is far below the boiling point. The separation can be realized as long as there is a temperature difference.

5. High distillation vacuum degree. A high vacuum degree can be obtained inside the Wiped Film Distillation Equipment device, so the Wiped Film Distillation Equipment can be operated under a very low pressure. It's not easy for materials to oxidize and be damaged.

6. Thin distillate film and high heat transfer efficiency.

7. The pure and safe product can be obtained with simple operation process and less equipment. The Wiped Film Distillation Equipment can separate materials that can't be separated easily by the normal distillation.



Features of Wiped Film Distillation Equipment



1. High evaporation efficiency and less retention time, with minimum time delay

2. The Wiped Film Distillation Equipment is made from high borosilicate glass 3.3, stainless steel 316L and PTFE, which have excellent corrosion resistance

3. The main body of the Wiped Film Distillation Equipment is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly

4. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface can avoid sticking and scaling.

5. The German brand variable-frequency reduction motor can operate safely and reliably. The self-cooling fan can work continuously for a long time.

6. The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar.

7. The highest temperature of the system can reach 230℃/300℃. The accurate temperature control can be realized.


Wiped Film Distillation Equipment Description


The Wiped Film Distillation Equipment is generally used for the separation, purification and concentration of natural products widely adopted in chemical,pharmaceutical, petrochemical, spices, plastics, oil and other fields. It should be done under a high vacuum condition and be considered as a special liquid-liquid separation technology different from the traditional distillation relying on the difference in boiling points. This is a kind of process of distilling and purifying the heat sensitive material or high boiling point material making use of the difference of material molecular movement free path in high vacuum degree. When the average free path of steam molecular is greater than the distance between the evaporation surface and the condensation surface, the liquid mixture can be separated by making use of different evaporation rates of each component in the liquid mixture.



Technical Parameters



Item Effective evaporation area(m²)  condensation area(m²)  Evaporator inside diameter(mm)  constant pressure funnel volume(L)  Handing capacity(KG/H)  Motor power(W)  Max. rotary speed(RPM)
LMD-60 0.05 0.1 60 0.5 0.1-2.0 120 450
LMD-80 0.1 0.15 80 1 0.3-4.0 120 450
LMD-100 0.15 0.2 100 1 0.5-5.0 120 450
LMD-150 0.25 0.4 150 2 1.0-8.0 120 450
LMD-200 0.35 0.5 190 2 1.5-10.0 200 300
LMD-300 0.5 0.65 220 5 2.0-15.0 200 300

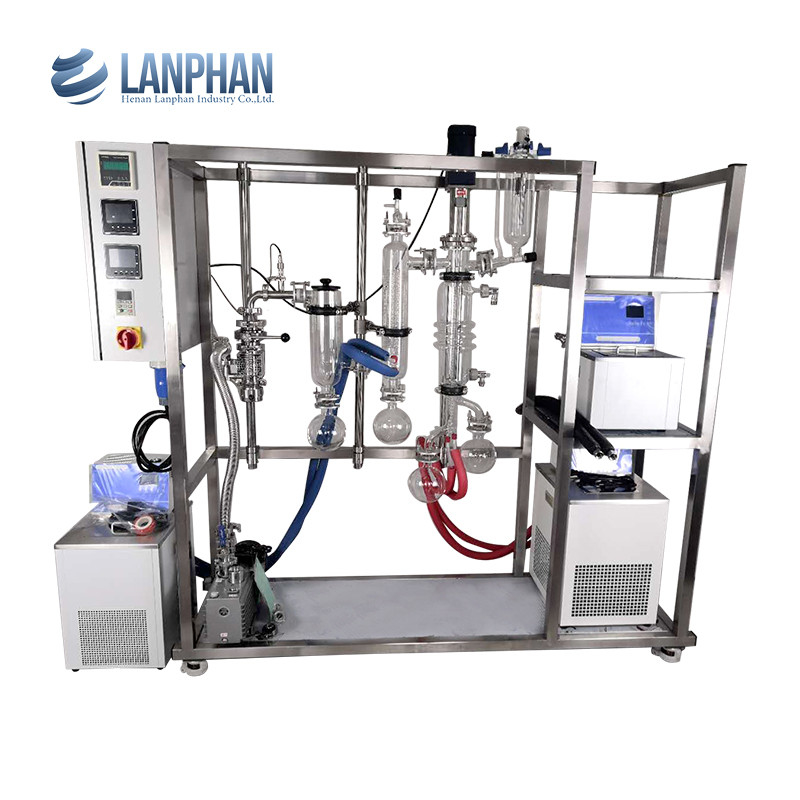

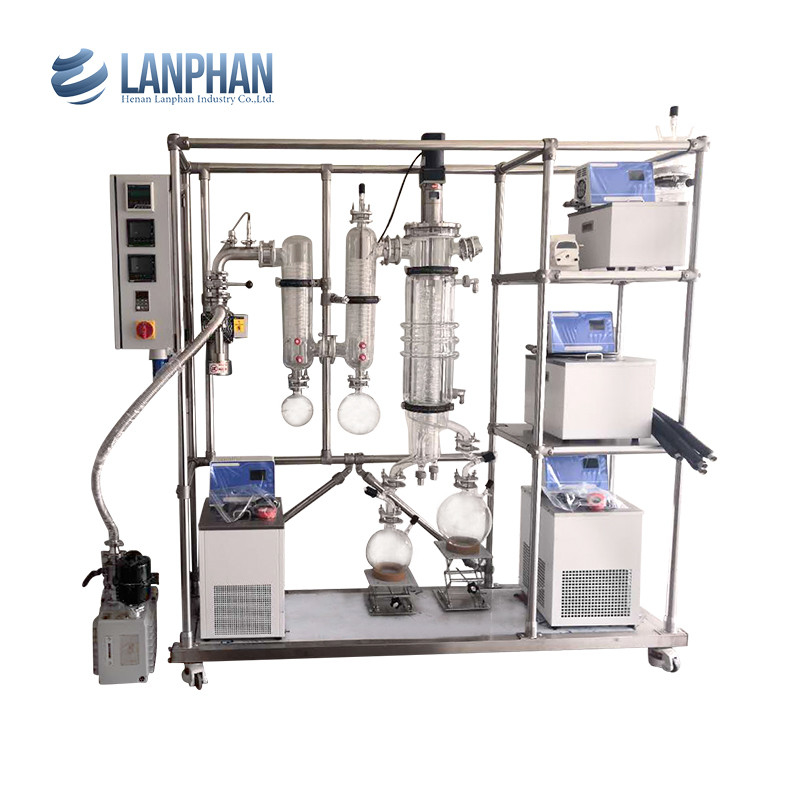

Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 0Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 1



1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump



Series Product

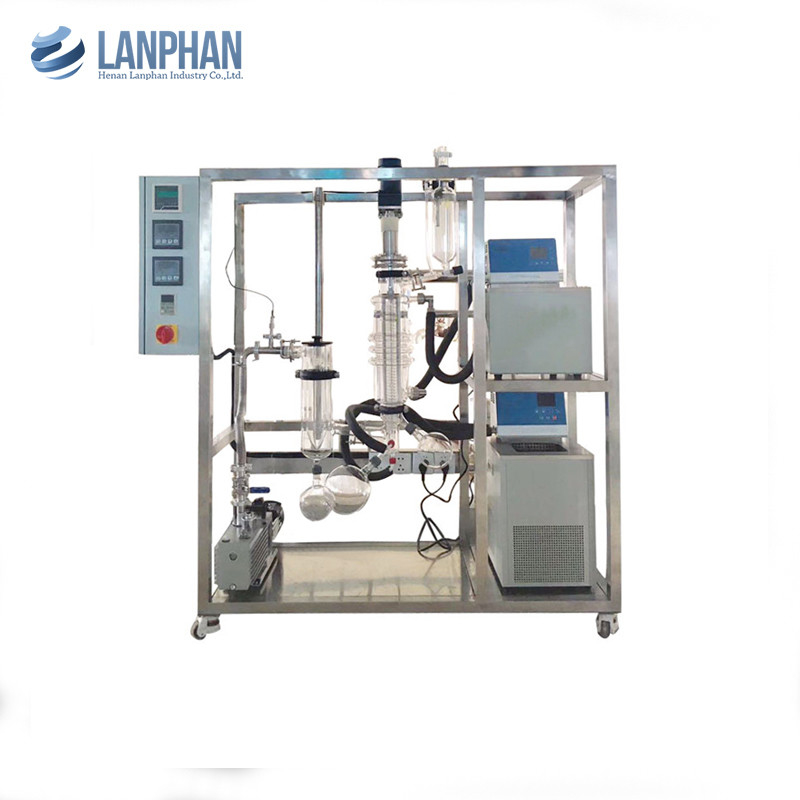

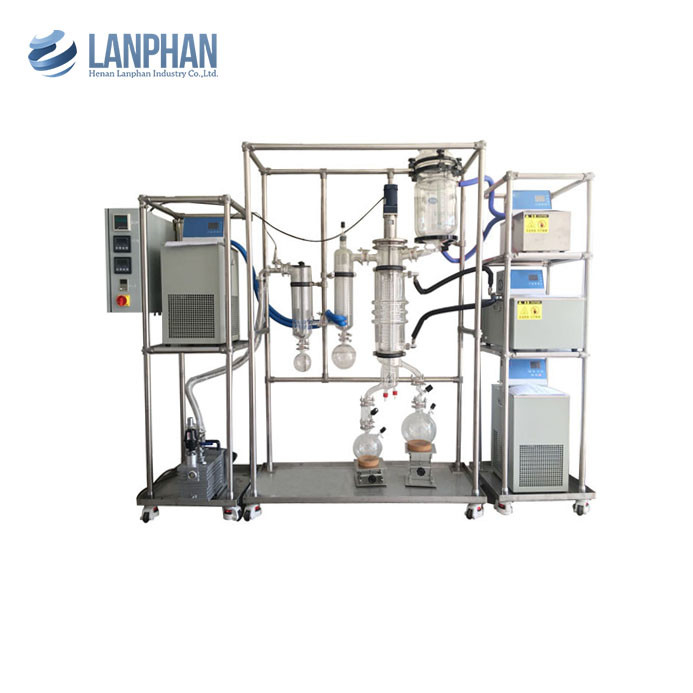

Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 2Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 3



Corollary Equipment


Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 4Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 5


Company Information


Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 6

Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 7

Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 8

Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 9

Wiped Film Short Path Molecular Distiller Equipment Lab New 1L 10
