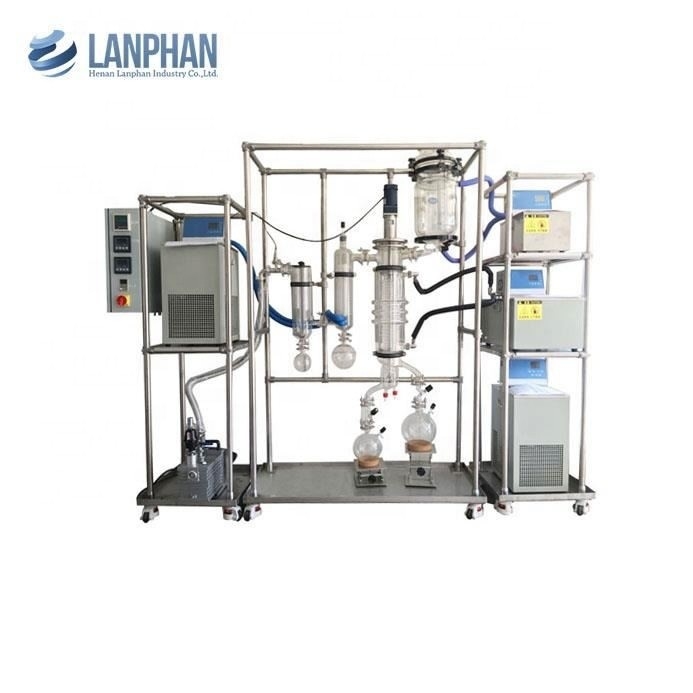

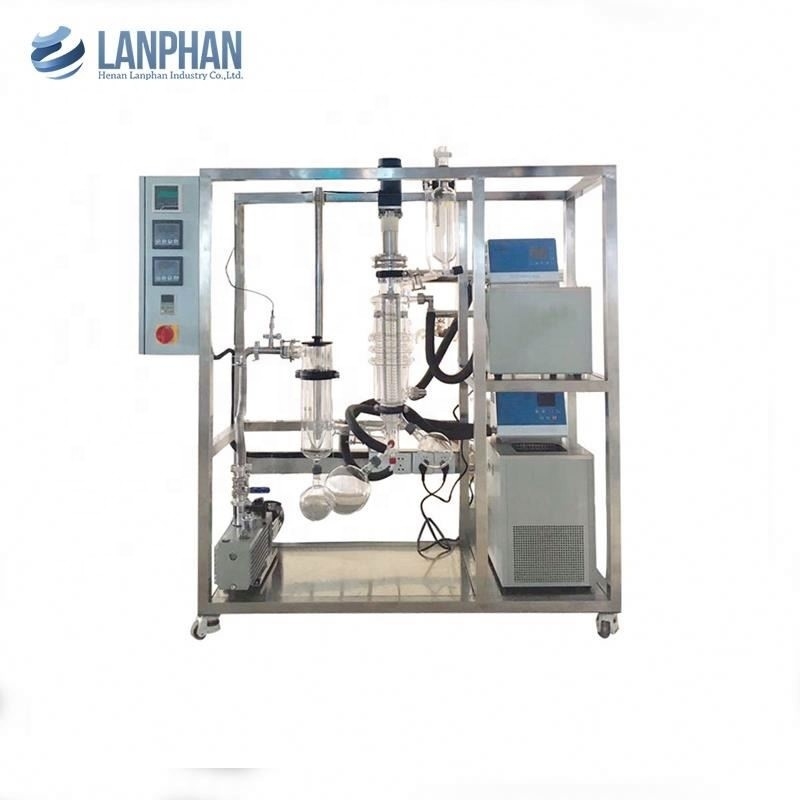

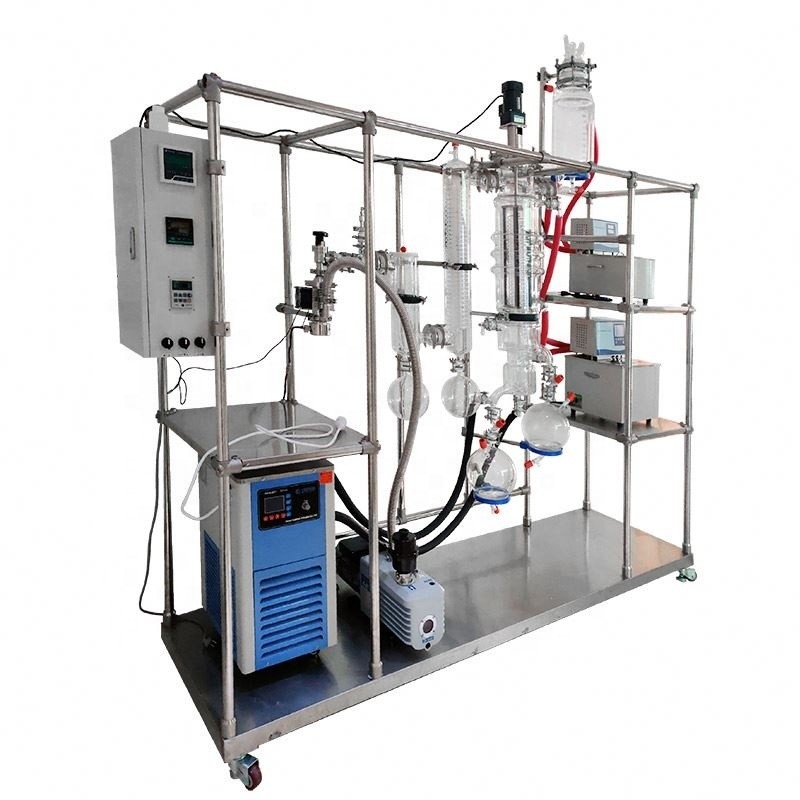

Wiped Film Distillation Equipment Glass Electric Drive

Wiped Film Distillation Equipment Glass Electric Drive

Disti Glass Molecular Distillation Equipment

CE Molecular Distillation Equipment

Wiped Film Molecular Distillation Equipment

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE

Contact Us
Request A Quote
Product Details
Applicable Industries:
Food & Beverage Factory, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video Technical Support, Online Support
Local Service Location:
United States
Showroom Location:
United States
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 YEAR
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:
New
Power Source:
Electric
Process:
Vacuum Distillation
Voltage:
380V/110V
Power(W):
250W
Dimension(L*W*H):
216*67*215cm
Weight:
260KG
Warranty:
1 YEAR
After-sales Service Provided:
Online Support
Key Selling Points:
High Safety Level
Effective Evaporation Area:
0.1
Condensation Area:
0.15
Evaporator Inside Diameter:
80
Constant Pressure Funnel Volume:
1 L
Handing Capacity:
0.3-4.0 KG/H
Max. Rotary Speed:
450 RPM
Port:
Shanghai, Tianjin, Qingdao
Highlight:

Disti Glass Molecular Distillation Equipment

,

CE Molecular Distillation Equipment

,

Wiped Film Molecular Distillation Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 - 2 Units
Price
$27,370.00
Packaging Details
Packaging: carton or wooden case package, customized package is available
Supply Ability
40000 Unit/Units per Month
Product Description

Wiped Film Distillation Equipment 260KG Glass Electric Drive



Product Description



The Wiped Film Distillation Equipment can be considered as a kind of distillation method operated under a high vacuum condition.

When the average free path of steam molecular is greater than the distance between the evaporation surface and the condensation surface, the liquid mixture can be separated by utilizing different evaporation rates of each component in the liquid mixture.

It is a kind of process of distilling and purifying the heat sensitive material or high boiling point material making use of the difference of material molecular movement free path in high vacuum degree.

And the Wiped Film Distillation Equipment is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.

Actually, the Wiped Film Distillation Equipment is a special liquid-liquid separation technology, different from traditional distillation that relies on the difference in boiling points.



Main Features

  1. The main body of the Wiped Film Distillation Equipment is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly.
  2. The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar.
  3. The highest temperature of the system can reach 230℃/300℃. The accurate temperature control can be realized.
  4. High evaporation efficiency and less retention time, with minimum time delay.
  5. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface can avoid sticking and scaling.
  6. The German brand variable-frequency reduction motor can operate safely and reliably. The self-cooling fan can work continuously for a long time.

Main Advantages

  1. Thin distillate film and high heat transfer efficiency.
  2. Low distillation temperature. The Wiped Film Distillation Equipment can be operated at the temperature that is far below the boiling point. The separation can be realized as long as there is a temperature difference.
  3. High distillation vacuum degree. A high vacuum degree can be obtained inside the Wiped Film Distillation Equipment device, so the Wiped Film Distillation Equipment can be operated under a very low pressure. It's not easy for materials to oxidize and be damaged.
  4. The pure and safe product can be obtained with simple operation process and less equipment. The Wiped Film Distillation Equipment can separate materials that can't be separated easily by the normal distillation.
  5.



Technical Parameters



Item Effective evaporation area(m²)  condensation area(m²)  Evaporator inside diameter(mm)  constant pressure funnel volume(L)  Handing capacity(KG/H)  Motor power(W)  Max. rotary speed(RPM)
LMD-60 0.05 0.1 60 0.5 0.1-2.0 120 450
LMD-80 0.1 0.15 80 1 0.3-4.0 120 450
LMD-100 0.15 0.2 100 1 0.5-5.0 120 450
LMD-150 0.25 0.4 150 2 1.0-8.0 120 450
LMD-200 0.35 0.5 190 2 1.5-10.0 200 300
LMD-300 0.5 0.65 220 5 2.0-15.0 200 300



Wiped Film Distillation Equipment Glass Electric Drive 0Wiped Film Distillation Equipment Glass Electric Drive 1

1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump
