Wiped Film Distillation Equipment Lanphan For Cbd Oil

Minimum Order Quantity : 1 - 2 Units Price : $27,370.00
Packaging Details : Packaging: carton or wooden case package, customized package is available Supply Ability : 40000 Unit/Units per Month
Place of Origin: Henan, China Brand Name: Lanphan

Detail Information

Condition: New Type: Extractor
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 YEAR
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Application: Liquid
Weight (KG): 160 KG Warranty: 1 YEAR
After-sales Service Provided: Video Technical Support, Online Support Key Selling Points: Long Service Life
After Warranty Service: Video Technical Support, Online Support Applicable Industries: Manufacturing Plant, Food & Beverage Factory
Local Service Location: United States Showroom Location: United States
Name: Cbd Oil Extract Machine Effective Evaporation Area: 0.1
Condensation Area: 0.15 Evaporator Inside Diameter: 80
Remarks: Pharmaceutical Machinery Constant Pressure Funnel Volume: 1 L
Handing Capacity: 0.3-4.0 KG/H Max. Rotary Speed: 450 RPM
Port: Shanghai, Tianjin, Qingdao
High Light:

Cbd Oil Molecular Distillation Equipment

,

Wiped Film Molecular Distillation Equipment

,

Lanphan Molecular Distillation Equipment

Product Description

Wiped Film Distillation Equipment Lanphan 160KG Cbd Oil



Wiped Film Distillation Description

The molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation relying on the difference boiling points. This is a kind of process of distilling and purifying the heat sensitive material or high boiling point material making use of the difference of material molecular movement free path in high vacuum degree. The molecular distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields. The molecular distillation possesses many advantages, as follows:

Wiped Film Distillation Advantages



It can reduce the change frequency of heating oil through lowering the oxidation speed and lengthening the work life of heating oil.

Its maximum temperature can reach 300°C with a wide temperature range.

It's more safe because of fully enclosing, which can avoid hot oil hurting operators.

High evaporation efficiency and less retention time, with minimum time delay

The German brand variable-frequency reduction motor can operate safely and reliably. The self-cooling fan can work continuously for a long time.

The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar.



FAQ



Q: What is the maximum vacuum degree the equipment can reach?

A: The common one can reach 0.05mbar. The one equipped with a secondary diffusion pump can be up to 0.001mbar.



Q: Do you accept custom model molecular distillation except for the models in your parameter sheet?

A: The models in the sheet can be adjustable according to customer needs, and the custom model is available as well.



Q: What is the relationship among the rotary evaporator, short-path distillation and molecular distillation?

A: The rotary evaporator--used to handle materials with low boiling point.

Short-path distillation--used to handle materials with high boiling point.

Molecular distillation--used to handle materials with high boiling point. It can replace the short-path distillation as it is more efficient than the short-path distillation and can get purer products.



Technical Parameters



Item Effective evaporation area(m²) condensation area(m²) Evaporator inside diameter(mm) constant pressure funnel volume(L) Handing capacity(KG/H) Motor power(W) Max. rotary speed(RPM)
LMD-60 0.05 0.1 60 0.5 0.1-2.0 120 450
LMD-80 0.1 0.15 80 1 0.3-4.0 120 450
LMD-100 0.15 0.2 100 1 0.5-5.0 120 450
LMD-150 0.25 0.4 150 2 1.0-8.0 120 450
LMD-200 0.35 0.5 190 2 1.5-10.0 200 300
LMD-300 0.5 0.65 220 5 2.0-15.0 200 300

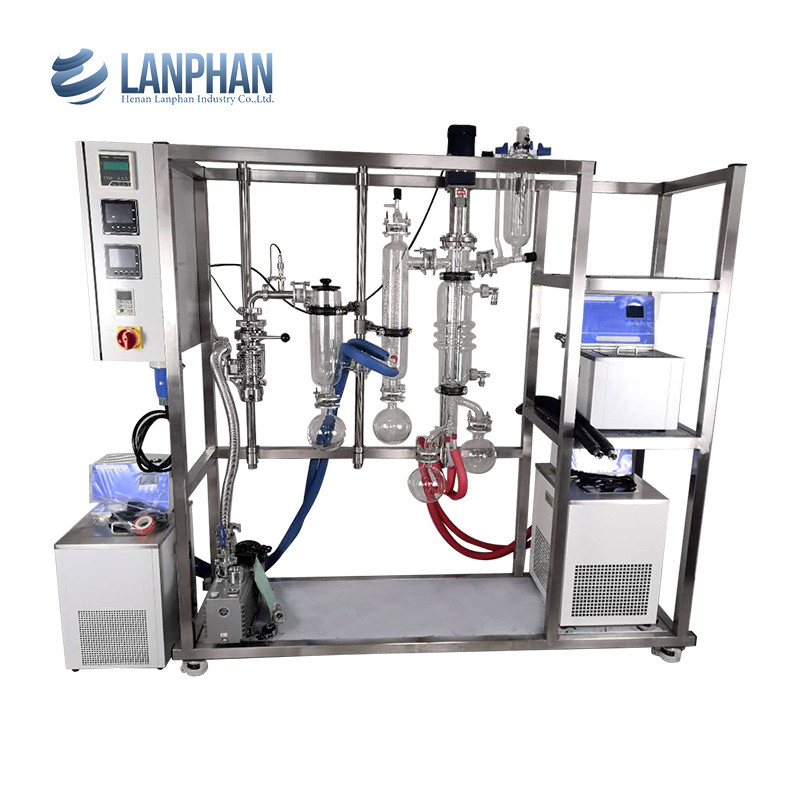

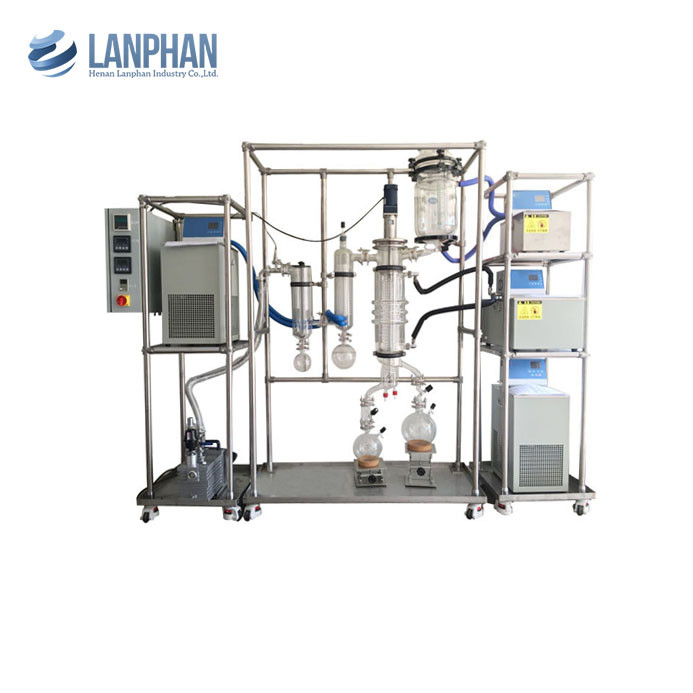

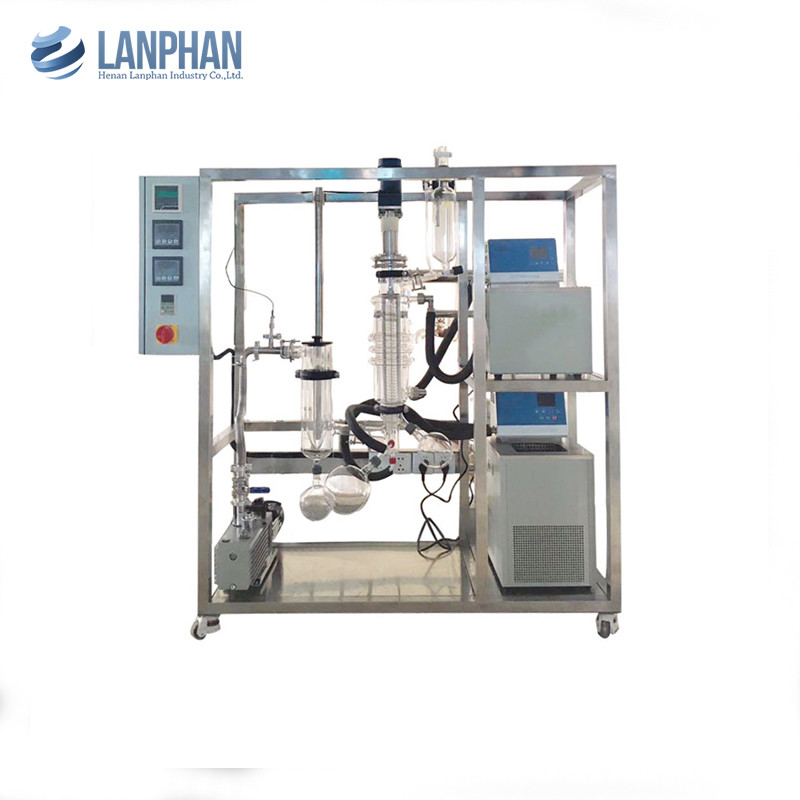

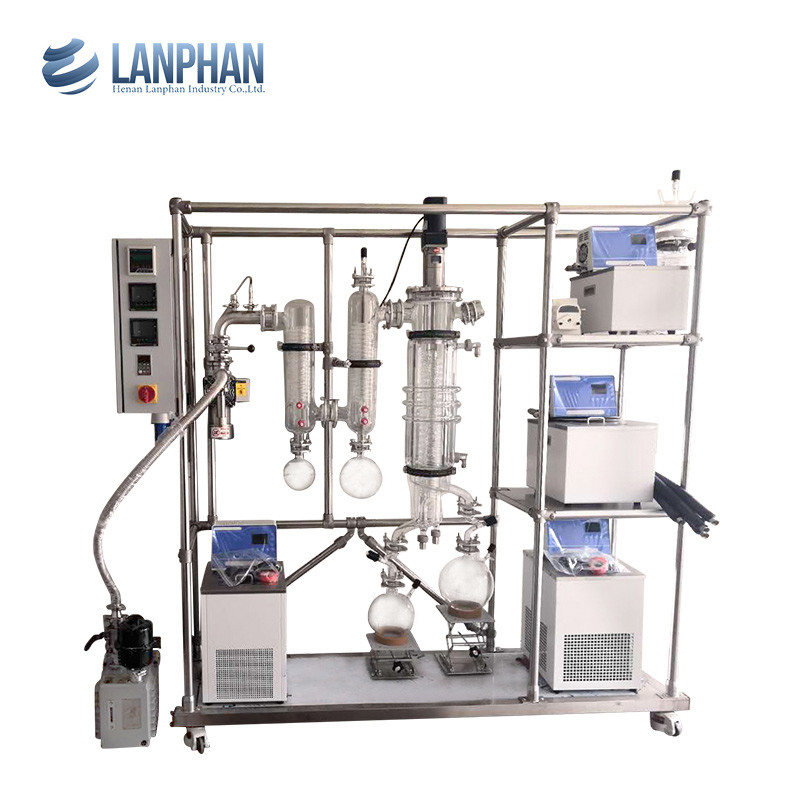

Wiped Film Distillation Equipment Lanphan For Cbd Oil 0


Wiped Film Distillation Equipment Lanphan For Cbd Oil 1

1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump
