Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
FMD-0.1SS

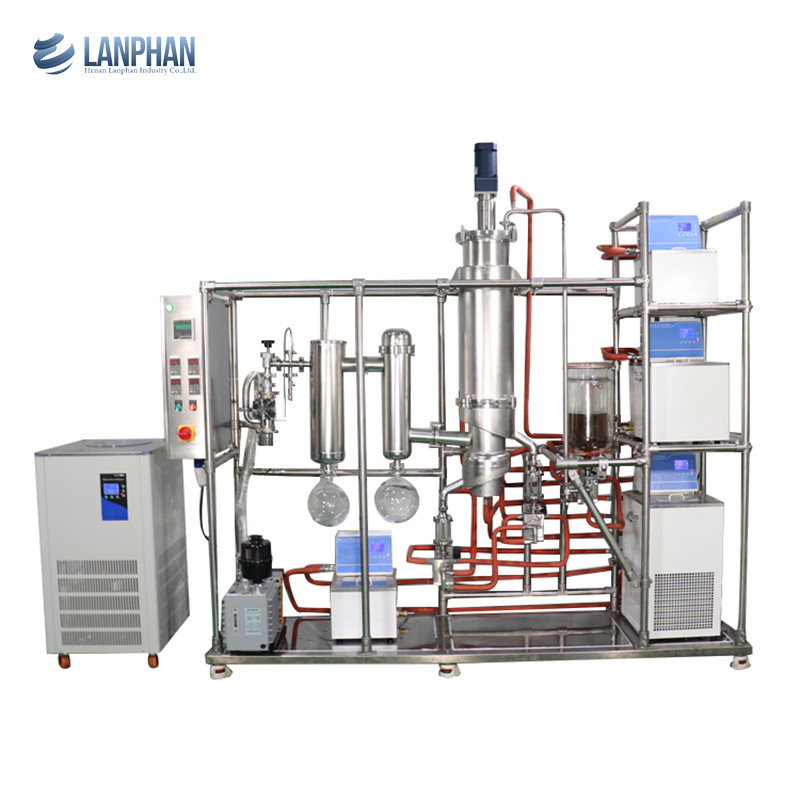

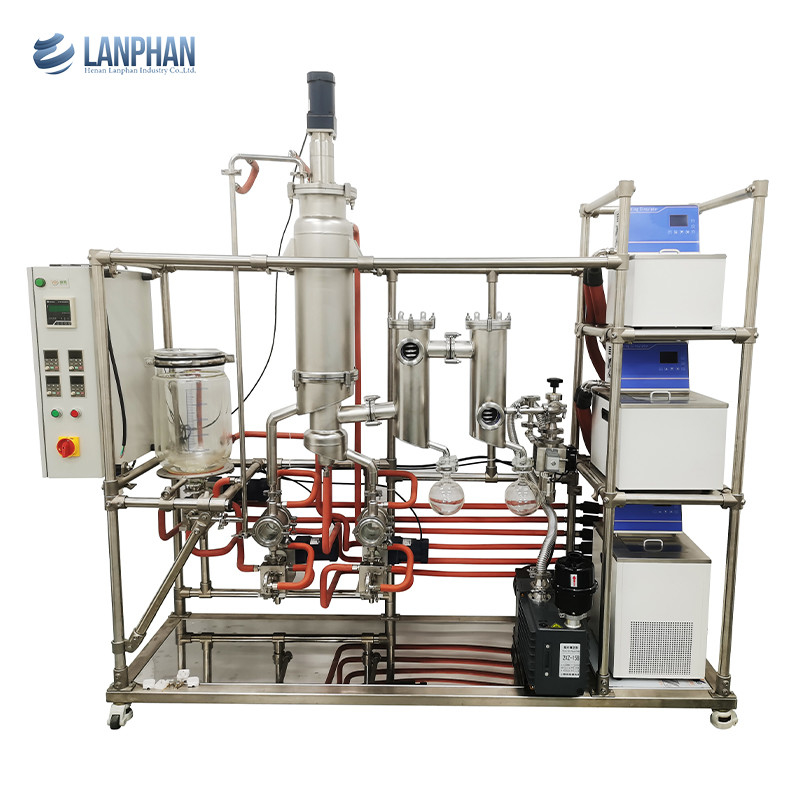

Stainless Steel Wiped Film Molecular Distillation Equipment 220V 30-350 R/Min
Description of Stainless Steel Wiped Film Distillation Equipment
Wiped film distillation is a special liquid-liquid separation technology, which is different from the traditional distillation based on the separation principle of material boiling point difference, but based on the difference in the mean free path of molecular motion of each material in the mixture to achieve separation. According to the principle of the mean free path of molecular motion, in an ideal state, let the liquid mixture flow and heat along the heating plate, and light and heavy molecules will escape from the liquid surface and enter the gas phase. Because the free paths of light and heavy molecules are different, molecules of different substances move at different distances after escaping from the liquid surface. If a condensing plate can be properly set up, light molecules will reach the condensing plate and be condensed and discharged, while heavy molecules will not reach the condensing plate and be discharged along the mixed liquid.
Functions of Stainless Steel Wiped Film Distillation Equipment
1. Thermal separation of heat-sensitive compounds.
2. Purification of organic synthetic substances.
3. Purification of active ingredients in biological extracts.
4. Recycling of industrial waste.
5. Removal of toxic substances in the food industry.
6. Odor removal of organic compounds.
7. Thorough removal of residual solvents in the compound.
Application of Stainless Steel Wiped Film Distillation Equipment
1. Chinese and Western medicines: antibiotics, sugar solution, Tripterygium wilfordii, Astragalus and other Chinese herbal medicines; Methylimidazole, mononitrile amine and other intermediates;
2. Light industrial food: fruit juice, gravy, pigment, flavor, spice, enzyme preparation, lactic acid, xylose, starch sugar, potassium sorbate;
3. Grease daily chemicals: lecithin, VE, cod liver oil, oleic acid, glycerin, fatty acid, waste lubricating oil, alkyl polyglycoside, alcohol ether sulfate, etc.;
4. Synthetic resin: polyamide resin, epoxy resin, paraformaldehyde, PPS (polypropylene sebacate), PBT, propylene formate;
5. Synthetic fiber: PTA, DMT, carbon fiber, polytetrahydrofuran, polyether polyol, etc.;
6. Petrochemical: TDI, MDI, trimethylhydroquinone, trimethylolpropane, sodium hydroxide, etc.;
7. Pesticide biology: acetochlor, pretilachlor, chlorpyrifos, furanol, clomazone, and other herbicides, insecticides, herbicides, and acaricides;
8. Wastewater: inorganic salt wastewater, etc.;
Product Advantages
1. The heating time of the material is short.
2. Low evaporation temperature.
3. High evaporation efficiency.
4. Continuous feeding and discharging.
5. Made of corrosion-resistant 316 stainless steel.
6. The heat transfer rate is fast.
Parameter of Stainless Steel Wiped Film Distillation Equipment
| Stainless Steel Molecular Distillation | ||||||||||
| Model | FMD-0.1SS | FMD-0.15SS | FMD-0.25SS | FMD-0.35SS | FMD-0.5SS | FMD-1SS | FMD-1.5SS | FMD-2SS | FMD-3SS | FMD-5SS |
| Effective evaporation area(m2) | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Condensing area(m2) | 0.17 | 0.3 | 0.4 | 0.7 | 1.7 | 2.7 | 3.5 | 4.9 | 6.5 | 8 |
| Feeding speed(L/H) | 5-12 | 6-15 | 10-25 | 15-30 | 20-60 | 50-120 | 60-180 | 100-200 | 100-300 | 200-500 |
| Rotate speed(r/min) | 30-350 | |||||||||
| Stainless steel material | 304/316 | |||||||||
| Feeding method | Gear pump automatic continuous feeding | |||||||||
| Discharge method | Gear pump automatic continuous discharge | |||||||||
| Operating Temperature(℃) | Within 350℃ | |||||||||
| Voltage |
220V/60Hz Other voltages can be customized |
|||||||||
