Rectangular Manual Desktop Tablet Press Machine Pharmacy Pressed Food Pill Multi Purpose

Minimum Order Quantity : One unit Price : $3288

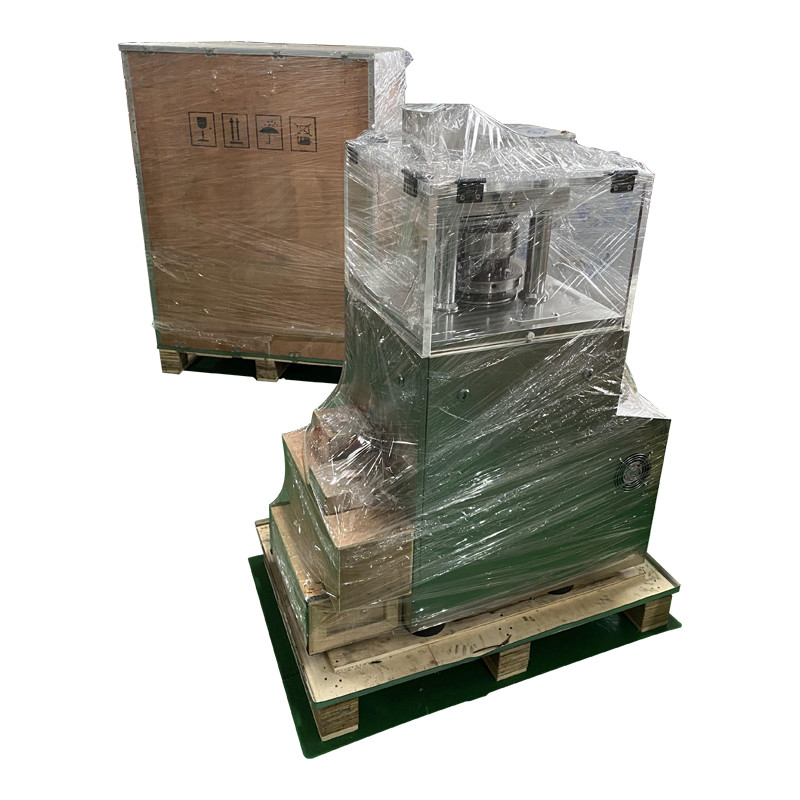

Packaging Details : Carton, wooden cases or customizable package Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 1000 Unit/Units per Month
Place of Origin: Henan Brand Name: Lanphan
Certification: CE Model Number: ZP-9B

Detail Information

Product Name: Tablet Press Machine Voltage: 220V
Condation: New Warranty: 1 Year
Dimension: 960mm*660mm*1230mm Production Capacity: 12600 Pieces / Hour
Max Tablet Pressure (kN): 60 Max Tablet Diameter: 18mm
High Light:

Rectangular Desktop Tablet Press Machine

,

Multi Purpose Desktop Tablet Press Machine

,

Rectangular manual tablet press machine

Product Description

Tablet Press Machine Chemical Industry Single Punch Die Tool Rotary Type 9 Steel Pill



Tablet Press Machine Advantage



1. This machine is a small rotary tablet press equipment. The main motor adopts frequency converter stepless speed regulation, the starting speed is low, and the production speed is continuously adjustable;
2. Imported frequency converter, with manual control of tablet weight function, main motor overload protection, main pressure overload protection function;
3. The main drive system adopts worm gear reducer, which has large output torque, high transmission efficiency, stable transmission, low noise and long service life;
4. The tablet pressing room is completely sealed, and all parts in contact with the medicine are made of stainless steel or non-toxic polymer materials, which fully meets the requirements of GMP;
According to customer needs, it can realize the pressing function of ring-shaped tablet and the pressing function of spherical tablet.

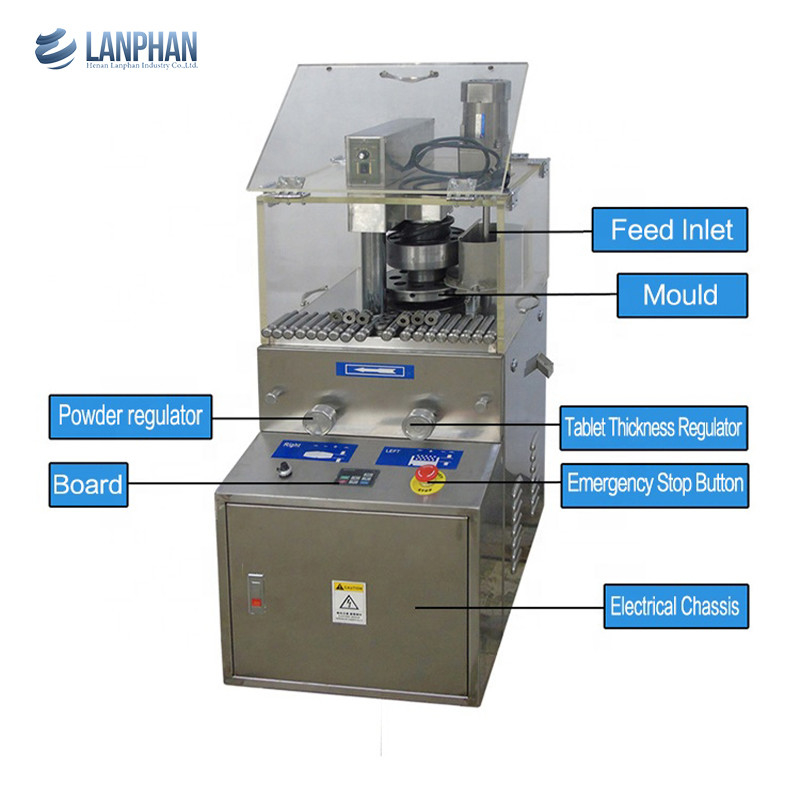

Tablet Press Machine Details



1. Filling adjustment device: The filling adjustment is used to adjust the weight of the tablet. The filling adjustment mechanism is installed inside the main body. A moon-shaped filling rail can be observed on the plane of the main body. It rises or falls by the action of a spiral to control the filling volume. When the disc is rotated to adjust, the filling volume decreases clockwise, and vice versa. Big.
2. Film thickness (pressure) adjustment device: adjust the film thickness (pressure) by adjusting the lower pressing wheel up and down. The lower pressure wheel is installed in the groove of the main body, it is sleeved on the eccentric shaft, and the outer end is connected to the hand wheel. When the external hand wheel is adjusted, the eccentric shaft drives the pressure wheel to rise or fall, that is, to adjust the thickness (pressure) of the sheet. Control the thickness and hardness of the tablet. The up and down adjustment of the upper pressing wheel can also be used as an adjustment device, but it is not adjusted under normal circumstances.

3. Turntable structure: The turntable is the main execution part of the machine. It is composed of upper and lower bearing components, main shaft, turntable and other main parts. The dies are evenly distributed around the turntable, and the torque is transferred between the turntable and the spindle by flat keys. The main shaft is supported on bearings, driven by a worm gear pair, connected by splines, and rotates the main shaft to make the turntable rotate.
4. Track mechanism: The track has a cylindrical cam and a flat concave wheel composed of an upper track and a lower track, which are the trajectories of the upper and lower punches. The upper rail is composed of multiple rails such as an upward rushing rail, an upward rushing downward rail, an upward rushing parallel rail, and a pressing down rail. They are respectively fastened on the upper track disk. The lower rail is composed of a downward rushing upward rail and a downward rushing upward rail. They are respectively installed on the lower rail seat.



Application



1. Used in chemical, food, electronics and other industries to compress various granular raw materials into tablets;
2. Used for small batch production, pressing various shapes of tablets. Such as round tablets, special-shaped tablets, ring tablets, graphic tablets, double-sided lettering tablets and other tablets, calcium tablets, etc.;
3. It is mainly suitable for the small batch production of special medicines in various medical research institutes, laboratories of universities, pharmaceutical research and development centers, and large pharmacies;



Tablet Press Machine Parameters



Model ZP-5 ZP-7 ZP-9
Number of die (paid) 5 7 9
Max tablet pressure (kN) 60 60 60
Max tablet diameter (mm) 18mm
Max filling depth (mm) 15 15 15
Maxtablet thickness (mm) 6 6 6
Turntablespeed (rev/min) 30 30 30
Production capacity (pieces/hour) 9000 12600 16200
Motor power (kw) 2.2
Dimensions (mm) 960*660*1230
Weight (kg) 308



Rectangular Manual Desktop Tablet Press Machine Pharmacy Pressed Food Pill Multi Purpose 0

Rectangular Manual Desktop Tablet Press Machine Pharmacy Pressed Food Pill Multi Purpose 1

Rectangular Manual Desktop Tablet Press Machine Pharmacy Pressed Food Pill Multi Purpose 2Rectangular Manual Desktop Tablet Press Machine Pharmacy Pressed Food Pill Multi Purpose 3
