Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE

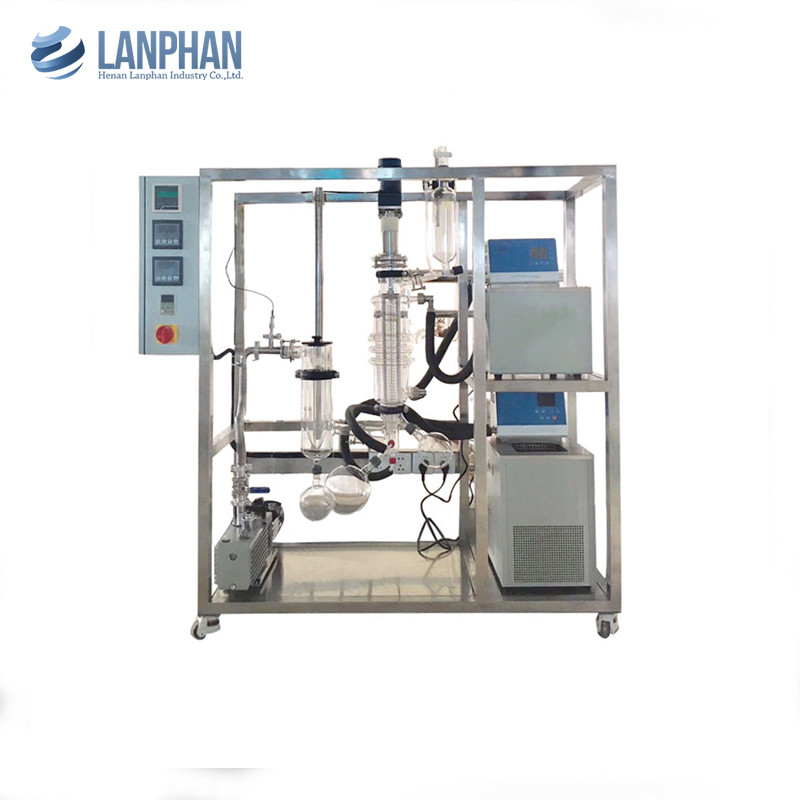

Wiped Film Distillation Equipment Short Path 380V 250W
Product Description
Different from the traditional distillation that depends on the difference in boiling points, the Wiped Film Distillation Equipment is generally considered as a special liquid-liquid separation technology. It possesses a great number of features. For example, the main body is made of high borosicate glass3.3, allowing the whole process to be observed very clearly. It adopts the German brand variable-frequency reduction motor, which can operate safely and reliably. The self-cooling fan can work continuously for a long time. The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar. Also, it has many advantsges. Firstly, It can reduce the change frequency of heating oil through lowering the oxidation speed and lengthening the work life of heating oil. Secondly, Its maximum temperature can reach 300°C with a wide temperature range. Last buts not least, It's more safe because of fully enclosing, which can avoid hot oil hurting operators.
Q: Do you accept custom model Wiped Film Distillation Equipment except for the models in your parameter sheet?
A: The models in the sheet can be adjustable according to customer needs, and the custom model is available as well.
Q: What is the maximum vacuum degree the equipment can reach?
A: The common one can reach 0.05mbar. The one equipped with a secondary diffusion pump can be up to 0.001mbar.
Q: What is the relationship among the rotary evaporator, short-path distillation and Wiped Film Distillation Equipment?
A: The rotary evaporator--used to handle materials with low boiling point.
Short-path distillation--used to handle materials with high boiling point.
Wiped Film Distillation Equipment--used to handle materials with high boiling point. It can replace the short-path distillation as it is more efficient than the short-path distillation and can get purer products.
Technical Parameters
| Item | Effective evaporation area(m²) | Condensation area(m²) | Evaporator inside diameter(mm) | Constant pressure funnel volume(L) | Handing capacity(KG/H) | Motor power(W) | Max. rotary speed(RPM) |
| LMD-60 | 0.05 | 0.1 | 60 | 0.5 | 0.1-2.0 | 120 | 450 |
| LMD-80 | 0.1 | 0.15 | 80 | 1 | 0.3-4.0 | 120 | 450 |
| LMD-100 | 0.15 | 0.2 | 100 | 1 | 0.5-5.0 | 120 | 450 |
| LMD-150 | 0.25 | 0.4 | 150 | 2 | 1.0-8.0 | 120 | 450 |
| LMD-200 | 0.35 | 0.5 | 190 | 2 | 1.5-10.0 | 200 | 300 |
| LMD-300 | 0.5 | 0.65 | 220 | 5 | 2.0-15.0 | 200 | 300 |

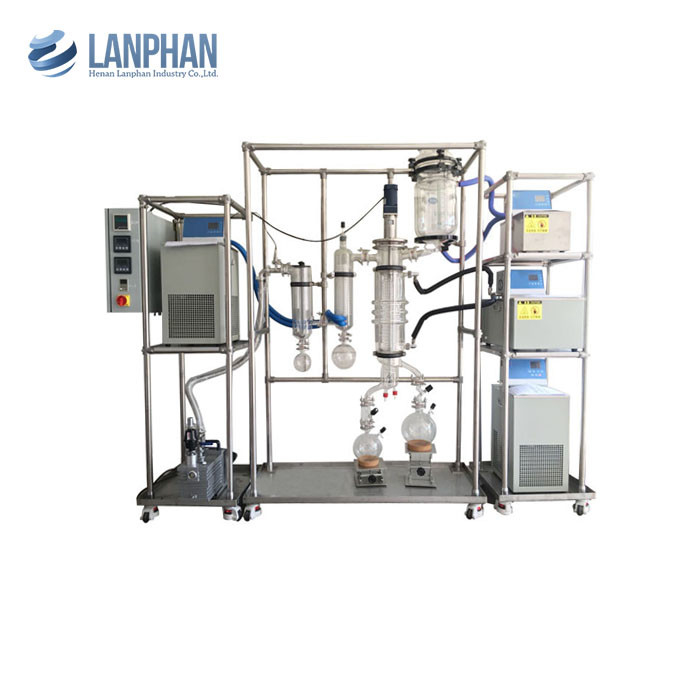

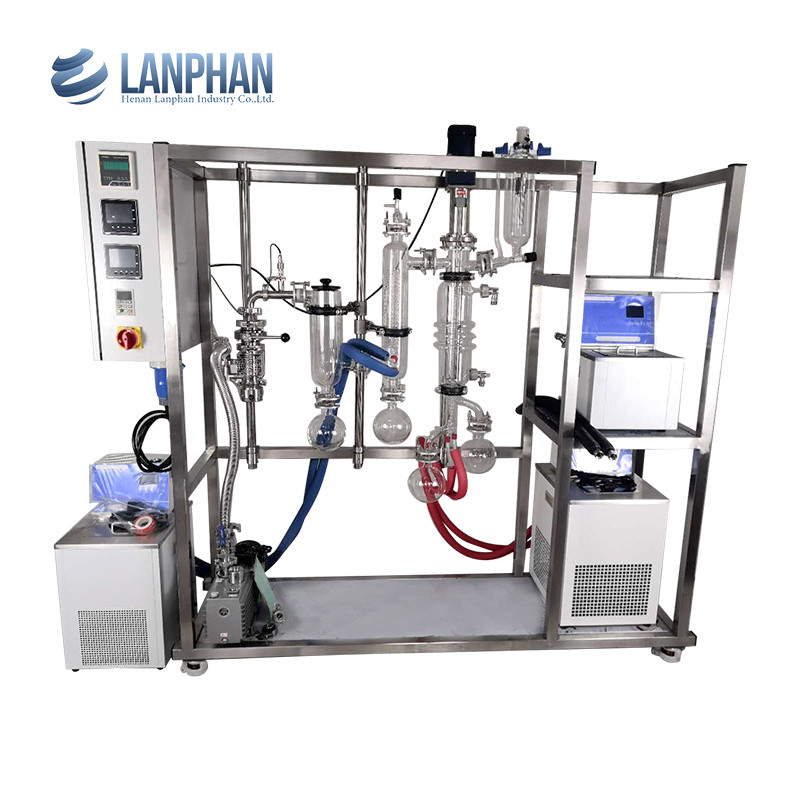

1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. Condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump
