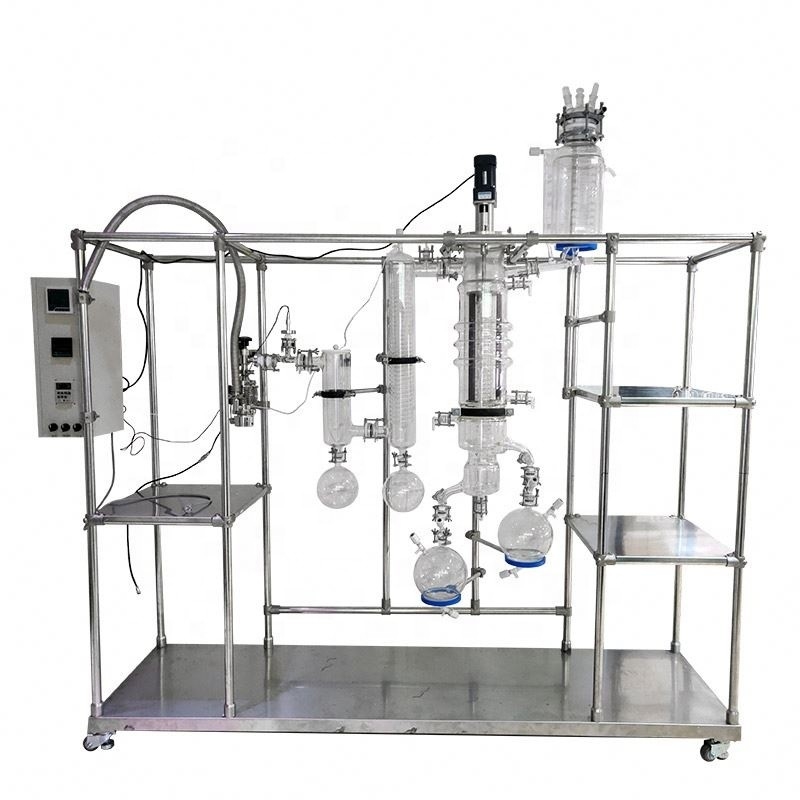

Wiped Film Distillation Equipment Pure Isolate 450RPM Vacuum Distillation
As a special liquid-liquid separation technology, the Wiped Film Distillation Equipment is different from traditional distillation based on the difference in boiling points. The Wiped Film Distillation Equipment refers to a kind of distillation method operated under a high vacuum condition. When the average free path of steam molecular is greater than the distance between the evaporation surface and the condensation surface, the liquid mixture can be separated by making use of different evaporation rates of each component in the liquid mixture. It is applicable for the distillation and purity of the heat sensitive material and the high boiling point material mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
Main Characteristics
1. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface can avoid sticking and scaling.
2. The German brand variable-frequency reduction motor can operate safely and reliably. The self-cooling fan can work continuously for a long time.
3. The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar.
4. The highest temperature of the system can reach 230℃/300℃. The accurate temperature control can be realized
5. High evaporation efficiency and less retention time, with minimum time delay
6. The Wiped Film Distillation Equipment is made from high borosilicate glass 3.3, stainless steel 316L and PTFE, which have excellent corrosion resistance
7. The main body of the Wiped Film Distillation Equipment is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly.
Main Merits
1. Low distillation temperature. The Wiped Film Distillation Equipment can be operated at the temperature that is far below the boiling point. The separation can be realized as long as there is a temperature difference.
2. High distillation vacuum degree. A high vacuum degree can be obtained inside the Wiped Film Distillation Equipment device, so the Wiped Film Distillation Equipment can be operated under a very low pressure. It's not easy for materials to oxidize and be damaged.
3. Thin distillate film and high heat transfer efficiency.
4. The pure and safe product can be obtained with simple operation process and less equipment. The Wiped Film Distillation Equipment can separate materials that can't be separated easily by the normal distillation.
Technical Parameters
| Item | Effective evaporation area(m²) | condensation area(m²) | Evaporator inside diameter(mm) | constant pressure funnel volume(L) | Handing capacity(KG/H) | Motor power(W) | Max. rotary speed(RPM) |
| LMD-60 | 0.05 | 0.1 | 60 | 0.5 | 0.1-2.0 | 120 | 450 |
| LMD-80 | 0.1 | 0.15 | 80 | 1 | 0.3-4.0 | 120 | 450 |
| LMD-100 | 0.15 | 0.2 | 100 | 1 | 0.5-5.0 | 120 | 450 |
| LMD-150 | 0.25 | 0.4 | 150 | 2 | 1.0-8.0 | 120 | 450 |
| LMD-200 | 0.35 | 0.5 | 190 | 2 | 1.5-10.0 | 200 | 300 |
| LMD-300 | 0.5 | 0.65 | 220 | 5 | 2.0-15.0 | 200 | 300 |

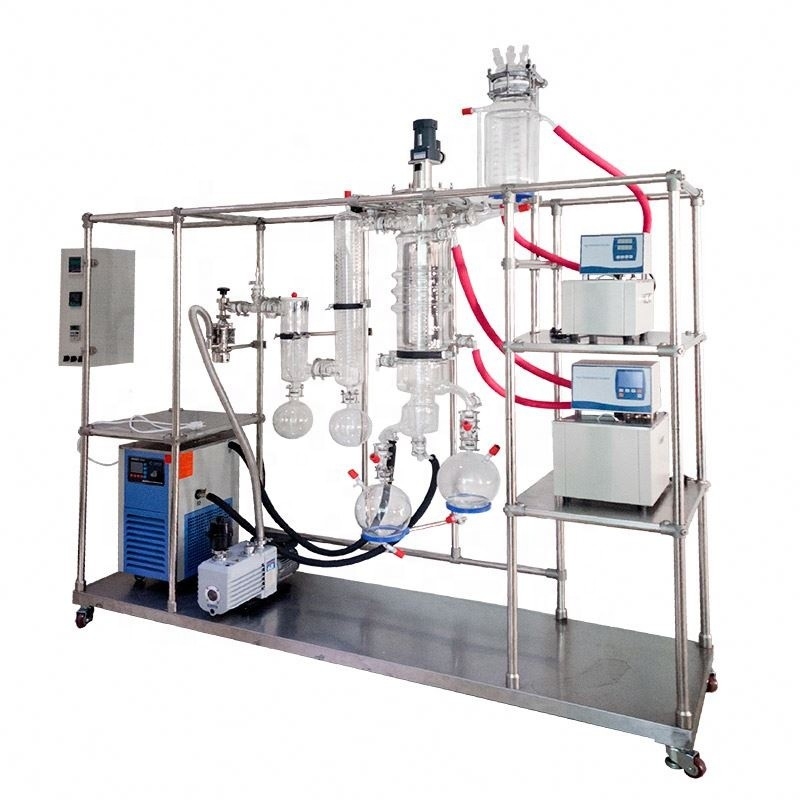

1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump
-------------------------------------------------------------------------------------
