Wiped Film Distillation Equipment Thc Short Molecular 450 RPM Electric
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 - 2 Units | Price : | $27,370.00 |
|---|---|---|---|
| Packaging Details : | Packaging: carton or wooden case package, customized package is available | Supply Ability : | 40000 Unit/Units per Month |
| Place of Origin: | Henan, China | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | CE |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Factory, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops | After Warranty Service: | Video Technical Support, Online Support |
|---|---|---|---|
| Local Service Location: | United States | Showroom Location: | United States |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 YEAR |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor | Condition: | New |
| Power Source: | Electric | Process: | Vacuum Distillation |
| Voltage: | 380V/110V | Power(W): | 250W |
| Dimension(L*W*H): | 216*67*215cm | Weight: | 260KG |
| Warranty: | 1 YEAR, 1 Year | After-sales Service Provided: | Online Support |
| Key Selling Points: | High Safety Level | Effective Evaporation Area: | 0.1 |
| Condensation Area: | 0.15 | Evaporator Inside Diameter: | 80 |
| Constant Pressure Funnel Volume: | 1 L | Handing Capacity: | 0.3-4.0 KG/H |
| Max. Rotary Speed: | 450 RPM | Port: | Shanghai, Tianjin, Qingdao |
| High Light: | Air Sensitive Molecular Distillation Unit,CBD Short Molecular Distillation Unit,CE Molecular Distillation Unit |
||
Product Description
Wiped Film Distillation Equipment CBD Short Molecular Distillation Unit
The Wiped Film Distillation Equipment is a kind of short-path vacuum distillation. As a new kind of separation method, the Wiped Film Distillation Equipment varies from the normal distillation. It makes fully use of difference in the free path of molecular motion of different materials to realize the separation. Hence, the molecular can be operated far below the boiling point. This is a kind of process of distilling and purifying the heat sensitive material or high boiling point material making use of the difference of material molecular movement free path in high vacuum degree. The Wiped Film Distillation Equipment is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.
Features of Wiped Film Distillation Equipment
1. High evaporation efficiency and less retention time, with minimum time delay.
2. The Wiped Film Distillation Equipment is made from high borosilicate glass 3.3, stainless steel 316L and PTFE, which have excellent corrosion resistance
3. The main body of the Wiped Film Distillation Equipment is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly
4. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface can avoid sticking and scaling.
5. The German brand variable-frequency reduction motor can operate safely and reliably. The self-cooling fan can work continuously for a long time.
6. The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar.
7. The highest temperature of the system can reach 230℃/300℃. The accurate temperature control can be realized.
Advantages of Wiped Film Distillation Equipment
1. It can reduce the change frequency of heating oil through lowering the oxidation speed and lengthening the work life of heating oil.
2. Its maximum temperature can reach 300°C with a wide temperature range.
3. It's more safe because of fully enclosing, which can avoid hot oil hurting operators.
Q: Do you accept custom model Wiped Film Distillation Equipment except for the models in your parameter sheet?
A: The models in the sheet can be adjustable according to customer needs, and the custom model is available as well.
Q: What is the maximum vacuum degree the equipment can reach?
A: The common one can reach 0.05mbar. The one equipped with a secondary diffusion pump can be up to 0.001mbar.
Q: What is the relationship among the rotary evaporator, short-path distillation and Wiped Film Distillation Equipment?
A: The rotary evaporator--used to handle materials with low boiling point.
Short-path distillation--used to handle materials with high boiling point.
Wiped Film Distillation Equipment--used to handle materials with high boiling point. It can replace the short-path distillation as it is more efficient than the short-path distillation and can get purer products.
Technical Parameters
| Item | Effective evaporation area(m²) | condensation area(m²) | Evaporator inside diameter(mm) | constant pressure funnel volume(L) | Handing capacity(KG/H) | Motor power(W) | Max. rotary speed(RPM) |
| LMD-60 | 0.05 | 0.1 | 60 | 0.5 | 0.1-2.0 | 120 | 450 |
| LMD-80 | 0.1 | 0.15 | 80 | 1 | 0.3-4.0 | 120 | 450 |
| LMD-100 | 0.15 | 0.2 | 100 | 1 | 0.5-5.0 | 120 | 450 |
| LMD-150 | 0.25 | 0.4 | 150 | 2 | 1.0-8.0 | 120 | 450 |
| LMD-200 | 0.35 | 0.5 | 190 | 2 | 1.5-10.0 | 200 | 300 |
| LMD-300 | 0.5 | 0.65 | 220 | 5 | 2.0-15.0 | 200 | 300 |

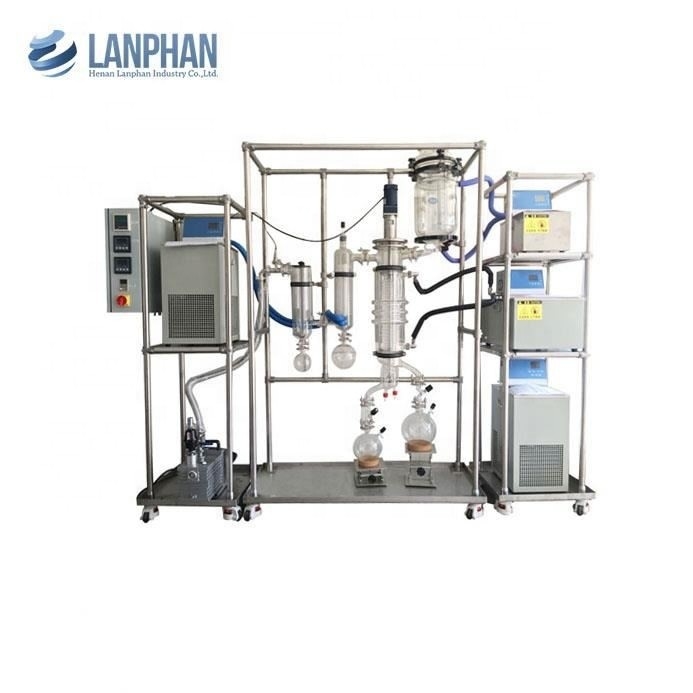

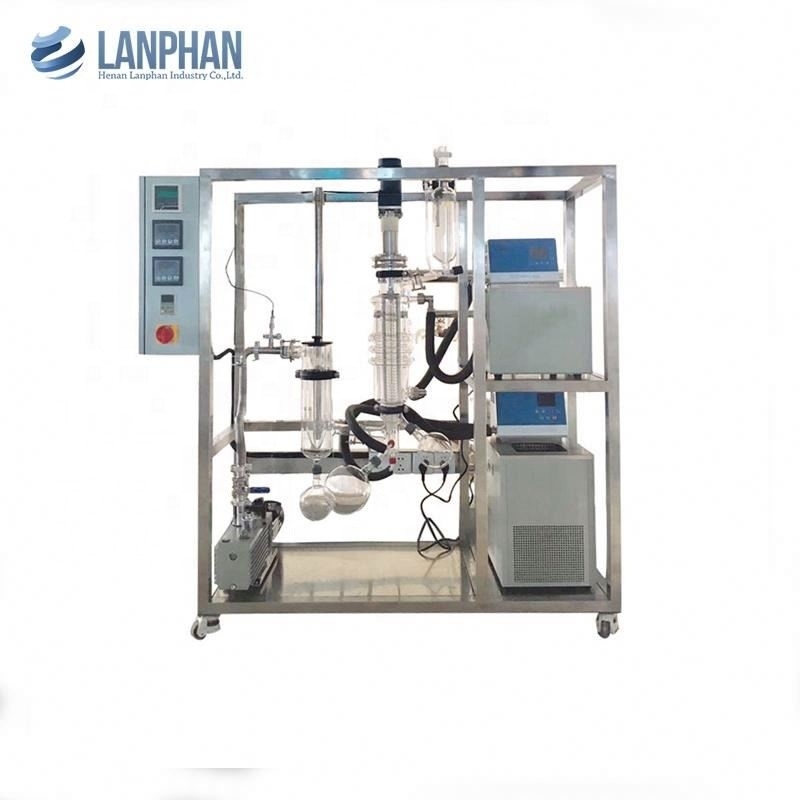

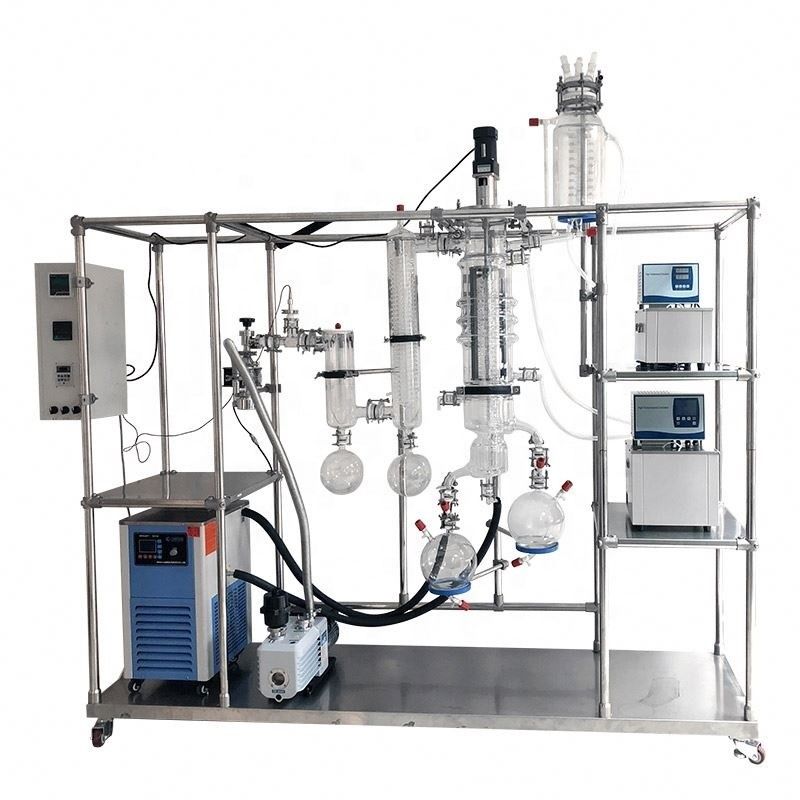

1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with condenser inside)
4. condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate Receiving bottle(low boiling point)
8. Residue Receiving bottle(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump
