Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
LMD-60(B)

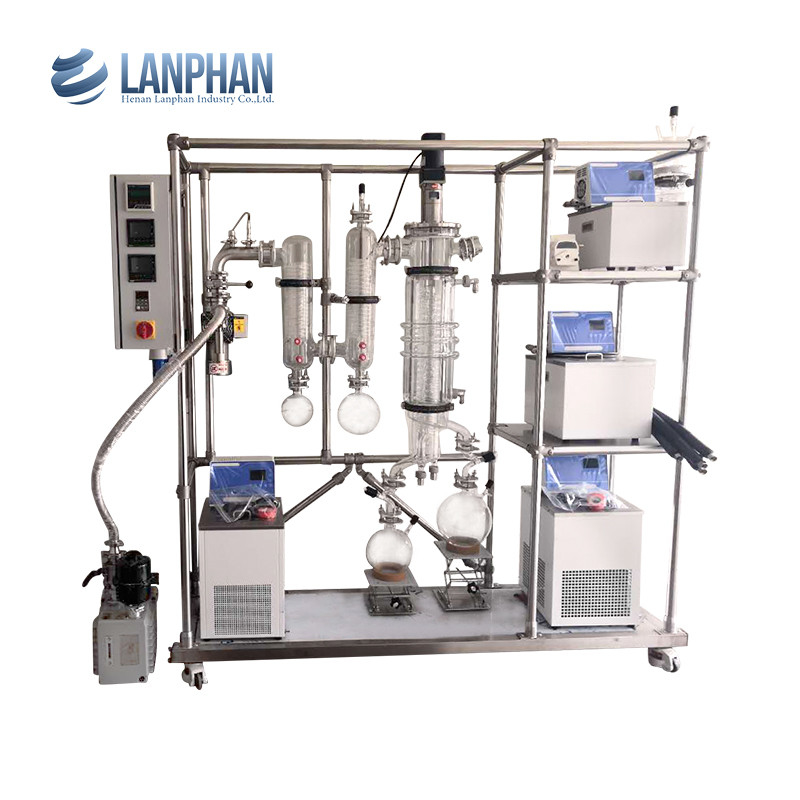

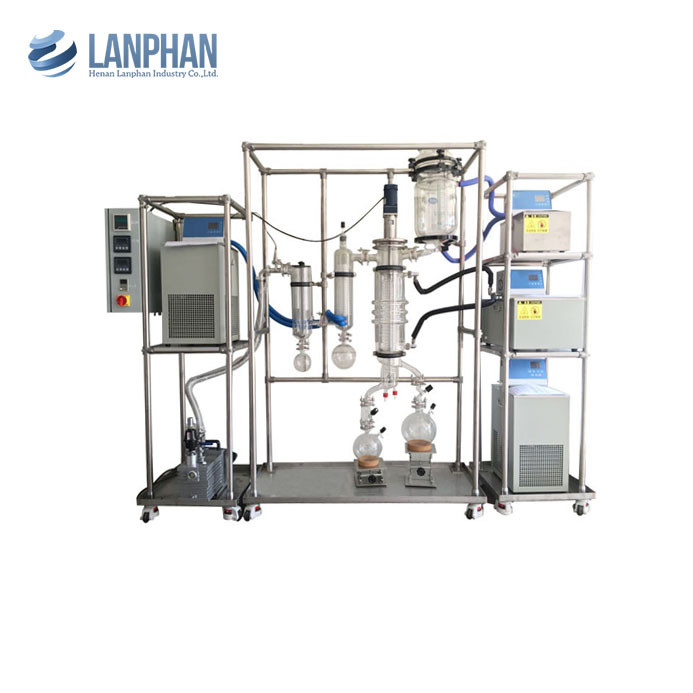

Wiped Film Distillation Equipment SS304 Ethanol Distillation CBD Hemp Oil
Wiped Film Distillation Equipment Description
The air-cooled diffusion pump can greatly boost the system vacuum.
The preheating system can make the temperature of the liquid material close to the boiling point before entering the evaporation chamber, improving the distillation efficiency and enhancing the fluidity of the liquid material.
The multistage double coil condenser can increase the recovery rate of volatile substances, such as solvents and terpenes, which can better protect the diffusion pump and vacuum pump.
With a high processing accuracy, the main separator can distribute the film evenly. The evaporation process adopts different temperatures for insulation or condensation to improve the separation efficiency.
Advantages
1.The Wiped Film Distillation Equipment provides the best separation method for high boiling point, heat sensitive and easily oxidized materials. Because Wiped Film Distillation Equipment can be operated under a temperature much lower than boiling points of materials and the retention time of materials is short.
2.The Wiped Film Distillation Equipment can effectively remove substances in the liquid, such as organic solvent, odor, etc. It is a very effective method for the liquid desolvation after solvent extraction.
3.The Wiped Film Distillation Equipment can distill out the desired product selectively as well as remove other impurities. More than two components can be separated at the same time by multistage separation.
4.The fractional distillation is a physical process, which can protect the separated components well from contamination and damage.
5.The pirani vacuum gauge imported from Japan has a high measuring accuracy.
Technical Parameters
| Item | Effective evaporation area(m²) | condensation area(m²) | Evaporator inside diameter(mm) | constant pressure funnel volume(L) | Handing capacity(KG/H) | Motor power(W) | Max. rotary speed(RPM) |
| LMD-60 | 0.05 | 0.1 | 60 | 0.5 | 0.1-2.0 | 120 | 450 |
| LMD-80 | 0.1 | 0.15 | 80 | 1 | 0.3-4.0 | 120 | 450 |
| LMD-100 | 0.15 | 0.2 | 100 | 1 | 0.5-5.0 | 120 | 450 |
| LMD-150 | 0.25 | 0.4 | 150 | 2 | 1.0-8.0 | 120 | 450 |
| LMD-200 | 0.35 | 0.5 | 190 | 2 | 1.5-10.0 | 200 | 300 |
| LMD-300 | 0.5 | 0.65 | 220 | 5 | 2.0-15.0 | 200 | 300 |

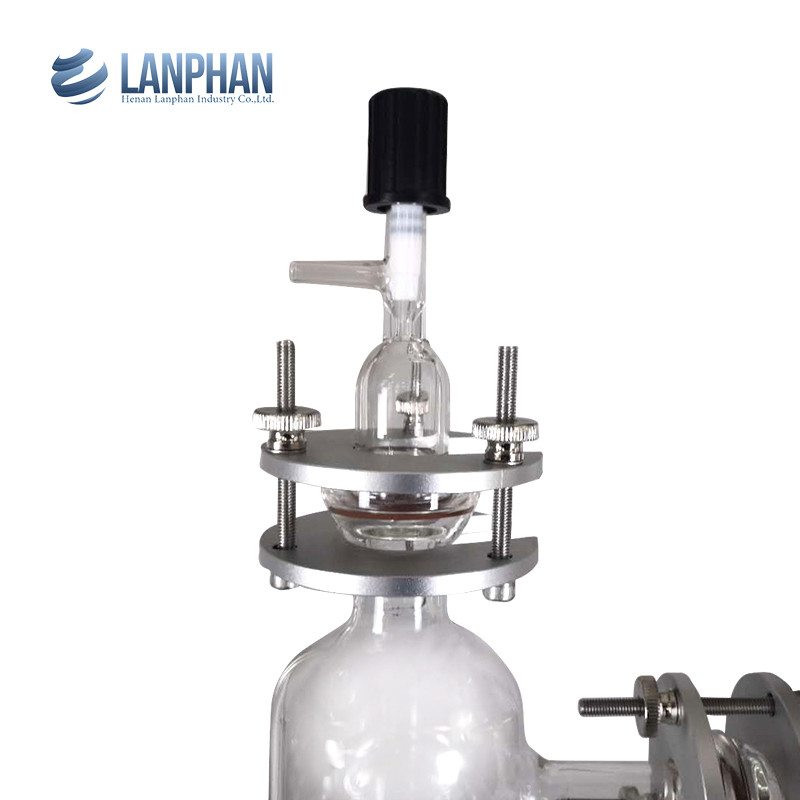

Product Details
Corollary Equipment
