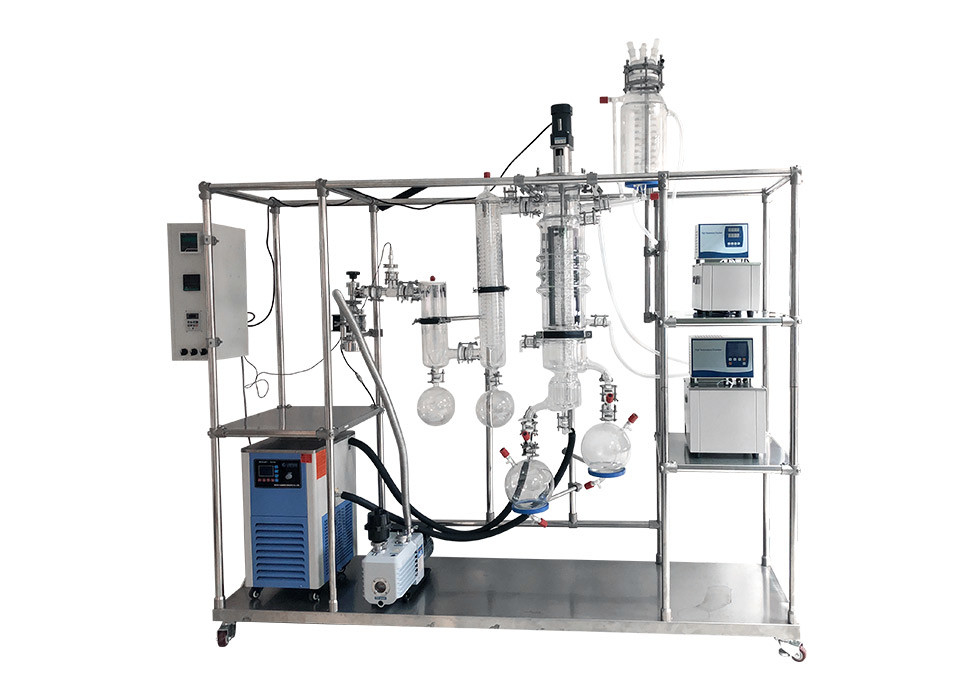

Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W

Minimum Order Quantity : 1 Packaging Details : Carton, wooden cases or customizable package
Delivery Time : 7 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000 Unit/Units per Month
Place of Origin: Henan Brand Name: lanaphan
Certification: CE

Detail Information

Product Name: Wiped Film Distillation Equipment Key Selling Points:: High Productivity
Max. Rotary Speed:: 450 RPM Voltage:: 380V/110V
Certification:: CE Power: 250W
High Light:

250W essential distillation equipment


450RPM Essential Distillation Equipment


CE essential oil extraction machine

Product Description

Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W


Product Description


As an really essential distillation equipment, the molecular distillation mainly consists of several parts, including a motor, a chiller, a vacuum pump, condensers, various flasks and other components. It is usually used to separate liquid from liquid. In stead of utilizing the difference in boiling points, it distills and purifies the heat sensitive material or materials with a high boiling point by making use of the difference of material molecular movement free path in high vacuum degree. This kind of distillation is primarily applied in chemical, pharmaceutical, petrochemical, species, plastics, oil and other fields. It is more and more well-received because of the advantages it possesses, as following:


1. Low distillation temperature. The molecular distillation can be operated at the temperature that is far below the boiling point. The separation can be realized as long as there is a temperature difference.

2. High distillation vacuum degree. A high vacuum degree can be obtained inside the molecular distillation device, so the molecular distillation can be operated under a very low pressure. It's not easy for materials to oxidize and be damaged.

3. Thin distillate film and high heat transfer efficiency.

4. The pure and safe product can be obtained with simple operation process and less equipment. The molecular distillation can separate materials that can't be separated easily by the normal distillation.


Main Characteristics


1. High evaporation efficiency and less retention time, with minimum time delay

2. The molecular distillation is made from high borosilicate glass 3.3, stainless steel 316L and PTFE, which have excellent corrosion resistance

3. The main body of the molecular distillation is made of high borosilicate glass 3.3, allowing the whole process to be observed very clearly

4. High-precision distillation barrel allows the liquid to form a complete and unified thin film on the heated surface. The smooth inner surface can avoid sticking and scaling.

5. The German brand variable-frequency reduction motor can operate safely and reliably. The self-cooling fan can work continuously for a long time.

6. The magnetic force transmission system can realize the seal property of whole machine. The transmission rod of the drive motor needn't go through the sealing surface of the distiller. The whole system possesses a good sealing performance. The minimum vacuum pressure is up to 0.001mbar.

7. The highest temperature of the system can reach 230℃/300℃. The accurate temperature control can be realized.


Technical Parameters


Item Effective evaporation area(m²) Condensation area(m²) Evaporator inside diameter(mm) Constant pressure funnel volume(L) Handing capacity(KG/H) Motor power(W) Max. rotary speed(RPM)
LMD-60 0.05 0.1 60 0.5 0.1-2.0 120 450
LMD-80 0.1 0.15 80 1 0.3-4.0 120 450
LMD-100 0.15 0.2 100 1 0.5-5.0 120 450
LMD-150 0.25 0.4 150 2 1.0-8.0 120 450
LMD-200 0.35 0.5 190 2 1.5-10.0 200 300
LMD-300 0.5 0.65 220 5 2.0-15.0 200 300


Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W 0

Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W 1


1. Feeding pot
2. Magnetic coupling drives stirring
3. Jacketed evaporator(with a condenser inside)
4. Condenser
5. Circulating heater(work with jacketed evaporator)
6. Heating and cooling circulator (work with internal condenser)
7. Controlling system(show vacuum degree, control and
display 2.rotary speed)
8. Distillate receiving flask(low boiling point)
8. Residue receiving flask(high boiling point)
10. Rotary vane vacuum pump
11. Diffusion pump


Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W 2Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W 3


Corollary Equipment


Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W 4Wiped Film Distillation Equipment Essential Oil Distiller 450RPM 250W 5
