Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
ZP-5、7、9E

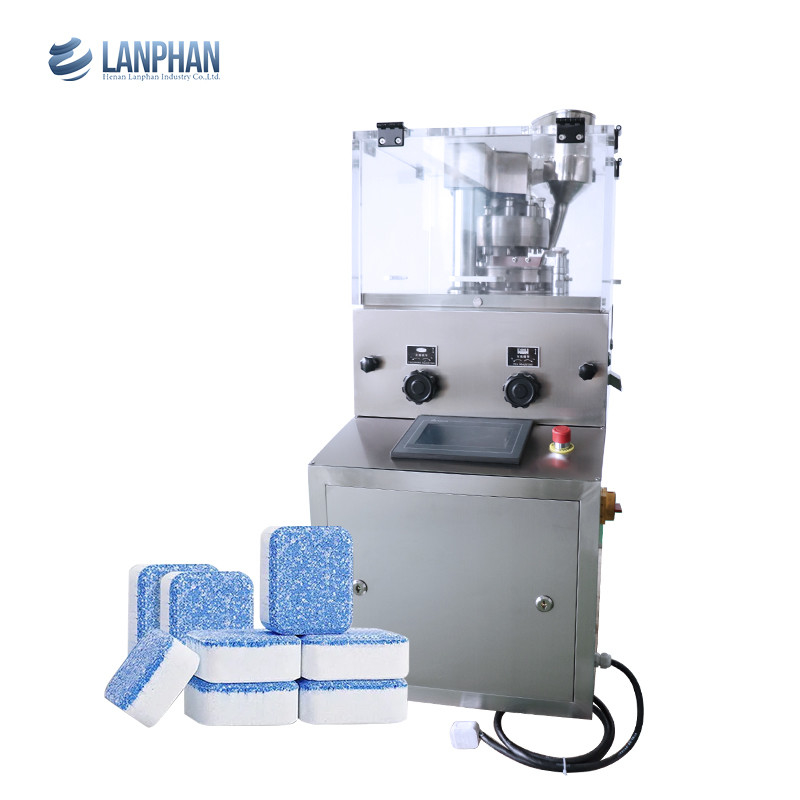

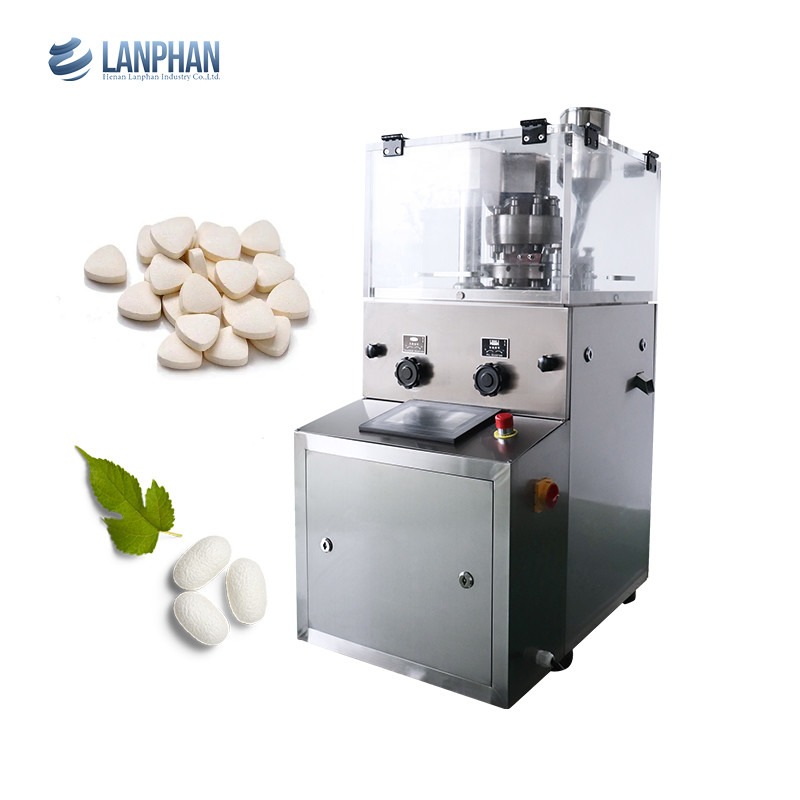

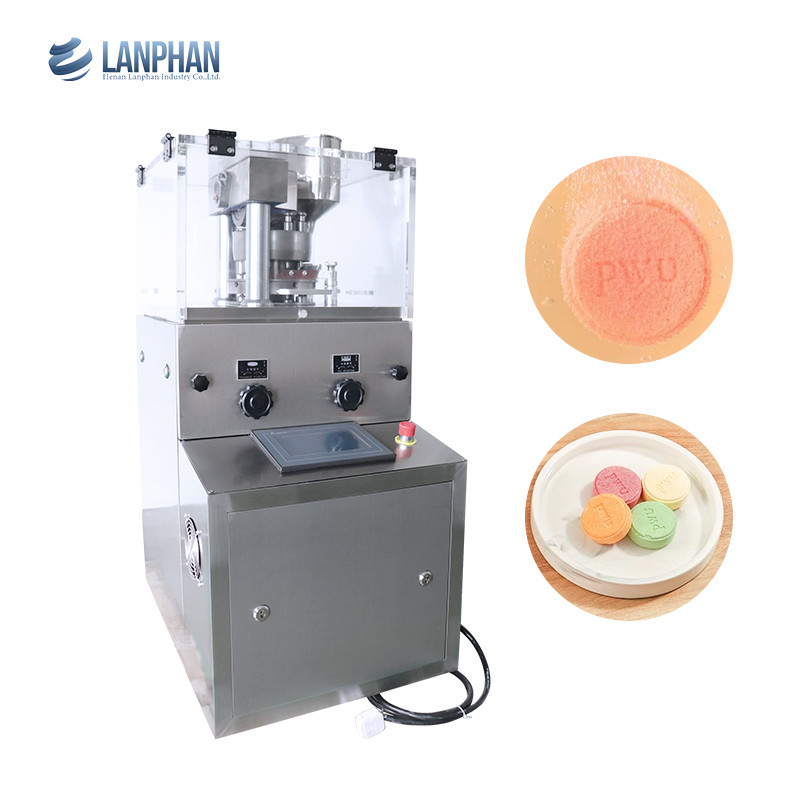

Model | ZP-5,7,9E touch screen | ||
Number of die (paid) | 5 | 7 | 9 |
Max tablet pressure | 60kN | ||
Max tablet diameter | 20mm | ||
Max filling depth | 15mm | ||
Maxtablet thickness | 6mm | ||
Rotary speed | 30RPM | ||
Production capacity | 9000pieces/hour | 12600pieces/hour | 16200pieces/hour |
Motor power | 2.2kw | ||
Dimensions | 960*660*1300mm | ||
Net Weight | 320kg |
1. Turntable structure: The turntable is the main execution part of the machine. It is composed of upper and lower bearing components, main shaft, turntable and other main parts. The dies are evenly distributed around the turntable, and the torque is transferred between the turntable and the spindle by flat keys. The main shaft is supported on bearings, driven by a worm gear pair, connected by splines, and rotates the main shaft to make the turntable rotate.
2. Track mechanism: The track has a cylindrical cam and a flat concave wheel composed of an upper track and a lower track, which are the trajectories of the upper and lower punches. The upper rail is composed of multiple rails such as an upward rushing rail, an upward rushing downward rail, an upward rushing parallel rail, and a pressing down rail. They are respectively fastened on the upper track disk. The lower rail is composed of a downward rushing upward rail and a downward rushing upward rail. They are respectively installed on the lower rail seat.
3. Filling adjustment device: The filling adjustment is used to adjust the weight of the tablet. The filling adjustment mechanism is installed inside the main body. A moon-shaped filling rail can be observed on the plane of the main body. It rises or falls by the action of a spiral to control the filling volume. When the disc is rotated to adjust, the filling volume decreases clockwise, and vice versa. Big.
4. Film thickness (pressure) adjustment device: adjust the film thickness (pressure) by adjusting the lower pressing wheel up and down. The lower pressure wheel is installed in the groove of the main body, it is sleeved on the eccentric shaft, and the outer end is connected to the hand wheel. When the external hand wheel is adjusted, the eccentric shaft drives the pressure wheel to rise or fall, that is, to adjust the thickness (pressure) of the sheet. Control the thickness and hardness of the tablet. The up and down adjustment of the upper pressing wheel can also be used as an adjustment device, but it is not adjusted under normal circumstances.
