11E17E Rotary Granulated Oxygen Tablet Press Sodium Percarbonate Tablet Printer

Minimum Order Quantity : 1 PC Price : $3405/pc
Packaging Details : Carton, wooden cases or customizable package Delivery Time : 4-9 work days
Payment Terms : T/T, Western Union, MoneyGram... Supply Ability : 900 Units per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE Model Number: 11E/17E

Detail Information

Product Name: Automatic Tablet Machine Voltage: 3KW/380V,50Hz,Three Phase Five Wire System
Dimension(mm0: 880*750*1600 Structure: Fully Enclosed Housing
Model: 11E, 17E Turret Speed: 0-25r/min
Max Pressure: 80kn Turret Speed(r/min): 0-25
Max Tablet Diameter(mm): Ф40
High Light:

Rotary Granulated Oxygen Tablet Press

,

880*750*1600 Automatic tablet Machine

,

50Hz automatic tablet press

Product Description

Rotary Tablet Press ZP11E Cartoon Candy Tablet Press Cake Decoration Candy Tablet Press

The tablet machine high degree of automation, the provincial workers, save time, may be a multi-purpose machines, one for multi-machine control.

Model Specification

Model ZP226-11E ZP226-17E
No.of Stations 11 17
Max Production Capacity(pcs/h) 16500 25500
Turret Speed(r/min) 0-25
Max Pressure(kn) 80
Max Filling Depth(mm) 20
Max Tablet Thickness(mm) 1-8
Max Tablet Diameter(mm) Ф40
Motor Power(kw) 3KW/380V,50Hz,Three phase five wire system
Overall Size(mm) 880*750*1600
Machine Weight(kg) 580

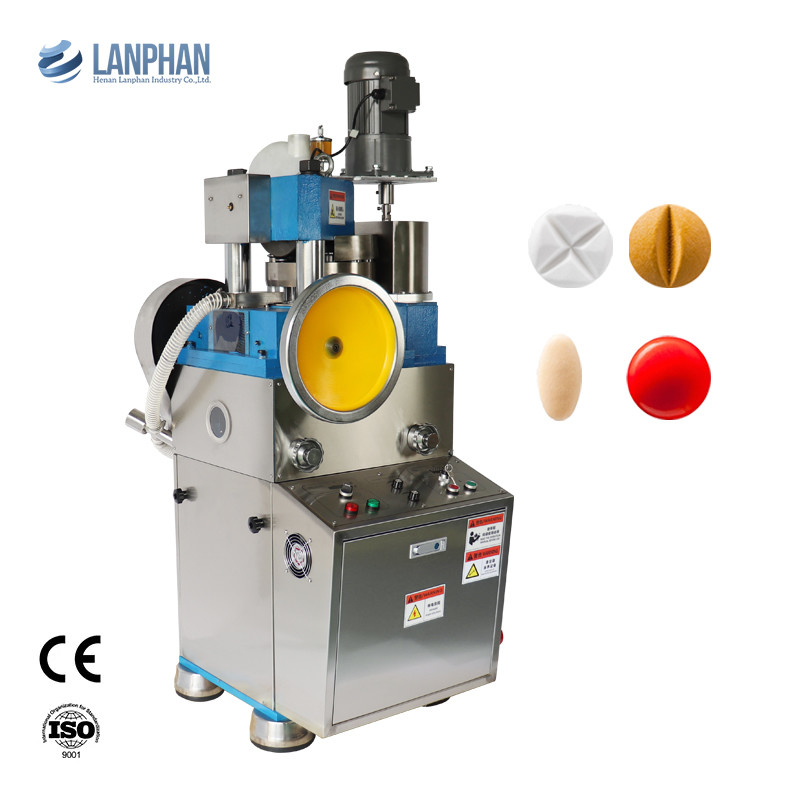

11E17E Rotary Granulated Oxygen Tablet Press Sodium Percarbonate Tablet Printer 0

Applications:

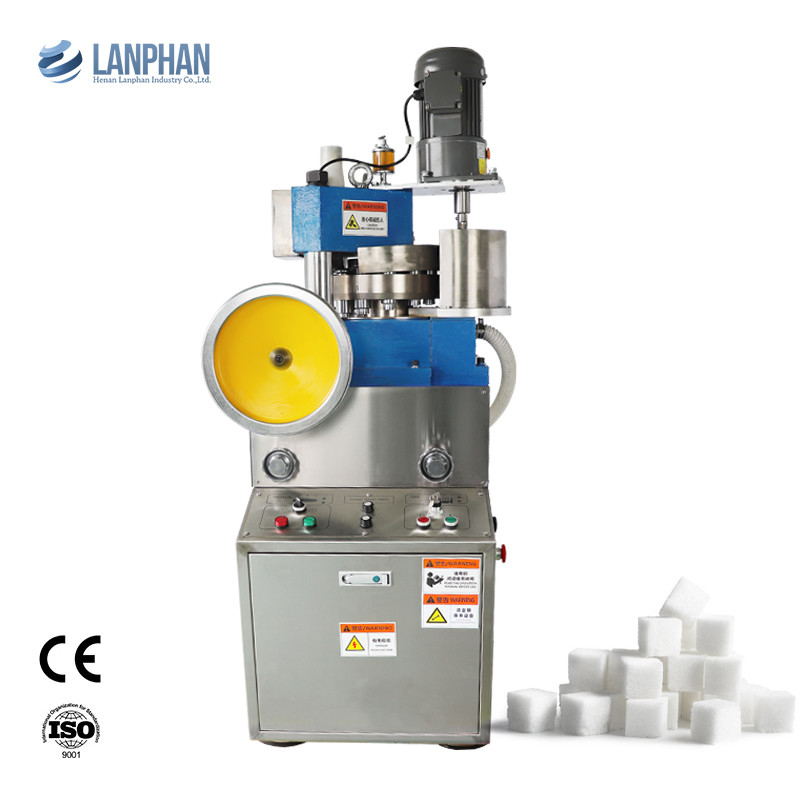

11E17E Rotary Granulated Oxygen Tablet Press Sodium Percarbonate Tablet Printer 1

This machine is suitable for pressing various kinds of granular materials into round tablet or different geometrical shape tablets.The machine is an automatically continuous rotary tablet press that are widely used in pharmaceutical, chemical, ceramics, foodstuff , electronics, plastics and powder metallurgy industries , etc.

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet-pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon-molecular sieve etc.
- Electronic: carbon brush, button cell, electronic component etc.

Product show

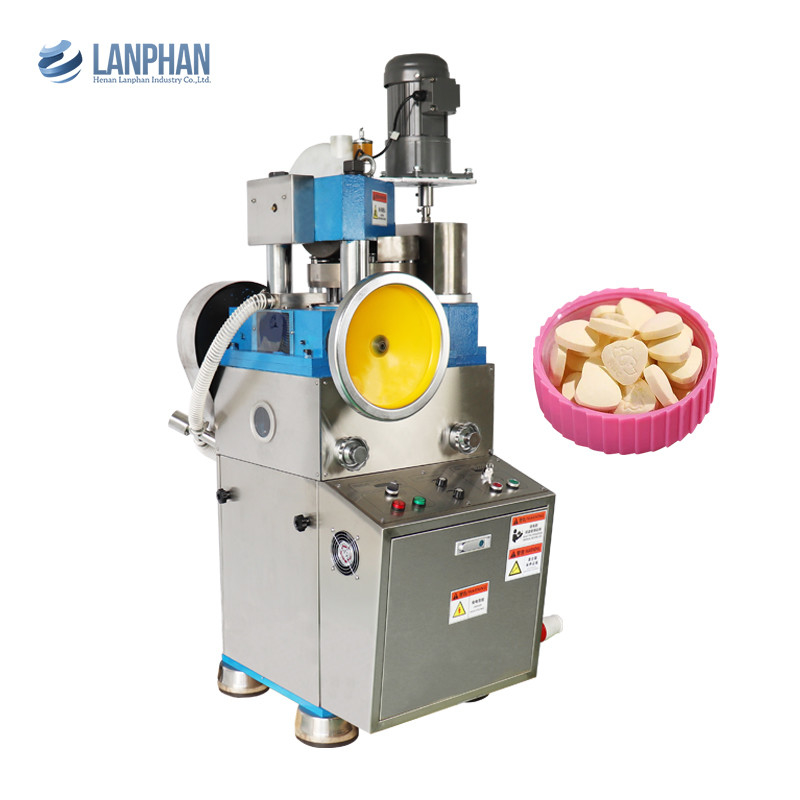

11E17E Rotary Granulated Oxygen Tablet Press Sodium Percarbonate Tablet Printer 2

Descriptions: This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small scale production. When pressing the tablets, the rotary disc speed and filling depth of material can be adjustable.
In addition, it is equipped with the force-feeder and overload protection devices. So This machine is also suitable for viscous materials.

Product Advantage

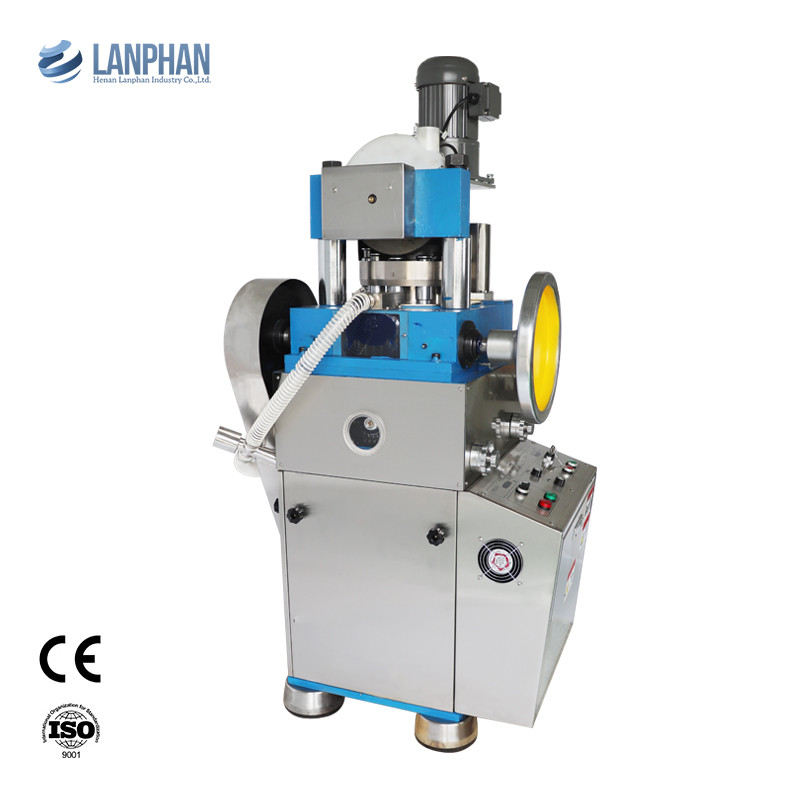

11E17E Rotary Granulated Oxygen Tablet Press Sodium Percarbonate Tablet Printer 3

Product Details

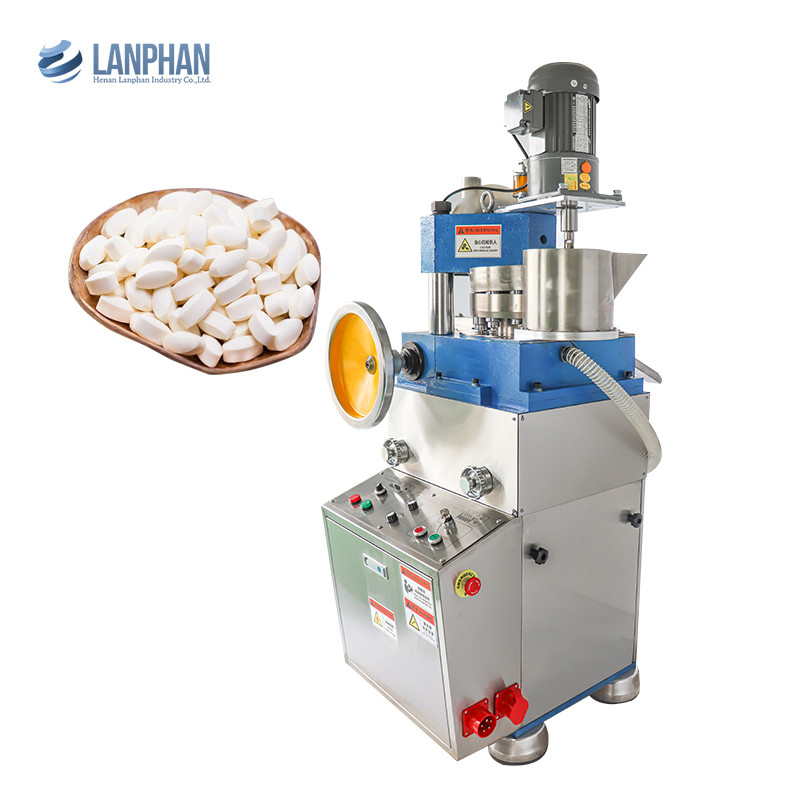

11E17E Rotary Granulated Oxygen Tablet Press Sodium Percarbonate Tablet Printer 4

Matters need attention

Before use, the quality of the die must be repeatedly checked to see if there are any missing edges, cracks, deformations, or tightness, so that it can be replaced in time to prevent the defective punch from breaking during operation and knocking out the feeder, causing work injuries.

Check whether the powder of granular raw materials is dry and the powder content must be less than 10%, otherwise it will affect the normal operation and service life of the machine and cause raw material loss.

The operator must be familiar with the technical performance, internal structure and usage principles of this machine. Do not leave the working place during operation, in order to prevent damage to machine parts due to malfunction and to ensure safe production...
