Multi-Stamping Rotary Tablet Machine Zp11e 17e Calcium Tablet Maker Compressing

Minimum Order Quantity : one Unit Price : $3405/unit
Packaging Details : Custom wooden case Delivery Time : 6-9 work days
Payment Terms : T/T,Paypal.... Supply Ability : 1100 Units per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE Model Number: 11E/17E

Detail Information

Product Name: Rotary-type Tablet Machine Voltage: 380V
Dimension(mm): 880*750*1600 Warranty: 12 Months
Structure: Fully Enclosed Housing Model: 11E, 17E
Max Pressure(kn): 80 Motor Power(kw): 3KW/380V,50Hz,Three Phase Five Wire System
Max Production Capacity(pcs/h): 16500/25500
High Light:

Rotary Multi-Stamping Tablet Machine

,

Zp 11e Rotary Tablet Machine

,

880*750*1600 automatic tablet press

Product Description

Rotary Multi-Stamping Tablet Machine Zp11e 17e Tablet Machine Calcium Tablet Maker Compressing Machine

Model Specification

Model ZP226-11E ZP226-17E
No.of Stations 11 17
Max Production Capacity(pcs/h) 16500 25500
Turret Speed(r/min) 0-25
Max Pressure(kn) 80
Max Filling Depth(mm) 20
Max Tablet Thickness(mm) 1-8
Max Tablet Diameter(mm) Ф40
Motor Power(kw) 3KW/380V,50Hz,Three phase five wire system
Overall Size(mm) 880*750*1600
Machine Weight(kg) 580

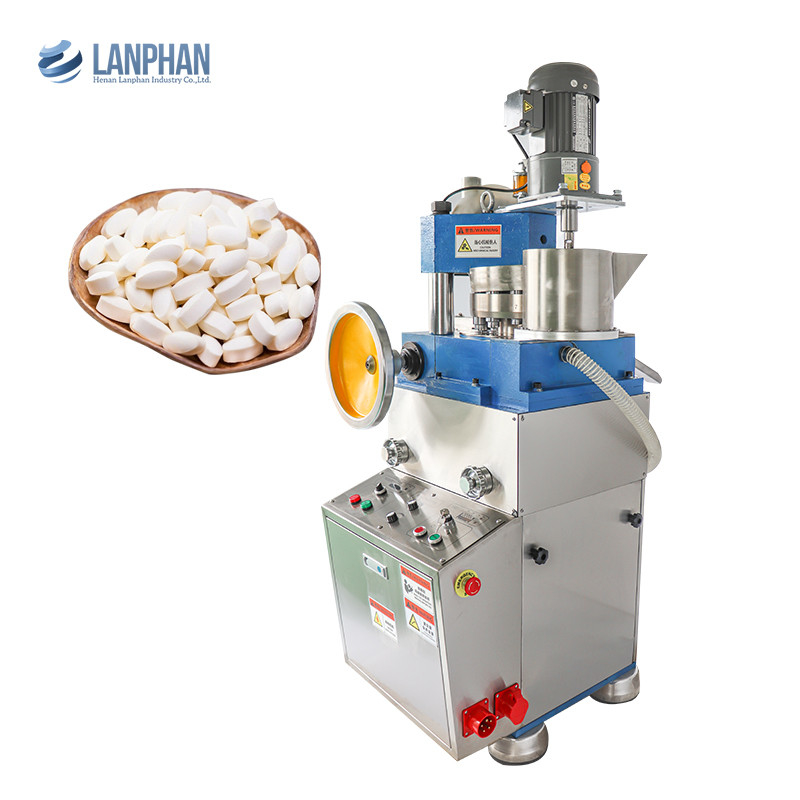

Multi-Stamping Rotary Tablet Machine Zp11e 17e Calcium Tablet Maker Compressing 0

The upper part of the machine is a tableting structure. 11 pairs of dies are evenly distributed on the turntable. The punch die consists of three parts: the upper punch, the middle die, and the lower punch. The tails of the upper and lower punches are embedded in fixed curve guide rails. When the turntable rotates, the punch moves up and down at a constant speed along the curved rail guide. When the upper and lower punches pass through the cylindrical surface of the pressing wheel, the tableting is completed.

Applications:

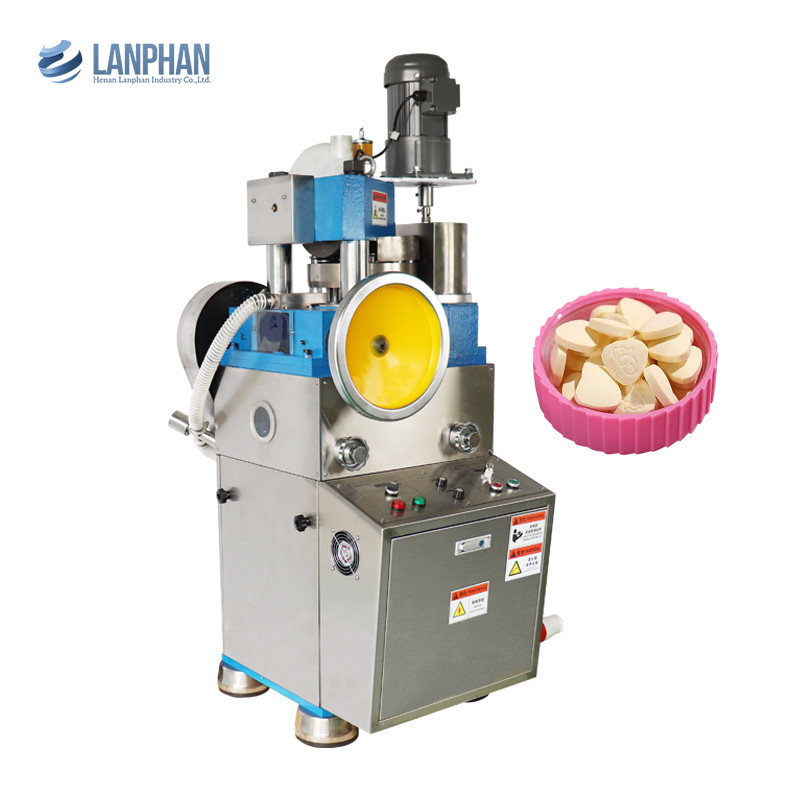

Multi-Stamping Rotary Tablet Machine Zp11e 17e Calcium Tablet Maker Compressing 1

This machine is suitable for pressing various kinds of granular materials into round tablet or different geometrical shape tablets.The machine is an automatically continuous rotary tablet press that are widely used in pharmaceutical, chemical, ceramics, foodstuff , electronics, plastics and powder metallurgy industries , etc.

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet-pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon-molecular sieve etc.
- Electronic: carbon brush, button cell, electronic component etc.

Product show

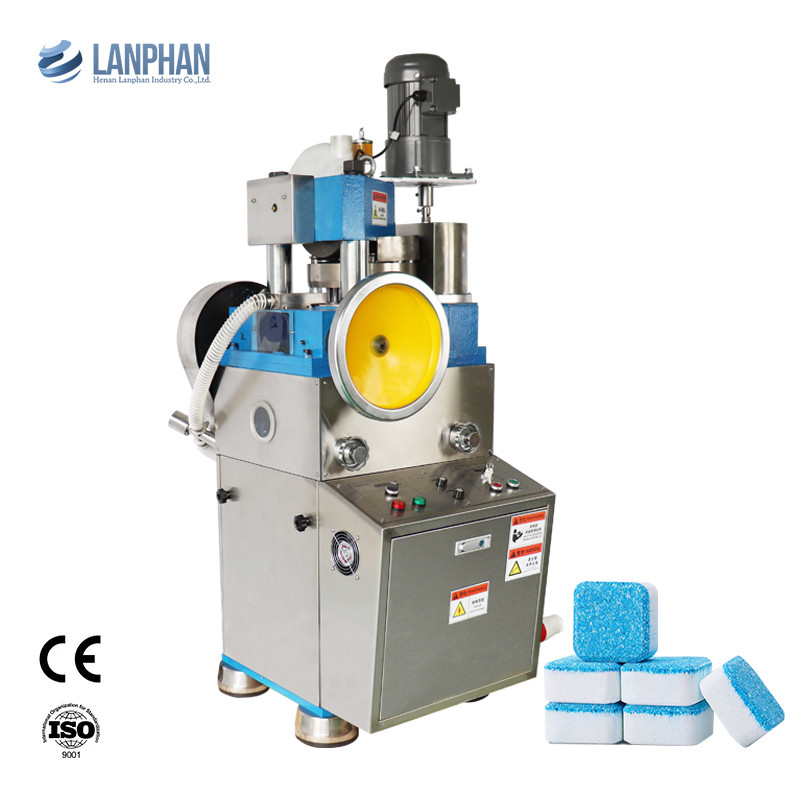

Multi-Stamping Rotary Tablet Machine Zp11e 17e Calcium Tablet Maker Compressing 2

Descriptions: This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small scale production. When pressing the tablets, the rotary disc speed and filling depth of material can be adjustable.
In addition, it is equipped with the force-feeder and overload protection devices. So This machine is also suitable for viscous materials.

Product Advantage

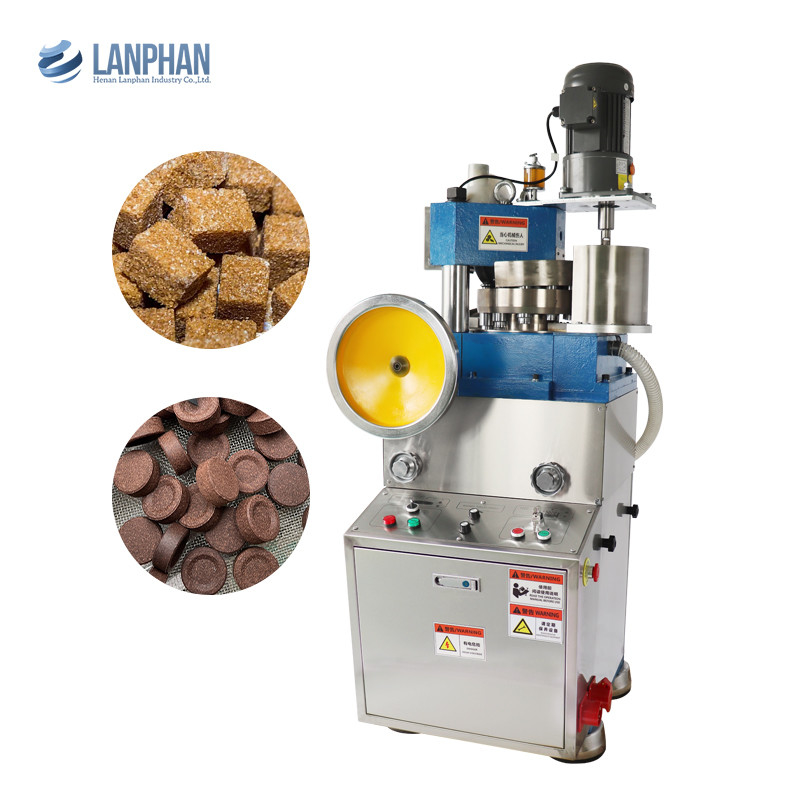

Multi-Stamping Rotary Tablet Machine Zp11e 17e Calcium Tablet Maker Compressing 3

Product Details

5. The tablet pressing work is divided into three procedures: ① filling ② pressurizing ③ tablet discharging. There are adjustment and control mechanisms for filling and pressurizing respectively, with instructions on the label, making the operation easy.
6. This machine adopts a flow grid feeding mechanism, which can make the material evenly fill the die holes and reduce the difference in tablet weight.
7. The motor is installed in the machine base, and the V-belt is used to drive the worm drive turntable. The motor is controlled by the frequency converter, and the speed can be adjusted arbitrarily.

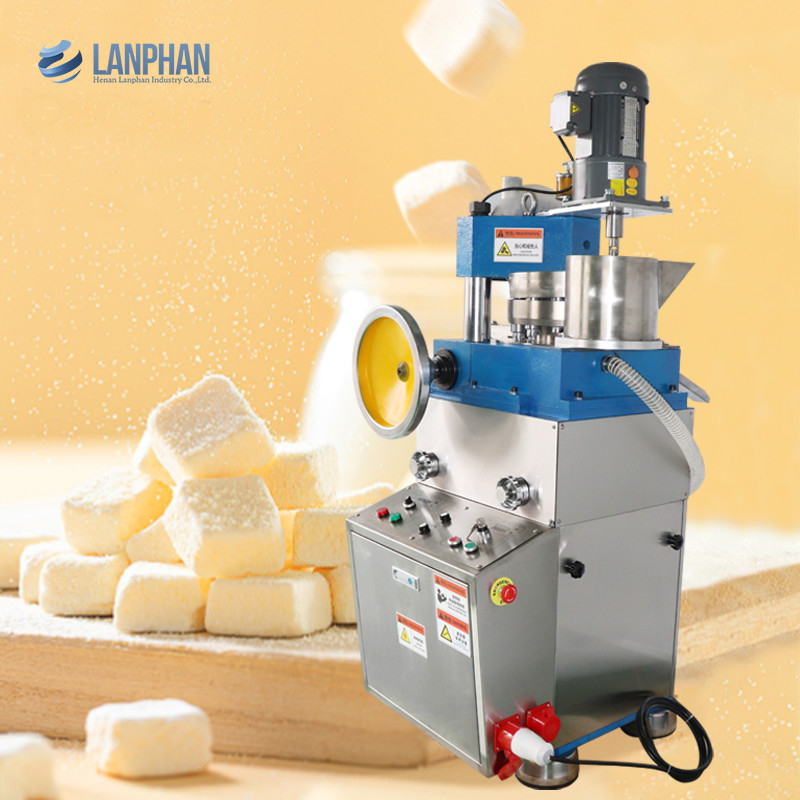

Multi-Stamping Rotary Tablet Machine Zp11e 17e Calcium Tablet Maker Compressing 4
