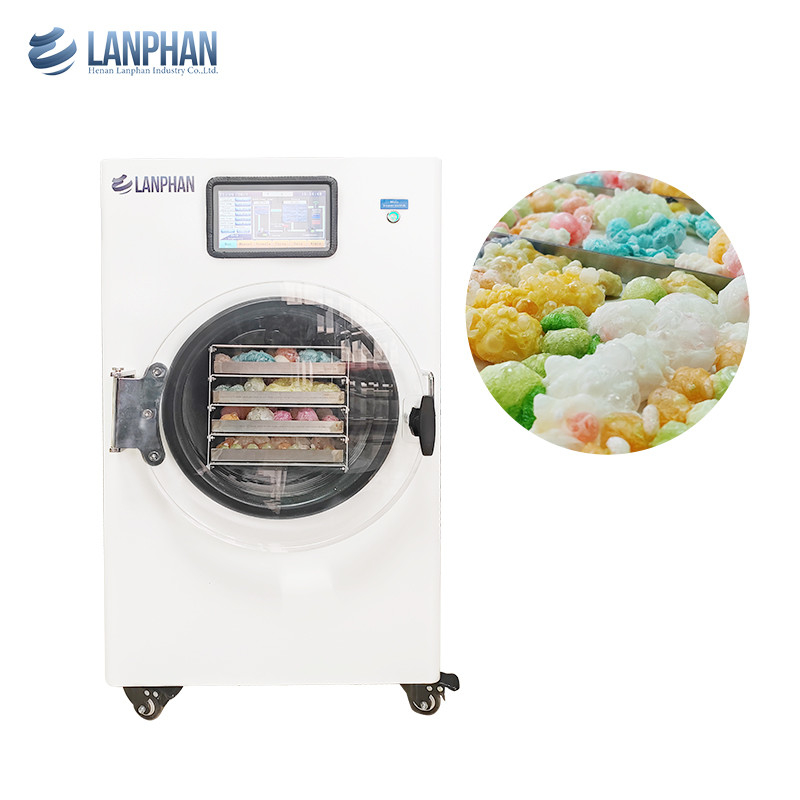

10 Trays Vacuum Freeze Dryer Machine Candy Fruit Tea Milk Food Freeze Dryers For Home Use
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 unit | Price : | $1,450.00 - $2,450.00 |
|---|---|---|---|
| Packaging Details : | Wooden Case Packing | Delivery Time : | 5-7 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union | Supply Ability : | 600 Sets per Month |
| Place of Origin: | Henan | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | contact us | Model Number: | HFD-1,HFD-4,HFD-6,HFD-8 |
|
Detail Information |
|||
| Product Name: | Home Freeze Dryer | Freeze-dried Area: | 0.4m2-1m2 |
|---|---|---|---|
| Cold Trap Coil Temperature: | <-40℃ (no-load) | Ultimate Vacuum: | No Load:<10pa |
| Power Supply: | 220V/110V 50HZ/60HZ | Power: | 1100W-2500W |
| Tray Quantity: | 3pcs-8pcs | Handling Capacity: | 1-16kg/batch |
| Weight: | 127KG-203KG | ||
| High Light: | Vegetable Vacuum Freeze Dryer,Flower Vacuum Freeze Dryer,Household Vacuum Freeze Dryer |
||
Product Description
1. The machine adopts imported compressor, which has stable and reliable performance and has the characteristics
of beautiful appearance, small size, lightweight and easy operation.
2. This machine is the use of the principle of physical sublimation, in a high vacuum environment, frozen food moisture
(ice) without melting, directly from the ice sublimation to steam, so this machine is also called freeze sublimation drying.
3. The machine is stylish, small in size and has a transparent plexiglass door for direct observation of the lyophilizationprocess.
Home Freeze Dryer Parameter & Advantage
| No. | Comparisons | LANPHAN 0.4 | Other Brand 0.4 |
| 1 | Dimensions(mm) |
500x640x890 With universal casters, easy to move |
455x540x730 No casters |
| 2 | Cold trap size(mm) | Φ305x510 | Φ315x435 |
| 3 | Tray(mm) | 4 Trays | 4 Trays |
| 4 | Door thickness (mm) | 30 | 20 |
| 5 | Frame |
Iron frame + Plastic spraying (Firm, not easy to scratch) |
Aluminum gusset+Baking Varnish (easy to scratch) |
| 6 | Compressor | French Danfoss brand | Chinese domestic brand |
| 7 | Cold trap temperature (°C) | ≤-40℃ | ≤-25℃ |
| 8 | Ultimate vacuum (pa) |
No load: <10Pa
|
No load: <3000Pa |
| 9 | Drying temperature (°C) | -40℃ ~+60℃ | -25℃ ~+60℃ |
| 10 | Temperature probe | 4 independent probes | 1 probe |
Home Freeze Dryer Application
Home Freeze Dryer Applications Scenarios
Home Freeze Dryer Application
It is widely used in freeze-drying of fruits, vegetables, meat, Chinese herbal medicines, health care products, etc. It is a trend that freeze dryers are developed from specific uses to households. Freeze-dried food and medicinal materials are easy to be stored for a long time, which can retain the taste, nutritional content and shape of the original material to the greatest extent.
Enter Your Message
We adhere to the concept “loyal, responsible, being professional ” and stimulate all the staff to be of one heart and one mind, work with collective wisdom and concerted efforts, in order to provide high quality but low cost products to our customers. Under the efforts of our team, our products are exported to universities, research labs and production facilities from all over the world. As a professional manufacturer, we can also provide customized services according to customer requirements.
