Danfoss Compressor Freeze Drying Machine Corrosion Proof

Minimum Order Quantity : 10 pcs Price : $4300/pc
Packaging Details : wooden carton package Delivery Time : 7-10 days
Payment Terms : T/T, Western Union, MoneyGram... Supply Ability : 1500 pcs per month
Place of Origin: China Brand Name: Lanphan
Certification: CE Model Number: HFD-8

Detail Information

Type: Home Freeze-drying Machine Voltage: 110V/220V
Power(w): 2500W Freeze Drying Area: 1㎡
Material: White/Black(customizable) Weight: 215kg
Warranty: 12 Months Compressor: French Danfoss Brand
Display: LCD Display
High Light:

danfoss compressor vacuum freeze dryer


danfoss compressor freeze drying machine


corrosion proof freeze drying machine

Product Description


1 M2 8 trays Commercial Freeze Dryer Food Freeze Drying Machines for sale


Main features

  • The machine adopts Danfoss compressor, rapid cooling
  • LCD screen control, easy to operation, and powerful function
  • The door of the drying chamber is made of colorless and transparent organic glass, allowing the entire freeze-drying process to be observed.
  • The vacuum pump adopts international standard KF quick connector connection.
  • Stable performance, easy operation and low noise.

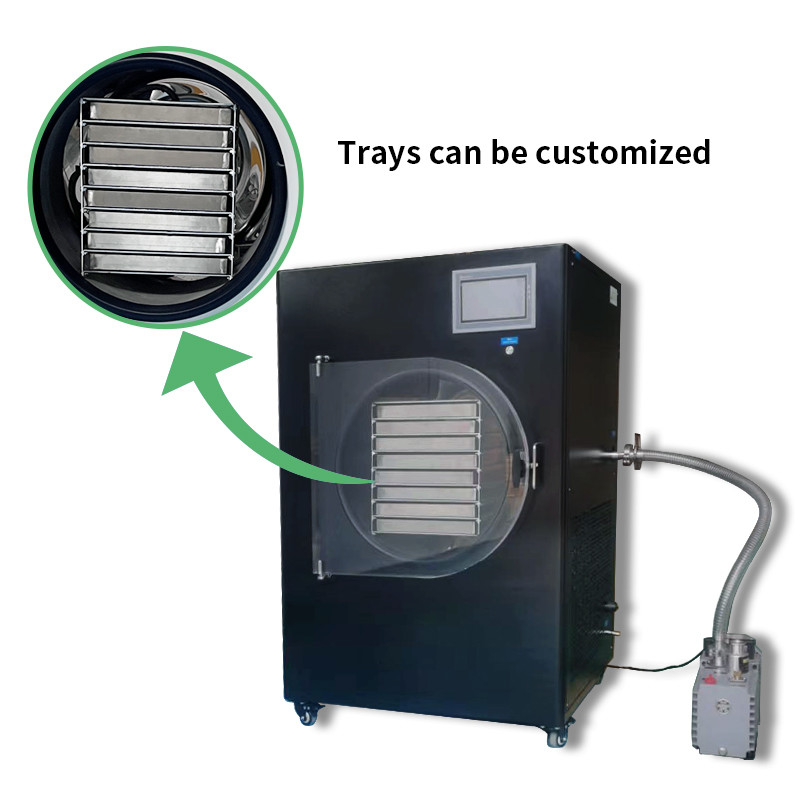

Danfoss Compressor Freeze Drying Machine Corrosion Proof 0

Product application

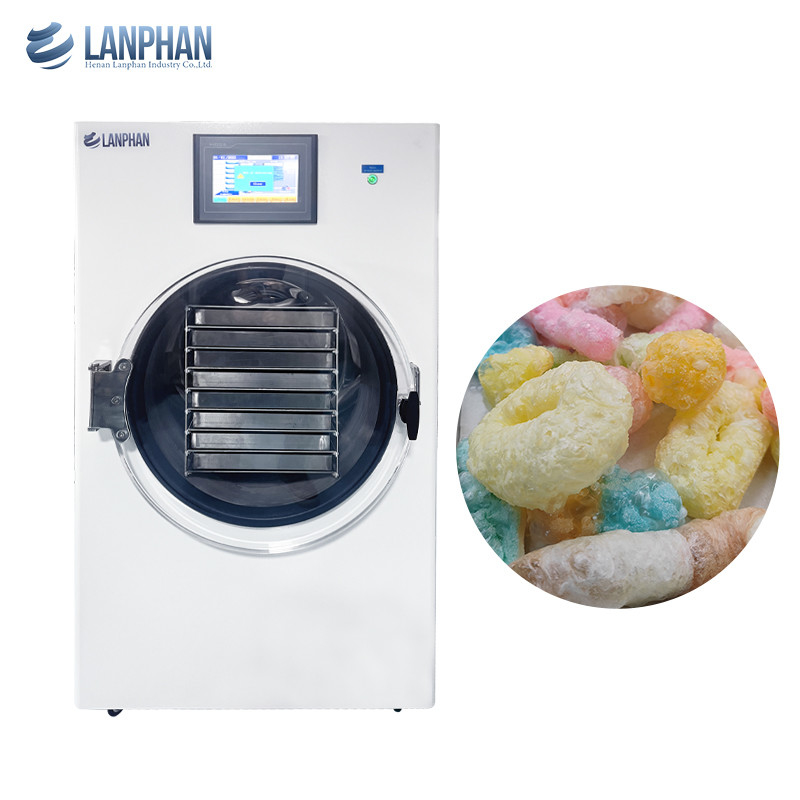

Danfoss Compressor Freeze Drying Machine Corrosion Proof 1

Vacuum freeze drying technology, also known as sublimation drying, is a method of pre-freezing water-containing substances and sublimating the water under vacuum. The original biological and chemical properties of freeze-dried products remain basically unchanged and are easy to store for a long time. After adding water, it can be restored to the state before freeze-drying and maintain its original biochemical characteristics. Therefore, vacuum freeze-drying technology is widely used in medicine, food, chemical industry, biological products and other fields.Freeze-dried food can be stored for up to 25 years. Freeze-dried food is ideal for home storage.

The samples with high acid or solvent content can not be dried in the absence of special protection (if necessary, please contact the service department), otherwise the freeze dryer may be corroded. When drying containing azide should pay more attention to it, because with copper or other non ferrous metal reaction will explode.

Product parameter

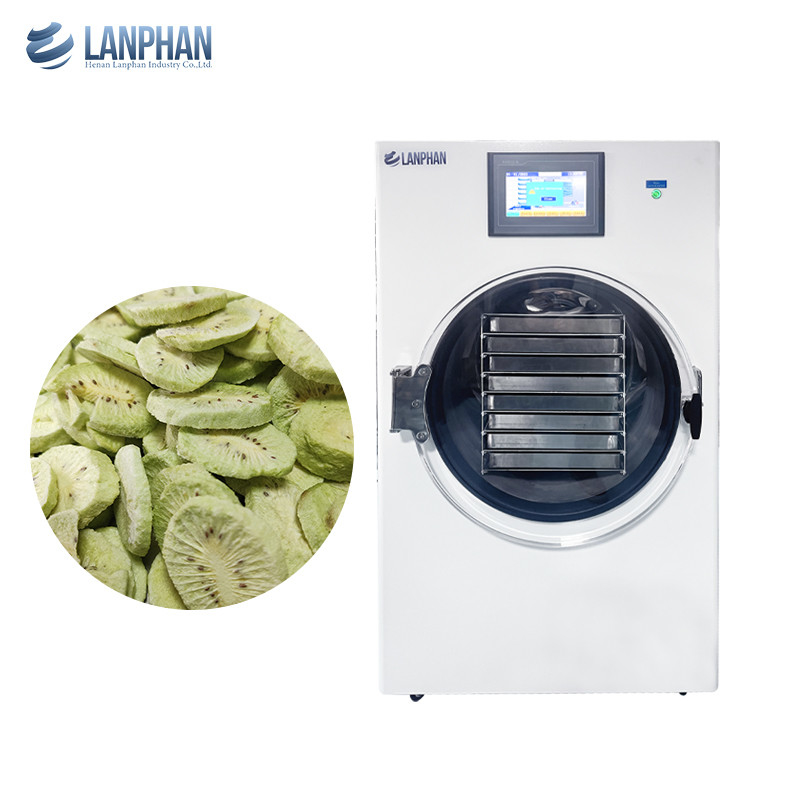

Danfoss Compressor Freeze Drying Machine Corrosion Proof 2

Product Model HFD-8
Freeze-dried area 1 M2
Processing capacity 10-12 kg/batch
Tray quantity 8pcs
Tray size(mm) 265*435*25
Spacing between partitions 40mm
Power(W) 2500
Ultimate vacuum 15Pa
Cold trap temperature ≤-40ºC
Temperature probe independent probe
Compressor French Danfoss brand
Frame Iron frame + Plastic spraying


  1. Must use a grounded power outlet.
  2. Working environment temperature≤32℃, the humidity≤80%.
  3. After drying finished, open the vent valve to inflate air at first, then close the vacuum pump to prevent sample contaminated by the pump oil. If a sudden power outage, open the vent valve immediately, and take out the samples as soon as possible, properly stored.
  4. Keep the seal ring clean, and cannot Scrub with organic solvents.
  5. Replace the vacuum pump’s oil after working 100 hours, check and maintenance the pump regularly.
  6. Do not frequently switch power supply and refrigerator, If the refrigerator is shut down caused by operation, at least three minutes to wait, and then restart the refrigerator

Product details

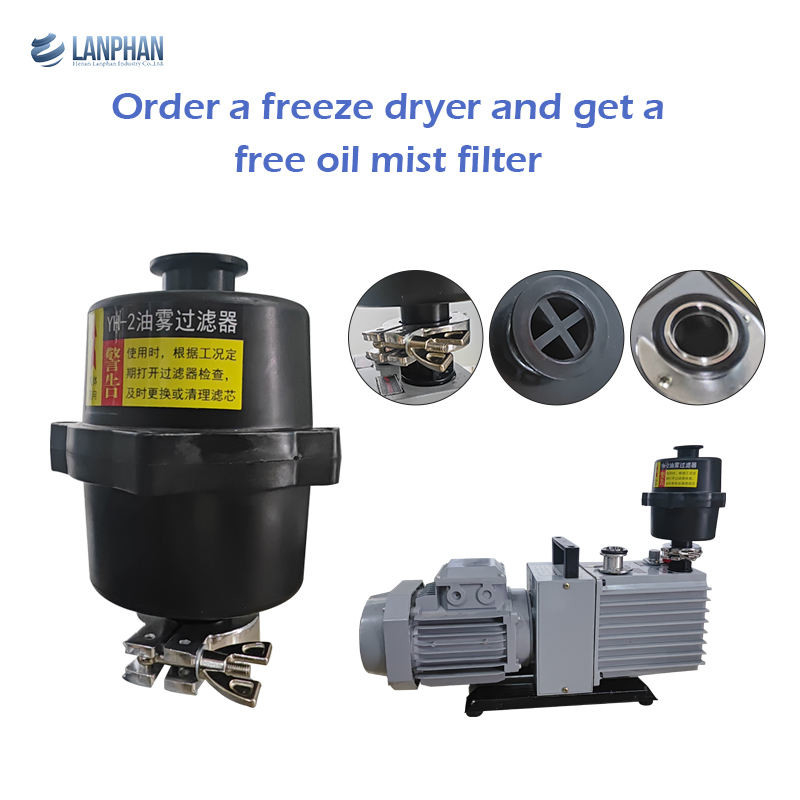

Danfoss Compressor Freeze Drying Machine Corrosion Proof 3

Our Factory

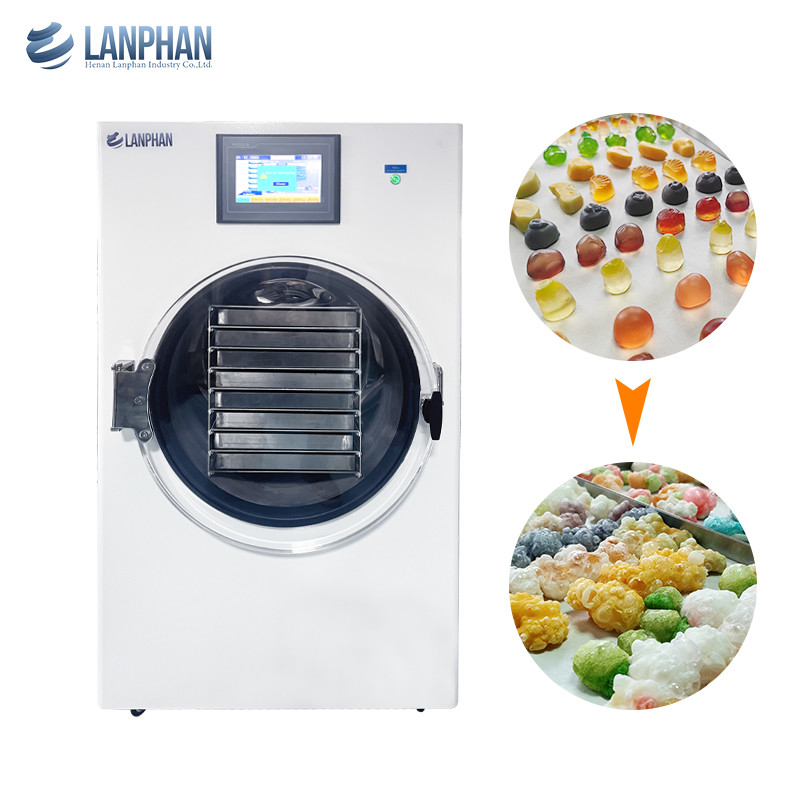

Danfoss Compressor Freeze Drying Machine Corrosion Proof 4

Related product

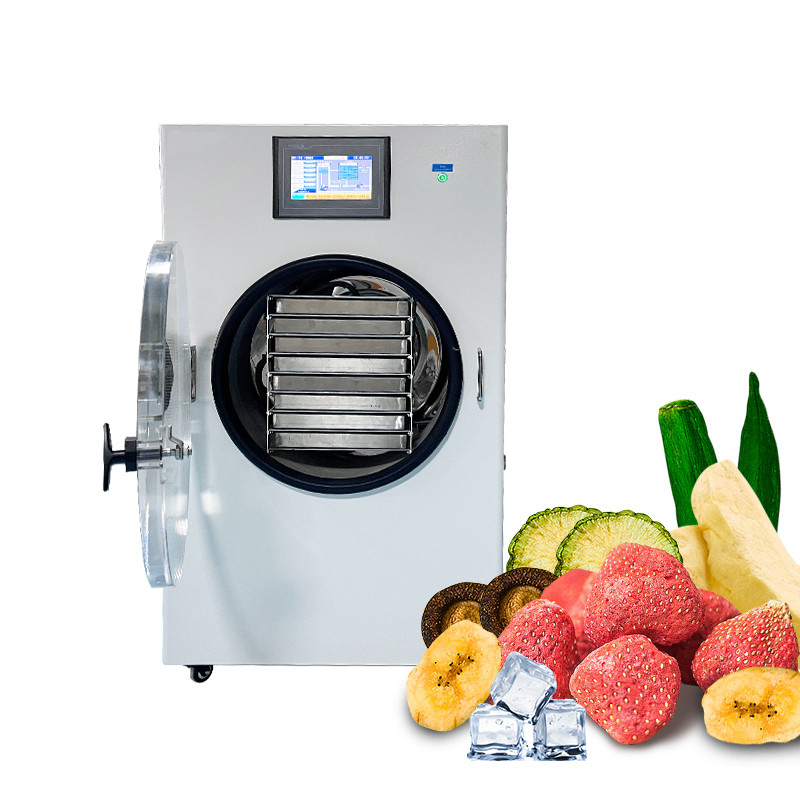

Danfoss Compressor Freeze Drying Machine Corrosion Proof 5

Packing & Shipping

Danfoss Compressor Freeze Drying Machine Corrosion Proof 6

Our Service

Pre-Sale Service
Provide 24-hour technical consultation and reply;
Provide professional quotation information;
Provide detailed product performance specification;
According to product's using condition, technicians will offer rationalization proposals to assist clients to select proper product types;
Provide other corollary equipment according to client requirements.

After-Sale Service
Provide targeted installation video;
Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product's standard component and sealing component;
During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product's running state in time. Assist customers to install and adjust products until customers are satisfied;
