Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder

Minimum Order Quantity : 1 Unit Price : $5262/unit
Packaging Details : Carton or customizable package Delivery Time : 3-7 work days
Payment Terms : T/T,Western Union,Paypal... Supply Ability : 600 Units per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE Model Number: 17E

Detail Information

Product Name: 17E Automatic Tablet Press Max Filling Depth: 20(mm)
Tablet Thickness: 1-8(mm) Max Tablet Diameter: Ф40(mm)
Condition: New Warranty: One Year
After-sales Service Provided: Online Service Application: Food/pharmacy/candy...
Material: Stainless Steel
High Light:

20mm automatic tablet press machine

,

ZP17E Rotary Tablet Machine

,

stainless steel Rotary automatic tablet press

Product Description

Rotary Multi-Stamping Tablet Machine ZP17E Tablet Machine Chinese Medicine Powder Tablet Pressing Machine Western

The tablet machine high degree of automation, the provincial workers, save time, may be a multi-purpose machines, one for multi-machine control.

Technical Specifications

Model ZP226-17E
No.of Stations 17
Max Production Capacity(pcs/h) 25500
Turret Speed(r/min) 0-25
Max Pressure(kn) 80
Max Filling Depth(mm) 20
Max Tablet Thickness(mm) 1-8
Max Tablet Diameter(mm) Ф40
Motor Power(kw) 3KW/380V,50Hz,Three phase five wire system
Overall Size(mm) 880*750*1600
Machine Weight(kg) 580

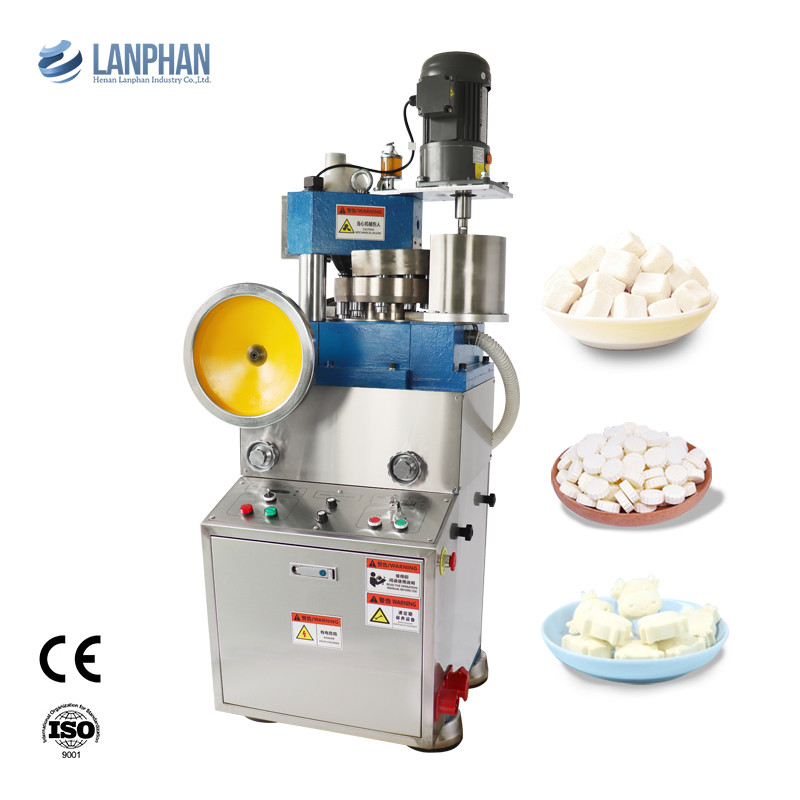

Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder 0

Applications:

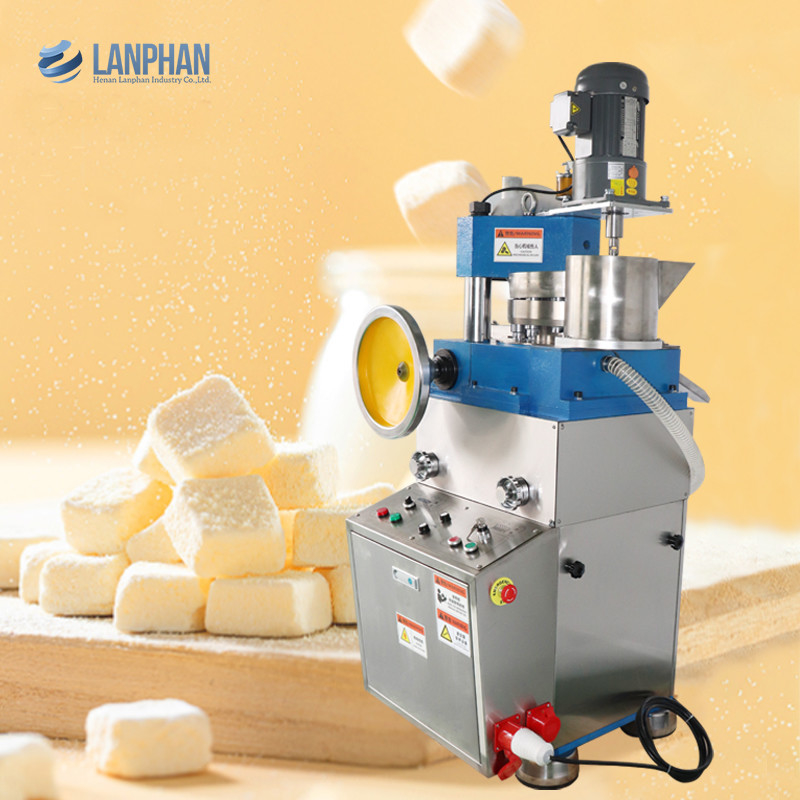

Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder 1

This machine is suitable for pressing various kinds of granular materials into round tablet or different geometrical shape tablets.The machine is an automatically continuous rotary tablet press that are widely used in pharmaceutical, chemical, ceramics, foodstuff , electronics, plastics and powder metallurgy industries , etc.

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet-pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon-molecular sieve etc.
- Electronic: carbon brush, button cell, electronic component etc.

Product show

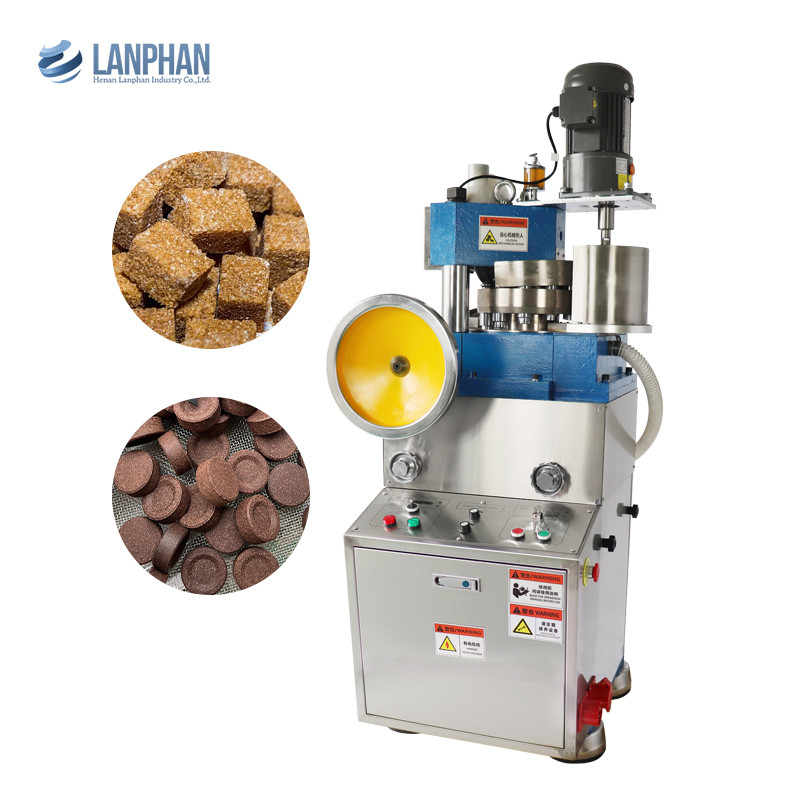

Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder 2

1. This tablet press is a tablet pressing machine with continuous pressure and automatic feeding. It has high output and good reliability. Mainly used in the pharmaceutical industry, it can also be used in food, chemical and other industrial sectors. It is a basic equipment for processing various granular raw materials and processing them into tablets.
2. It is suitable for mass production and pressing of various round, special-shaped or ring-shaped tablets, sugar tablets or calcium tablets.
3. It is not suitable for pressing semi-solid, moist powder and non-granular extremely fine powder.

Product Advantage

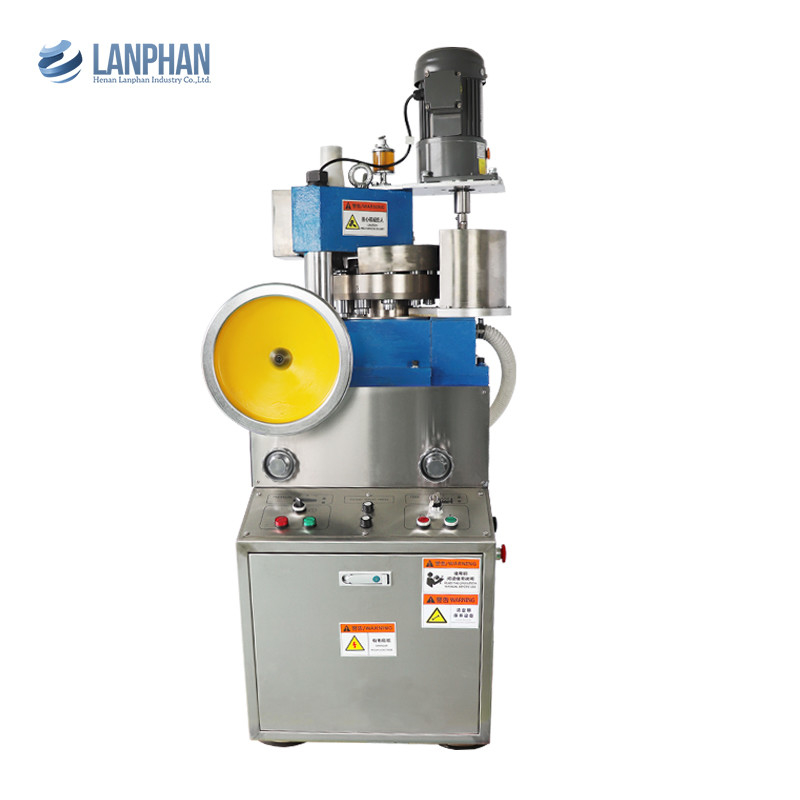

Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder 3

Product Details

- The material of the cover and internal table are made of stainless steel.The housing is fully closed. The surface of turntable is specially disposed to keep the surface luster and prevent it from being polluted.This series conform to GMP standard governing the medicine production and quality control. The tablet-paint.
- Equipped a force-feeder on this machine.
- The lay-out of all the controllers and the operate parts is reasonable.
- All the drive devices are located inside the machine so keep the machine clean.
- Overload protection unit is included in the system to avid the damage of the punches and apparatus, When overload occurs, the machine will stop working automatically.
- This machine also has electromagnetic brake motor and other safety protection device which can be adjusted and operated when running.

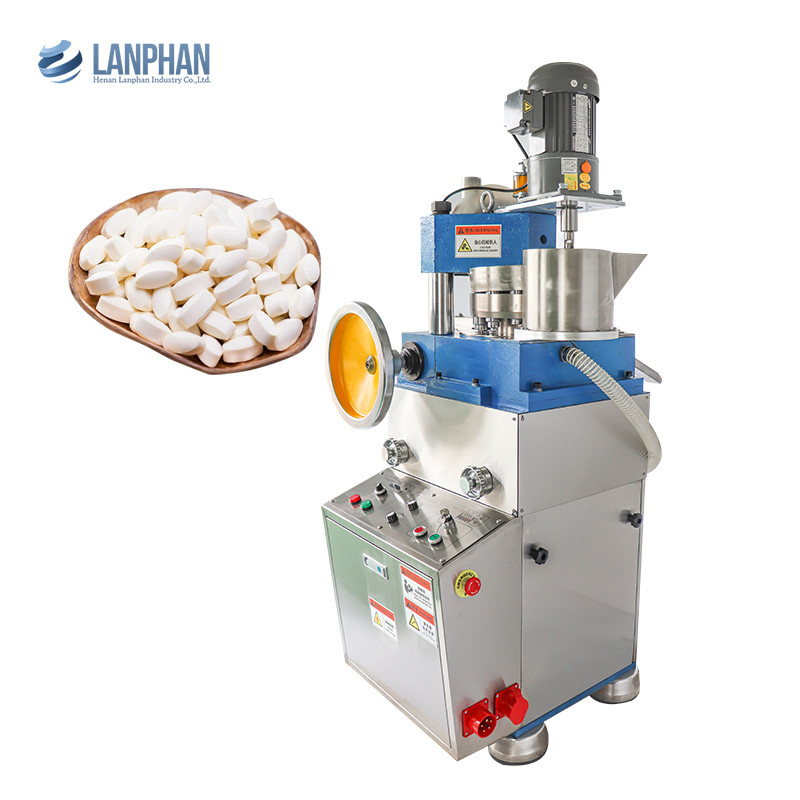

Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder 4

Packing & Shipping

Multi-Stamping Rotary Tablet Machine ZP17E Tablet Press Medicine Powder 5
