960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet

11E Tablet Press Machine

Mothball Sheet Rotary Tablet Press Machine

4Kw Rotary Tablet Press

Place of Origin:

China

Brand Name:

Lanphan

Certification:

CE

Model Number:

11E

Contact Us
Request A Quote
Product Details
Product Name:
11E Tablet Press
Voltage:
380V 50HZ
Dimension:
880mm*750mm*1600mm
Warranty:
12 Months
Weight:
580kg
Material:
Stainless Steel
Model:
11E
Rotate Speed:
960RPM
Motor Power:
4Kw
Max Tablet Thickness:
1-8(mm)
Highlight:

11E Tablet Press Machine

,

Mothball Sheet Rotary Tablet Press Machine

,

4Kw Rotary Tablet Press

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
$8666/pc
Packaging Details
Custom wooden case packing
Delivery Time
5-8 work days
Payment Terms
T/T, Paypal
Supply Ability
1000 Units per Month
Product Description

11E17E cleaning coffee machine sheet press machine rotary production machine mothball sheet forming machine

1. This machine is a tablet pressing machine with continuous pressure and automatic feeding. It has high output and good reliability. Mainly used in the pharmaceutical industry, it can also be used in food, chemical and other industrial sectors. It is a basic equipment for processing various granular raw materials and processing them into tablets.

2. It is suitable for mass production and pressing of various round, special-shaped or ring-shaped tablets, sugar tablets or calcium tablets.

3. It is not suitable for pressing semi-solid, moist powder and non-granular extremely fine powder.

Parameter Specisfication

Model ZP226-11E
No.of Stations 11
Max Production Capacity(pcs/h) 16500
Turret Speed(r/min) 0-25
Max Pressure(kn) 80
Max Filling Depth(mm) 20
Max Tablet Thickness(mm) 1-8
Max Tablet Diameter(mm) Ф40
Motor Power(kw) 3KW/380V,50Hz,Three phase five wire system
Overall Size(mm) 880*750*1600
Machine Weight(kg) 580

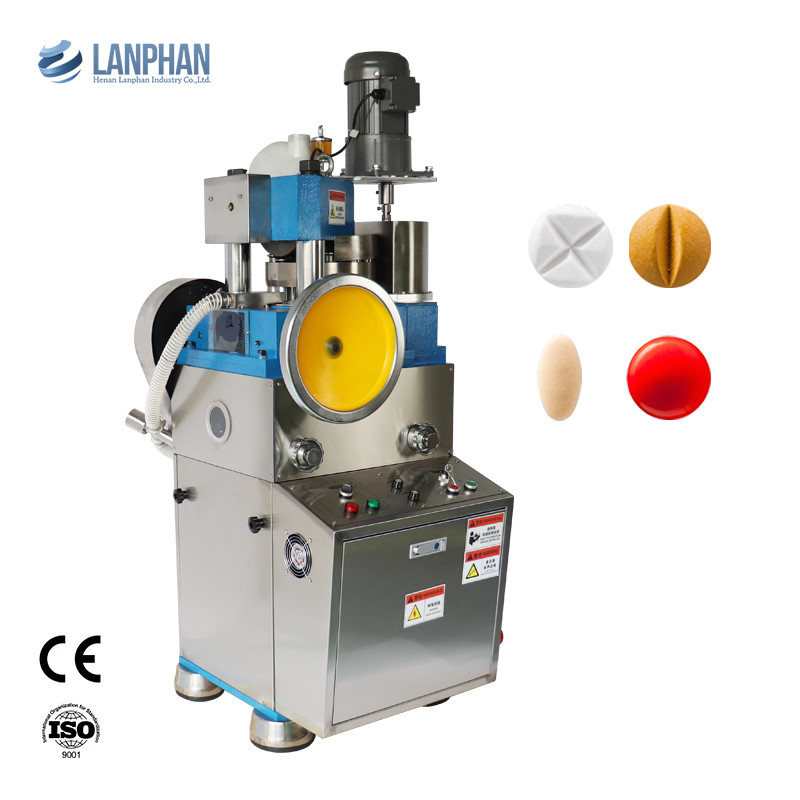

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet 0

Applications:

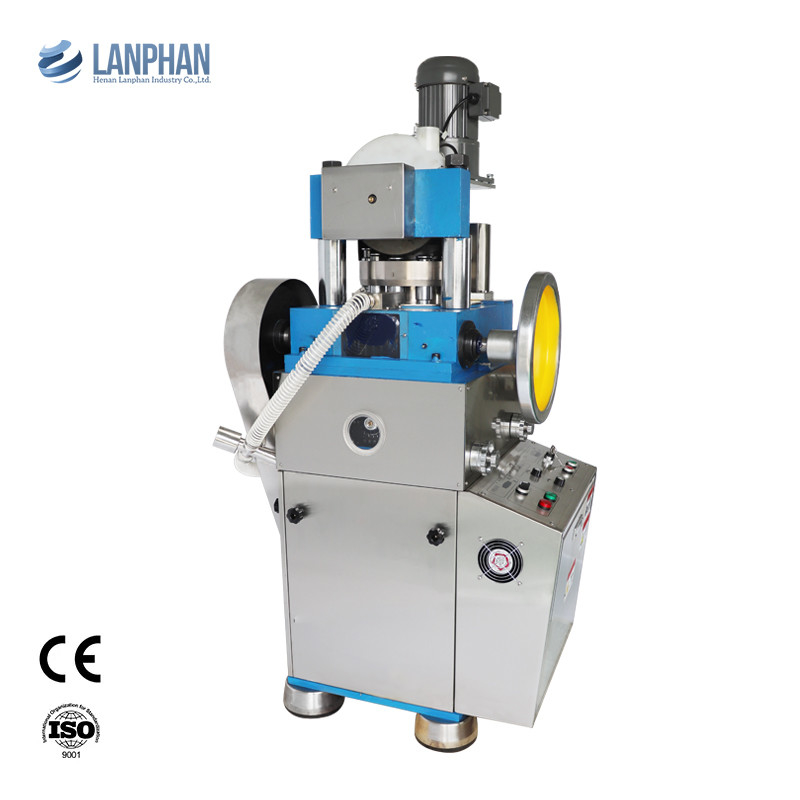

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet 1

This machine is suitable for pressing various kinds of granular materials into round tablet or different geometrical shape tablets.The machine is an automatically continuous rotary tablet press that are widely used in pharmaceutical, chemical, ceramics, foodstuff , electronics, plastics and powder metallurgy industries , etc.

- Pharmaceutical: Chinese tablets, Western medicine, plain films, chewable tablet, calcium tablet, buccal tablet, propolis tablet (bee propolis tablet), spiraling tablet, effervescent tablet-pioneer, camphor ball etc.
- Foodstuff: candy pieces, flake coffee, chicken essence chunk, seasoning chunk, glucose tablet, milk powder candy etc.
- Agriculture: wafer feed, fertilizer chunk, animal food etc.
- Chemical: bleaching powder, ceramic powder, powder metallurgy, magnetic materials, antiseptic, powdered carbon-molecular sieve etc.
- Electronic: carbon brush, button cell, electronic component etc.

Product show

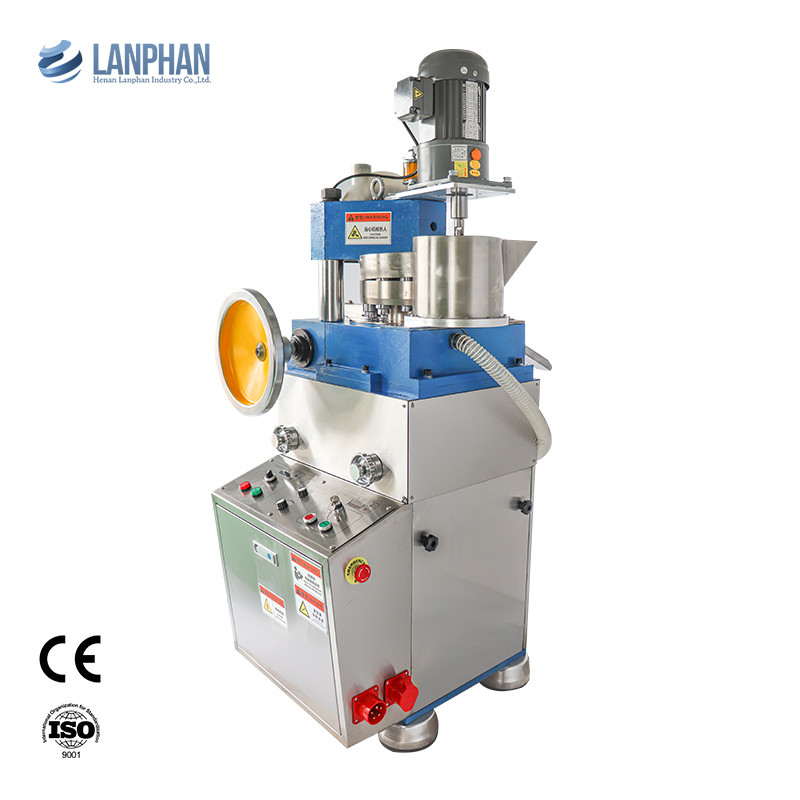

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet 2

Descriptions: This machine is used to press the granular raw material into the round tablets or various geometric shaped tablets, it is especially caters for small scale production. When pressing the tablets, the rotary disc speed and filling depth of material can be adjustable.
In addition, it is equipped with the force-feeder and overload protection devices. So This machine is also suitable for viscous materials.

Product Advantage

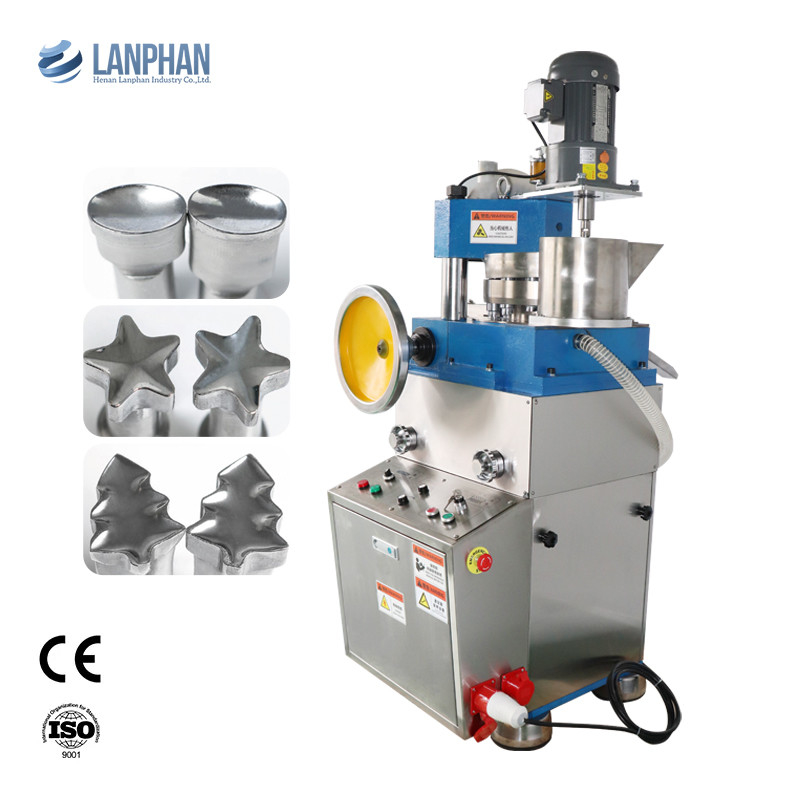

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet 3

Product Details

- The material of the cover and internal table are made of stainless steel.The housing is fully closed. The surface of turntable is specially disposed to keep the surface luster and prevent it from being polluted.This series conform to GMP standard governing the medicine production and quality control. The tablet-paint.
- Equipped a force-feeder on this machine.
- The lay-out of all the controllers and the operate parts is reasonable.
- All the drive devices are located inside the machine so keep the machine clean.
- Overload protection unit is included in the system to avid the damage of the punches and apparatus, When overload occurs, the machine will stop working automatically.
- This machine also has electromagnetic brake motor and other safety protection device which can be adjusted and operated when running.

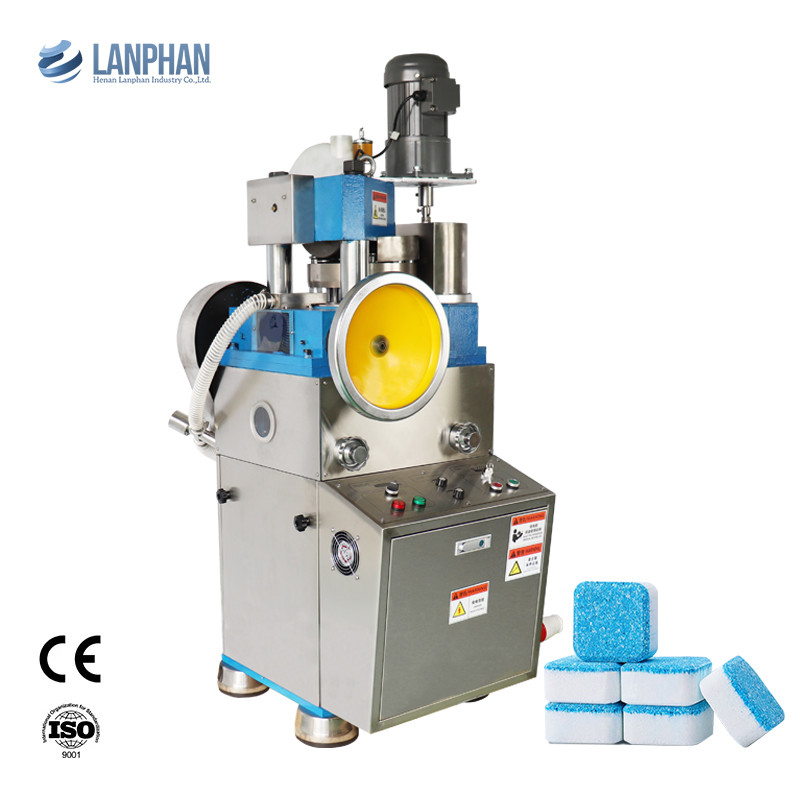

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet 4

Packing & Shipping

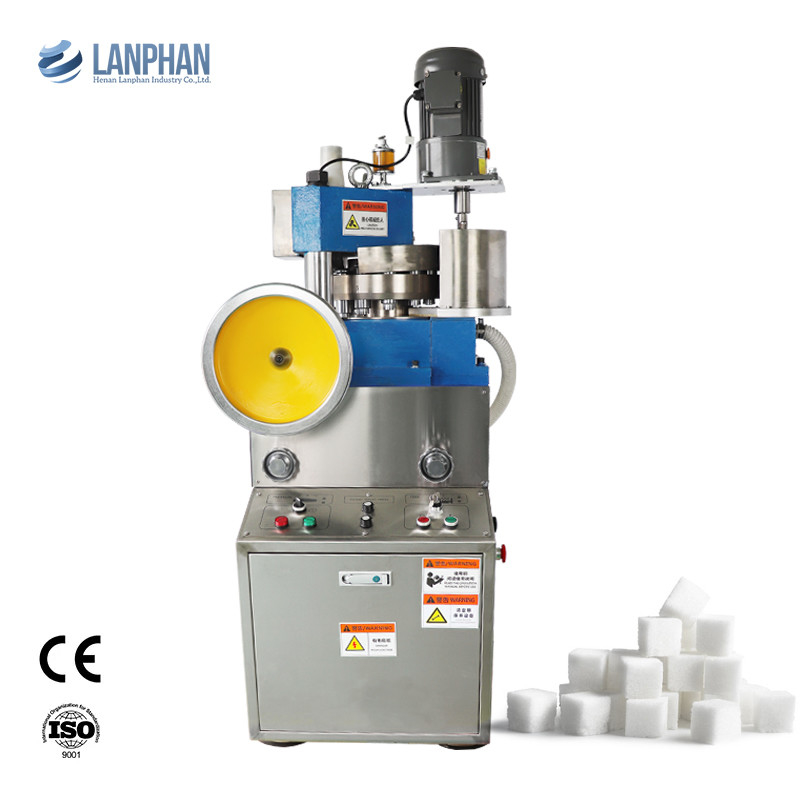

960RPM 11E Tablet Press Machine 4Kw Rotary Production Machine Mothball Sheet 5
