Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LS-LD
Video
Video
Video
Video
Commercial Sterilization Equipment Steam Autoclave Horizontal
Autoclave Parameter
| Model technical data | LS-35HD(automatic) | LS-50HD(automatic) | LS-75HD(automatic) | LS-100HD(automatic) |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
| working pressure | 0.22MPa | |||
| Working temperature | 134℃ | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤1℃ | |||
| Timer | 0~99min or 0~99hour59min | |||
| Adjustment of temperature | 105~134℃ | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 470×450×1020(mm) | 520×500×1150(mm) | 550×530×1180 (mm) | 580×560×1290 (mm) |
| Transport dimension | 540×540×1140(mm) | 580×580×1250(mm) | 610×610×1280(mm) | 640×640×1360(mm) |
| G.W/N.W | 81Kg/63Kg | 94Kg/ 74Kg | 113Kg/ 93Kg | 125Kg/ 105Kg |
Autoclave Application

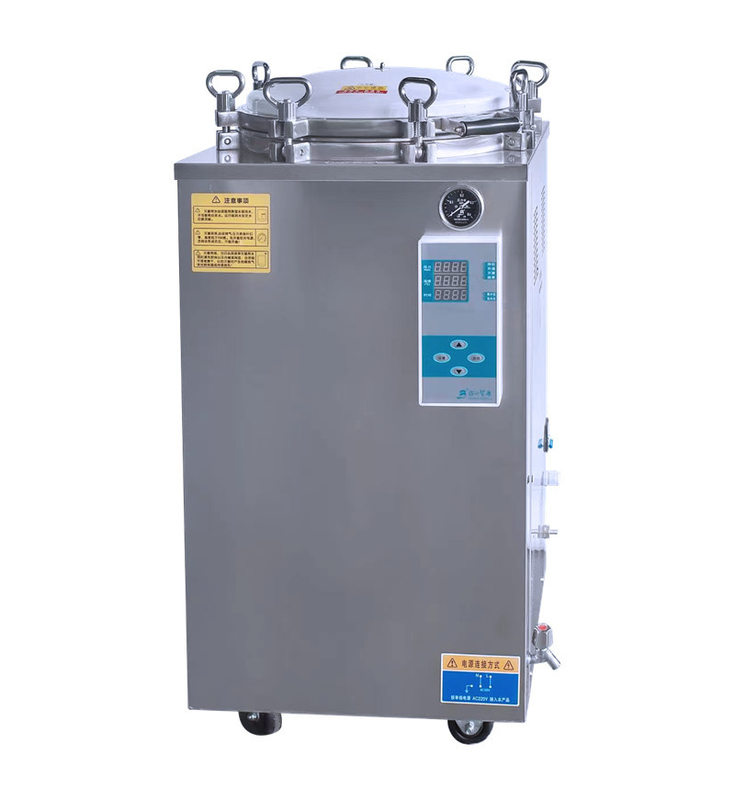

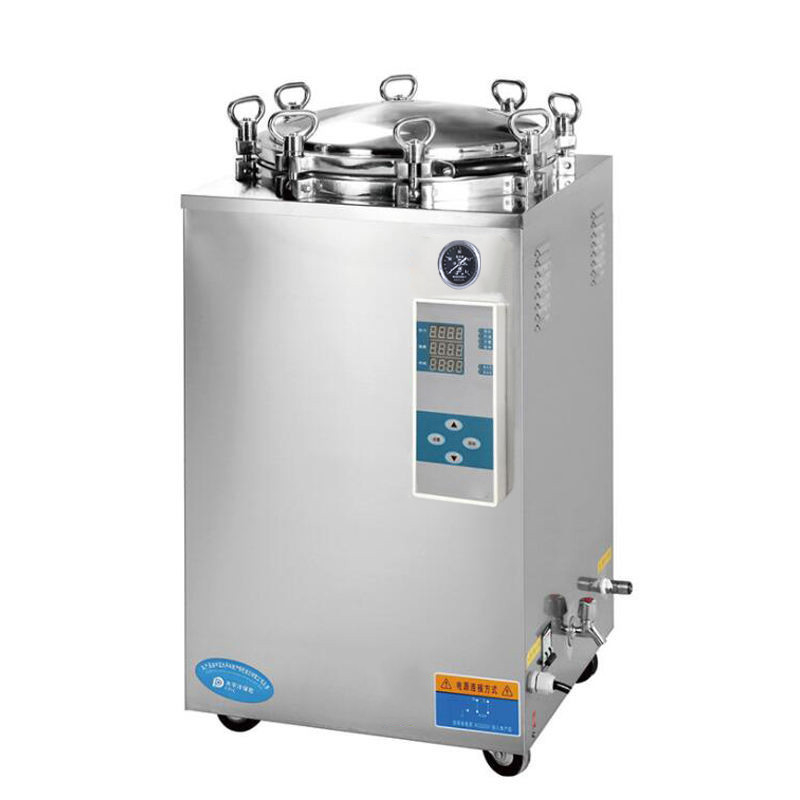

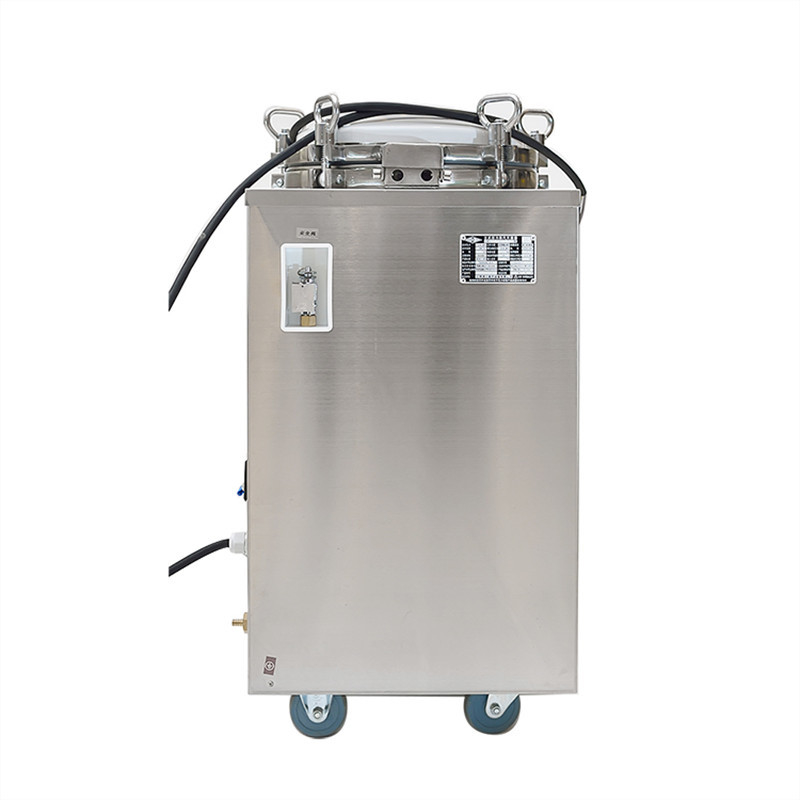

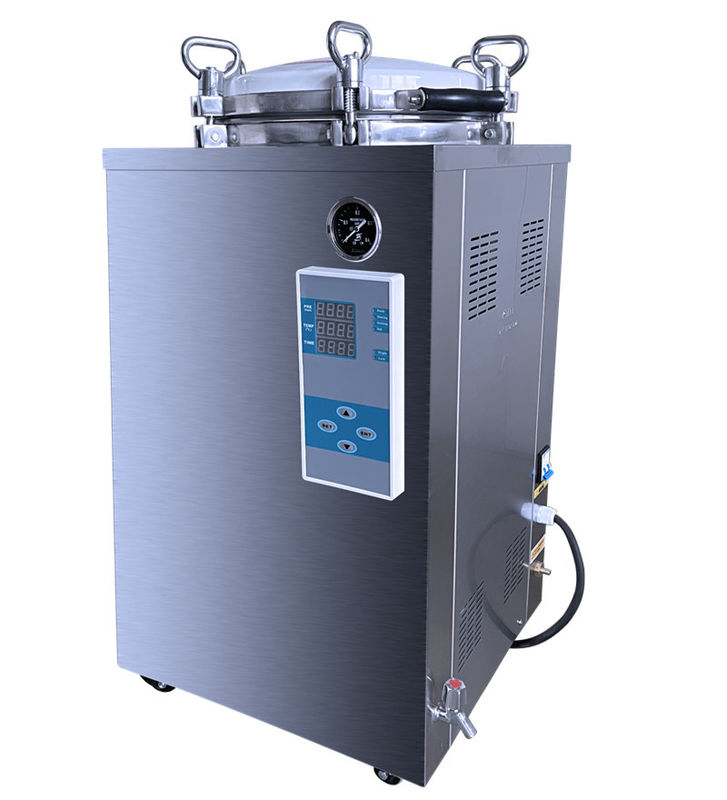

Vertical sterilizer is a safe and reliable automatic sterilization equipment, which consists of heating system, microcomputer control system and overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, energy saving, durability and low cost. It is an ideal equipment for the disinfection and sterilization of surgical instruments, dressings, utensils and culture medium in medical and scientific research units.
Autoclave Features
1.Sterilizing course automatic sterilization controlled by computer, easy to operate.
2.With drying function, suitable dressing drying.
3.With over-temperature, over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting.
6.The power will be cut-off automatically the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.With printer.
