Small Lab Single Punch Pill Tablet Press Automatical Electric 0.75kw 1400r / Min

Product Details:
Place of Origin: China
Brand Name: Lanphan
Certification: CE ISO
Model Number: TDP-5
Payment & Shipping Terms:
Minimum Order Quantity: One unit
Packaging Details: Carton, wooden cases or customizable package
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 100 Units per Month

Detail Information

Product Name: Single Punch Tablet Press Machine Strength(KN): 50
Max.tablet Diameter(mm): 16 Max.filling Depth(mm): 12
Motor Power(kw): 0.75 Turning Speed(r/min): 1400
Weight(kg): 125 Warranty: 2 Years
High Light:

0.75kw Desktop Tablet Press Machine


TDP Singlepunch Desktop Tablet Press Machine


Desktop Tablet Press Machine 1400r/min

Product Description

Mechanical Electrical Single Punch Tablet Pill Press Machine


Tablet Press Parameter


Model TDP-5Ton strength(KN) 50
Max.tablet diameter(mm) 16
Max.filling depth(mm) 12
Productive capacity(pcs/h) 1400
Motor power(kw) 0.75
Turning speed(r/min) 1400
Weight(kg) 125
Length*width*height(mm) 700*400*800



Tablet Press Description


Small desktop electric continuous tablet press machine, can also be hand-cranked. The plane comes with a die, which can be changed to press tablets of different shapes and sizes. The filling depth of the material and the thickness of the tablet can be adjusted.


TDP Single Punch Tablet Press,which can press the powder material into tablet,can be widely used in pharmaceutical factory,chemical factory,hospital and R&D bureau.


This machine is with good performance,strong suitability,simple operation,easily repair,small cubage light.Even under the conditions or power cut,hand swing it available.Compare to original TDP model press machine,it is enlarged the machine intensive and engine power with bigger strength.In the meantime enlarge the filling depth,hence to expand the specification range of tablet.Therefore,this machine can meet the demand of difference kinds of Chinese traditional medicine and Western medicine and other similar product’s requirements.It’s deeply welcome by our customers in difference field.


Installation and Connection of the Press Machine


Tablet Press Machine should be installed on the wood workable(as well on the cement table).Use 4units of M12 bolts for fix it.The heights from the workable surface to ground is around 600mm(consider easily to the operation).To be convenient to disassembled and repair,there should be a hole the diameter around 35mm counter to the bottom of pressure rod.


To insure the safety connecting ground wire before connecting the power,and then remove the triangle belt,to connect the power of the machine and switch it on to observe the roiling direction of the operation.(The rotary direction should be opposed to the arrow direction on the shield or hand wheel).If the rotary direction were incorrect,it would connect the line additionally,and the install the triangle belt.

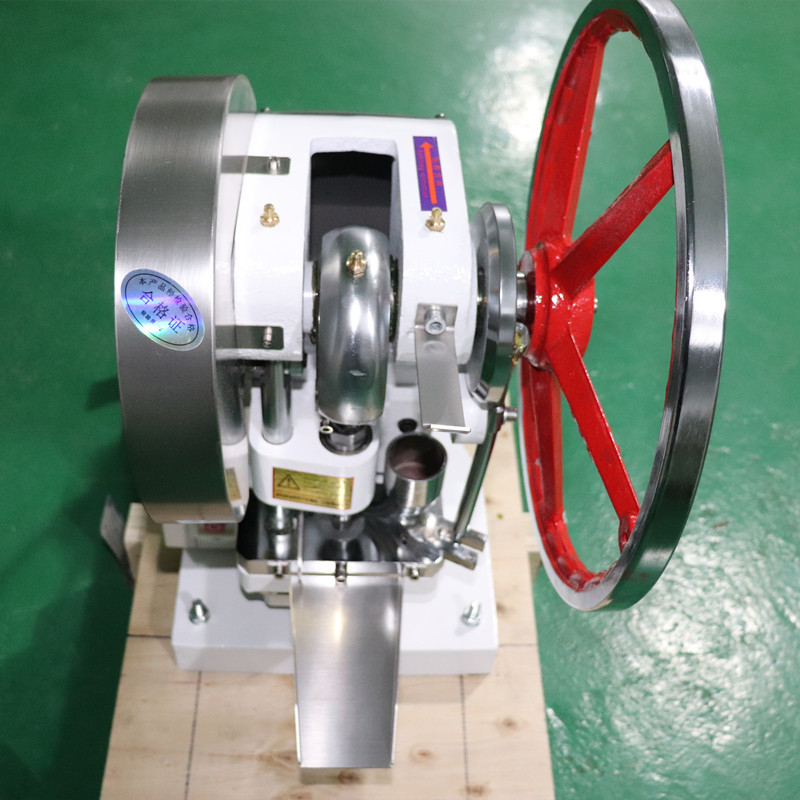

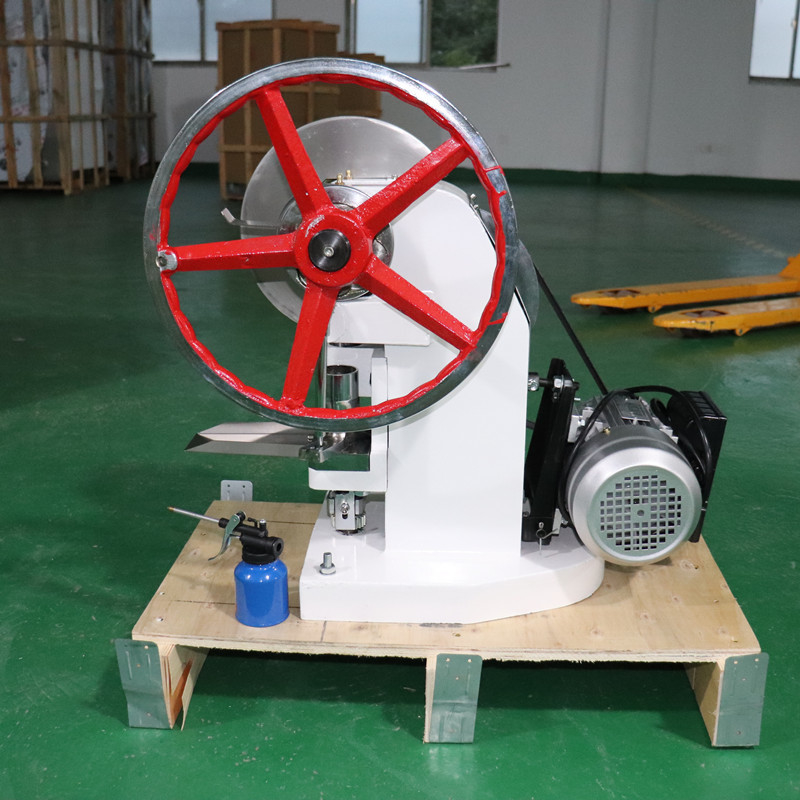

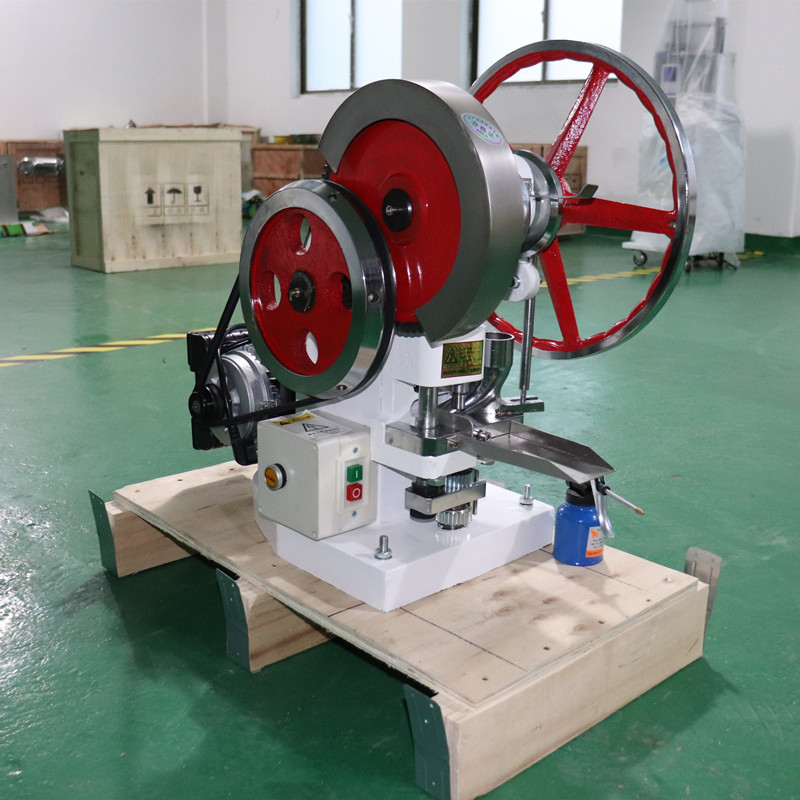

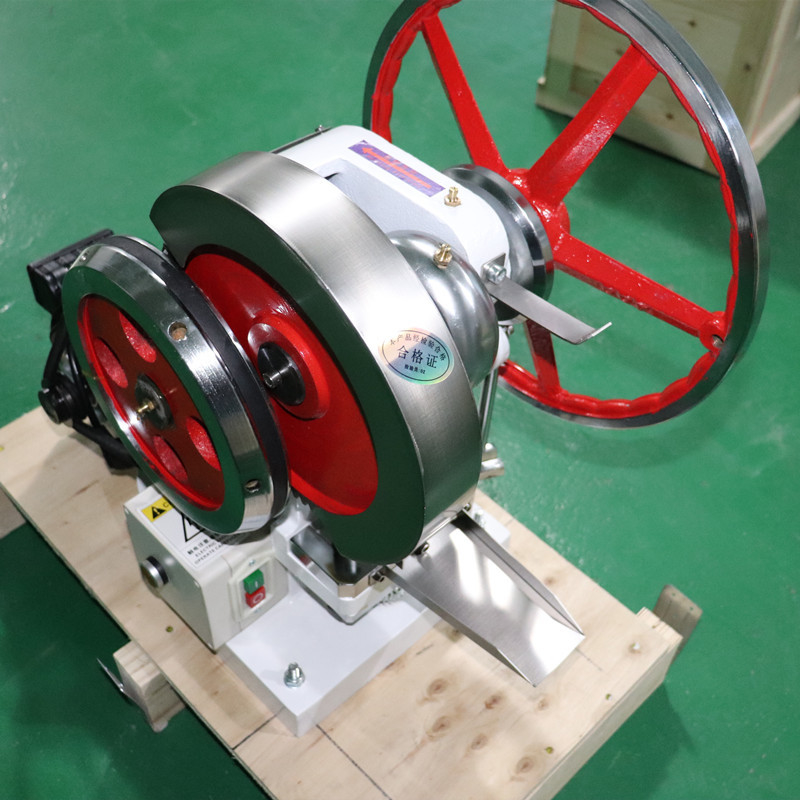

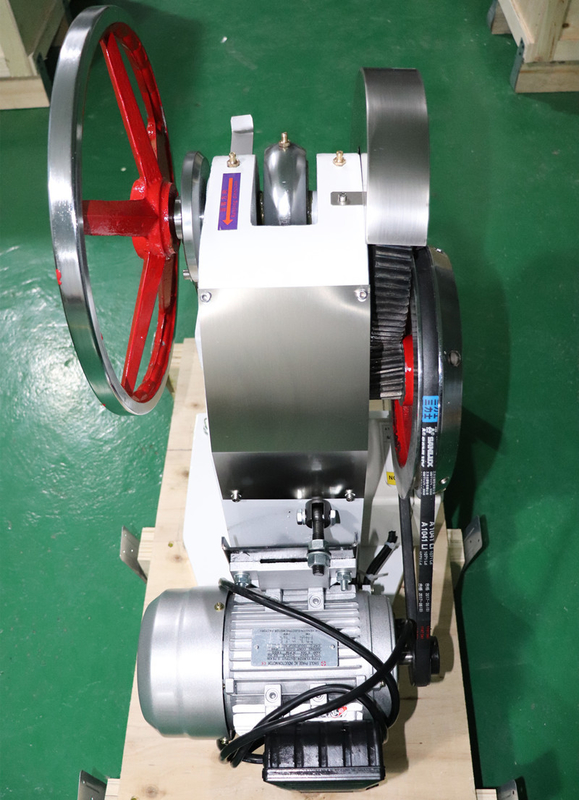

Small Lab Single Punch Pill Tablet Press Automatical Electric 0.75kw 1400r / Min 0Small Lab Single Punch Pill Tablet Press Automatical Electric 0.75kw 1400r / Min 1Small Lab Single Punch Pill Tablet Press Automatical Electric 0.75kw 1400r / Min 2
