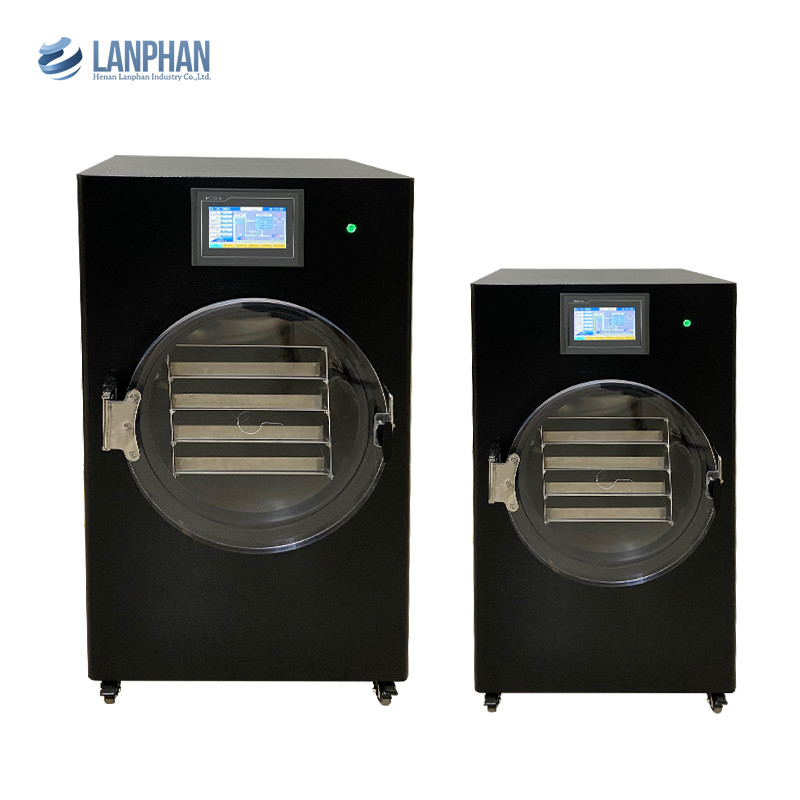

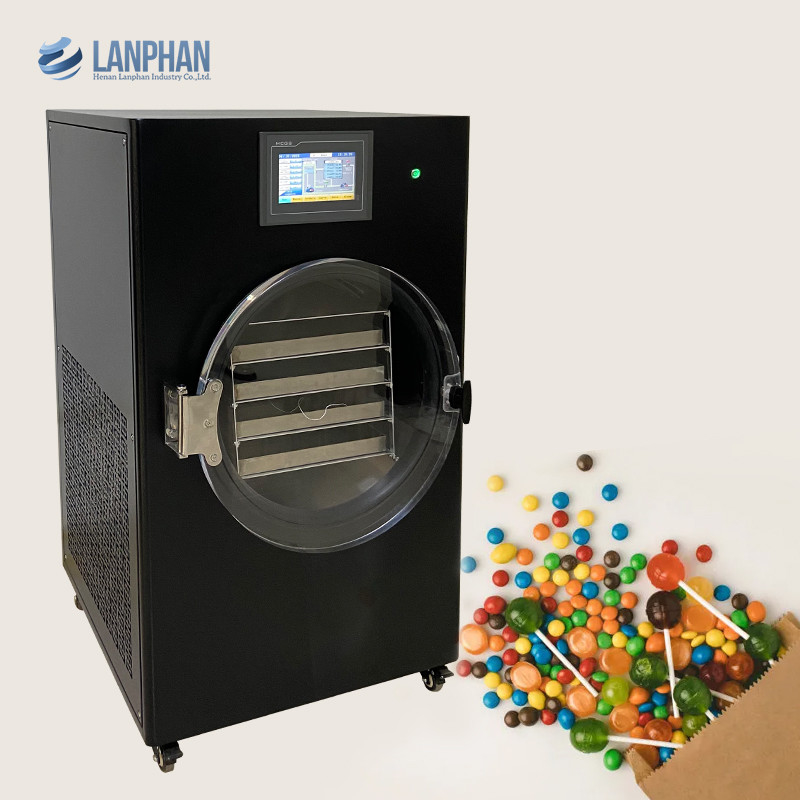

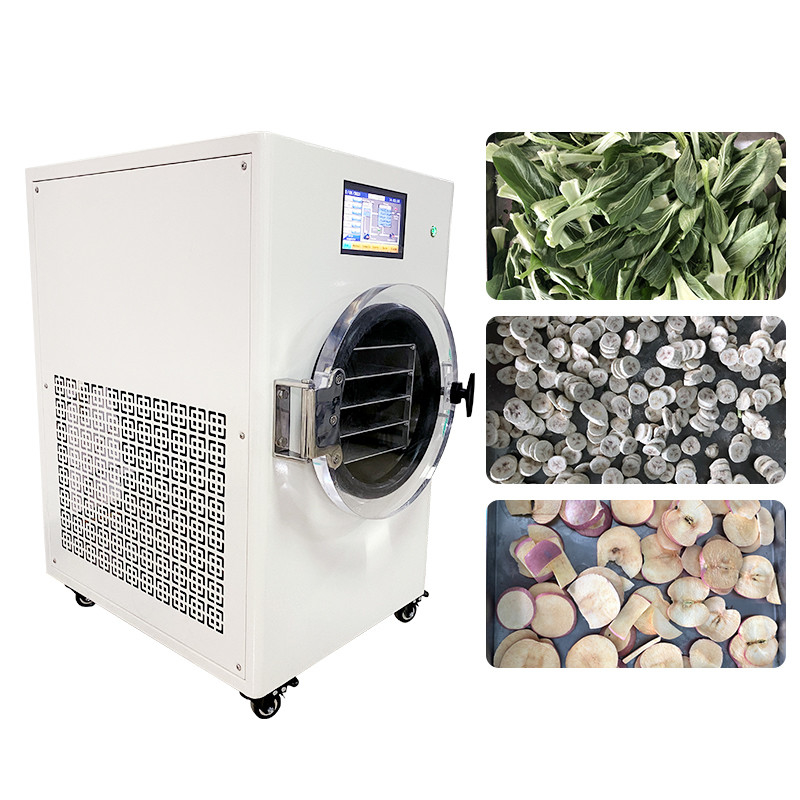

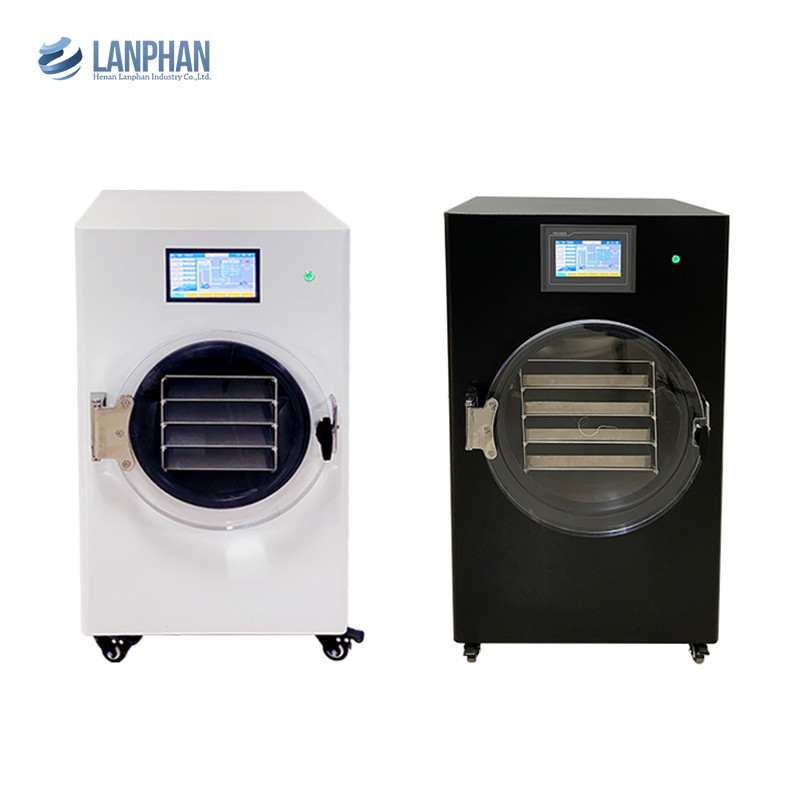

Laboratory Freeze Drying Machine 1550W For Fruits Vegetables

Minimum Order Quantity : 1 set Price : $2950
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union Supply Ability : 100 Sets per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE ISO Model Number: HFD-4

Detail Information

Product Name: Home Freeze Dryer Freeze-dried Area: 0.4㎡
Ultimate Vacuum: 15pa (no-load) Power Supply: 220V 50HZ
Power: 1550W Handling Capacity: 4-6KG / Batch
Layer Spacing: 45mm Lyophilizer: ≤-35℃
High Light:

6KG / batch Vacuum Freeze Dryer


1550W Freeze Drying Machine


Laboratory Freeze Drying Machine

Product Description

Freeze Dryer Features


(1) The machine adopts Tecumseh or Secop, rapid cooling

(2) LCD control system, easy to operation, and powerful function

(3) The dry room door is made of colorless transparent organic glass, and the whole process of freeze drying can be observed.

(4) The vacuum pump is connected by international standard KF quick connector.

(5) Stable performance, easy operation and low noise.


Freeze Dryer Application


HFD-4 vacuum freeze dryer is a kind of freeze-drying machine widely used in high performance laboratory. Freeze dry glass flask and serum bottle of solid and liquid samples. A variety of containers can be carried out on the same freeze dryer:

The pre freeze shelf surface temperature control

The samples of freeze-dried can be carried out in the user defined temperature

Dry in the limit temperature of freezing - user defined samples, high vacuum drying, and can remove capillary bound water molecules.


Normal information for vacuum freeze drying


Basic knowledge


Vacuum freeze-drying is one of the most gentle ways to dry. It is based on the sublimation principle, that is, the solid phase directly into the gas phase of this physical phenomenon. The freeze-dried material is placed in a vacuum drying chamber for drying, and the water vapor produced by the cold trap is condensed to form ice, so as to achieve the purpose of eliminating water vapor. Vacuum pump is used to discharge the air in the drying room, not including water vapor.

The baffle plate is provided with a heating device, and the heat is transferred to the material through the conduction function to provide the energy needed for sublimation. When the free water in the material is sublimated, the internal bound water can also be removed from the material at a very low vacuum. This drying process is considered to be the last stage of drying, analytical drying.


Freeze Dryer Introduction


Vacuum freeze drying is the removal of water or other solvents from the frozen samples. During the whole drying process, the sample is in liquid state and the temperature is generally lower than -10. The purpose of vacuum freeze drying is to restore the original characteristics of the sample after rehydration.


Because the drying process is carried out at low temperature, it can be used for some materials such as proteins, which are easy to be denatured at high temperature, and can ensure that the properties of other compounds will not change.

Most of the biological products, such as tissues, tissue extracts, bacteria, vaccines and serum, were changed into dry samples by vacuum freeze-drying. Vacuum freeze drying is the most gentle process to preserve the biochemical properties of sensitive tissue or other tissues. It is also the best method for drying inorganic materials, such as nano particles, because the surface area of particles is almost unchanged.


Technical performance


Condenser chamber temperature:≤-35℃ (without load)

Vacuum:under 15Pa(without load)


Working condition


working ambient temperature:10℃~30℃

relative humidity: ≤70%

supply voltage:single phase220V-230v

Horizontally, no conductive dust, explosive, corrosive gas and electromagnetic interference.

Delivery and storage condition: ambient temperature :-35℃~50℃

relative humidity: ≤93%

Storage environment should be well ventilated, non corrosive gas.


Freeze Dryer Parameter


Product Model HFD-4
Freeze-dried Area 0.4㎡
Cold Trap Coil Temperature <-40℃ (no-load)
Ultimate Vacuum 15pa (no-load)
Power Supply 220V 50HZ
Power 1550W
Handling Capacity 4-6KG / batch
Layer Spacing 45mm
Weight 80KG
Material Tray Size 200mm x 450mm four layers
Dimension 510mm x 700mm 850mm


Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 0Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 1Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 2Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 3Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 4Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 5Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 6

Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 7Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 8

Laboratory Freeze Drying Machine 1550W For Fruits Vegetables 9
