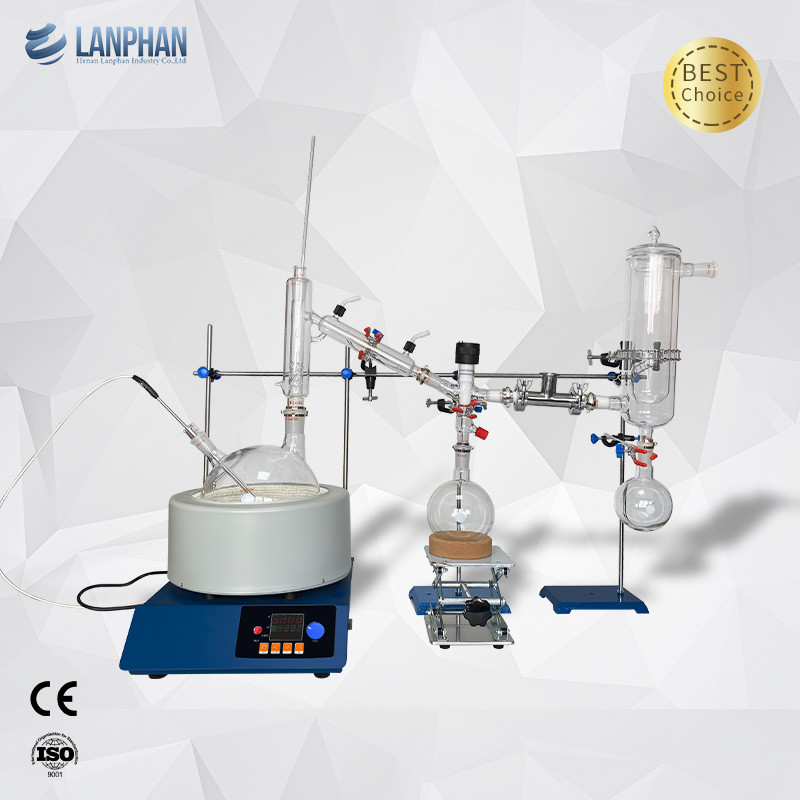

Laboratory Vacuum Short Path Fractional Distillation Kit 5L

Minimum Order Quantity : 1 set Price : $829
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-12 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: SPD-5Ⅱ

Detail Information

Product Name: Short Path Distillation Heating Temperature: Room Temperature - 300 ℃
Receiving Flask: 1000ml Voltage: 110V 220V
Material: High Borosilicate G3.3 Operating Pressure: ≤5Pa
Cold Trap: 1L Reaction Flask: 5L
High Light:

Laboratory Short Path Fractional Distillation Kit

,

5L Short Path Fractional Distillation Kit

,

Vacuum 5l short path distillation kit

Product Description

Laboratory Vacuum Short Path Fractional Distillation Kit 5L



Short Path Distillation Equipment Structure



The column cylinder is equipped with outside heating mantle, rotor and inside condenser. The fixing frame of rotor is precisely equipped with scratch film and anti-splash device. The inside condenser is placed in the center of evaporator, and the rotor should rotor between column cylinder and condenser.



Short Path Distillation Equipment Description



The short path distillation refers to a kind of evaporation and distillation equipment. As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components.



Short Path Distillation Equipment Principle



The material should add from the top of evaporator and continuously spread to the heating surface through the material covered on rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharge through the discharge tube on the bottom of evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.





Short Path Distillation Parameter



Product Name Short Path Distillation
Material High borosilicate G3.3
Operating Pressure ≤5Pa
Heating Temperature room temperature - 300 ℃
Reaction Flask 5L
Receiving Flask 1000ml
Cold Trap 1L
Collecting Flask 1000ml
Heating Power 1100W
Stirring Speed 50-1800RPM
Stirring Power 40w
Voltage 110V 220V





Laboratory Vacuum Short Path Fractional Distillation Kit 5L 0Laboratory Vacuum Short Path Fractional Distillation Kit 5L 1

Laboratory Vacuum Short Path Fractional Distillation Kit 5L 2

Laboratory Vacuum Short Path Fractional Distillation Kit 5L 3Laboratory Vacuum Short Path Fractional Distillation Kit 5L 4

Laboratory Vacuum Short Path Fractional Distillation Kit 5L 5Laboratory Vacuum Short Path Fractional Distillation Kit 5L 6
