20 Liter Short Path Distillation Equipment

Minimum Order Quantity : 1 - 2 Units Price : $2,260.00
Packaging Details : Packaging: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Condition: New Power Source: Electric
Process: ROTARY Voltage: 380V/110V
Power(W): 250W Dimension(L*W*H): 480*580*535 MM
Weight: 18/24/24 KG After-sales Service Provided: Overseas Third-party Support Available, Online Support
Name: 20 Liter Short Path Temperature Control(℃): Digital Temperature Contrd-180
Max Vacuum Degree(Pa): 399.9Pa(<3mmHg) Main Engine Rotary Speed (rpm): 20-110
Remarks: 2l Short Path Distillation Material: G3.3
Warranty: 1 Year Port: Shanghai, Tianjin, Qingdao
High Light:

20 Liter Short Path Distillation Equipment


G3.3 Short Path Distillation Equipment

Product Description


multi effect water distillation injection custom 20 liter short path


Product Description .

Brief Description of Short Path Distillation

Many materials, including petroleum,heavy residue, chemical medicine, medicine and natural food, health care products, fatty acid and so on, are generally heat sensitive and viscous. Moreover, they also possess high boiling points. Separating these materials from their components and maintaining the quality of such products are only able to distillate at low boiling points or even lower than the boiling temperature. When the operating vacuum is about 500 Pa, it is capable of conducting in the scratch film evaporator or falling film evaporator. However, if the distillation operates under the high vacuum status ( for instance, the pressure ranges from 0.001 to 100Pa), there will be some problems. Therefore, it is necessary to choose the evaporator whose vapor pressure is no less than the pressure difference caused by heating and cooling surface, and the evaporator quipped with outside condenser is excluded from the distillation process under the high vacuum range.
In contrast, the short-path evaporator is quietly adaptable to this occasion, and the condenser should be placed within evaporator and opposite to heat distillation. Therefore, as a relatively new equipment which is not widely applied in industrial production, the short-path distillation is able to solve many tough issues that normal distillation technical cannot conquered.

20 Liter Short Path Distillation Equipment 0

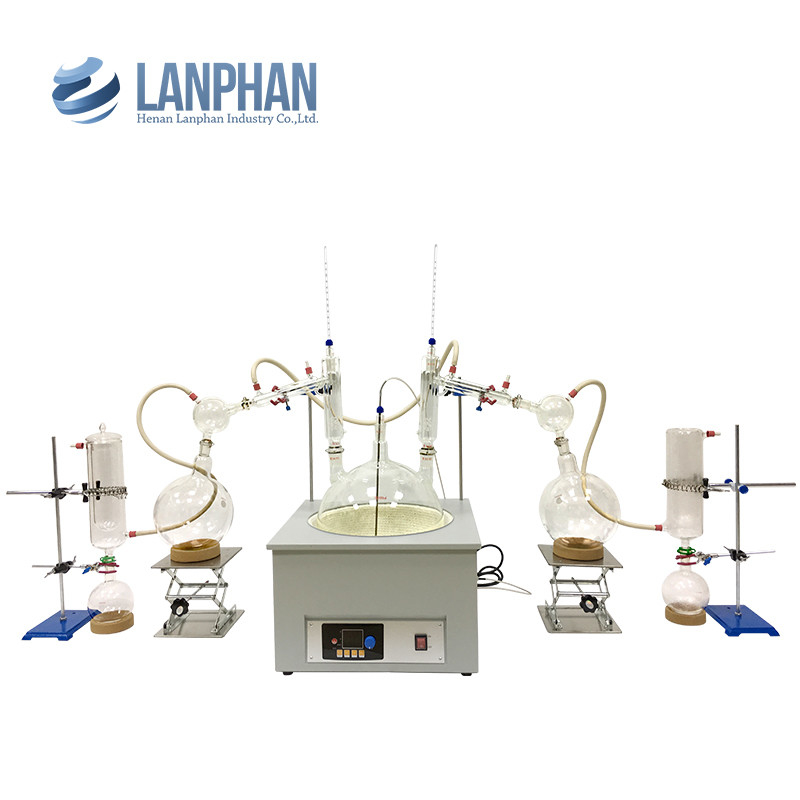

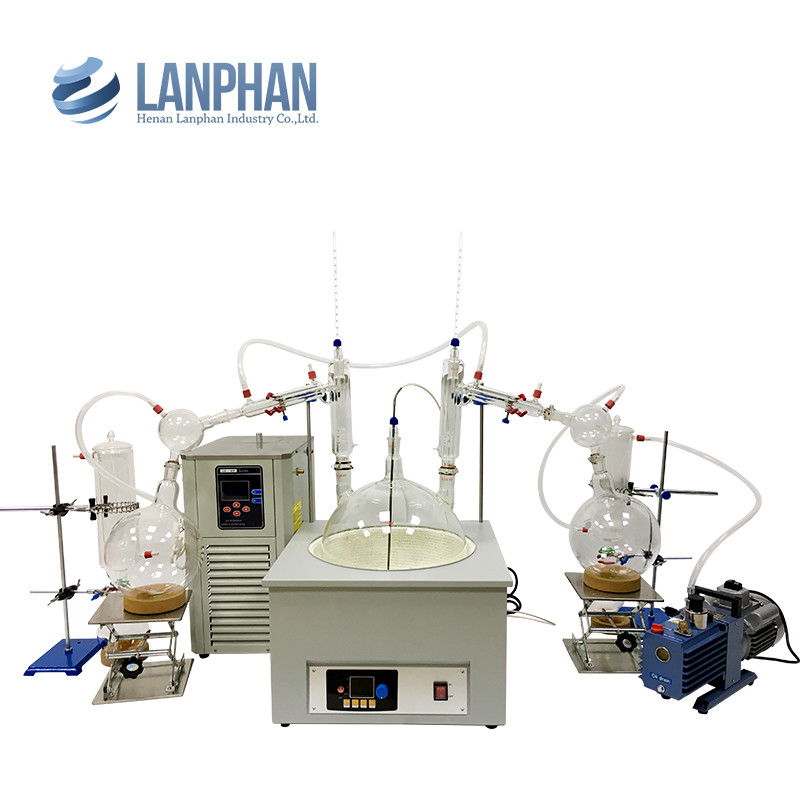

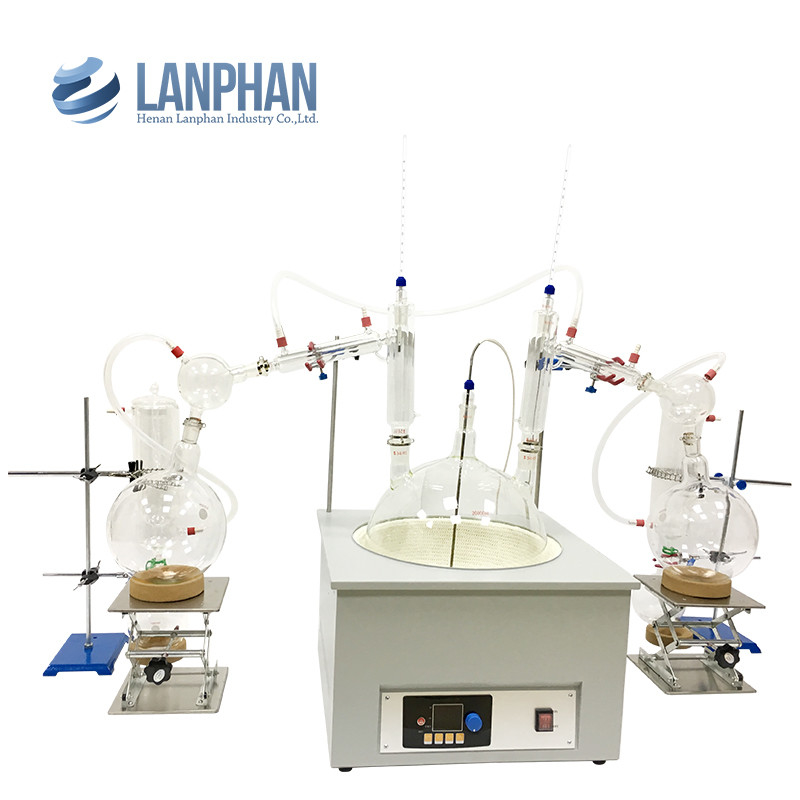

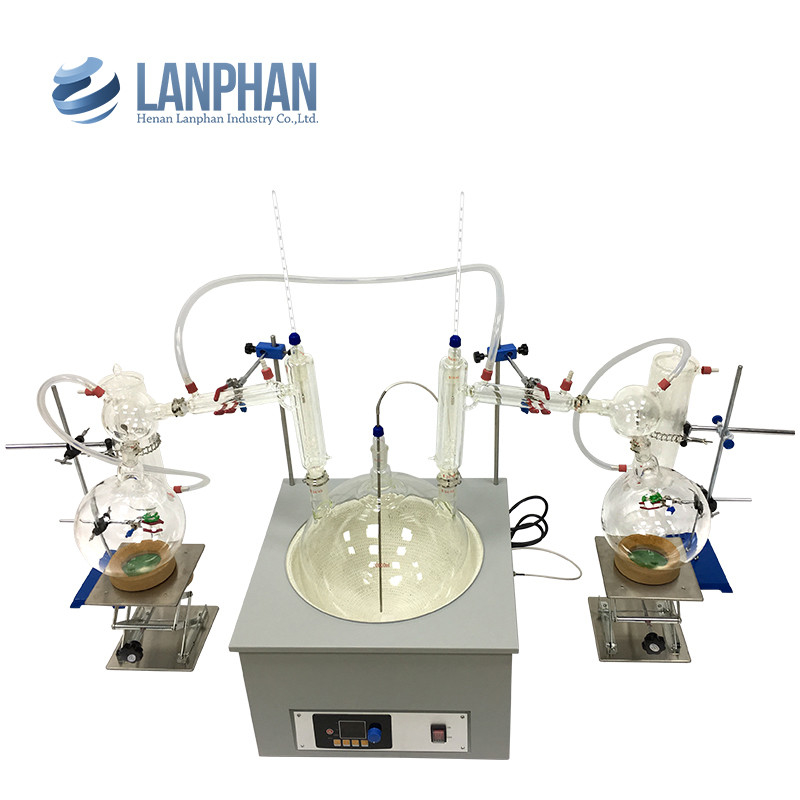

Product Display .

20 Liter Short Path Distillation Equipment 120 Liter Short Path Distillation Equipment 220 Liter Short Path Distillation Equipment 320 Liter Short Path Distillation Equipment 4

If you are interested in this product, pls send me inquiry Contact Supplier

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(℃) Room temperature -250
Accuracy(℃) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(℃) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30

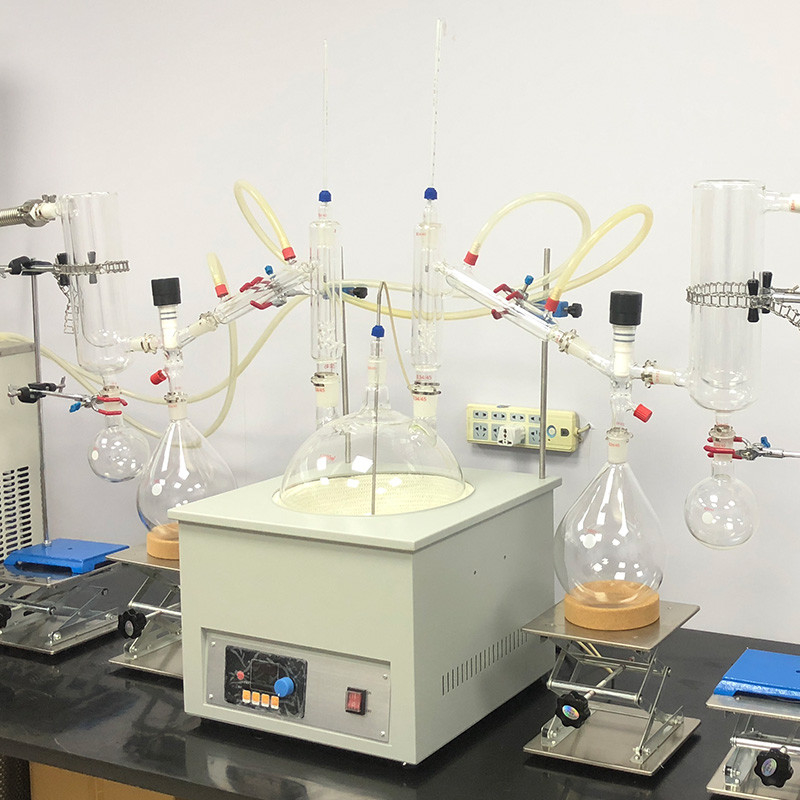

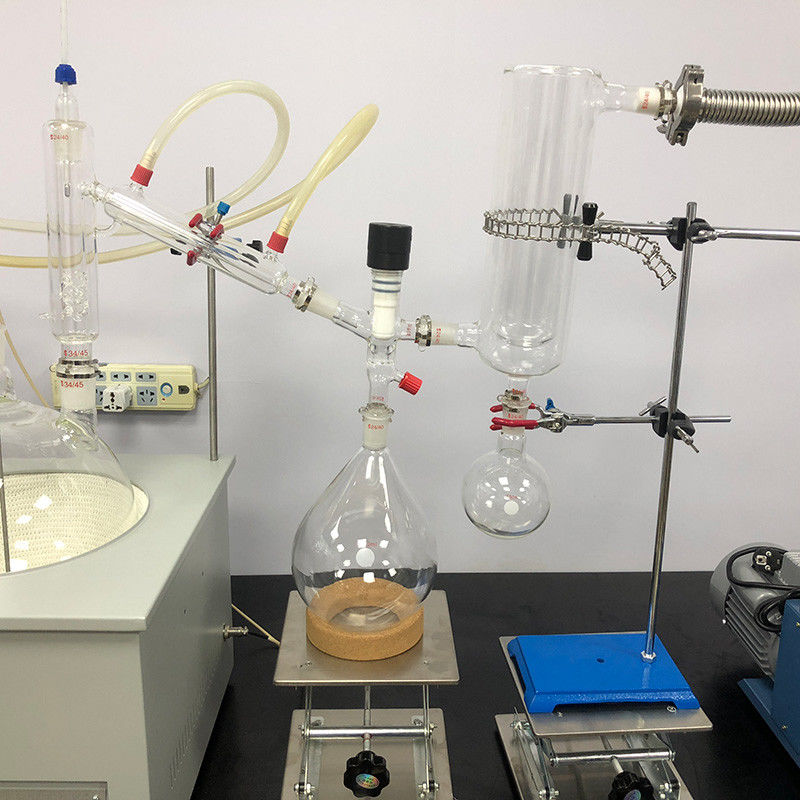

Workshop .

20 Liter Short Path Distillation Equipment 5

20 Liter Short Path Distillation Equipment 620 Liter Short Path Distillation Equipment 7

For more information, please contact us

Contact Supplier

20 Liter Short Path Distillation Equipment 820 Liter Short Path Distillation Equipment 9

Contact us

for more details about price, packing, shipping and discount.

Tel: 86-371-67447999
Address: Jianshe Road, Zhongyuan District, Zhengzhou,
Henan, China

Q: What kind of plug can you supply?

A: European standard, American standard, German standard, or as your request.

Q: What payment terms do you accept?

A: T/T, Paypal, Western Union, Alibaba credit assurance, letter of credit, etc..

Q: What’s the voltage of this china magnetic hotplate stirrer?

A: 110V/60HZ, 220V/50HZ. It can be customized according to your requirements.
