cbd Short Path Distillation Equipment

Minimum Order Quantity : 1 - 2 Units Price : $1,130.00
Packaging Details : carton or wooden case package, customized package is available Supply Ability : 40000 Unit/Units per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Applicable Industries: Food & Beverage Factory, Home Use, Food & Beverage Shops Condition: New
Power Source: Electric Process: ROTARY
Voltage: 220V/50HZor110V/60Hz Power(W): 2.2KW
Dimension(L*W*H): 680*530*335 MM Weight: 24KG
After-sales Service Provided: Overseas Third-party Support Available, Online Support Name: Laboratory Short Path Distillation
Temperature Control(℃): Digital Temperature Contrd-180 Max Vacuum Degree(Pa): 399.9Pa(<3mmHg)
Main Engine Rotary Speed (rpm): 20-110 Remarks: Short Path Cbd
Material: G3.3 Heating Capacity: 5000ml
Warranty: 1 Year Port: Shanghai, Tianjin, Qingdao
High Light:

Cbd Short Path Distillation Equipment


399.9Pa Short Path Distillation Equipment

Product Description


Lab Equipment cbd Laboratory Short Path Distillation


Product Description




In a complete short-path distillation kit, the column cylinder is equipped with an external heating mantle, a rotor and an internal condenser. The fixing frame of rotor is precisely equipped with the scratch film and anti-splash device. The internal condenser is placed in the center of the evaporator, and the rotor is between the column cylinder and the condenser. The working process of the short path distillation can be descriped as follows. The material should be added from the top of the evaporator and continuously spread to the heating surface through the material covered on the rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharges through the discharge tube on the bottom of the evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.

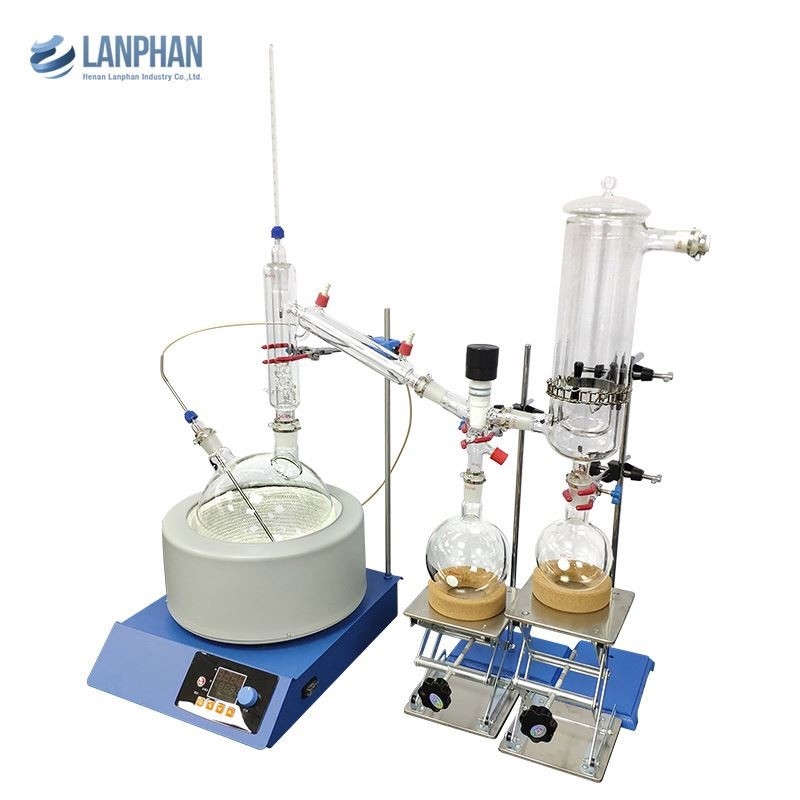

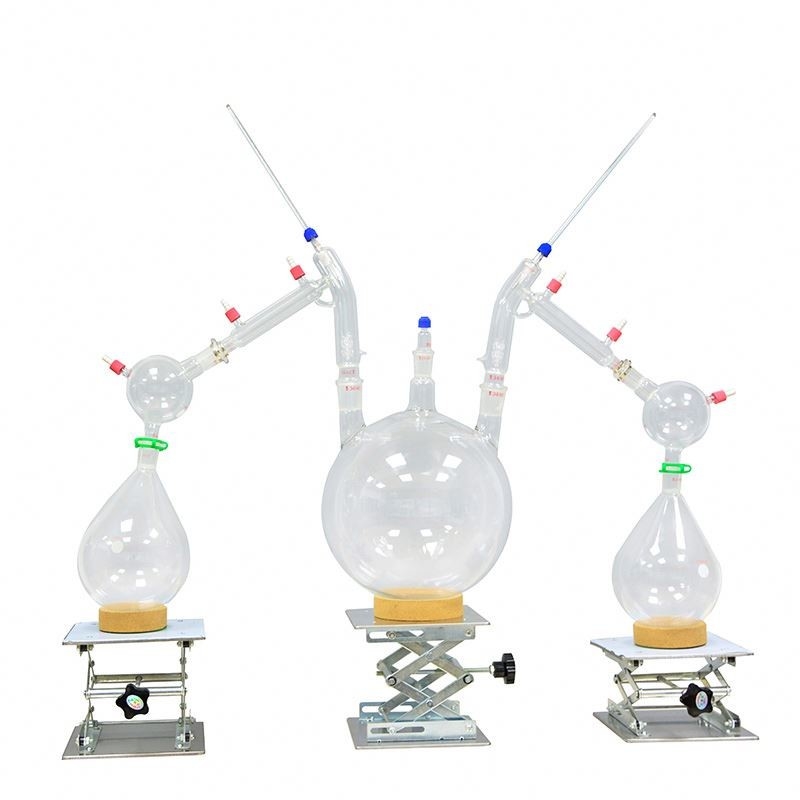

cbd Short Path Distillation Equipment 0cbd Short Path Distillation Equipment 1

Product Display .

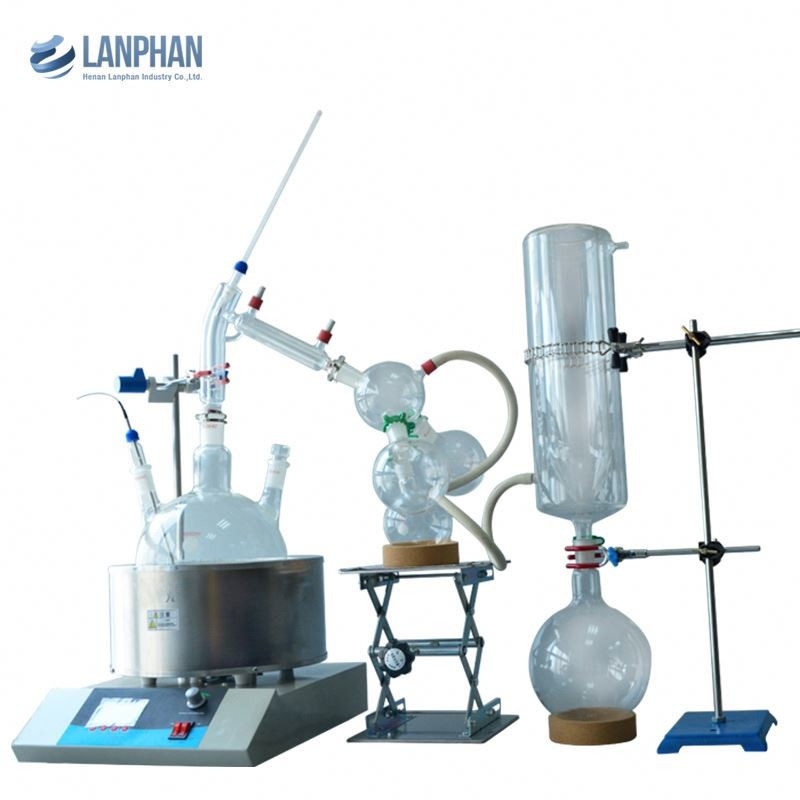

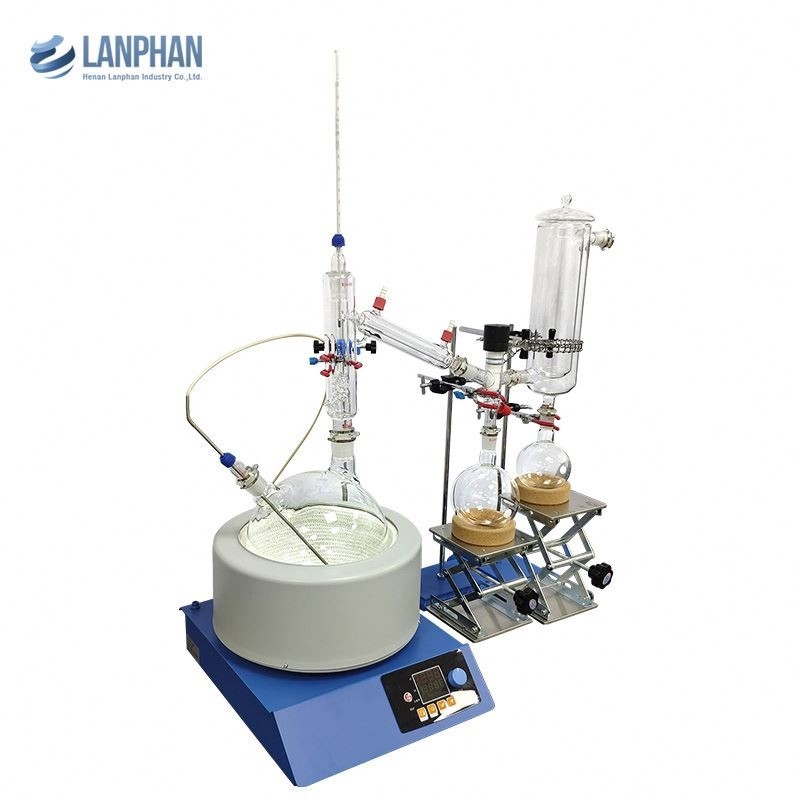

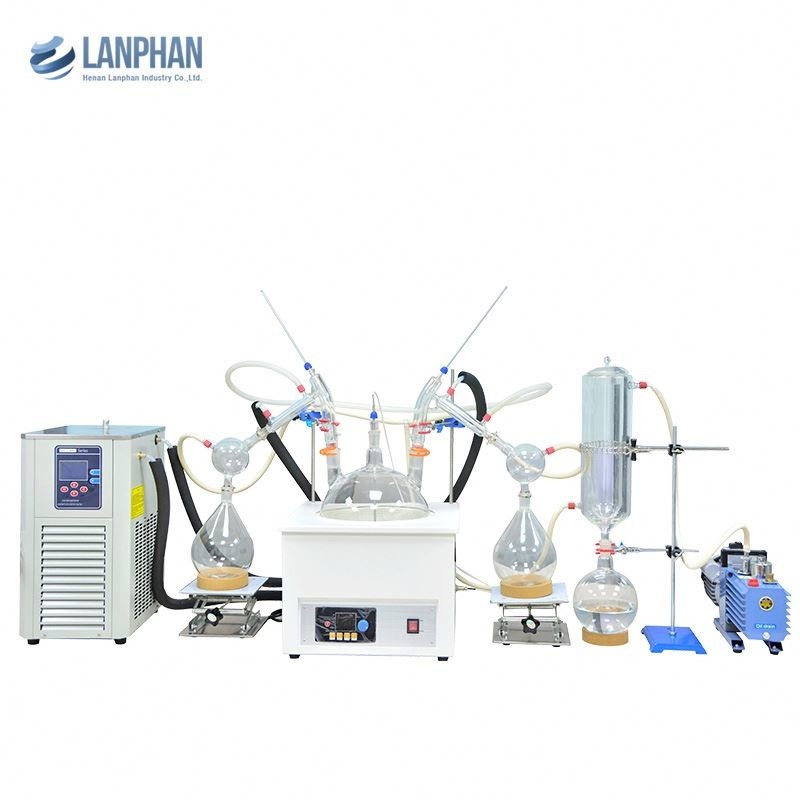

cbd Short Path Distillation Equipment 2cbd Short Path Distillation Equipment 3cbd Short Path Distillation Equipment 4

  parts name Specification No. Unit
1 2-neck Round Bottom Flask 5000ml,34/45,24/40*2 1 piece
2 Distiller 34/45,24/40,14/20 1 piece
3 Fractionating device 250ml,24/40*4 1 piece
4 Round Bottom Flask 500ml,24/40 3 piece
5 cold trap 70*250mm,24/40 1 piece
6 cold trap cover 70mm 1 piece
7 Receiving Flask 1000ml,24/40 1 piece
8 Temperature casing pipe 14/20 1 piece
9 Temperature casing pipe 24/40 1 piece
10 Hollow plug 14/20 1 piece
11 Hollow plug 24/40 2 piece
12 funnel 110mm,24/40 1 piece
13 Mercury thermometer 0-360°C 1 piece
14 GL14 Cover   5 piece
15 mouth clip for Stainless steel bottle  34# 1 piece
16 mouth clip for Stainless steel bottle  24# 1 piece
17 mouth clip for plastic bottle  24# 4 piece
18 silicone tube 8*14 2 meter
19 Wood pallet 110mm 1 piece
20 Wood pallet 120mm 1 piece
21 Lifting platform (stainless steel) 150*150 1 piece
22 iron stand 140*200 1 piece
23 Cross clip 0-20mm 2 piece
24 Three claw clip large 2 piece
25 Experimental chain clip   1 piece
26 vacuum fat (50g) 7501 1 box
Total 38
27 magnetic stirrer heating mantle ZNCL-T-5000ml 1 set
Accessories main engine   1 piece
Vertical rod 500mm 1 piece
Cross clip   1 piece
External sensor 400mm 1 piece
internal sensor   1 piece
Tetrafluoro rotors   1 piece
28 rotary vane vacuum pump 2XZ-2 1 set
29 Temperature Control Low-Temperature Coolant Circulation Pump DLSB-5/20 1 set
Packing and weight&size
1 SD-5 680*530*335 1 piece
2 ZNCL-T-5000ml 520*420*400,15.5kg 1 piece
3 2XZ-2 585*225*380,22kg 1 piece
4 DLSB-5/20 600*430*880,58kg 1 piece

cbd Short Path Distillation Equipment 5

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(°C) Room temperature -250
Accuracy(°C) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(°C) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30

If you are interested in this product, pls send me inquiry Contact Supplier

cbd Short Path Distillation Equipment 6cbd Short Path Distillation Equipment 7cbd Short Path Distillation Equipment 8cbd Short Path Distillation Equipment 9

Packaging & Shipping

cbd Short Path Distillation Equipment 10

Corollary Equipment

cbd Short Path Distillation Equipment 11

Company Information

cbd Short Path Distillation Equipment 12

cbd Short Path Distillation Equipment 13

cbd Short Path Distillation Equipment 14

Our Services

Pre-Sales Service of laboratory short path distillation

    According to 2000ml short path distillation using condition, technicians will offer rationalization proposals to assist clients to select proper types;

    Provide detailed product performance specification;

    Provide professional quoted price;

    Provide 24-hour technical consulting reply.

In-Sales Service of laboratory short path distillation

    Begin to supervise from raw material, its qualified rate can reach to 100%;

    Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;

    Provide product’s inspection record of key junctures to customers;

    Provide production schedule photos to customers at regular intervals;

    Package and transport products strictly accordance with export standard.

After-Sales Service of short path cbd

    Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;

    When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;

    During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;

    If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.

    Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
