Home Small 2300W Vacuum Freeze Dryer For Fruit Freeze Dried Maker

Minimum Order Quantity : 1 set Price : $1599-3599
Packaging Details : Wooden Box or Customized Packing Delivery Time : 5-8 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: HFD-6

Detail Information

Product Name: Freeze Dryer Freeze-dried Area: 0.6㎡
Cold Trap Coil Temperature: <-40℃ (no-load) Ultimate Vacuum: 15pa (no-load)
Power Supply: 220V 50HZ Power: 2300W
High Light:

2300W Vacuum Freeze Dryer

,

freeze drying at home equipment

,

Fruit Freeze Dried Maker

Product Description

Freeze Dryer Hfd-6 Household Small For Meat Candy



Freeze Drying Technology



Freeze drying is based on the process of removing water or other solvents from frozen biological products by sublimation.

Sublimation refers to the process in which a substance changes directly from a solid state to a gas state without going through a liquid state. Freeze-drying technology can preserve the integrity of the product’s biological, chemical structure and activity.



Freeze Dryer Parameter



Product Model KWD-HFD-6
Freeze-dried Area 0.6㎡
Cold Trap Coil Temperature <-40℃ (no-load)
Ultimate Vacuum 15pa (no-load)
Power Supply 220V 50HZ
Power 2300W
Handling Capacity 6-8kg / batch
Layer Spacing 50mm
Weight 120KG
Material Tray Size 300mm x 400mm four layers
Dimension 700mm x 800mm x 1300mm





What is a Freeze Dryer?



A freeze dryer is one of the most common and essential drying equipment, which is used to dry food ingredients by utilizing the freeze drying method.
It usually consists of four components, including a drying chamber, a vacuum pump, a heat source and a condenser.
Freeze dryer can be divided into commercial, laboratory, industrial, and household. It is widely used in food, pharmaceutical and other industries.



A freeze dryer is a cold-drying device that freezes the water-containing material into a solid state, and then sublimates the water content from the solid state to a gaseous state to remove the water and preserve the material.

Home Freeze Dryer can be used to process dry foods, fruits, etc. The aromatic components in food and fruits are some heat-sensitive compounds, and their taste or mouthfeel will be destroyed at high temperatures. Using a freeze dryer can retain its shape, taste and mouthfeel to the greatest extent.

Lab freeze dryer often need to dry some chemical substances, most of which are unstable heat-sensitive materials. Therefore, the vacuum freeze dryer is the most commonly used equipment in the laboratory.

Freeze Drying is used for

The vacuum freeze dryer is suitable for the drying of materials, such as high-end raw materials, Chinese herbal medicine, biological, wild vegetables, dehydrated vegetables, food, fruits, chemicals, pharmaceutical intermediates, etc.

What is the Home Freeze Dryer?

The home freeze dryer is small in size, simple in operation, and cost-effective; it is suitable for household and personal use, as well as for the research and development of new products in food factories.

Home freeze dryer can be used for fruits and vegetables to preserve their original nutrients to a large extent; it can also be used for seafood, meat, Chinese medicinal materials, etc.


Freeze Drying and Drying


Drying is one of the methods to keep the substance undamaged. There are many drying methods, such as sun-drying, boil-drying, drying and so on. But these methods are all carried out at a temperature above 0°C. The product obtained by drying will shrink in volume and harden in texture. Most of the volatile components will be lost, and some heat-sensitive substances such as protein and vitamins will be denatured. Therefore, the properties of the dried product are quite different from those before drying.



Different from the above drying methods, freeze-drying technology is the best way to dry materials. The drying of the product is basically carried out at a temperature below 0°C. Freeze-drying technology is particularly suitable for many heat-sensitive substances. For example, proteins and microorganisms will not be denatured or lose their biological vitality. Therefore, it is widely used in medicine.



Freeze Dryer Detail

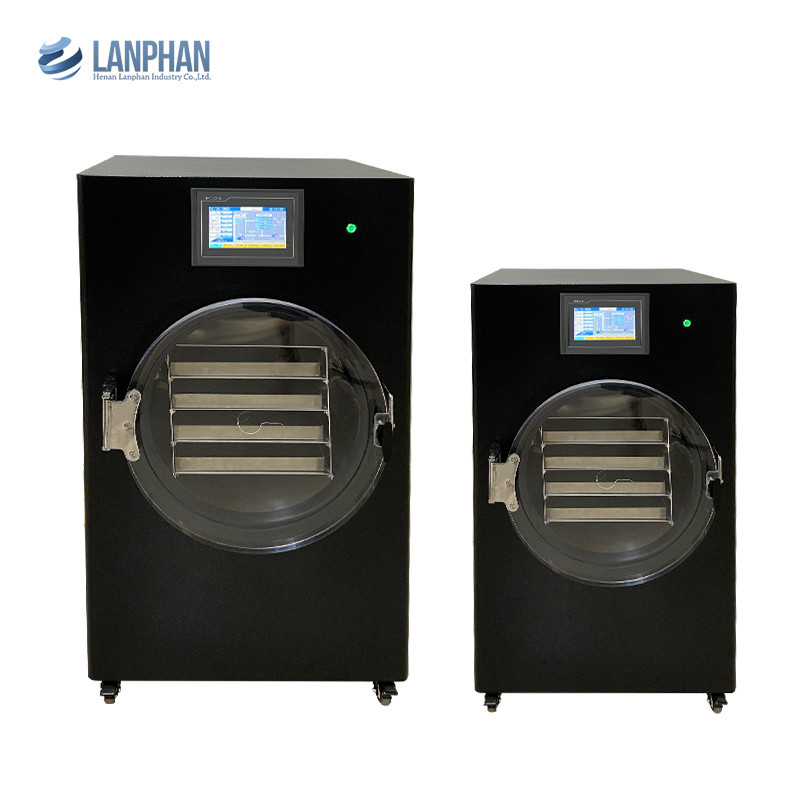

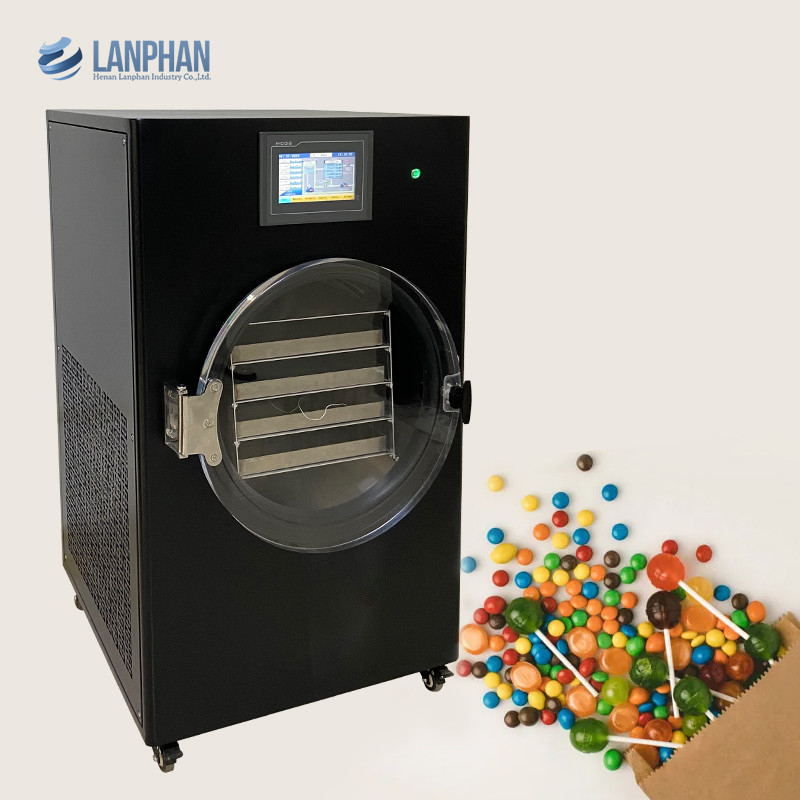

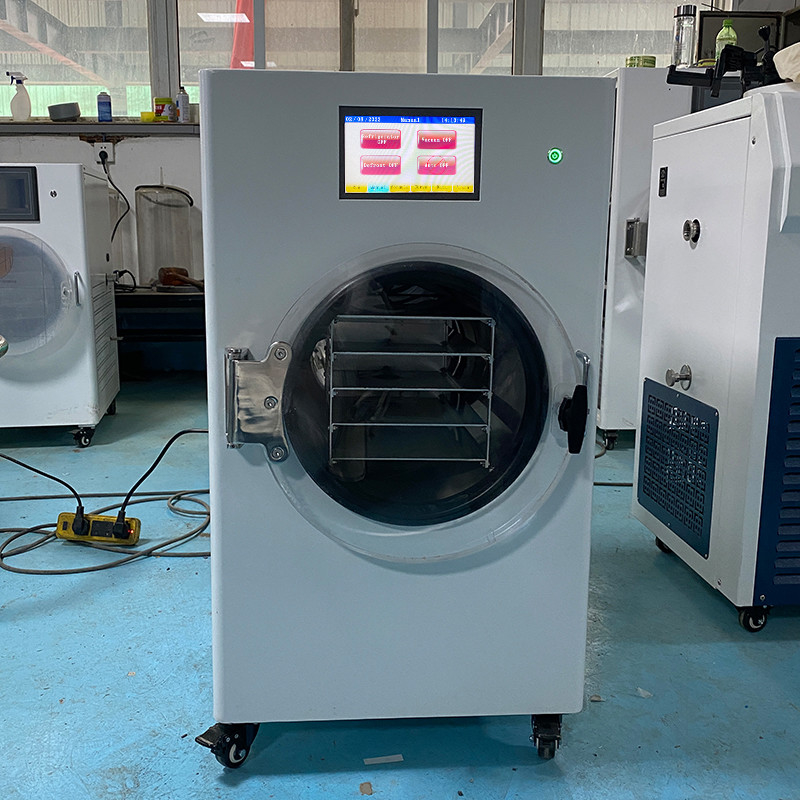

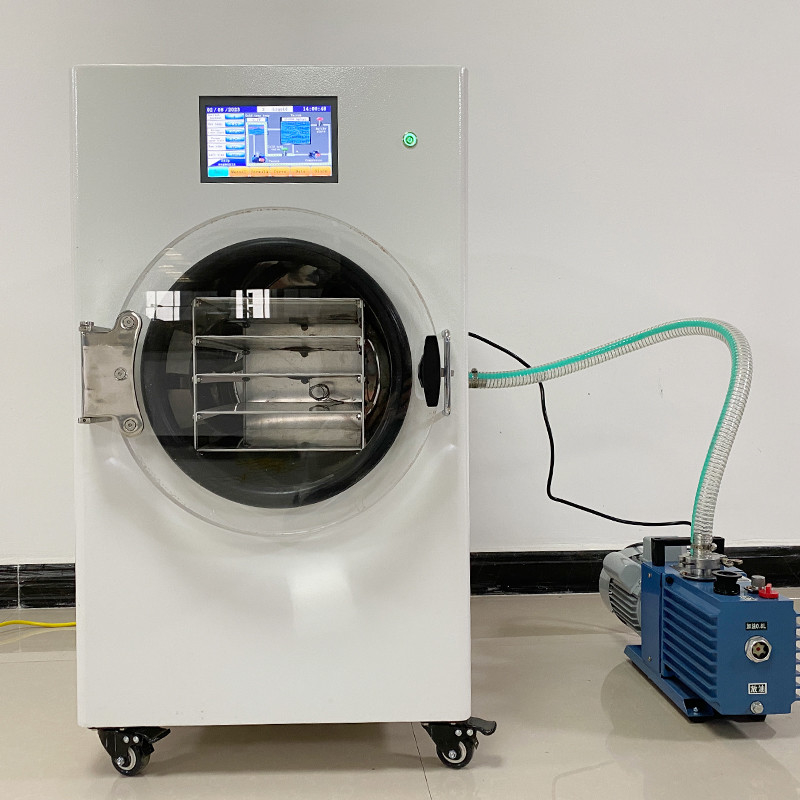

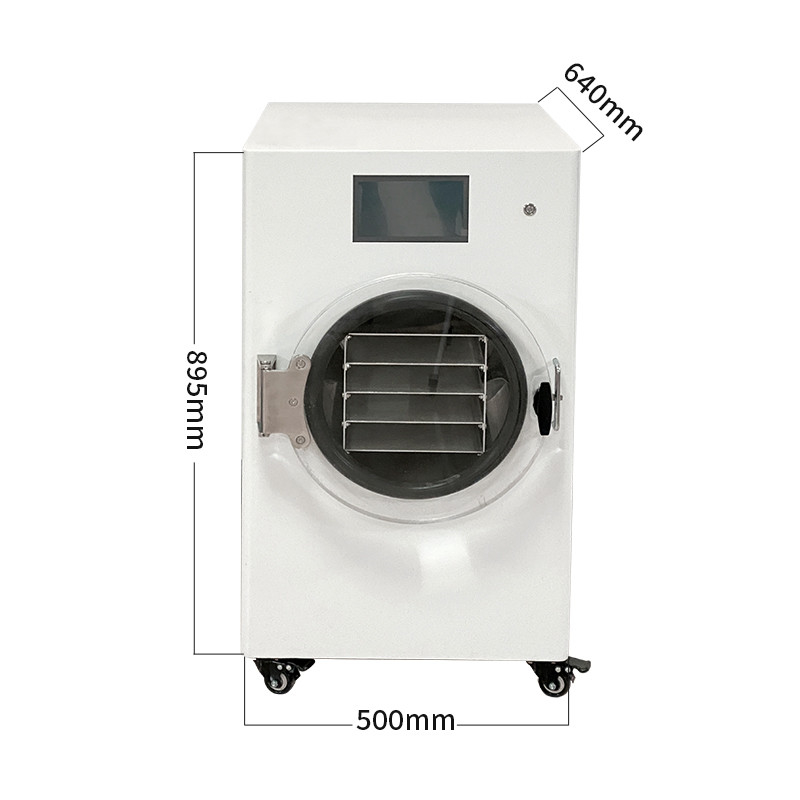

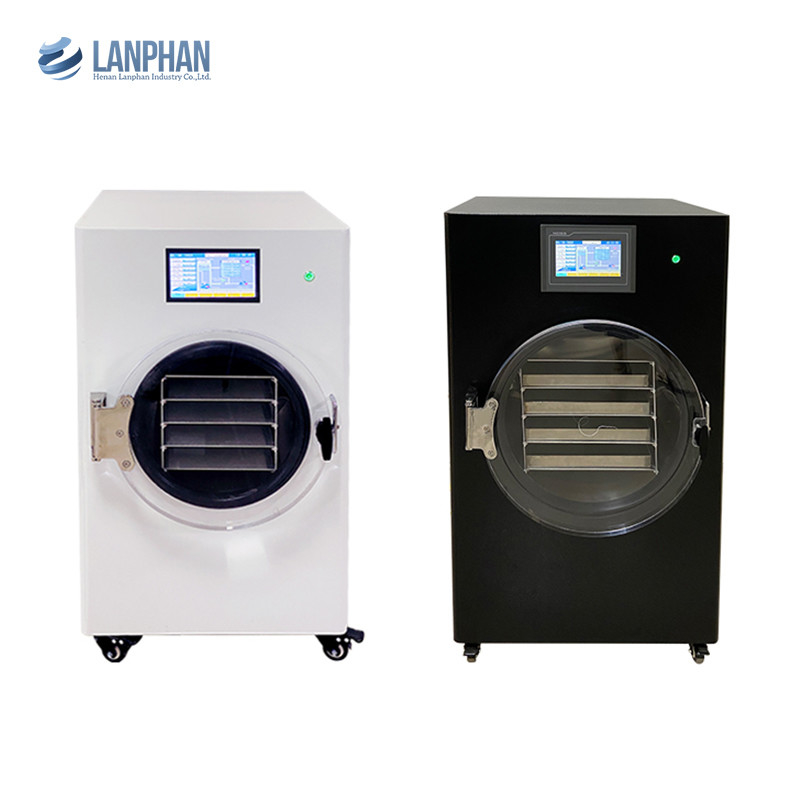

Home Small 2300W Vacuum Freeze Dryer For Fruit Freeze Dried Maker 0Home Small 2300W Vacuum Freeze Dryer For Fruit Freeze Dried Maker 1Home Small 2300W Vacuum Freeze Dryer For Fruit Freeze Dried Maker 2



Home Small 2300W Vacuum Freeze Dryer For Fruit Freeze Dried Maker 3Home Small 2300W Vacuum Freeze Dryer For Fruit Freeze Dried Maker 4
