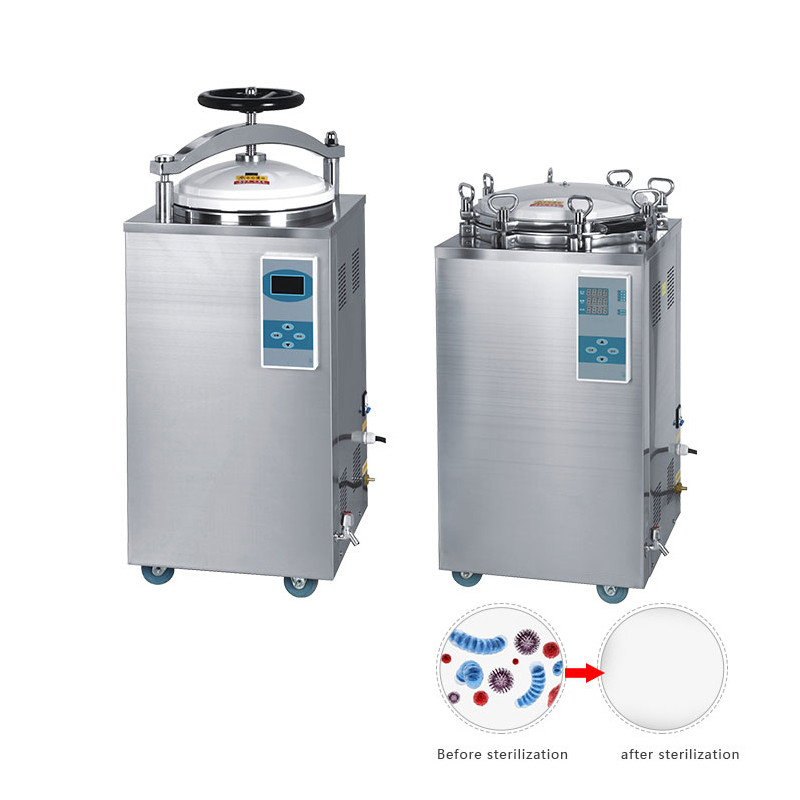

Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa

Minimum Order Quantity : 1 set Price : $950-1800
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: LPLS-HD

Detail Information

Product Name: LPLS-HD Autoclave Working Pressure: 0.22MPa
Working Temperature: 134 Max Working Pressure: 0.23Mpa
Heat Average: ≤±1℃ Timer: 0~99min Or 0~99 Hour 59min
Adjustment Of Temperature: 105~134℃ Material: Stainless Steel 304
High Light:

Sterilizer Hospital Food Autoclave

,

Vertical High Pressure Food Autoclave

,

0.22MPa Vertical Food Autoclave

Product Description

Product Parameter



Model technical data LS-35HD(automatic) LS-50HDI(automatic) LS-75HD(automatic) LS-100HD(automatic)
Chamber volume 35L(φ318×450)mm 50L(φ340×550) mm 75L(φ400×600) mm 100L(φ440×650) mm
working pressure 0.22MPa
Working temperature 134℃
Max working pressure 0.23 Mpa
Heat average ≤1℃
Timer 0~99min or 0~99hour59min
Adjustment of temperature 105~134℃
Power 2.5Kw/AC220V.50Hz 3Kw/AC220V.50Hz 4.5Kw/AC220V.50Hz
Overall dimension 470×450×1020(mm) 520×500×1150(mm) 550×530×1180 (mm) 580×560×1290 (mm)
Transport dimension 540×540×1140(mm) 580×580×1250(mm) 610×610×1280(mm) 640×640×1360(mm)
G.W/N.W 81Kg/63Kg 94Kg/ 74Kg 113Kg/ 93Kg 125Kg/ 105Kg



Product Feature



1. Stainless steel material

2. Security lock

3. Timing function

4. Overvoltage protection

5. Anti-dry burning



Product Description

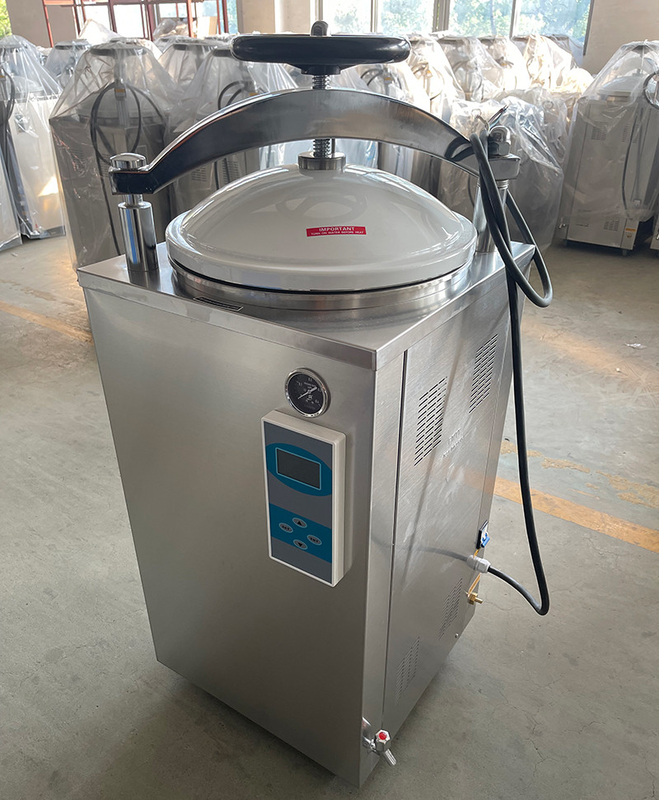

The vertical pressure steam sterilizer consists of a shell, a sterilization barrel, a steam generator, a microcomputer control system, and a power supply system.

Vertical pressure steam sterilizer (LPLS-35HD, LPLS-50HD, LPLS-75HD, LPLS-100HD, referred to as sterilizer) is a device that uses saturated steam to sterilize items. The sterilization chamber structure of this type of sterilizer is a single-layer structure, the steam supply is heated by an intrusive electric heating tube, the gas replacement method is a lower exhaust type, the sealing structure type is a beam structure, and the control method is microcomputer control.



Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 0Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 1Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 2Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 3Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 4Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 5Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 6Sterilizer Hospital Food Autoclave Vertical High Pressure 0.22MPa 7
