Commercial Sterilization Equipment Steam Autoclave Horizontal

Commercial Sterilization Equipment Steam Autoclave Horizontal

304 Low Temperature rising film evaporator

Pharmaceutical Evapoartion Autoclave

Bioengineering Evapoartion Autoclave

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

LPWS-YDB

Contact Us
Request A Quote
Product Details
Product Name:
Autoclave
Working Pressure:
0.22Mpa
Working Temperature:
134℃
Adjustment Of Temperature:
105℃ - 134℃
Time Of Sterilization:
0-99min
Heat Average:
≤± 2℃
Power:
9kw/12kw
Warranty:
1-2 Years
Highlight:

304 Low Temperature rising film evaporator

,

Pharmaceutical Evapoartion Autoclave

,

Bioengineering Evapoartion Autoclave

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$3350-4200
Packaging Details
Wooden Box or Customized Packing
Delivery Time
10-15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Sets per Month
Product Description

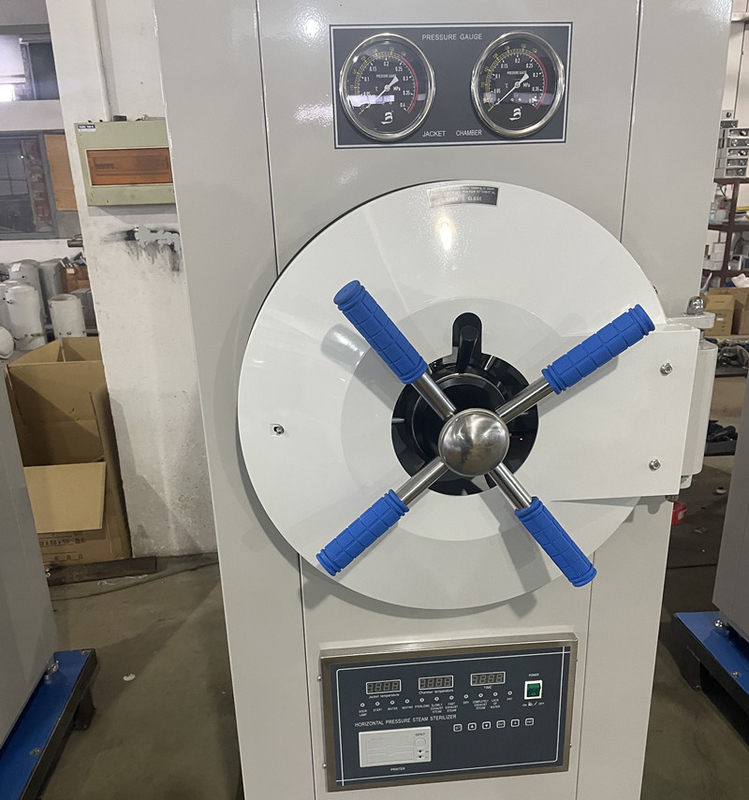

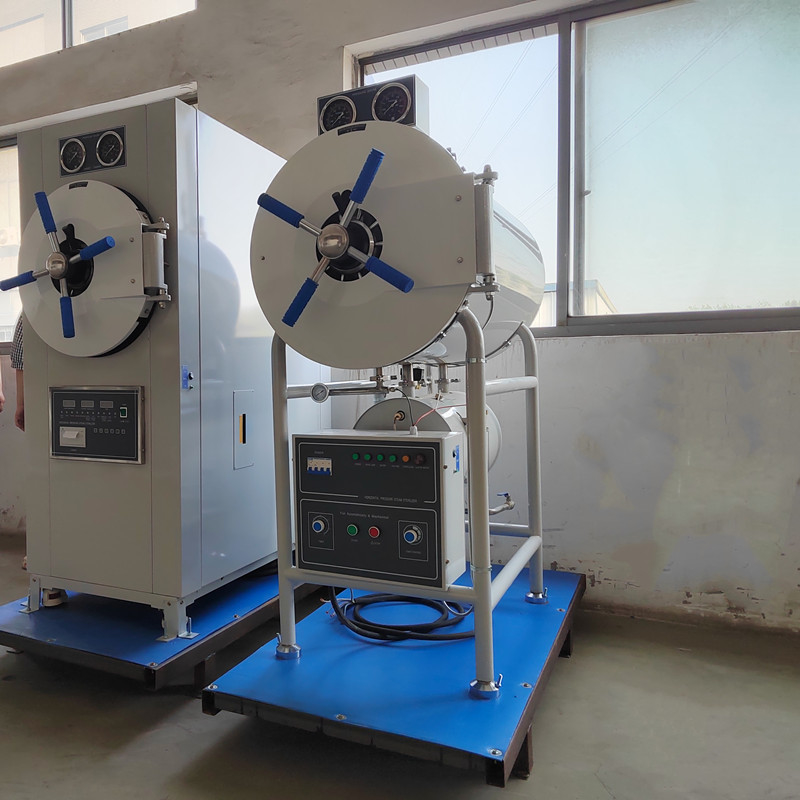

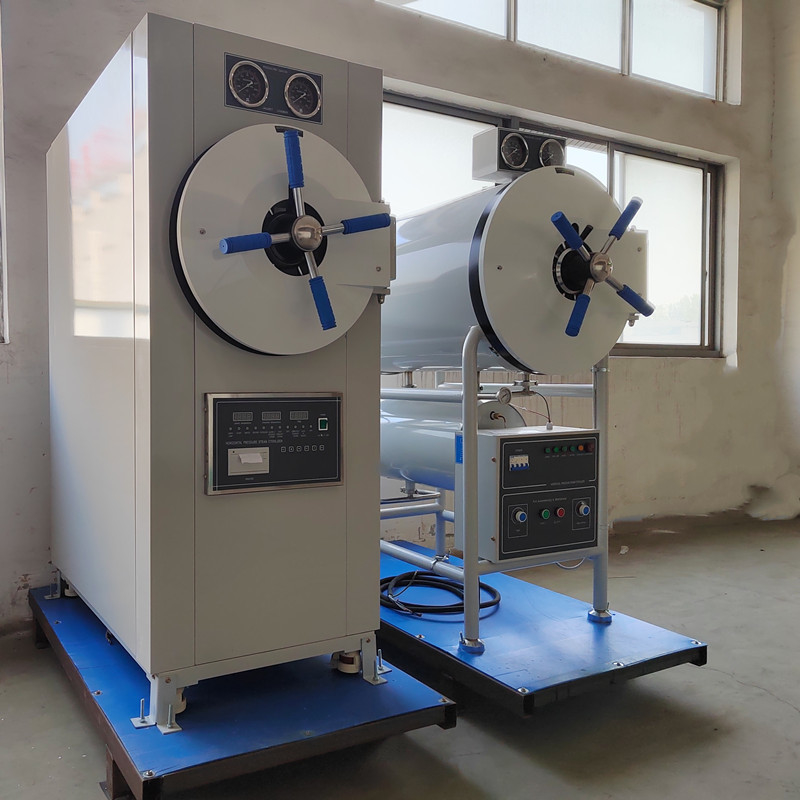

Commercial Sterilization Equipment Steam Autoclave Horizontal



Autoclave Parameter



Technical data LPWS-150YDB LPWS-200YDB LPWS-280YDB

Sterilizing chamber

volume

150L

φ440×1000mm

200L

φ515×1000mm

280L

φ600×1000mm

working pressure 0.22 MPa
working temperature 134℃
Adjustment of temperature 105℃ - 134℃
Time of sterilization 0-99 min
Time of drying 0-99 min
Heat average ≤± 2℃
Power 9KW/380V 50Hz 9KW/380V 50Hz 12KW/380V 50Hz
Dimension 1400×650×1600 1400×750×1700 1520×910×1900
Transport dimension 1560×820×1820 1560×910×1880 1680×1080×2100
G.W/N.W 430/340 KG 436/350 KG 570/462 KG



Autoclave Application



It is widely used in clinics, scientific research institutes and other institutions to sterilize medical instruments, dressings, fabrics, glassware, solution media and so on.



Autoclave Features

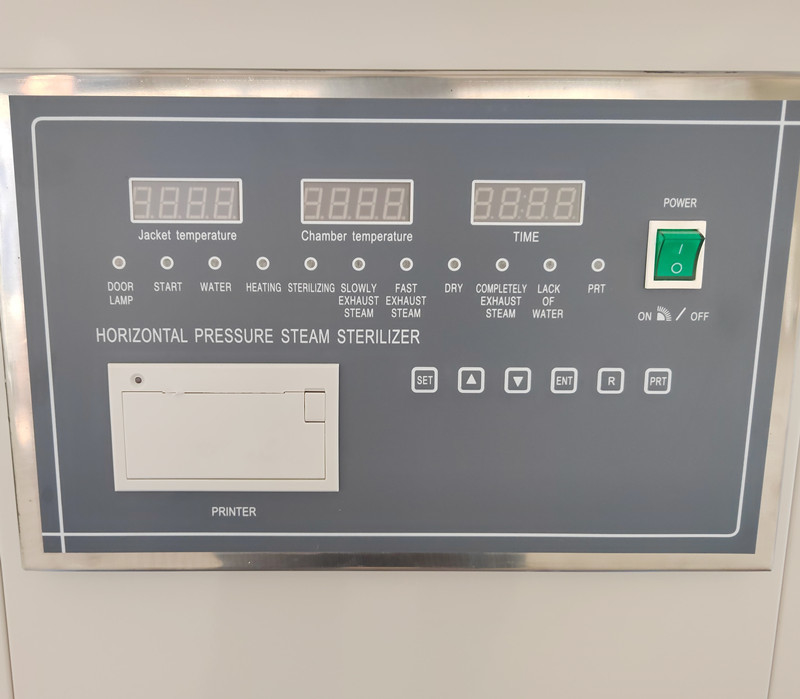

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With drying function, suitable dressing drying.

3.With over-temperature, over-pressure auto-protect device.

4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting.

6.The power will be cut-off automatically the water and alarm when the machine lacking water.

7.The chamber of the sterilizer is made of stainless steel.

8.With printer.



Commercial Sterilization Equipment Steam Autoclave Horizontal 0Commercial Sterilization Equipment Steam Autoclave Horizontal 1Commercial Sterilization Equipment Steam Autoclave Horizontal 2Commercial Sterilization Equipment Steam Autoclave Horizontal 3Commercial Sterilization Equipment Steam Autoclave Horizontal 4Commercial Sterilization Equipment Steam Autoclave Horizontal 5Commercial Sterilization Equipment Steam Autoclave Horizontal 6Commercial Sterilization Equipment Steam Autoclave Horizontal 7Commercial Sterilization Equipment Steam Autoclave Horizontal 8
