Hand Wheel Digital Display Vertical Autoclave 35L 50L 75L 100L 150L Liter For Mushroom Canned Food Retort Sterilizer

Minimum Order Quantity : 1 set Packaging Details : Wooden Box or Customized Packing
Delivery Time : 10-15 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 100 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: LPLS-HD

Detail Information

Product Name: Autoclave Sterilizer Volume: 35L 50L 75L 100L 150L
Working Pressure: 0.22Mpa Working Temperature: 134℃
Max Working Pressure: 0.23Mpa Heat Averag: ≤1℃
Timer: 0-99min Power(kw): 2.5, 3, 4.5
Advantage: Oversea Location
High Light:

High Pressure Steam Sterilizers Autoclave

,

Medical Food Steam Sterilizers Autoclave

,

rotary film evaporator Autoclaves

Product Description

Autoclave Sterilizer Parameter



Model technical data LPLS-35HD(automatic) LPLS-50HD(automatic) LPLS-75HD(automatic) LPLS100HD(automatic)
Chamber volume 35L(φ318×450)mm 50L(φ340×550) mm 75L(φ400×600) mm 100L(φ440×650) mm
working pressure 0.22MPa
Working temperature 134℃
Max working pressure 0.23 Mpa
Heat average ≤1℃
Timer 0~99min or 0~99hour59min
Adjustment of temperature 105~134℃
Power 2.5Kw/AC220V.50Hz 3Kw/AC220V.50Hz 4.5Kw/AC220V.50Hz
Overall dimension 470×450×1020(mm) 520×500×1150(mm) 550×530×1180 (mm) 580×560×1290 (mm)
Transport dimension 540×540×1140(mm) 580×580×1250(mm) 610×610×1280(mm) 640×640×1360(mm)
G.W/N.W 81Kg/63Kg 94Kg/ 74Kg 113Kg/ 93Kg 125Kg/ 105Kg



Autoclave Sterilizer Description

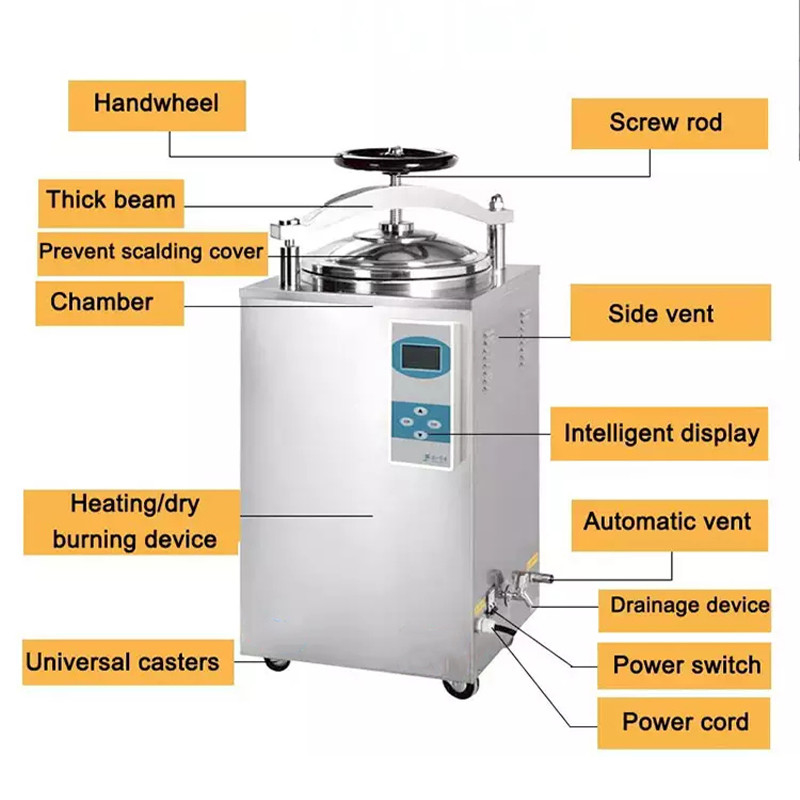

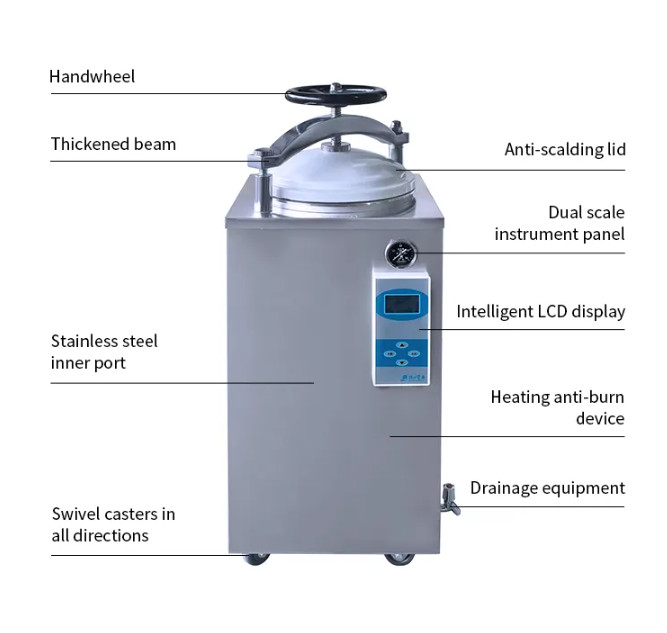

The vertical pressure steam sterilizer consists of a shell, a sterilization barrel, a steam generator, a microcomputer control system, and a power supply system.



Vertical pressure steam sterilizer (LPLS-35HD, LPLS-50HD, LPLS-75HD, LPLS-100HD, referred to as sterilizer) is a device that uses saturated steam to sterilize items. The sterilization chamber structure of this type of sterilizer is a single-layer structure, the steam supply is heated by an intrusive electric heating tube, the gas replacement method is a lower exhaust type, the sealing structure type is a beam structure, and the control method is microcomputer control.



Autocalve Sterilizer Application



Vertical autoclave sterilizers are widely used in the medical, dental, laboratory, and pharmaceutical industries to sterilize medical instruments, equipment, containers, and other objects. They are also used to sterilize liquids, media, and biological waste. Autoclaves are also used in industrial applications such as the processing of food, beverages, and other products.

Hand Wheel Digital Display Vertical Autoclave 35L 50L 75L 100L 150L Liter For Mushroom Canned Food Retort Sterilizer 0Hand Wheel Digital Display Vertical Autoclave 35L 50L 75L 100L 150L Liter For Mushroom Canned Food Retort Sterilizer 1Hand Wheel Digital Display Vertical Autoclave 35L 50L 75L 100L 150L Liter For Mushroom Canned Food Retort Sterilizer 2

Hand Wheel Digital Display Vertical Autoclave 35L 50L 75L 100L 150L Liter For Mushroom Canned Food Retort Sterilizer 3
