Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LPYX-HDD
Video
Video
Video
Video

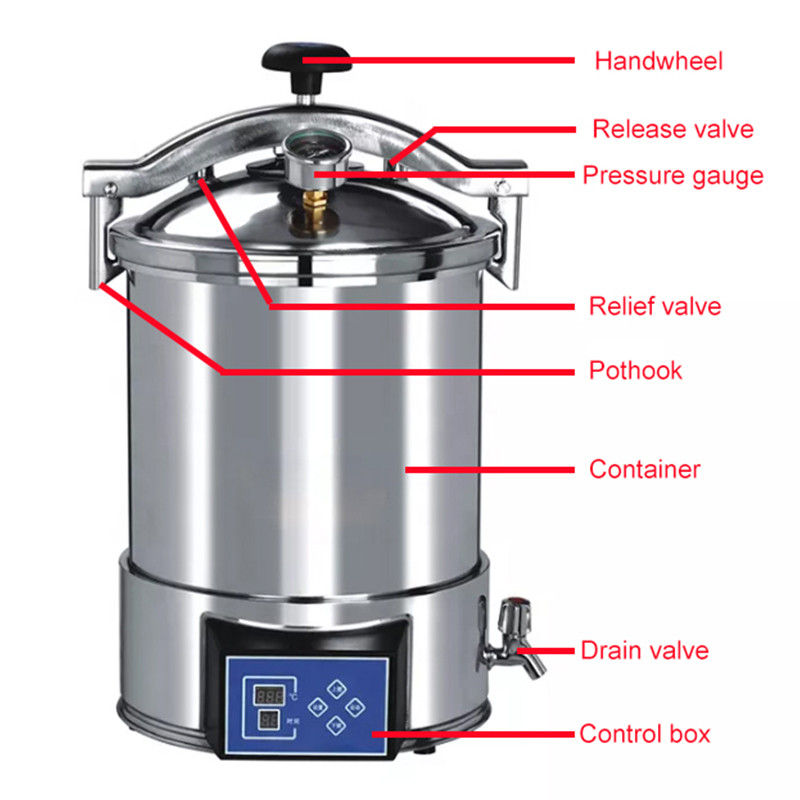

Autoclave 18L 24L High Pressure Steam Vacuum Sterilizer Machine
Operating Steps
Fill water
Please fill water. High water level can fulfill 999 minutes using, that is temperature display window 3 little point light off after power turn on Every time notice to add water due to water should be consumption.
Pile up
Please packing the objects and put in the drum, keep space between packing so as steam penetrate make good result of sterilize.
Seal
Put the sterilizing drum into the container and then.make the hangers of the lid tightly hooking to the container (any position is feasible),to make the lid and the container closedly fit each other
Heating operating
The plug insert the pocket. ( then you can pull up the little piece of the release valve on lid) temperature and time display be lighten and shows zero, enters standby state.
Product Parameter
| Technical Data | LPYX-18HDD | LPYX-24HDD |
| Sterilizing volume | 18L(280*260mm) | 24L(280*390mm) |
| Working pressure | 0.14-0.16MPa | |
| Working temperature | 126℃ | |
| Temperature adjust range | 105-126℃ | |
| Timer range | 0-99 min | |
| Max. safety pressure | 0.165Mpa | |
| Heat average | ≤±1℃ | |
| Power | AC220V.50Hz / 2KW | |
| Dimension | 410×410×630 mm | 410×410×750 mm |
| G.W / N. W | 14/12 KG | 15/14 KG |
