Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LPYX-18HDD
Video
Video
Video
Video

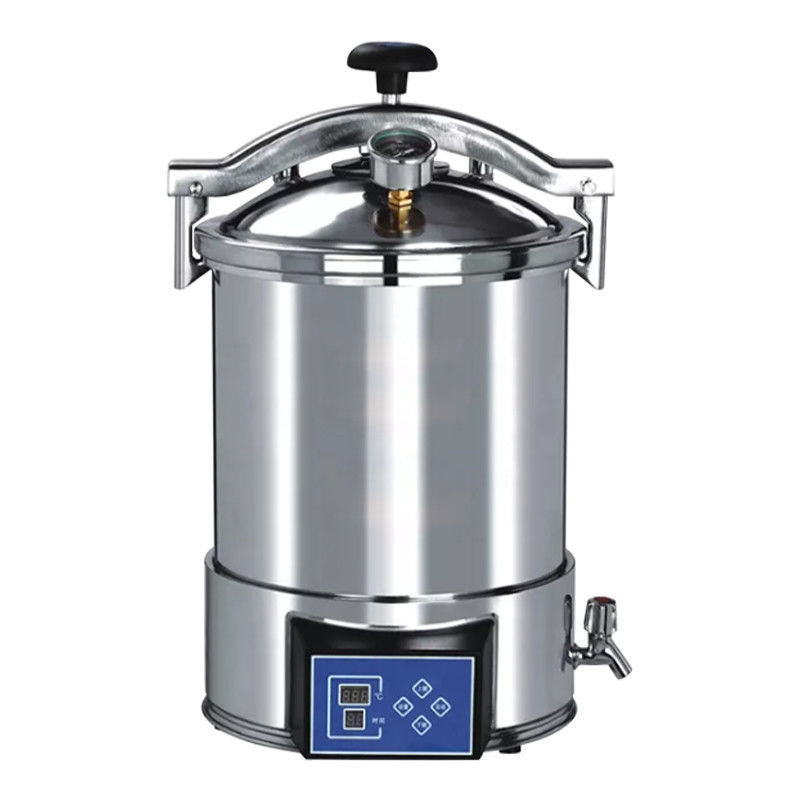

Autoclave Portable Steam Vertical Sterilizer Equipment 18L
Product Parameter
| Product Model | LPYX-18HDD |
| Sterilizing volume | 18L(280*260mm) |
| Working pressure | 0.14-0.16MPa |
| Working temperature | 126℃ |
| Temperature adjust range | 105-126℃ |
| Timer range | 0-99 min |
| Max. safety pressure | 0.165Mpa |
| Heat average | ≤±1℃ |
| Power | AC220V.50Hz / 2KW |
| Dimension | 410×410×630 mm |
| G.W / N. W |
14/12 KG |
Product Parameter
The unit is a sterilizing equipment with pressure steam to sterilize the objects rapidly. It can be use for hospital, health center, clinic, factory health station and science and study institute. Sterilizing for medical instruments, dressing, glassware, solution, medium etc. also can be use for producing high quality drinking water and cooking ware in highland or manufactory.

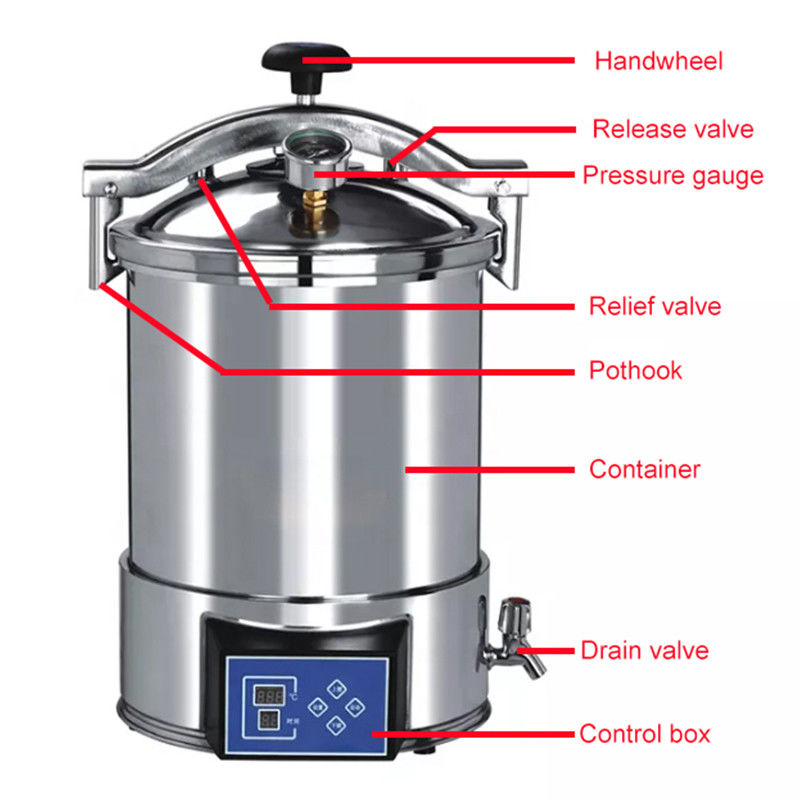

Product Structure
1. The unit equipped with temperature controller, the function of auto thermostatic and keeping pressure be equipped when the temperature reached the pre-set.
2. Also with timer, the unit will auto cut off power and alarm when the setting time is over to fulfill the work.
3. Safety valve, exhaust valve and pressure gauge be installed. The safety valve will auto release the pressure to keep it safety when the pressure over 0.165Mpa, Both of Mpa and temperature can be read on gauge for your reference.
4. The unit adopted immersion type heating tube, with the function of auto pressure control and water lack protection.
5. Both of body and drum made by material 0Gr18Ni9Ti ( S/S), with the advantage of anti-acid, anti-alkali and anti-rust, the main mechanical characteristic higher three time than of the alum-alloy so as to ensure the safety and using time.
Product Details
