Place of Origin:
China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
LS-150LD

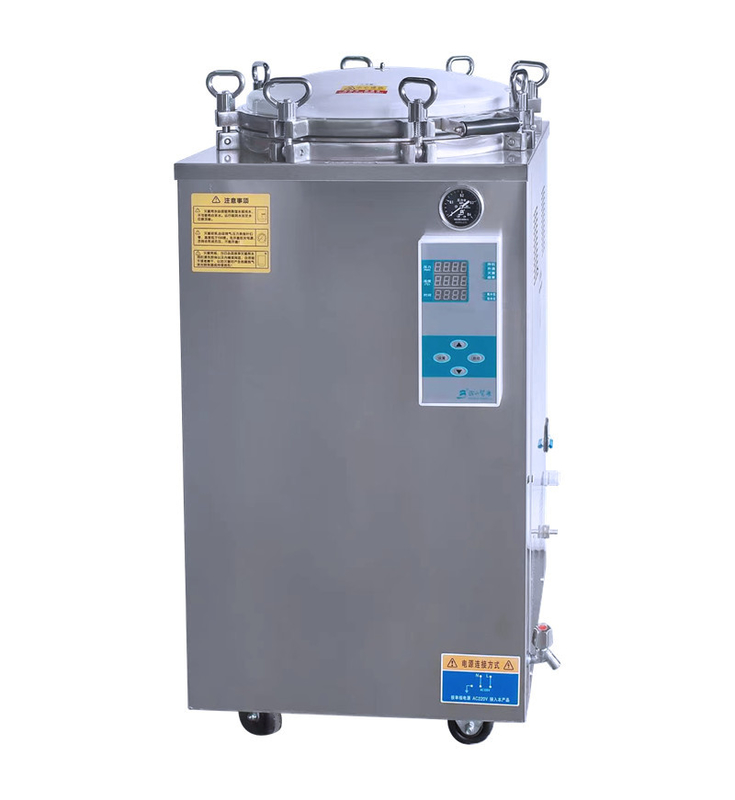

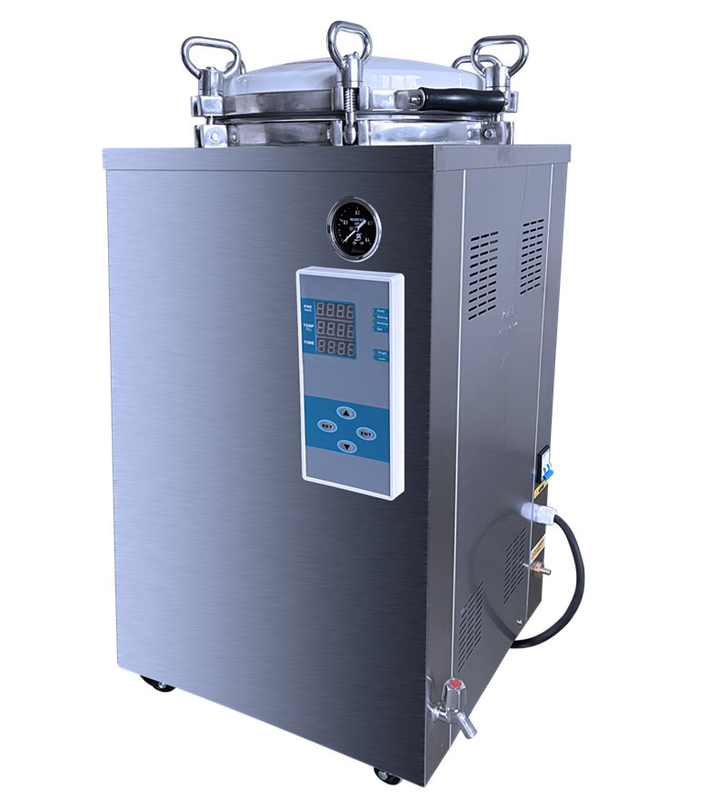

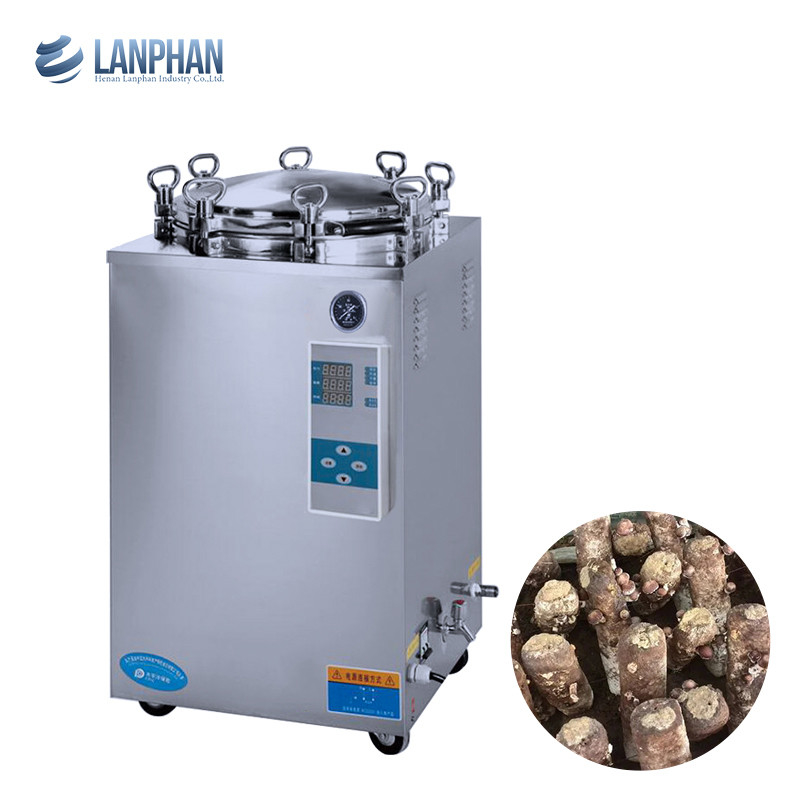

150L Mushroom Growing Equipment Vertical Steam Autoclave Sterilizer
Vertical Steam Autoclave Sterilizer Parameter
Model technical data |
LPLS-35LD (automatic) |
LPLS-50LD (automatic) |
LPLS-75LD (automatic) |
LPLS-100LD (automatic) |
LPLS-120LD (automatic) |
LPLS-150LD (automatic) |
|||
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm | 120L(φ480×660)mm | 150L(φ510×740)mm | |||
working pressure | 0.22MPa | ||||||||
Working temperature | 134℃ | ||||||||
Max working pressure | 0.23 Mpa | ||||||||
Heat average | ≤±1℃ | ||||||||
Timer | 0~99min or 0~99hour59min | ||||||||
Adjustment of temperature | 105~134℃ | ||||||||
Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW AC220V.50Hz | 6KW/AC220V.50Hz | |||||
Overall dimension | 470×450×840(mm) | 520×500×970(mm) | 550×530×990(mm) | 580×560×1060(mm) | 630×610×1130(mm) | 660×640×1130(mm) | |||
Transport dimension | 540×540×970(mm) | 580×580×1090(mm) | 610×610×1110(mm) | 640×640×1170(mm) | 690×690×1240(mm) | 730×730×1240(mm) | |||
G.W/N.W | 61Kg/ 46Kg | 73Kg/56Kg | 87Kg/67Kg | 95Kg/73Kg | 116Kg/ 101Kg | 130Kg/111Kg |
Vertical Steam Autoclave Sterilizer Description
The vertical pressure steam sterilizer is consists of the shell, the sterilizing drum, the steam generator, the control system, and the power supply system.
The Vertical pressure steam sterilizers( hereinafter referred to as sterilizers in short) are equipments that sterilize articles through saturated steam.
The sterilization chamber is a single-layer structure and equipped with steam generator to create the steam itself. It discharges the steam at the lower side of the unit for the air exchange of the chamber, the tighten bolts seal the cover, and with digital controlled the whole cycle.
Why Choose us
Are you looking for a high-quality, reliable sterilizer autoclave? If so, then you’ve come to the right place. We are proud to offer our customers the most advanced and safest sterilizer autoclaves available on the market today. Our team of highly skilled professionals ensures that all products we carry meet or exceed industry standards in quality and performance. With an array of options from leading manufacturers, you can be confident that we will have the perfect solution for your needs.
