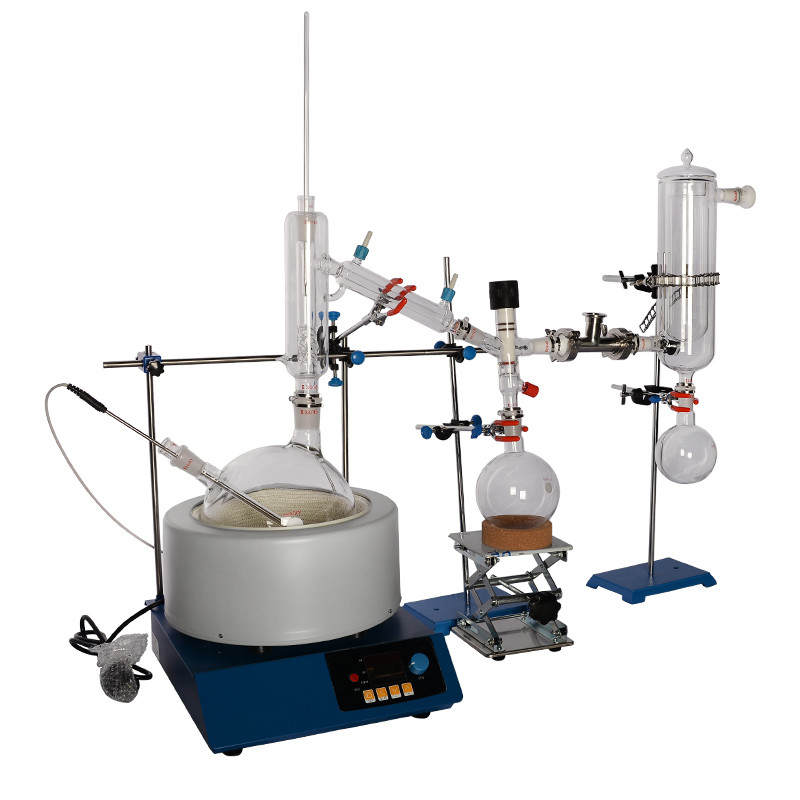

Fractional Extraction Short Path Distillation Equipment 5L 2000rpm

Minimum Order Quantity : 1 Price : Can discuss
Packaging Details : carton or wooden case package, customized package is available. Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 1000
Place of Origin: Henan Brand Name: Lanphan
Certification: CE Model Number: SD-5L

Detail Information

Name: 5L Short Path Distillation Model: SD-5L
Material: G3.3 Precision: ±1 ℃
Operating Temperature: 5-40℃
High Light:

Fractional Short Path Distillation Equipment


Short Path Distillation Equipment 5L


2000rpm Short Path Distillation Equipment

Product Description

5l short path distiallation fractional distiller extraction machine

Product Description

Many materials, including petroleum,heavy residue, chemical medicine, medicine and natural food, health care products, fatty acid and so on, are generally heat sensitive and viscous. Moreover, they also possess high boiling points. Separating these materials from their components and maintaining the quality of such products are only able to distillate at low boiling points or even lower than the boiling temperature.


When the operating vacuum is about 500 Pa, it is capable of conducting in the scratch film evaporator or falling film evaporator. However, if the distillation is operate under the high vacuum status( for instance, the pressure ranges from 0.001 to 100Pa), problems are bound to cause. Therefore, it is necessary to choose the evaporator which the vapor pressure id no less than pressure difference caused by heating and cooling surface, and the evaporator quipped with outside condenser is excluded from the distillation process under the high vacuum range.


In contrast, the short-path evaporator is quietly adaptable to this occasion, and the condenser should be placed within evaporator and opposite to heat distillation. Therefore, as a relatively new equipment which is not widely applied in industrial production, the short-path distillation is able to solve many tough issues that normal distillation technical cannot conquered.


Product Parameters

5L-III Short Path Distillation
Power Supply 110V-220V, 50/60Hz
Speed Regulation Range 100-2000rpm, stepless speed regulation
Motor Power 40W,DC14-24V
Stirring Volumn 5L
Heating Power 1100W
Temperature Control Accuracy ±1℃
Temperature Control Mode Intelligent digital display, SCR control, internal and external sensors for measuring temperature
Heating Temperature The maximum surface temperature is 380℃.
Boiling The water can boil in 10-20 minutes.

Application field

The short path distillation can be widely used in all aspects of the national economy, especially suitable for the separation of high boiling point, heat sensitive and easily oxidized materials. Nowadays, the short path distillation has been applied in the following fields successfully:

(1) Education.

(2) Food: such as refinement of fish oil and high carbon alcohol, deacidification of oils and fats, and separation of mixed oils and fats, etc.

(3) Medicine: such as effectively separation of natural active materials as well as purification and production of glucose derivative and natural vitamin A, D, E, B and other substances.

(4) Fine chemical: such as purification of aromatic oil purification and polymer intermediate, extraction of lanolin and so on

(5) Makeup and other fields.

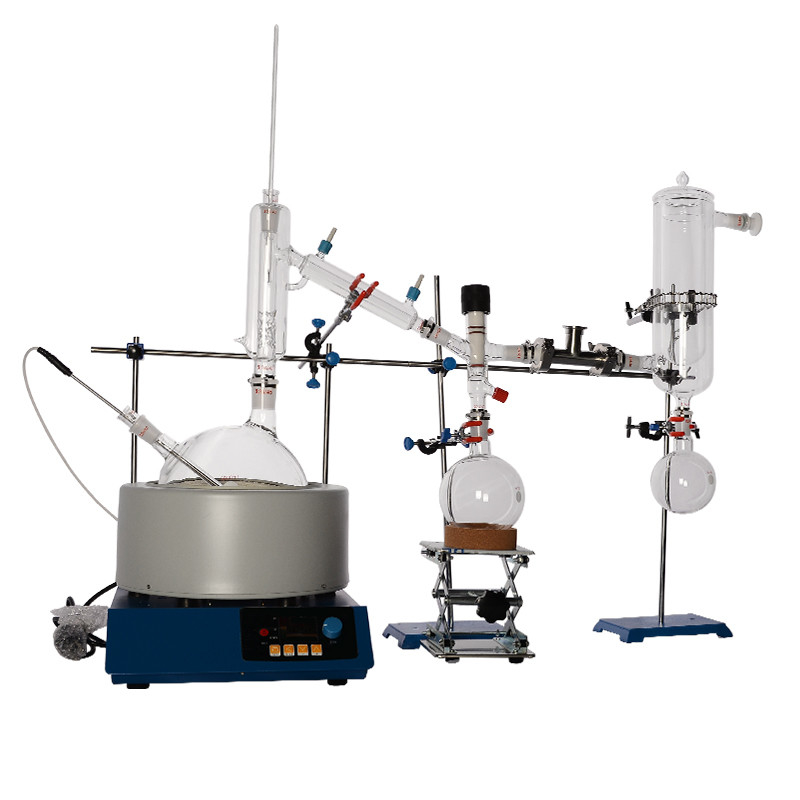

Fractional Extraction Short Path Distillation Equipment 5L 2000rpm 0
