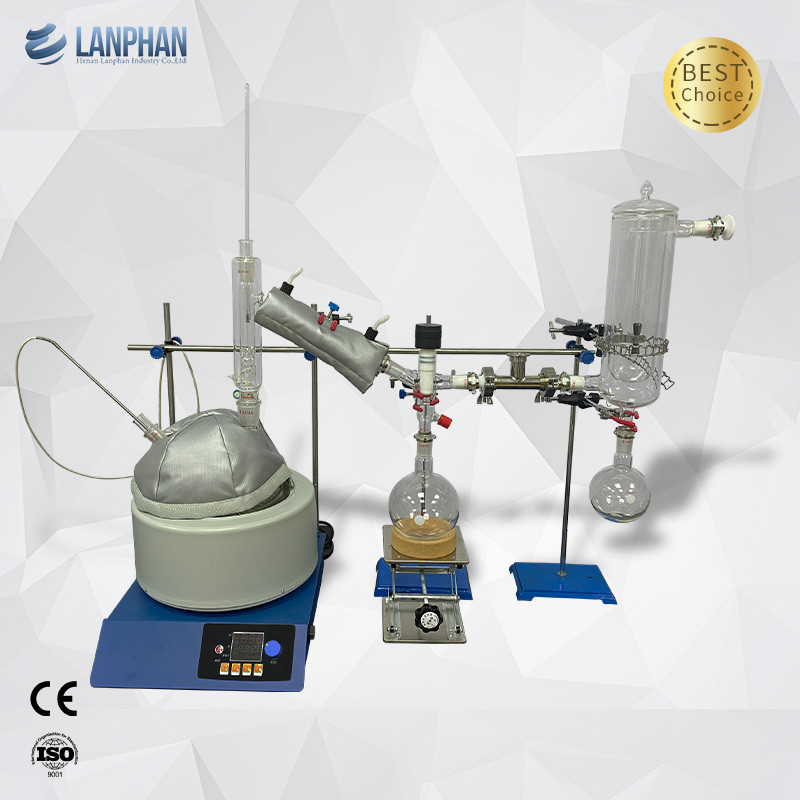

Laboratory Short Path Distillation Unit Glassware 220V 5L

Laboratory Short Path Distillation Unit Glassware 220V 5L

Laboratory Short Path Distillation Unit

250W Short Path Distillation Unit

250W short path distillation glassware

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

SD-5

Contact Us
Request A Quote
Product Details
Product Name:
Short Path Distillation
Process:
Rotary
Power:
250W
Max Vacuum:
399.9Pa(<3mmHg)
Voltage:
380V/110V
Material:
G3.3
Certification:
CE
Weight:
18/24kg
Highlight:

Laboratory Short Path Distillation Unit

,

250W Short Path Distillation Unit

,

250W short path distillation glassware

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$829
Packaging Details
Wooden Box or Customized Packing
Delivery Time
10-12 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Sets per Month
Product Description

Laboratory Short Path Distillation Unit Glassware 220V 5L



Product Description



As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.



Product Features

  1. High yield;
  2. High temperature resistance;
  3. Excellent sealing performance;
  4. High transparency;
  5. Durable material;
  6. Good corrosion resistance;
  7. Intelligent temperature control, and magnetic stirring.

Basic constitution:



The column cylinder is equipped with outside heating mantle, rotor and inside condenser. The fixing frame of rotor is precisely equipped with scratch film and anti-splash device. The inside condenser is placed in the center of evaporator, and the rotor should rotor between column cylinder and condenser.



Distillation process:



The material should add from the top of evaporator and continuously spread to the heating surface through the material covered on rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharge through the discharge tube on the bottom of evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.



Product Parameters



Short-Path Distillation
ModelSD-2SD-5SD-10SD-20
MaterialG3.3
Heating Capacity(ml)2000500010002000
Heating temperature(°C)Room temperature -250
Accuracy(°C)±1
Vaccuum Degree(Mpa)0.098
Working temperature(°C)5-40
Voltage220V/50Hz or 110V/60Hz380V/50Hz
Package Size450*450*600580*580*735850*850*600
Weight182430

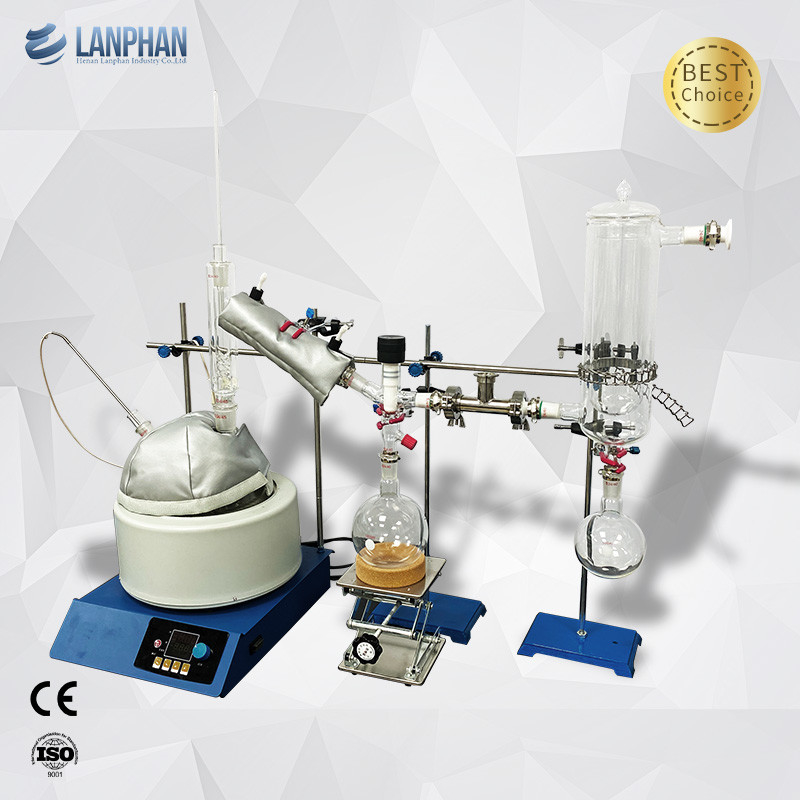

Glassware Laboratory Short Path Distillation Lab

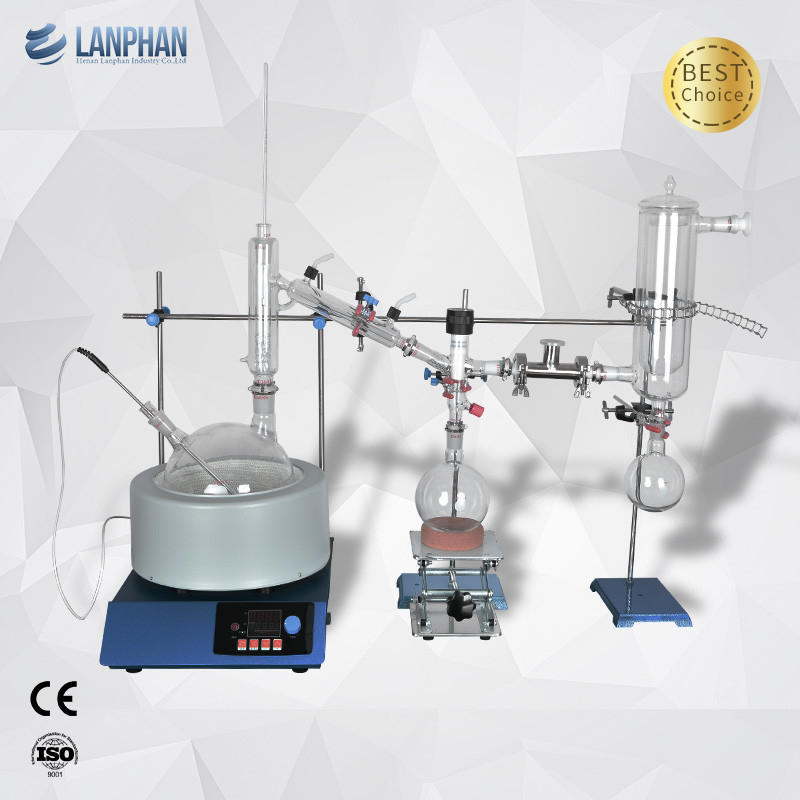

Glassware Laboratory Short Path Distillation Lab

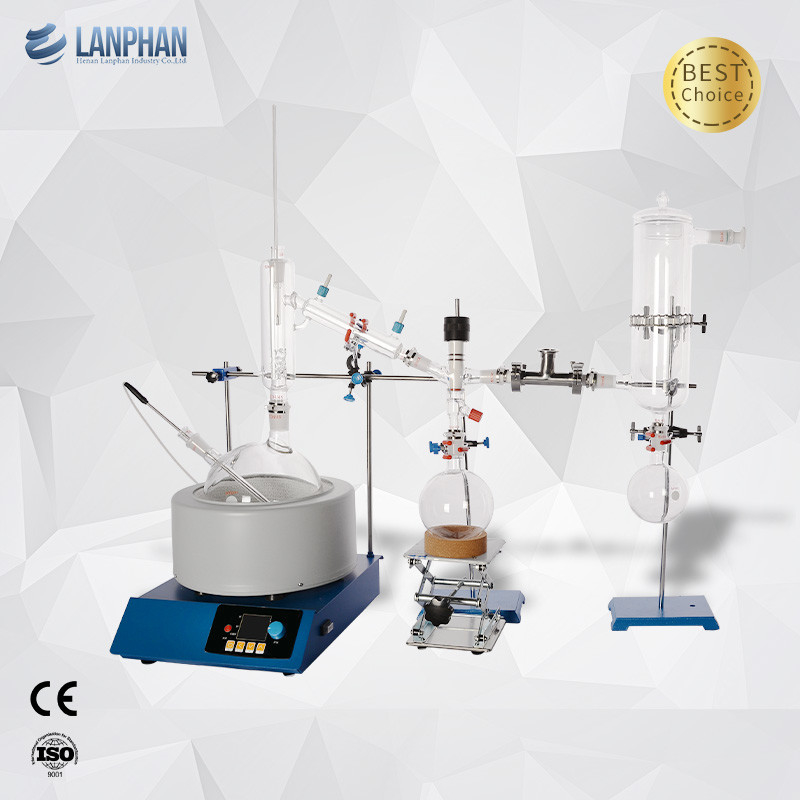

Glassware Laboratory Short Path Distillation Lab

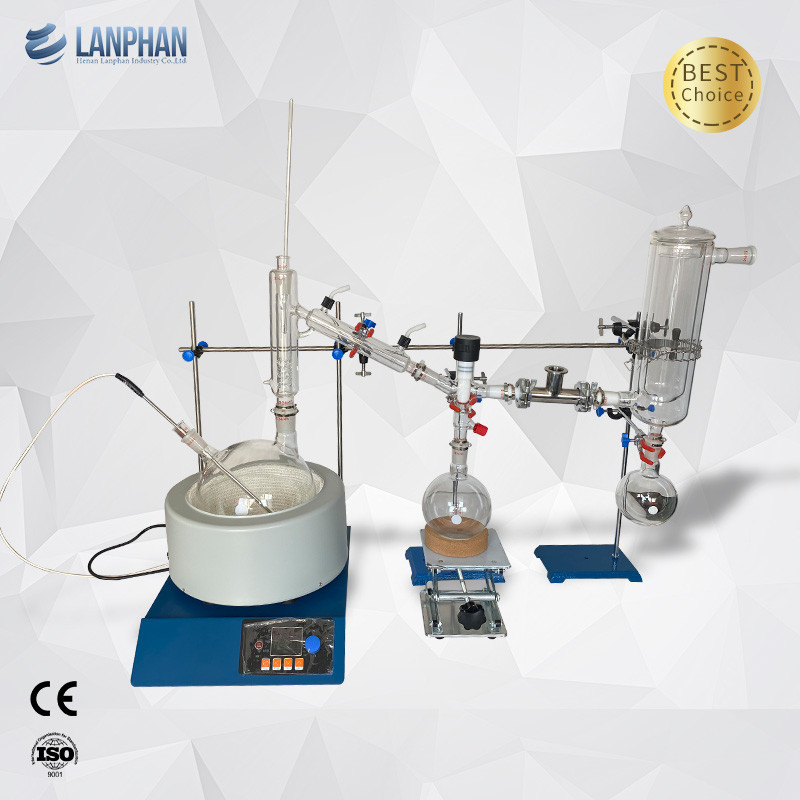

Glassware Laboratory Short Path Distillation Lab

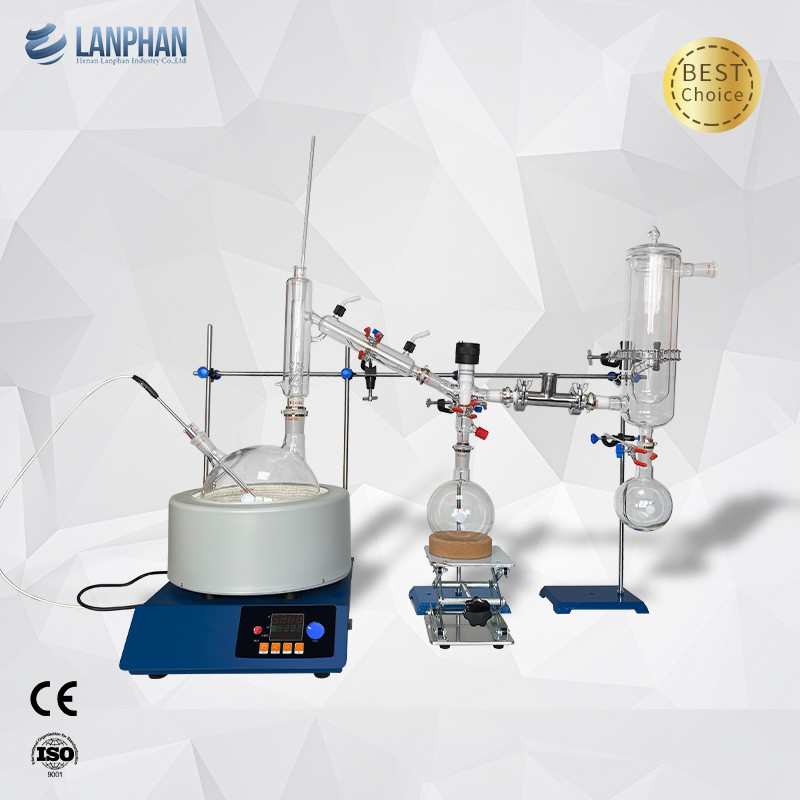

Glassware Laboratory Short Path Distillation Lab
