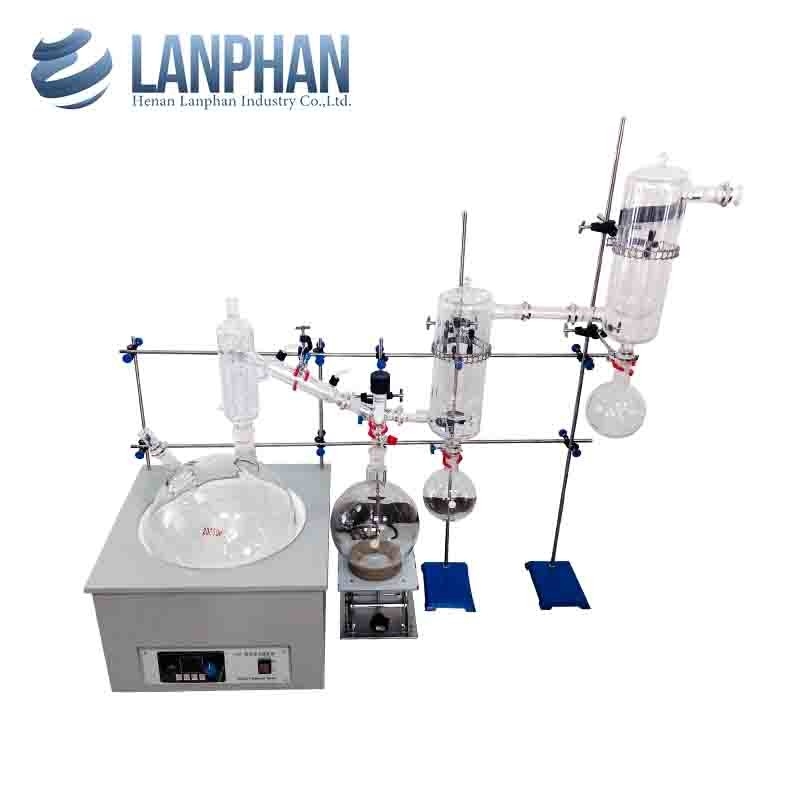

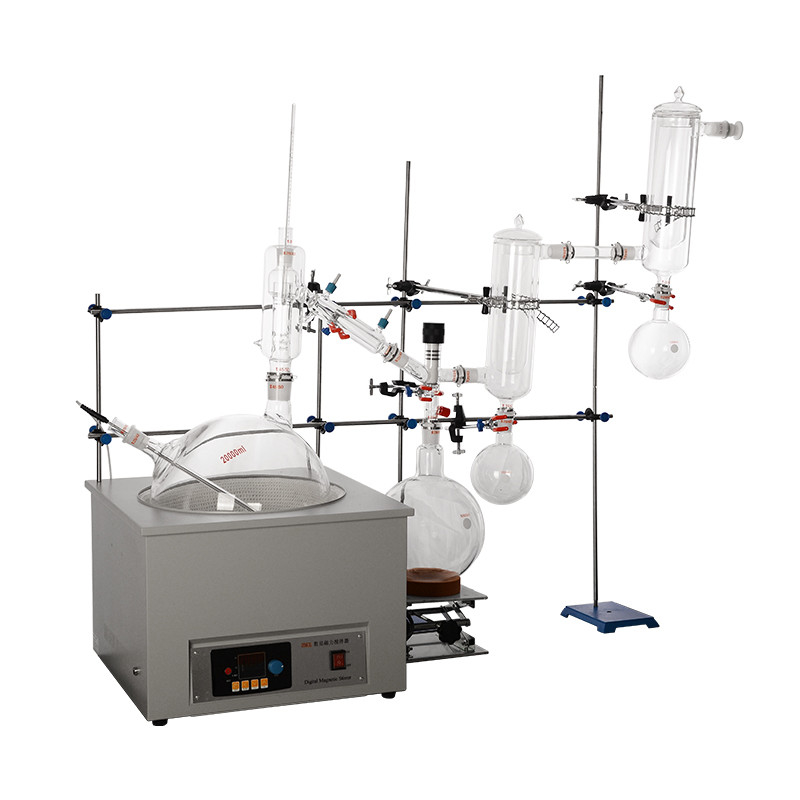

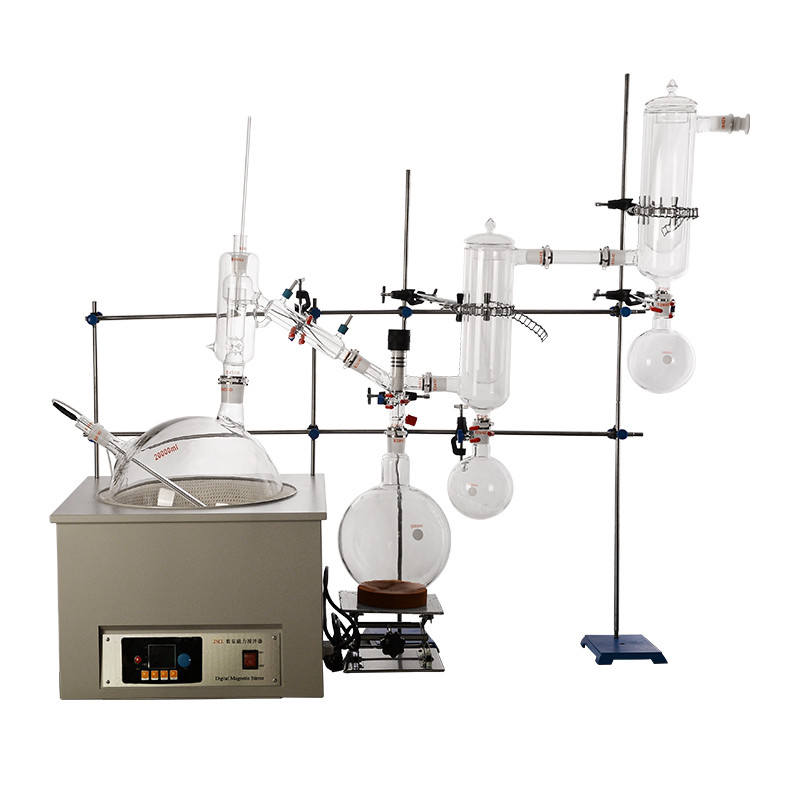

20 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit

Minimum Order Quantity : 1 Price : 1720
Packaging Details : 585*585*405mm Delivery Time : 5-8 work days
Payment Terms : L/C, D/A, Western Union Supply Ability : 1000
Place of Origin: China Brand Name: Lanphan
Certification: ISO Model Number: 20L-III

Detail Information

Name: Short Path Distillation Temperature Control Accuracy: ±1℃
Furnace Silk: Cr20Ni80 Total Volume: 20L
High Light:

20 Liter Short Path Distillation Equipment

,

Short Path Fractional Glass Distillation Kit

,

Intelligent Glass Distillation Kit

Product Description

product description:
This equipment is a thermodynamic separation process. It uses the different boiling points of the components in the mixed liquid or liquid-solid system to evaporate the low-boiling components and then condense to separate the entire components. It is a unit operation process of evaporation and condensation. A combination of unit operations. It is a liquid-liquid separation technology. Scope of application

20 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit 0

Features:
1. Large distillation volume

1. Heat and high temperature resistance

2. Good sealing

3. High transparency

4. The material is stable

5. Good corrosion resistance

6. Intelligent temperature control, magnetic stirring

20 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit 1

1:New function: vacuum measuring

2:The vertical distillation head and its increased diameter can enhance the evaporation efficiency

3:Change the G14 vacuum outlet of cold trap into the 24/40 one, accelerating the vacuum pumping rate.

4:The collecting device can be controlled by a PTFE vacuum valve instead of being passively received

5:The stainless steel poling support makes it more stable

20 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit 2

Advantages of short-range new products:
1. Sensor upgrade-there is a thermometer casing outside the thermometer that indirectly contacts the material, and the sealing is better

2. The vacuum diameter becomes larger, to obtain a higher vacuum degree, and the pumping speed increases

3. Optimized receiving method, more convenient operation (3 fractionation flasks become 1 sustainable discharge valve)

4. Higher evaporation efficiency

5. The distiller adopts a large distiller to increase the evaporation area/volume

20 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit 3

Precautions for use:
1. Check whether the inlet and outlet valves of the refrigeration equipment are normally opened and the pressure is within the normal range.

2. Check whether the power of each device is in the on position.

3. The equipment adopts electric heating, and the surface temperature of the outer heating body is relatively high. Do not touch it with your hands to avoid burns.

4. Check whether the ethanol in the low-temperature thermostat is sufficient.

5. Pay attention to whether the liquid nitrogen in the liquid nitrogen tank is sufficient.

6. Check whether the connection between the cold well and the equipment is airtight.

20 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit 420 Liter Short Path Distillation Equipment Fractional Glass Distillation Kit 5

--
