As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.

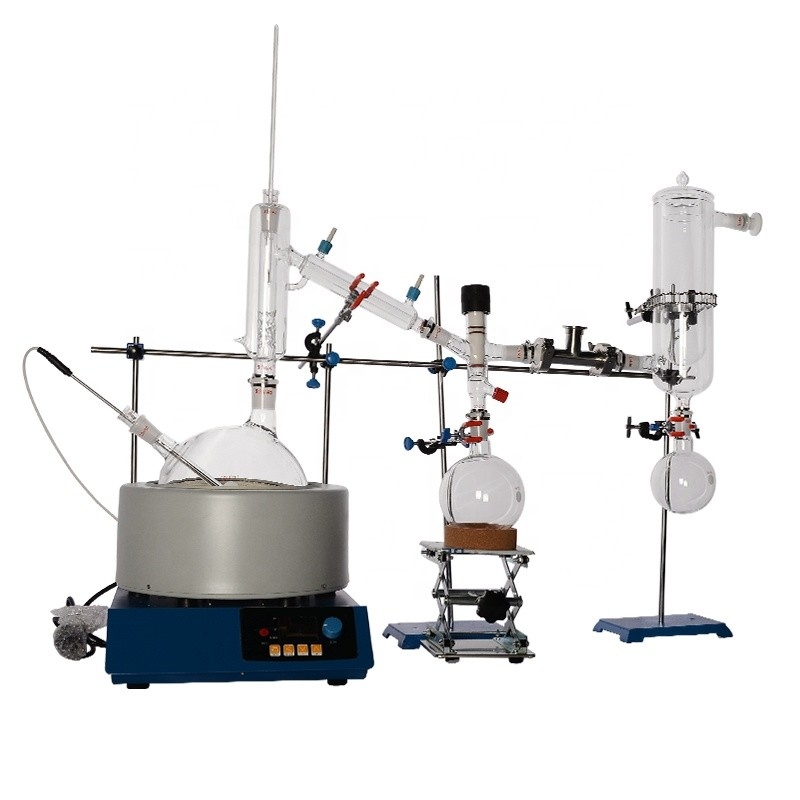

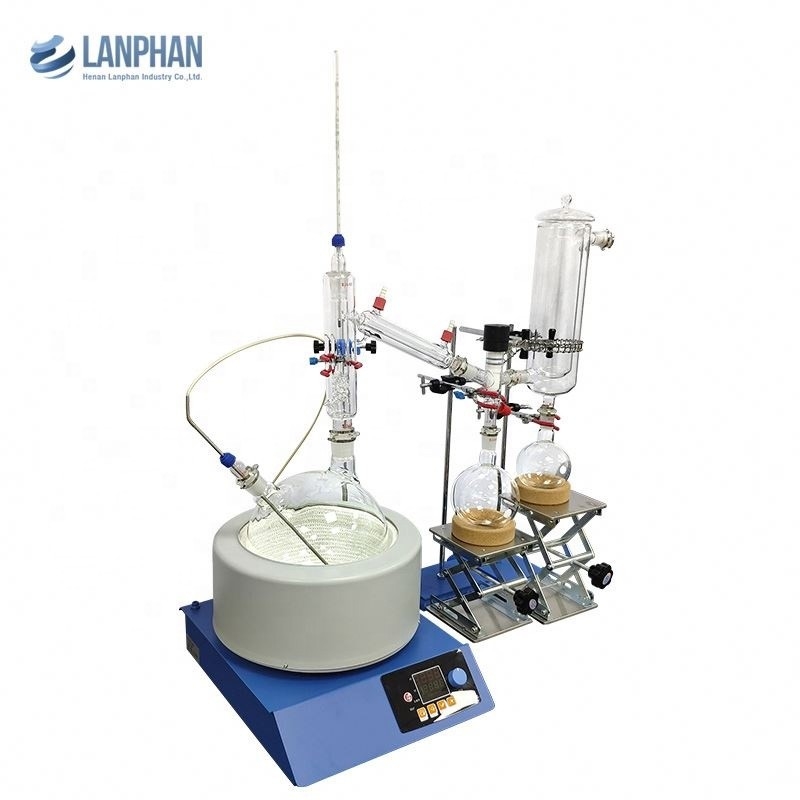

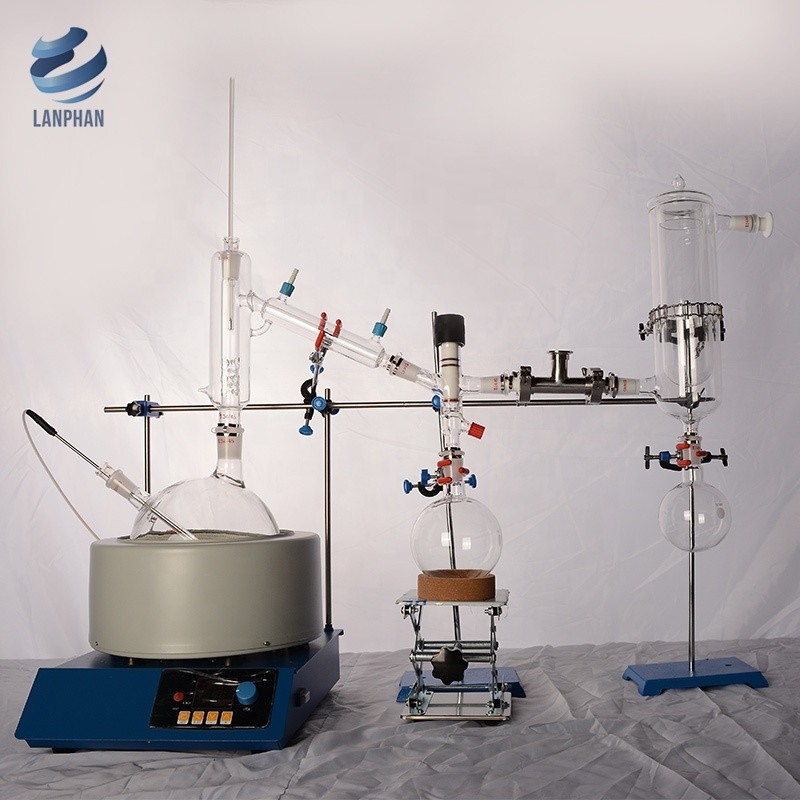

5L-III Short Path Distillation
Power Supply
110V-220V, 50/60Hz
Speed Regulation Range
100-2000rpm, stepless speed regulation
Motor Power
40W,DC14-24V
Stirring Volumn
5L
Heating Power
1100W
Temperature Control Accuracy
±1℃
Temperature Control Mode
Intelligent digital display, SCR control, internal and external sensors for measuring temperature
Heating Temperature
The maximum surface temperature is 380℃
Boiling
The water can boil in 10-20 minutes
Furnace Silk
Cr20Ni80
Insulating Layer
Alkali-free glass fiber, temperature resistant 450 degrees
Insulating Coefficient
It is equal or greater than 500Ω when the relative humidity is equal or less than 35%
Heat Preservation Layer
Exclusive use of environmental insulation body that adopts the aluminum silicate cotton shaped by vacuum
Total Volume
5L
Effective Reaction Volume
2.5L
Details Images
Application Fields
The short path distillation can be widely used in all aspects of the national economy, especially suitable for the separation of high boiling point, heat sensitive and easily oxidized materials. Nowadays, the short path distillation has been applied in the following fields successfully:
(1)Education.
(2)Food: such as refinement of fish oil and high carbon alcohol, deacidification of oils and fats, and separation of mixed oils and fats, etc.
(3)Medicine: such as effectively separation of natural active materials as well as purification and production of glucose derivative and natural vitamin A, D, E, B and other substances.
(4)Fine chemical: such as purification of aromatic oil purification and polymer intermediate, extraction of lanolin and so on (5)Makeup and other fields.
Product packaging
Packing:
The products will be packaged by plastic wrap and foam, and then put into wooded cases.
Shipping
We will deliver goods by DHL, UPS, TNT, EMS and other international express.
You can choose your own freight forwarder as well.
